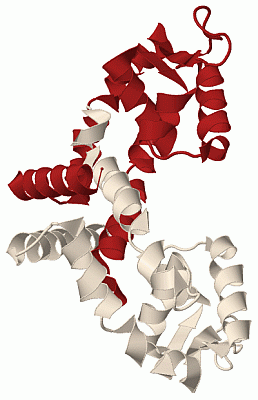

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

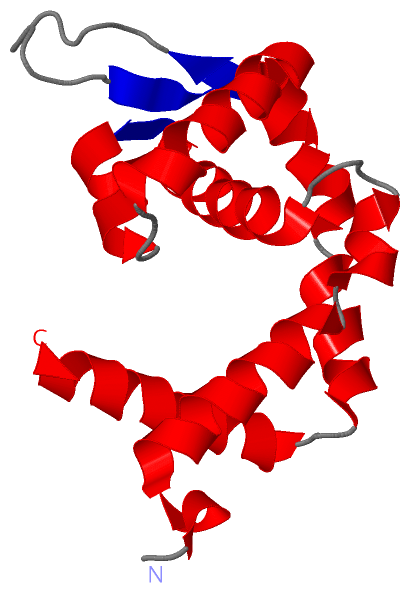

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

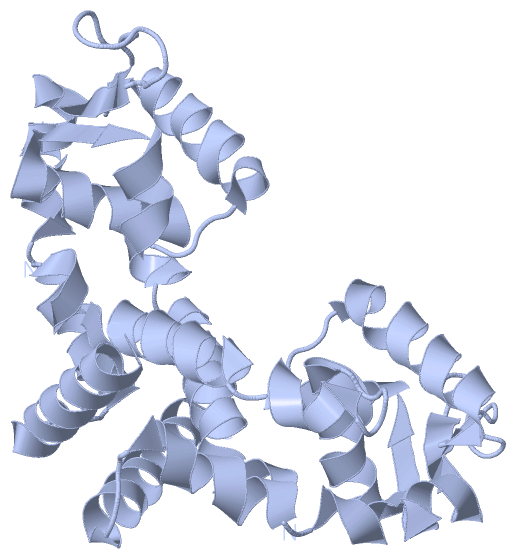

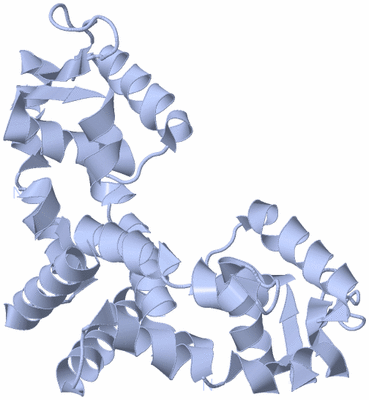

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  X-RAY CRYSTAL STRUCTURE OF APO-OHRRC15S IN REDUCED FORM: MARR FAMILY PROTEIN

Authors :  M. Hong, M. Fuangthong, J. D. Helmann, R. G. Brennan
Date :  31 Mar 05  (Deposition) - 25 Oct 05  (Release) - 16 Nov 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Ohrr, Marr Family, Bacterial Transcription Factor, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Hong, M. Fuangthong, J. D. Helmann, R. G. Brennan
Structure Of An Ohrr-Ohra Operator Complex Reveals The Dna Binding Mechanism Of The Marr Family.
Mol. Cell V. 20 131 2005
PubMed-ID: 16209951  |  Reference-DOI: 10.1016/J.MOLCEL.2005.09.013

(-) Compounds

Molecule 1 - ORGANIC HYDROPEROXIDE RESISTANCE TRANSCRIPTIONAL REGULATOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET16X
    Expression System Strain: BL21(DE3)/PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: OHRR
    Mutation: YES
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1Z91)

(-) Sites  (0, 0)

(no "Site" information available for 1Z91)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Z91)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Z91)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Z91)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_MARR_2PS50995 MarR-type HTH domain profile.OHRR_BACSU11-141  1A:11-141
Biological Unit 1 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_MARR_2PS50995 MarR-type HTH domain profile.OHRR_BACSU11-141  2A:11-141

(-) Exons   (0, 0)

(no "Exon" information available for 1Z91)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:137
 aligned with OHRR_BACSU | O34777 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:137
                                    17        27        37        47        57        67        77        87        97       107       117       127       137
           OHRR_BACSU     8 MKLENQLCFLLYASSREMTKQYKPLLDKLNITYPQYLALLLLWEHETLTVKKMGEQLYLDSGTLTPMLKRMEQQGLITRKRSEEDERSVLISLTEDGALLKEKAVDIPGTILGLSKQSGEDLKQLKSALYTLLETLH 144
               SCOP domains d1z91a1 A:8-144 Organic hydroperoxide resistance transcriptional regulator OhrR                                                           SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------MarR-1z91A01 A:38-96                                       ------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhh....hhhhhhhhhhhhhhheeehhhhhhh...hhhhhhhhhhhhhhhh.ee...........eeeehhhhhhhhhhh.hhhhhhhhhh...hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---HTH_MARR_2  PDB: A:11-141 UniProt: 11-141                                                                                          --- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1z91 A   8 MKLENQLSFLLYASSREMTKQYKPLLDKLNITYPQYLALLLLWEHETLTVKKMGEQLYLDSGTLTPMLKRMEQQGLITRKRSEEDERSVLISLTEDGALLKEKAVDIPGTILGLSKQSGEDLKQLKSALYTLLETLH 144
                                    17        27        37        47        57        67        77        87        97       107       117       127       137
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1Z91)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: HTH (544)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (OHRR_BACSU | O34777)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0044212    transcription regulatory region DNA binding    Interacting selectively and non-covalently with a DNA region that regulates the transcription of a region of DNA, which may be a gene, cistron, or operon. Binding may occur as a sequence specific interaction or as an interaction observed only once a factor has been recruited to the DNA by other factors.
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1z91)

  Sites
(no "Sites" information available for 1z91)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1z91)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1z91
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  OHRR_BACSU | O34777
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  OHRR_BACSU | O34777
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        OHRR_BACSU | O34777: 1z9c

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1Z91)
