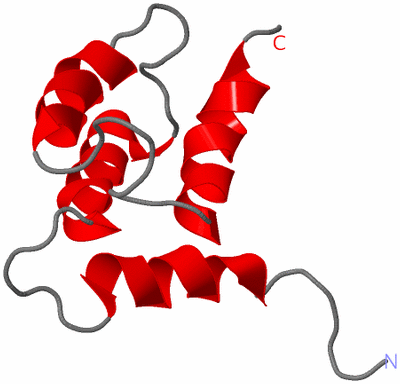

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

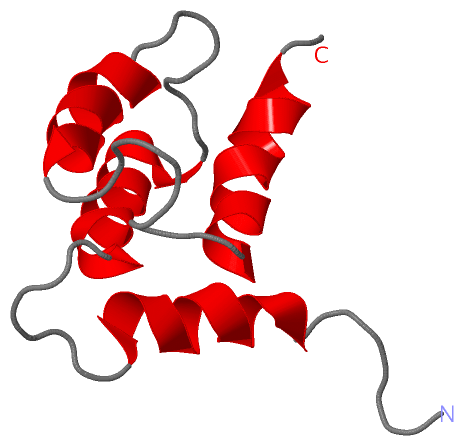

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF CALSENSIN, ENERGY MINIMIZED AVERAGE STRUCTURE.

Authors :  D. V. Venkitaramani, D. B. Fulton, A. H. Andreotti, K. M. Johansen, J. Johansen
Date :  19 Feb 05  (Deposition) - 01 Apr 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Calsensin, Calcium-Binding Protein Ef-Hand, Helix-Loop- Helix, Nervous System, Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. V. Venkitaramani, D. B. Fulton, A. H. Andreotti, K. M. Johansen, J. Johansen
Solution Structure And Backbone Dynamics Of Calsensin, An Invertebrate Neuronal Calcium-Binding Protein.
Protein Sci. V. 14 1894 2005
PubMed-ID: 15937283  |  Reference-DOI: 10.1110/PS.051412605
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CALSENSIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PGEX4T3
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Organism Scientific: HAEMOPIS MARMORATA
    Organism Taxid: 38567
    Synonym: LAN3-6 ANTIGEN

 Structural Features

(-) Chains, Units


NMR Structure :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YX7)

(-) Sites  (0, 0)

(no "Site" information available for 1YX7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YX7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YX7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YX7)

(-) PROSITE Motifs  (2, 4)

NMR Structure (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1EF_HAND_2PS50222 EF-hand calcium-binding domain profile.CLSS_HAEMA4-39
46-81		  2A:4-39
A:46-81
2EF_HAND_1PS00018 EF-hand calcium-binding domain.CLSS_HAEMA17-29
59-71		  2A:17-29
A:59-71

(-) Exons   (0, 0)

(no "Exon" information available for 1YX7)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:83
 aligned with CLSS_HAEMA | Q25088 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:83
                                    10        20        30        40        50        60        70        80
            CLSS_HAEMA    1 MACKVKAELEAAFKKLDANGDGYVTALELQTFMVTLDAYKALSKDKVKEASAKLIKMADKNSDGKISKEEFLNANAELLCQLK 83
               SCOP domains d1yx7a_ A: automated matches                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------------------------------------------efhand-1yx7A01 A:52-78     ----- Pfam domains (1)
           Pfam domains (2) ---------------------------------------------------efhand-1yx7A02 A:52-78     ----- Pfam domains (2)
         Sec.struct. author ......hhhhhhhhhhh.......hhhhhhhhhhhhh.........hhhhhhhhhh..........hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---EF_HAND_2  PDB: A:4-39 UniProt: 4-39------EF_HAND_2  PDB: A:46-81             -- PROSITE (1)
                PROSITE (2) ----------------EF_HAND_1    -----------------------------EF_HAND_1    ------------ PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------- Transcript
                  1yx7 A  1 MACKVKAELEAAFKKLDANGDGYVTALELQTFMVTLDAYKALSKDKVKEASAKLIKMADKNSDGKISKEEFLNANAELLCQLK 83
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1YX7)

(-) Pfam Domains  (1, 2)

NMR Structure
(-)
Clan: EF_hand (270)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (CLSS_HAEMA | Q25088)
molecular function
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1yx7)

  Sites
(no "Sites" information available for 1yx7)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1yx7)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
