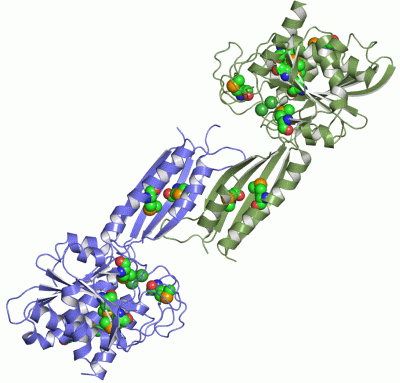

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

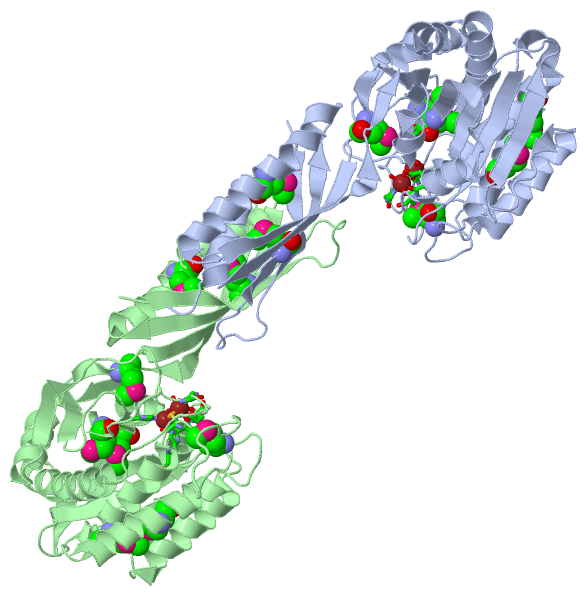

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BACILLUS SUBTILIS YXEP PROTEIN (APC1829), A DINUCLEAR METAL BINDING PEPTIDASE FROM M20 FAMILY

Authors :  G. Minasov, L. Shuvalova, J. S. Brunzelle, F. R. Collart, W. F. Anderson Center For Structural Genomics (Mcsg)
Date :  08 Feb 05  (Deposition) - 22 Mar 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B
Keywords :  M20 Family Peptidase, Dinuclear Metal Binding, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Minasov, L. Shuvalova, J. S. Brunzelle, F. R. Collart, W. F. Anderso
Structure Of Bacillus Subtilis Yxep Protein, A Dinuclear Metal Binding Peptidase From M20 Family
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PROTEIN YXEP
    Chains: A, B
    EC Number: 3.5.1.14
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PMCSG7
    Expression System Strain: BL21-DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: YXEP
    Mutation: YES
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 20)

Asymmetric/Biological Unit (2, 20)
No.NameCountTypeFull Name
1MSE16Mod. Amino AcidSELENOMETHIONINE
2NI4Ligand/IonNICKEL (II) ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:98 , HIS A:100 , GLU A:133 , GLU A:134 , HIS A:158 , NI A:382 , HOH A:383 , HOH A:489BINDING SITE FOR RESIDUE NI A 381
2AC2SOFTWARECYS A:98 , GLU A:134 , HIS A:350 , NI A:381 , HOH A:383 , HOH A:385BINDING SITE FOR RESIDUE NI A 382
3AC3SOFTWARECYS B:98 , HIS B:100 , GLU B:133 , GLU B:134 , HIS B:158 , NI B:382 , HOH B:383 , HOH B:493BINDING SITE FOR RESIDUE NI B 381
4AC4SOFTWARECYS B:98 , GLU B:134 , HIS B:350 , NI B:381 , HOH B:383 , HOH B:386BINDING SITE FOR RESIDUE NI B 382

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YSJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1YSJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YSJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YSJ)

(-) Exons   (0, 0)

(no "Exon" information available for 1YSJ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:359
 aligned with YXEP_BACSU | P54955 from UniProtKB/Swiss-Prot  Length:380

    Alignment length:378
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371
           YXEP_BACSU     2 ADKAFHTRLINMRRDLHEHPELSFQEVETTKKIRRWLEEEQIEILDVPQLKTGVIAEIKGREDGPVIAIRADIDALPIQEQTNLPFASKVDGTMHACGHDFHTASIIGTAMLLNQRRAELKGTVRFIFQPAEEIAAGARKVLEAGVLNGVSAIFGMHNKPDLPVGTIGVKEGPLMASVDRFEIVIKGKGGHAGIPNNSIDPIAAAGQIISGLQSVVSRNISSLQNAVVSITRVQAGTSWNVIPDQAEMEGTVRTFQKEARQAVPEHMRRVAEGIAAGYGAQAEFKWFPYLPSVQNDGTFLNAASEAAARLGYQTVHAEQSPGGEDFALYQEKIPGFFVWMGTNGTEEWHHPAFTLDEEALTVASQYFAELAVIVLETI 379
               SCOP domains --d1ysja1 A:4-177,A:293-379 Protein YxeP                                                                                                                                        d1ysja2 A:17        8-292 Protein Yxe           P                                                                  d1ysja1 A:4-177,A:293-379 Protein YxeP                                                  SCOP domains
               CATH domains 1ysjA01 A:2-174,A:291-379 Zn peptidases                                                                                                                                      ---1ysjA02 A:17        8-290  [code=3.30           .70.360, no name defined]                                        1ysjA01 A:2-174,A:291-379 Zn peptidases                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhh..ee.........eeeeee......eeeeeee.........................hhhhhhhhhhhhhhhhhhhhhhh..eeeeeee......hhhhhhhhh.....eeeeeeeeee......eeee..eeee..eeeeeeeee..--------...hhhhhhhhhhhhhh-----------..eeeeeeeee.........eeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeee..eeehhhhhhhhhhhhhhh..eeee........hhhhhhh...eeeeeee................hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1ysj A   2 ADKAFHTRLINmRRDLHEHPELSFQEVETTKKIRRWLEEEQIEILDVPQLKTGVIAEIKGREDGPVIAIRADIDALPIQEQTNLPFASKVDGTmHACGHDFHTASIIGTAmLLNQRRAELKGTVRFIFQPAEEIAAGARKVLEAGVLNGVSAIFGmHNKPDLPVGTIGVKEGPLmASVDRFEIVIKGK--------NSIDPIAAAGQIISGLQ-----------NAVVSITRVQAGTSWNVIPDQAEmEGTVRTFQKEARQAVPEHmRRVAEGIAAGYGAQAEFKWFPYLPSVQNDGTFLNAASEAAARLGYQTVHAEQSPGGEDFALYQEKIPGFFVWmGTNGTEEWHHPAFTLDEEALTVASQYFAELAVIVLETI 379
                                    11 |      21        31        41        51        61        71        81        91   |   101       111|      121       131       141       151     | 161       171    |  181       | -      |201       211  |      -    |  231       241       251       261      |271       281       291       301       311       321       331       341       351       361       371
                                      13-MSE                                                                            95-MSE          112-MSE                                      157-MSE            176-MSE      189      198             214         226                    249-MSE            268-MSE                                                                  341-MSE


Chain B from PDB  Type:PROTEIN  Length:356
 aligned with YXEP_BACSU | P54955 from UniProtKB/Swiss-Prot  Length:380

    Alignment length:377
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372
           YXEP_BACSU     3 DKAFHTRLINMRRDLHEHPELSFQEVETTKKIRRWLEEEQIEILDVPQLKTGVIAEIKGREDGPVIAIRADIDALPIQEQTNLPFASKVDGTMHACGHDFHTASIIGTAMLLNQRRAELKGTVRFIFQPAEEIAAGARKVLEAGVLNGVSAIFGMHNKPDLPVGTIGVKEGPLMASVDRFEIVIKGKGGHAGIPNNSIDPIAAAGQIISGLQSVVSRNISSLQNAVVSITRVQAGTSWNVIPDQAEMEGTVRTFQKEARQAVPEHMRRVAEGIAAGYGAQAEFKWFPYLPSVQNDGTFLNAASEAAARLGYQTVHAEQSPGGEDFALYQEKIPGFFVWMGTNGTEEWHHPAFTLDEEALTVASQYFAELAVIVLETI 379
               SCOP domains d1ysjb1 B:3-177,B:293-379 Protein YxeP                                                                                                                                         d1ysjb2 B:17          8-292 Protein Y           xeP                                                                d1ysjb1 B:3-177,B:293-379 Protein YxeP                                                  SCOP domains
               CATH domains 1ysjB01 B:3-174,B:291-379 Zn peptidases                                                                                                                                     ---1ysjB02 B:17          8-290  [code=3.           30.70.360, no name defined]                                      1ysjB01 B:3-174,B:291-379 Zn peptidases                                                   CATH domains
           Pfam domains (1) ------------------------------------------------------------------Peptidase_M20-1ysjB01 B:69-373                                                                                                                                                                                                                                                                                   ------ Pfam domains (1)
           Pfam domains (2) ------------------------------------------------------------------Peptidase_M20-1ysjB02 B:69-373                                                                                                                                                                                                                                                                                   ------ Pfam domains (2)
           Pfam domains (3) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------M20_dimer-1y          sjB03 B:178-280                                                                  --------------------------------------------------------------------------------------------------- Pfam domains (3)
           Pfam domains (4) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------M20_dimer-1y          sjB04 B:178-280                                                                  --------------------------------------------------------------------------------------------------- Pfam domains (4)
         Sec.struct. author hhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh...ee.........eeeeee..eeeeeeeeeee.........................hhhhhhhhhhhhhhhhh......eeeeeeeee......hhhhhhhhh.....eeeeeeeeee......eeee..eeee.eeeeeeeeeee.----------.hhhhhhhhhhhh..-----------..eeeeeeeee.........eeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhh.eeeeeeeeeee..eeehhhhhhhhhhhhhh...eeee........hhhhhhh...eeeeeee................hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ysj B   3 DKAFHTRLINmRRDLHEHPELSFQEVETTKKIRRWLEEEQIEILDVPQLKTGVIAEIKGREDGPVIAIRADIDALPIQEQTNLPFASKVDGTmHACGHDFHTASIIGTAmLLNQRRAELKGTVRFIFQPAEEIAAGARKVLEAGVLNGVSAIFGmHNKPDLPVGTIGVKEGPLmASVDRFEIVIKGK----------IDPIAAAGQIISGLQ-----------NAVVSITRVQAGTSWNVIPDQAEmEGTVRTFQKEARQAVPEHmRRVAEGIAAGYGAQAEFKWFPYLPSVQNDGTFLNAASEAAARLGYQTVHAEQSPGGEDFALYQEKIPGFFVWmGTNGTEEWHHPAFTLDEEALTVASQYFAELAVIVLETI 379
                                    12|       22        32        42        52        62        72        82        92  |    102       112       122       132       142       152    |  162       172   |   182      |  -       202       212 |       -   |   232       242      |252       262     | 272       282       292       302       312       322       332       342       352       362       372
                                     13-MSE                                                                            95-MSE          112-MSE                                      157-MSE            176-MSE      189        200           214         226                    249-MSE            268-MSE                                                                  341-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Clan: Peptidase_MH (119)
(-)
Clan: no clan defined [family: M20_dimer] (13)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (YXEP_BACSU | P54955)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
