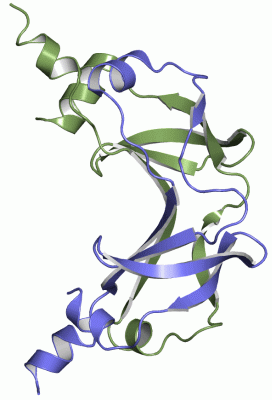

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

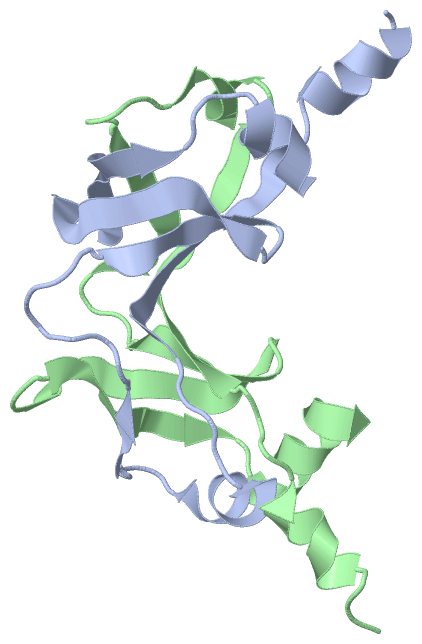

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

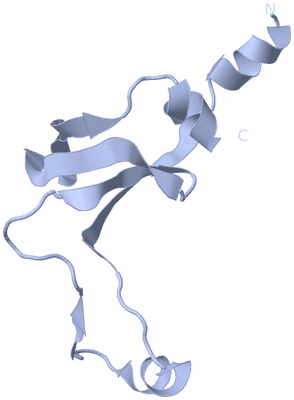

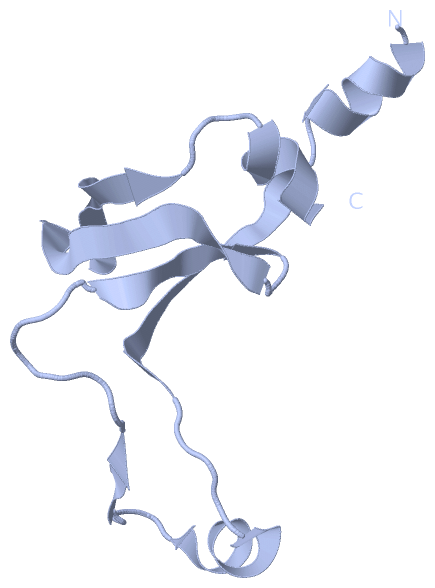

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

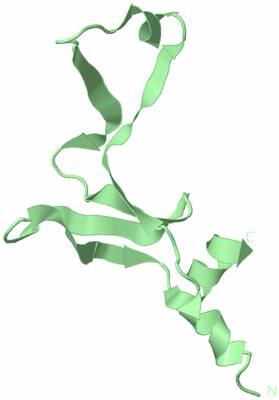

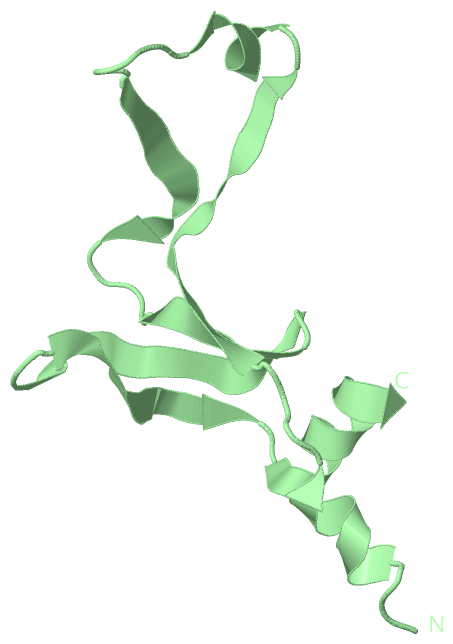

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

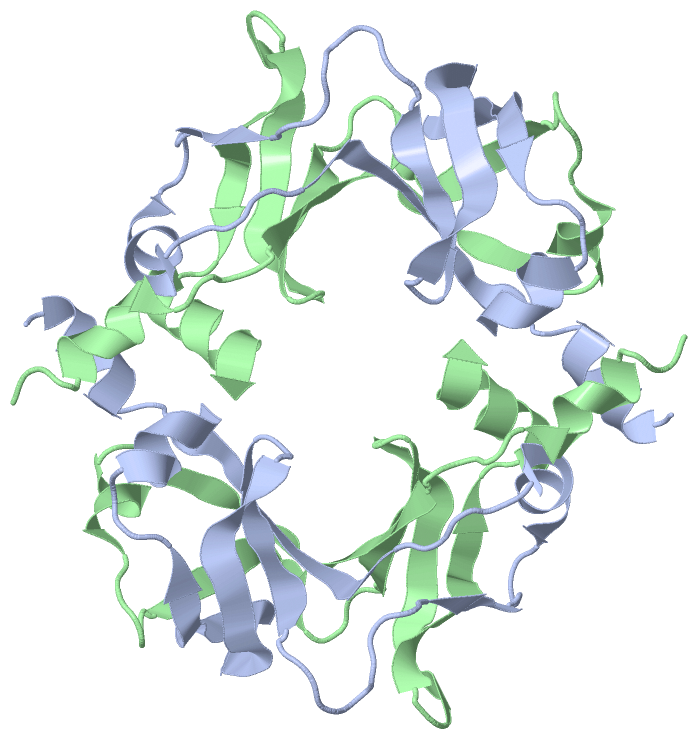

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF T. MARITIMA FLIN FLAGELLAR ROTOR PROTEIN

Authors :  C. P. Hill, D. F. Blair, P. N. Brown, M. A. A. Mathews, L. A. Joss
Date :  17 Dec 04  (Deposition) - 07 Jun 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  A,B  (2x)
Keywords :  Thermotoga Maritima, Flagellar Motor, Rotor, Flin, Fliy, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. N. Brown, M. A. A. Mathews, L. A. Joss, C. P. Hill, D. F. Blair
Crystal Structure Of The Flagellar Rotor Protein Flin From Thermotoga Maritima
J. Bacteriol. V. 187 2890 2005
PubMed-ID: 15805535  |  Reference-DOI: 10.1128/JB.187.8.2890-2902.2005

(-) Compounds

Molecule 1 - CHEMOTAXIS PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: RESIDUES 68-154
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 243274
    Strain: MSB8
    Synonym: FLIN

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1YAB)

(-) Sites  (0, 0)

(no "Site" information available for 1YAB)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1YAB)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Asn B:153 -Glu B:154

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1YAB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1YAB)

(-) Exons   (0, 0)

(no "Exon" information available for 1YAB)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:85
 aligned with A0A0F6AJI7_T | A0A0F6AJI7 from UniProtKB/TrEMBL  Length:346

    Alignment length:85
                                   269       279       289       299       309       319       329       339
         A0A0F6AJI7_T   260 SDKLELLLDIPLRVTVELGRTRMTLKRVLEMIPGSIIELDKLTGEPVDILVNGKLIARGEVVVIDENFGVRITEIVSPKERLELL 344
               SCOP domains d1yaba1 A:68-152 Putative flagelar motor switch protein FliN                          SCOP domains
               CATH domains 1yabA00 A:68-152 Surface presentation of antigens (SPOA)                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhh..eeeeeeeee....hhhhhhhh....eee........eeeee..eeeeeeeeeee..eeeeeeeee...hhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                 1yab A  68 SDKLELLLDIPLKVTVELGRTRMTLKRVLEMIHGSIIELDKLTGEPVDILVNGKLIARGEVVVIDENFGVRITEIVSPKERLELL 152
                                    77        87        97       107       117       127       137       147


Chain B from PDB  Type:PROTEIN  Length:87
 aligned with A0A0F6AJI7_T | A0A0F6AJI7 from UniProtKB/TrEMBL  Length:346

    Alignment length:87
                                   269       279       289       299       309       319       329       339
         A0A0F6AJI7_T   260 SDKLELLLDIPLRVTVELGRTRMTLKRVLEMIPGSIIELDKLTGEPVDILVNGKLIARGEVVVIDENFGVRITEIVSPKERLELLNE 346
               SCOP domains d1yabb1 B:68-152 Putative flagelar motor switch protein FliN                         -- SCOP domains
               CATH domains 1yabB00 B:68-154 Surface presentation of antigens (SPOA)                                CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh....eeeeeeeeeee.hhhhh.....eeeeeee....eeeee..eeeeeeeeeee..eeeeeeeee.hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 1yab B  68 SDKLELLLDIPLKVTVELGRTRMTLKRVLEMIHGSIIELDKLTGEPVDILVNGKLIARGEVVVIDENFGVRITEIVSPKERLELLNE 154
                                    77        87        97       107       117       127       137       147
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1YAB)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1YAB)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1yab)

  Sites
(no "Sites" information available for 1yab)

  Cis Peptide Bonds
    Asn B:153 - Glu B:154   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
