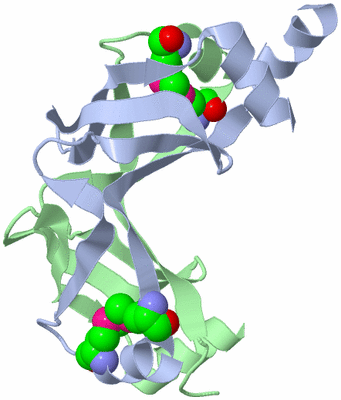

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A C-TERMINAL FRAGMENT OF THE PUTATIVE FLAGELLAR MOTOR SWITCH PROTEIN FLIN (TM0680) FROM THERMOTOGA MARITIMA AT 1.85 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  24 Oct 03  (Deposition) - 11 Nov 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Putative Flagellar Motor Switch Protein Flin, C- Terminal Proteolytic Fragment, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Motor Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of The C-Terminal Fragment Of The Putativ Flagellar Motor Switch Protein Flin (Tm0680A) From Thermotoga Maritima At 1. 85 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PUTATIVE FLAGELLAR MOTOR SWITCH PROTEIN FLIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: C-TERMINAL FRAGMENT (RESIDUES 59-154)
    Gene: TM0680A
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336
    Other Details: FUSION PROTEIN, SEE REMARK 999

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1O6A)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1O6A)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1O6A)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1O6A)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1O6A)

(-) Exons   (0, 0)

(no "Exon" information available for 1O6A)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:87

               SCOP domains d1o6aa_ A: Putative flagelar motor switch protein FliN                                  SCOP domains
               CATH domains 1o6aA00 A:68-154 Surface presentation of antigens (SPOA)                                CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhh..eeeeeeeeeeeeeehhhhhhh....eeeeeee....eeeee..eeeeeeeeeee..eeeeeeeee.hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 1o6a A  68 SDKLELLLDIPLKVTVELGRTRmTLKRVLEmIHGSIIELDKLTGEPVDILVNGKLIARGEVVVIDENFGVRITEIVSPKERLELLNE 154
                                    77        87  |     97|      107       117       127       137       147
                                                 90-MSE  98-MSE


Chain B from PDB  Type:PROTEIN  Length:81

               SCOP domains d1o6ab_ B: Putative flagelar motor switch protein FliN                            SCOP domains
               CATH domains 1o6aB00 B:74-154 Surface presentation of antigens (SPOA)                          CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeeeeehhhhhhh....eeeeeee....eeeee..eeeeeeeeeee..eeeeeeeee.hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1o6a B  74 LLDIPLKVTVELGRTRmTLKRVLEmIHGSIIELDKLTGEPVDILVNGKLIARGEVVVIDENFGVRITEIVSPKERLELLNE 154
                                    83      | 93    |  103       113       123       133       143       153
                                           90-MSE  98-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1O6A)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1O6A)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1o6a)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1o6a)


(-) Still Images

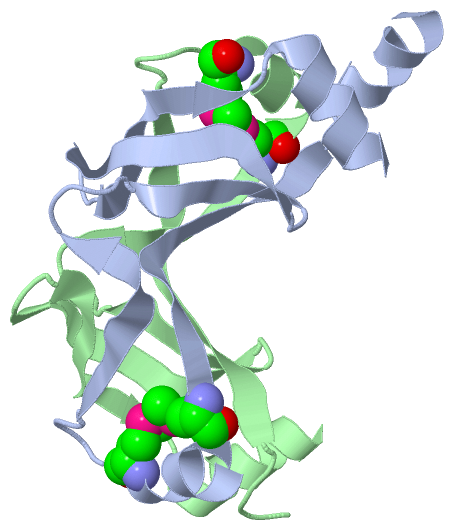

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
