1Y7I - JenaLib

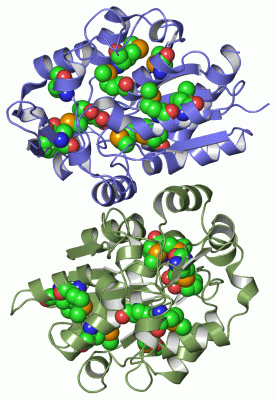

Asym.Unit - manually (Jmol Viewer)

Asymmetric Unit (Jmol Viewer)

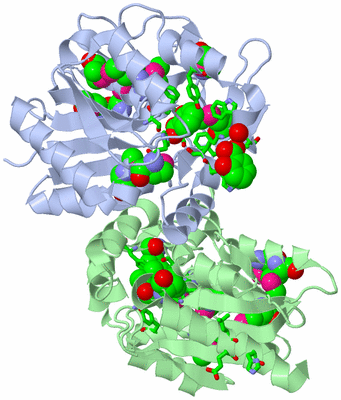

Asym. Unit - sites (Jmol Viewer)

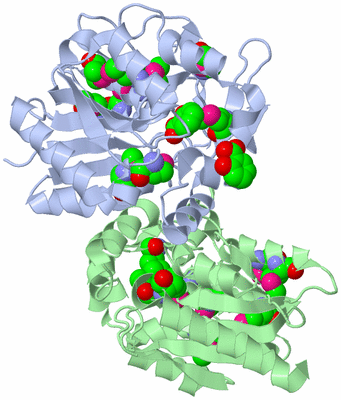

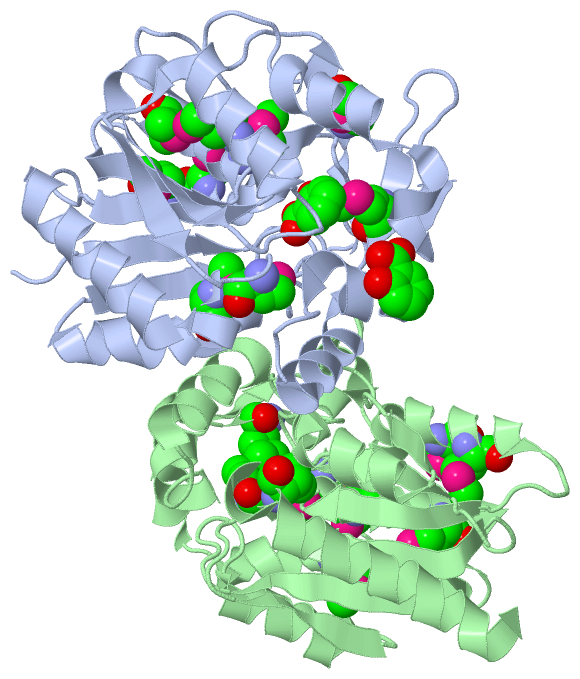

Biological Unit 1 (Jmol Viewer)

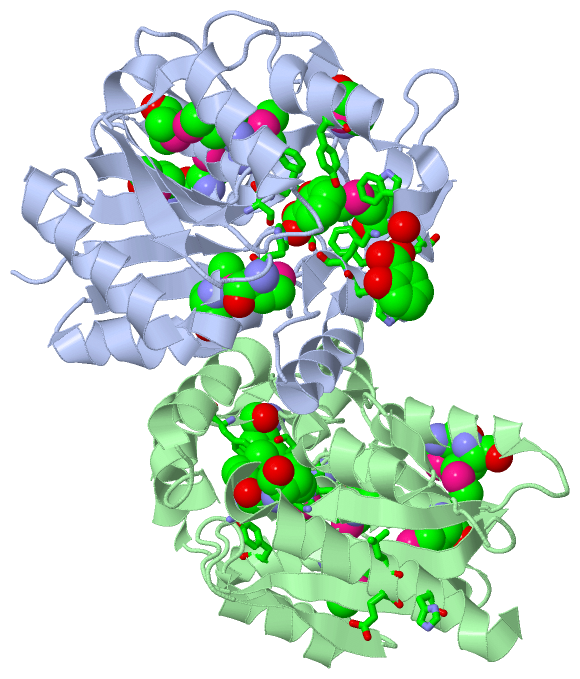

Biol. Unit 1 - sites (Jmol Viewer)

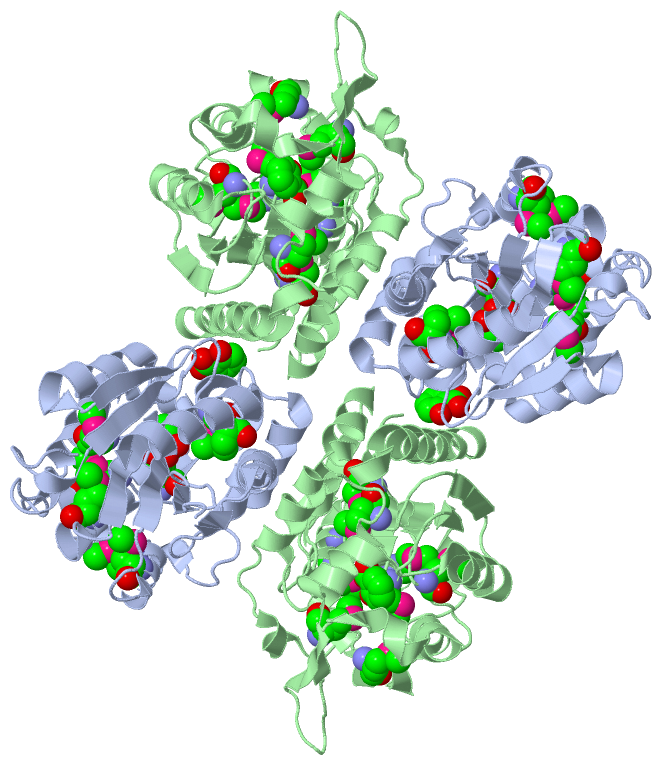

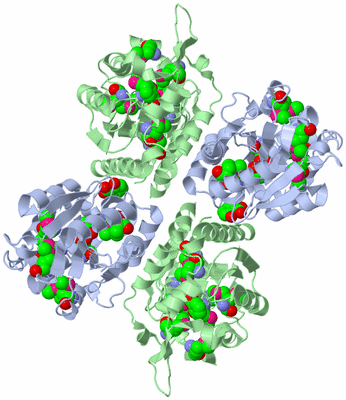

Biological Unit 2 (Jmol Viewer)

Title :   STRUCTURAL AND BIOCHEMICAL STUDIES IDENTIFY TOBACCO SABP2 AS A METHYLSALICYLATE ESTERASE AND FURTHER IMPLICATE IT IN PLANT INNATE IMMUNITY, NORTHEAST STRUCTURAL GENOMICS TARGET AR2241

Authors :   F. Forouhar, Y. Yang, D. Kumar, Y. Chen, E. Fridman, S. W. Park, Y. Chiang, T. B. Acton, G. T. Montelione, E. Pichersky, D. F. Klessig, L. Tong, Northeast Structural Genomics Consortium (Nesg)

Date :   08 Dec 04 (Deposition) - 21 Dec 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: A,B  (2x)

Keywords :   Alpha-Beta Protein, Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Forouhar, Y. Yang, D. Kumar, Y. Chen, E. Fridman, S. W. Park, Y. Chiang, T. B. Acton, G. T. Montelione, E. Pichersky, D. F. Klessig, L. Tong
Structural And Biochemical Studies Identify Tobacco Sabp2 As A Methyl Salicylate Esterase And Implicate It In Plant Innate Immunity
Proc. Natl. Acad. Sci. Usa V. 102 1773 2005
PubMed-ID: 15668381 | Reference-DOI: 10.1073/PNAS.0409227102
(for further references see the PDB file header)

Molecule 1 - SALICYLIC ACID-BINDING PROTEIN 2
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	BL21
	Expression System Strain	:	BL21(DE3)+MAGIC
	Expression System Taxid	:	562
	Expression System Vector	:	PET21
	Expression System Vector Type	:	PLASMID
	Organism Common	:	COMMON TOBACCO
	Organism Scientific	:	NICOTIANA TABACUM
	Organism Taxid	:	4097
	Synonym	:	SABP2

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (2x)	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 21)

No.	Name	Count	Type	Full Name
1	MSE	18	Mod. Amino Acid	SELENOMETHIONINE
2	SAL	3	Ligand/Ion	2-HYDROXYBENZOIC ACID

Biological Unit 1 (2, 21)

No.	Name	Count	Type	Full Name
1	MSE	18	Mod. Amino Acid	SELENOMETHIONINE
2	SAL	3	Ligand/Ion	2-HYDROXYBENZOIC ACID

Biological Unit 2 (2, 42)

No.	Name	Count	Type	Full Name
1	MSE	36	Mod. Amino Acid	SELENOMETHIONINE
2	SAL	6	Ligand/Ion	2-HYDROXYBENZOIC ACID

Asymmetric Unit (3, 3)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ALA A:13 , SER A:81 , LEU A:82 , PHE A:107 , TYR A:122 , TRP A:131 , PHE A:151 , HIS A:238	BINDING SITE FOR RESIDUE SAL A 501
2	AC2	SOFTWARE	LEU A:132 , HIS A:158 , LYS A:159 , HOH A:562 , LEU B:253 , GLU B:254 , HIS B:257	BINDING SITE FOR RESIDUE SAL A 502
3	AC3	SOFTWARE	ALA B:13 , SER B:81 , LEU B:82 , PHE B:107 , TYR B:122 , PHE B:151 , HIS B:238	BINDING SITE FOR RESIDUE SAL B 503

(no "SS Bond" information available for 1Y7I)

(no "Cis Peptide Bond" information available for 1Y7I)

(no "SAP(SNP)/Variant" information available for 1Y7I)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LIPASE_SER	PS00120	Lipases, serine active site.	SABP2_TOBAC	75-84	2	A:75-84 B:75-84

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LIPASE_SER	PS00120	Lipases, serine active site.	SABP2_TOBAC	75-84	2	A:75-84 B:75-84

Biological Unit 2 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LIPASE_SER	PS00120	Lipases, serine active site.	SABP2_TOBAC	75-84	4	A:75-84 B:75-84

(no "Exon" information available for 1Y7I)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:258
 aligned with SABP2_TOBAC | Q6RYA0 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:258
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
          SABP2_TOBAC     3 EGKHFVLVHGACHGGWSWYKLKPLLEAAGHKVTALDLAASGTDLRKIEELRTLYDYTLPLMELMESLSADEKVILVGHSLGGMNLGLAMEKYPQKIYAAVFLAAFMPDSVHNSSFVLEQYNERTPAENWLDTQFLPYGSPEEPLTSMFFGPKFLAHKLYQLCSPEDLALASSLVRPSSLFMEDLSKAKYFTDERFGSVKRVYIVCTEDKGIPEEFQRWQIDNIGVTEAIEIKGADHMAMLCEPQKLCASLLEIAHKYN 260
               SCOP domains d1y7ia_ A: Salicylic acid-binding protein 2 (SABP2)                                                                                                                                                                                                                SCOP domains
               CATH domains 1y7iA00 A:3-260  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeee.....hhhhhhhhhhhhhhh..eeeee..........hhhhh.hhhhhhhhhhhhhhhh.....eeeeee.hhhhhhhhhhhhh...eeeeeee...........hhhhhhhhhhhhhhhhh..eeee........eeee.hhhhhhhhh....hhhhhhhhhhhh.....hhhhhh........hhhhh.eeeeee......hhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------LIPASE_SER-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1y7i A   3 EGKHFVLVHGACHGGWSWYKLKPLLEAAGHKVTALDLAASGTDLRKIEELRTLYDYTLPLmELmESLSADEKVILVGHSLGGmNLGLAmEKYPQKIYAAVFLAAFmPDSVHNSSFVLEQYNERTPAENWLDTQFLPYGSPEEPLTSmFFGPKFLAHKLYQLCSPEDLALASSLVRPSSLFmEDLSKAKYFTDERFGSVKRVYIVCTEDKGIPEEFQRWQIDNIGVTEAIEIKGADHmAmLCEPQKLCASLLEIAHKYN 260
                                    12        22        32        42        52        62|  |    72        82  |     92       102     | 112       122       132       142      |152       162       172       182|      192       202       212       222       232      |242       252
                                                                                       63-MSE                85-MSE |              108-MSE                                  149-MSE                           183-MSE                                                 239-MSE
                                                                                          66-MSE                   91-MSE                                                                                                                                               241-MSE

Chain B from PDB  Type:PROTEIN  Length:262
 aligned with SABP2_TOBAC | Q6RYA0 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:262
                                                                                                                                                                                                                                                                                           260
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       | -
          SABP2_TOBAC     3 EGKHFVLVHGACHGGWSWYKLKPLLEAAGHKVTALDLAASGTDLRKIEELRTLYDYTLPLMELMESLSADEKVILVGHSLGGMNLGLAMEKYPQKIYAAVFLAAFMPDSVHNSSFVLEQYNERTPAENWLDTQFLPYGSPEEPLTSMFFGPKFLAHKLYQLCSPEDLALASSLVRPSSLFMEDLSKAKYFTDERFGSVKRVYIVCTEDKGIPEEFQRWQIDNIGVTEAIEIKGADHMAMLCEPQKLCASLLEIAHKYN----   -
               SCOP domains d1y7ib_ B: Salicylic acid-binding protein 2 (SABP2)                                                                                                                                                                                                                    SCOP domains
               CATH domains 1y7iB00 B:3-264  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee.....hhhhhhhhhhhhhhh..eeee...........hhhhh.hhhhhhhhhhhhhhhh.....eeeeee.hhhhhhhhhhhhh...eeeeeee...........hhhhhhhhhh.hhhhhh..eeee........eeee.hhhhhhhhh....hhhhhhhhhhhh.....hhhhhhh.......hhhhh.eeeeee......hhhhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------LIPASE_SER------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1y7i B   3 EGKHFVLVHGACHGGWSWYKLKPLLEAAGHKVTALDLAASGTDLRKIEELRTLYDYTLPLmELmESLSADEKVILVGHSLGGmNLGLAmEKYPQKIYAAVFLAAFmPDSVHNSSFVLEQYNERTPAENWLDTQFLPYGSPEEPLTSmFFGPKFLAHKLYQLCSPEDLALASSLVRPSSLFmEDLSKAKYFTDERFGSVKRVYIVCTEDKGIPEEFQRWQIDNIGVTEAIEIKGADHmAmLCEPQKLCASLLEIAHKYNLEHH 264
                                    12        22        32        42        52        62|  |    72        82  |     92       102     | 112       122       132       142      |152       162       172       182|      192       202       212       222       232      |242       252       262
                                                                                       63-MSE                85-MSE |              108-MSE                                  149-MSE                           183-MSE                                                 239-MSE
                                                                                          66-MSE                   91-MSE                                                                                                                                               241-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: alpha/beta-Hydrolases (971)

Superfamily: alpha/beta-Hydrolases (971)

Family: Hydroxynitrile lyase-like (34)

Protein domain: Salicylic acid-binding protein 2 (SABP2) (3)

Tobacco (Nicotiana tabacum) [TaxId: 4097] (3)

1a	d1y7ia_	A:
1b	d1y7ib_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1820, no name defined] (692)

Common tobacco (Nicotiana tabacum) (3)

1a	1y7iB00	B:3-264
1b	1y7iA00	A:3-260

(no "Pfam Domain" information available for 1Y7I)

Asymmetric Unit(hide GO term definitions)

Chain A,B (SABP2_TOBAC | Q6RYA0)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0016298	lipase activity	Catalysis of the hydrolysis of a lipid or phospholipid.
	GO:0080031	methyl salicylate esterase activity	Catalysis of the reaction: methyl salicylate + H2O = salicylic acid + methanol + H+.
biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
	GO:0002376	immune system process	Any process involved in the development or functioning of the immune system, an organismal system for calibrated responses to potential internal or invasive threats.
	GO:0045087	innate immune response	Innate immune responses are defense responses mediated by germline encoded components that directly recognize components of potential pathogens.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:0009862	systemic acquired resistance, salicylic acid mediated signaling pathway	The series of molecular signals mediated by salicylic acid involved in systemic acquired resistance.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SAL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1y7i)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1y7i
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	SABP2_TOBAC \| Q6RYA0
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	SABP2_TOBAC \| Q6RYA0
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	SABP2_TOBAC \| Q6RYA0	:	1xkl 1y7h
