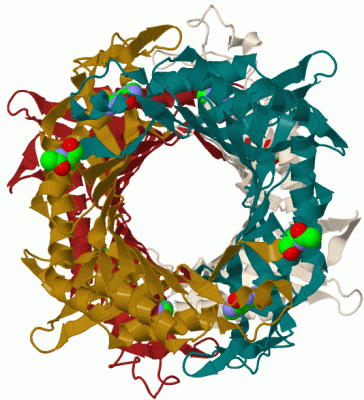

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

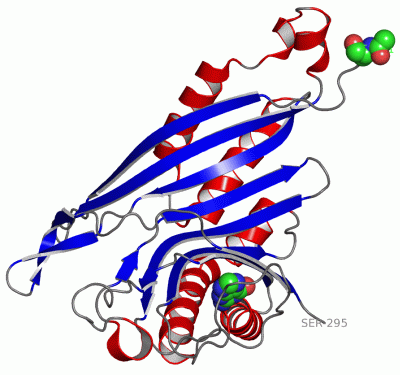

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

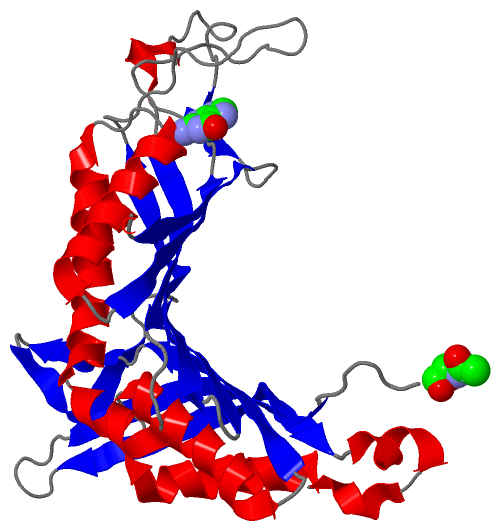

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

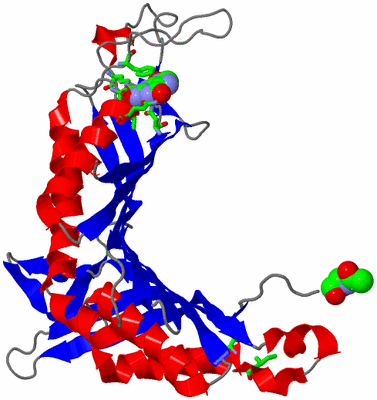

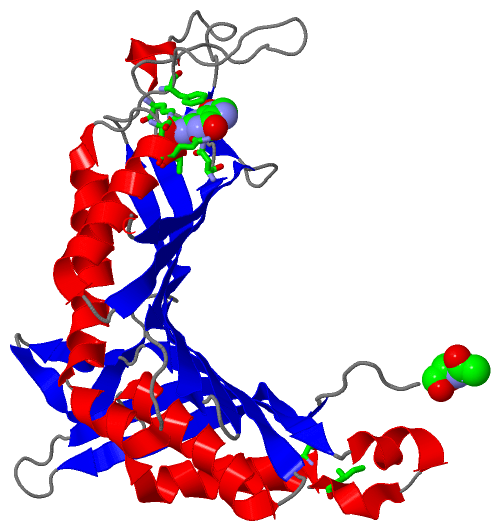

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

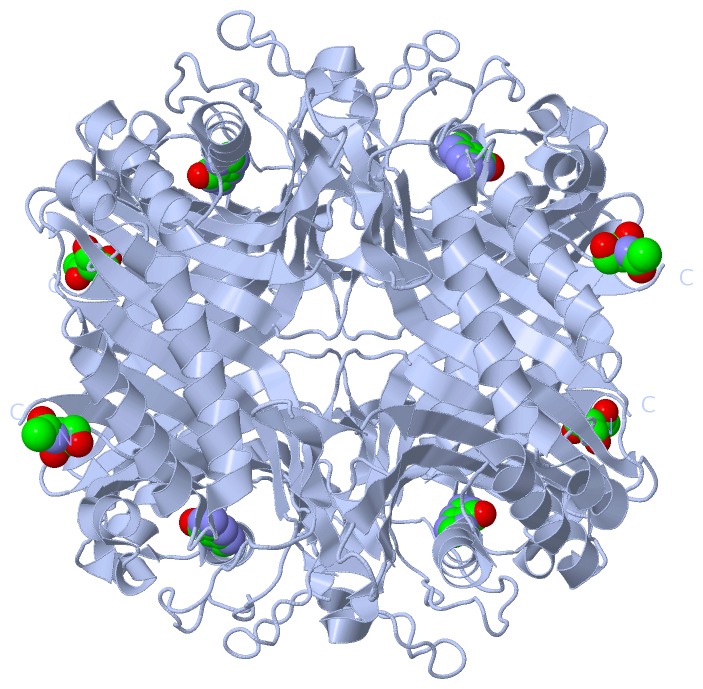

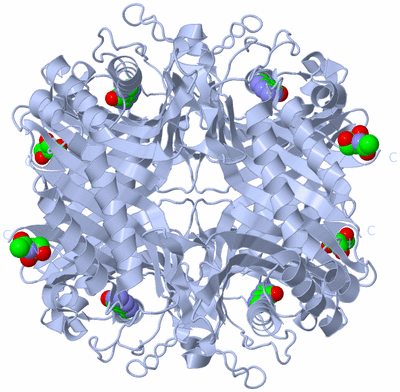

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

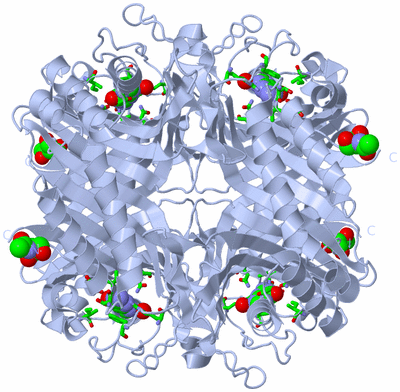

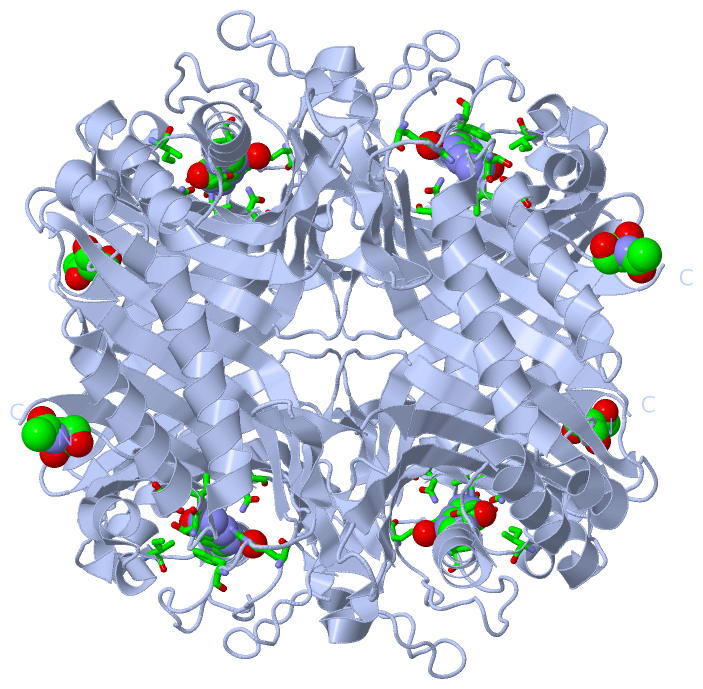

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  URATE OXIDASE FROM ASPERGILLUS FLAVUS COMPLEXED WITH GUANINE

Authors :  P. Retailleau, N. Colloc'H, D. Vivares, F. Bonnete, B. Castro, M. El Ha T. Prange
Date :  21 Oct 04  (Deposition) - 22 Mar 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.01
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (4x)
Keywords :  Oxidoreductase, Uric Acid Degradation, Dimeric Barrel, Tunnel-Shaped Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Retailleau, N. Colloc'H, D. Vivares, F. Bonnete, B. Castro, M. El Hajji, T. Prange
Urate Oxidase From Aspergillus Flavus: New Crystal-Packing Contacts In Relation To The Content Of The Active Site.
Acta Crystallogr. , Sect. D V. 61 218 2005
PubMed-ID: 15735331  |  Reference-DOI: 10.1107/S0907444904031531
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - URICASE
    Chains: A
    EC Number: 1.7.3.3
    Engineered: YES
    Expression System: SACCHAROMYCES CEREVISIAE
    Expression System Common: BAKER'S YEAST
    Expression System Taxid: 4932
    Organism Scientific: ASPERGILLUS FLAVUS
    Organism Taxid: 5059
    Synonym: URATE OXIDASE

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric Unit (2, 2)
No.NameCountTypeFull Name
1GUN1Ligand/IonGUANINE
2SAC1Mod. Amino AcidN-ACETYL-SERINE
Biological Unit 1 (2, 8)
No.NameCountTypeFull Name
1GUN4Ligand/IonGUANINE
2SAC4Mod. Amino AcidN-ACETYL-SERINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREILE A:54 , THR A:57 , PHE A:159 , ARG A:176 , SER A:226 , VAL A:227 , GLN A:228 , ASN A:254 , HOH A:1102BINDING SITE FOR RESIDUE GUN A 901

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1XT4)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Thr A:74 -Pro A:75
2Asp A:283 -Pro A:284

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1XT4)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1URICASEPS00366 Uricase signature.URIC_ASPFL150-177  1A:149-176
Biological Unit 1 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1URICASEPS00366 Uricase signature.URIC_ASPFL150-177  4A:149-176

(-) Exons   (0, 0)

(no "Exon" information available for 1XT4)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:295
 aligned with URIC_ASPFL | Q00511 from UniProtKB/Swiss-Prot  Length:302

    Alignment length:295
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291
           URIC_ASPFL     2 SAVKAARYGKDNVRVYKVHKDEKTGVQTVYEMTVCVLLEGEIETSYTKADNSVIVATDSIKNTIYITAKQNPVTPPELFGSILGTHFIEKYNHIHAAHVNIVCHRWTRMDIDGKPHPHSFIRDSEEKRNVQVDVVEGKGIDIKSSLSGLTVLKSTNSQFWGFLRDEYTTLKETWDRILSTDVDATWQWKNFSGLQEVRSHVPKFDATWATAREVTLKTFAEDNSASVQATMYKMAEQILARQQLIETVEYSLPNKHYFEIDLSWHKGLQNTGKNAEVFAPQSDPNGLIKCTVGRS 296
               SCOP domains d1xt4a1 A:1-136 Urate oxidase (uricase)                                                                                                 d1xt4a2 A:137-295 Urate oxidase (uricase)                                                                                                                       SCOP domains
               CATH domains -1xt4A00 A:2-295 Urate Oxidase;                                                                                                                                                                                                                                                                         CATH domains
           Pfam domains (1) --------------------------------------------------------------------------------------------------------------------------------------------Uricase-1xt4A01 A:141-290                                                                                                                             ----- Pfam domains (1)
           Pfam domains (2) --------------------------------------------------------------------------------------------------------------------------------------------Uricase-1xt4A02 A:141-290                                                                                                                             ----- Pfam domains (2)
         Sec.struct. author .......eeeeeeeeeeeee......eeeeeeeeeeeeee.hhhhhhh.hhhhh.hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh..eeeeeeeeeee..eeeee..eeeeeeee.....eeeeeeeee...eeeeeeeeeeeeeee........................eeeeeeeeeee....hhhhhhhh.hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh..eeeeeeeeee..eee...........hhhhh..eee.....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------URICASE  PDB: A:149-176     ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1xt4 A   1 sAVKAARYGKDNVRVYKVHKDEKTGVQTVYEMTVCVLLEGEIETSYTKADNSVIVATDSIKNTIYITAKQNPVTPPELFGSILGTHFIEKYNHIHAAHVNIVCHRWTRMDIDGKPHPHSFIRDSEEKRNVQVDVVEGKGIDIKSSLSGLTVLKSTNSQFWGFLRDEYTTLKETWDRILSTDVDATWQWKNFSGLQEVRSHVPKFDATWATAREVTLKTFAEDNSASVQATMYKMAEQILARQQLIETVEYSLPNKHYFEIDLSWHKGLQNTGKNAEVFAPQSDPNGLIKCTVGRS 295
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290
                            |
                            1-SAC
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: THBO-biosyn (64)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (URIC_ASPFL | Q00511)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0004846    urate oxidase activity    Catalysis of the reaction: urate + O2 + H2O = 5-hydroxyisourate + hydrogen peroxide.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0006144    purine nucleobase metabolic process    The chemical reactions and pathways involving purine nucleobases, one of the two classes of nitrogen-containing ring compounds found in DNA and RNA, which include adenine and guanine.
    GO:0019628    urate catabolic process    The chemical reactions and pathways resulting in the breakdown of urate, the anion of uric acid, 2,6,8-trioxypurine.
cellular component
    GO:0005777    peroxisome    A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GUN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SAC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asp A:283 - Pro A:284   [ RasMol ]
    Thr A:74 - Pro A:75   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1xt4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  URIC_ASPFL | Q00511
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.7.3.3
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  URIC_ASPFL | Q00511
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        URIC_ASPFL | Q00511: 1r4s 1r4u 1r51 1r56 1wrr 1ws2 1ws3 1xxj 1xy3 2fub 2fxl 2iba 2ic0 2icq 2pes 2zka 2zkb 3bjp 3bk8 3cks 3cku 3f2m 3gko 3l8w 3l9g 3lbg 3ld4 3obp 3p9f 3p9o 3pjk 3pk3 3pk4 3pk5 3pk6 3pk8 3pkf 3pkg 3pkh 3pkk 3pkl 3pks 3pkt 3pku 3ple 3plg 3plh 3pli 3plj 3plm 4cw0 4cw2 4cw3 4cw6 4d12 4d13 4d17 4d19 4fsk 4n3m 4n9m 4n9s 4n9v 4op6 4op9 4oqc 4poe 4pr8 4puv 5frc

(-) Related Entries Specified in the PDB File

1r4s THE SAME PROTEIN COMPLEXED WITH 9-METHYL URIC ACID
1r4u THE SAME PROTEIN COMPLEXED WITH OXONIC ACID
1r51 THE SAME PROTEIN COMPLEXED WITH ITS INHIBITOR 8-AZAXANTHIN
