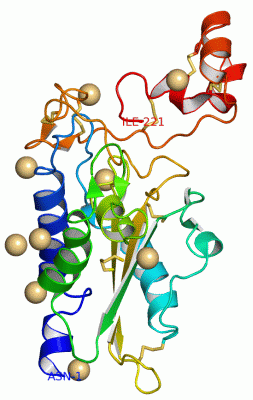

Asym.Unit - manually (Jmol Viewer)

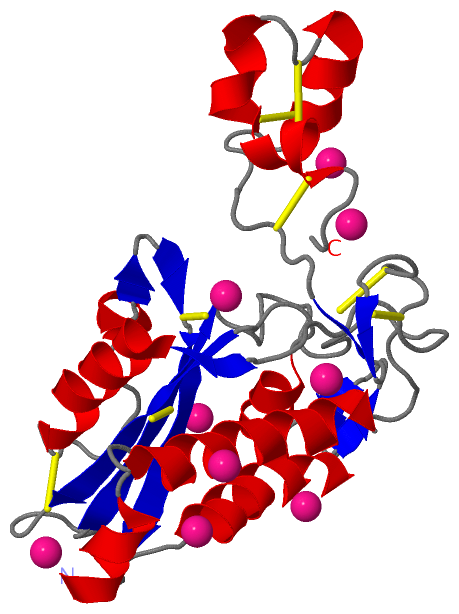

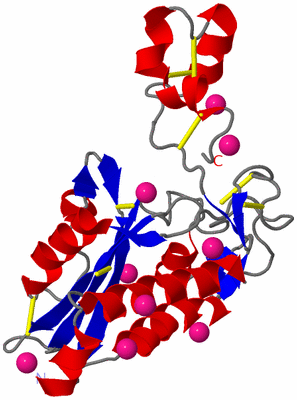

Asymmetric Unit (Jmol Viewer)

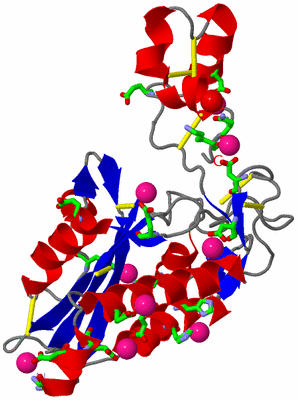

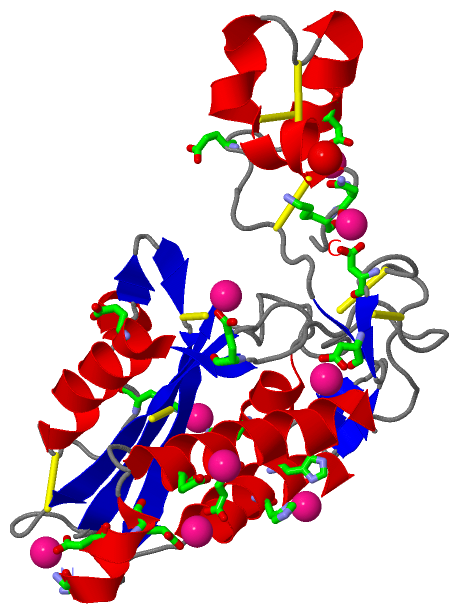

Asym. Unit - sites (Jmol Viewer)

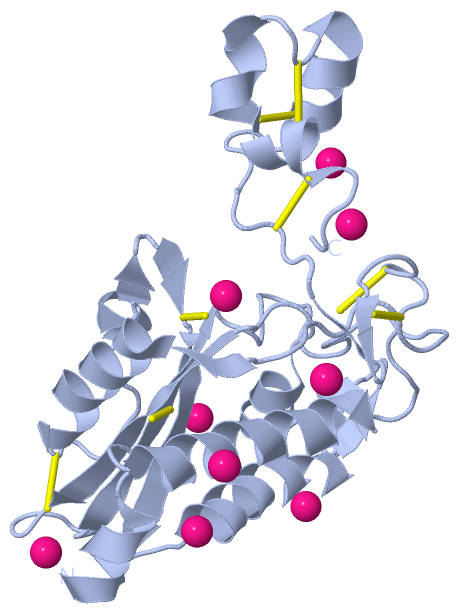

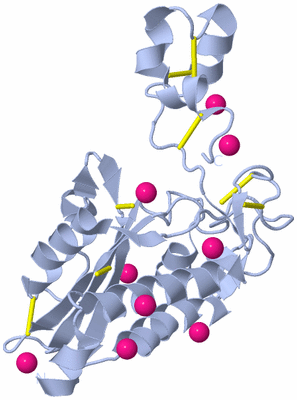

Biological Unit 1 (Jmol Viewer)

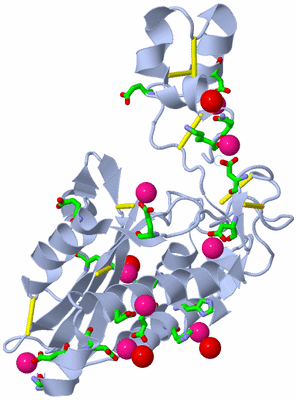

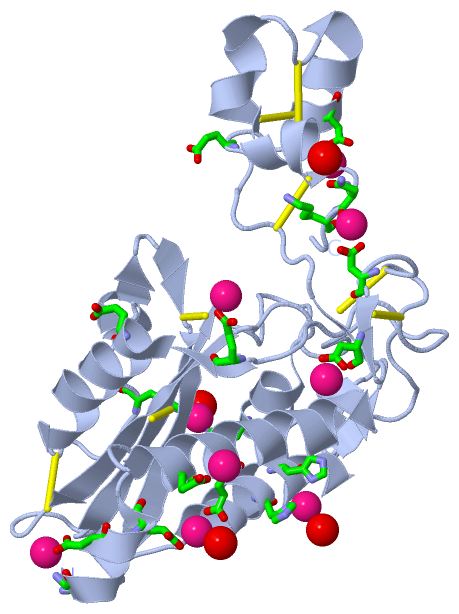

Biol. Unit 1 - sites (Jmol Viewer)

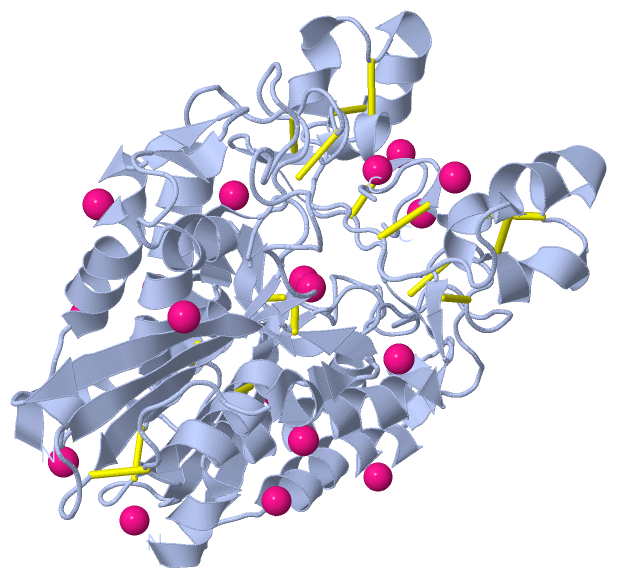

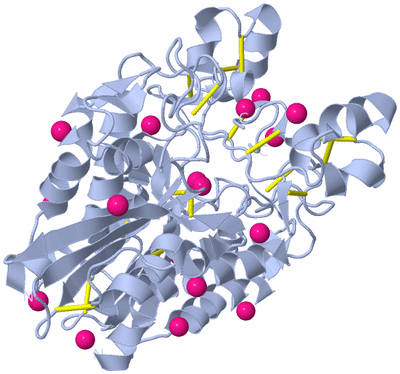

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF A CRISP FAMILY CA-CHANNEL BLOCKER DERIVED FROM SNAKE VENOM

Authors :   Y. Shikamoto, K. Suto, Y. Yamazaki, T. Morita, H. Mizuno

Date :   24 Dec 04 (Deposition) - 05 Jul 05 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.40

Chains :   Asym. Unit : A
Biol. Unit 1: A  (1x)
Biol. Unit 2: A  (2x)

Keywords :   Cysteine-Rich Secretory Protein, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. Shikamoto, K. Suto, Y. Yamazaki, T. Morita, H. Mizuno
Crystal Structure Of A Crisp Family Ca2+ -Channel Blocker Derived From Snake Venom.
J. Mol. Biol. V. 350 735 2005
PubMed-ID: 15953617 | Reference-DOI: 10.1016/J.JMB.2005.05.020
(for further references see the PDB file header)

Molecule 1 - TRIFLIN
	Chains	:	A
	Organism Scientific	:	TRIMERESURUS FLAVOVIRIDIS
	Organism Taxid	:	88087
	Strain	:	TOKUNOSHIMA

		1
Asymmetric Unit	:	A
Biological Unit 1 (1x)	:	A
Biological Unit 2 (2x)	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 9)

No.	Name	Count	Type	Full Name
1	CD	9	Ligand/Ion	CADMIUM ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	CD	-1	Ligand/Ion	CADMIUM ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	CD	-1	Ligand/Ion	CADMIUM ION

Asymmetric Unit (9, 9)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	HIS A:60 , HIS A:115 , HOH A:423 , HOH A:469 , HOH A:526	BINDING SITE FOR RESIDUE CD A 301
2	AC2	SOFTWARE	GLU A:40 , HOH A:465	BINDING SITE FOR RESIDUE CD A 302
3	AC3	SOFTWARE	ASP A:175 , HOH A:524	BINDING SITE FOR RESIDUE CD A 303
4	AC4	SOFTWARE	GLU A:13 , GLU A:44	BINDING SITE FOR RESIDUE CD A 304
5	AC5	SOFTWARE	GLU A:7 , GLU A:17 , HOH A:455	BINDING SITE FOR RESIDUE CD A 305
6	AC6	SOFTWARE	ASP A:173 , ASN A:218 , LYS A:219 , HOH A:435 , HOH A:518	BINDING SITE FOR RESIDUE CD A 306
7	AC7	SOFTWARE	HIS A:91 , HIS A:94 , HOH A:424 , HOH A:488	BINDING SITE FOR RESIDUE CD A 307
8	AC8	SOFTWARE	ASP A:193 , HOH A:437	BINDING SITE FOR RESIDUE CD A 308
9	AC9	SOFTWARE	ASN A:1 , ASP A:5 , GLU A:188	BINDING SITE FOR RESIDUE CD A 309

Asymmetric Unit

No.	Residues
1	A:56	-	A:134
2	A:73	-	A:148
3	A:129	-	A:145
4	A:167	-	A:174
5	A:170	-	A:179
6	A:183	-	A:216
7	A:192	-	A:210
8	A:201	-	A:214

Asymmetric Unit

No.	Residues
1	Asn A:30	-	Pro A:31
2	Val A:107	-	Pro A:108
3	Cys A:148	-	Pro A:149

(no "SAP(SNP)/Variant" information available for 1WVR)

Asymmetric Unit (3, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CRISP_1	PS01009	CRISP family signature 1.	CRVP_PROFL	133-143	1	A:114-124
2	CRISP_2	PS01010	CRISP family signature 2.	CRVP_PROFL	161-172	1	A:142-153
3	SHKT	PS51670	ShKT domain profile.	CRVP_PROFL	202-235	1	A:183-216

Biological Unit 1 (3, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CRISP_1	PS01009	CRISP family signature 1.	CRVP_PROFL	133-143	1	A:114-124
2	CRISP_2	PS01010	CRISP family signature 2.	CRVP_PROFL	161-172	1	A:142-153
3	SHKT	PS51670	ShKT domain profile.	CRVP_PROFL	202-235	1	A:183-216

Biological Unit 2 (3, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CRISP_1	PS01009	CRISP family signature 1.	CRVP_PROFL	133-143	2	A:114-124
2	CRISP_2	PS01010	CRISP family signature 2.	CRVP_PROFL	161-172	2	A:142-153
3	SHKT	PS51670	ShKT domain profile.	CRVP_PROFL	202-235	2	A:183-216

(no "Exon" information available for 1WVR)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:221
 aligned with CRVP_PROFL | Q8JI39 from UniProtKB/Swiss-Prot  Length:240

    Alignment length:221
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239
           CRVP_PROFL    20 NVDFDSESPRKPEIQNEIIDLHNSLRRSVNPTASNMLKMEWYPEAAANAERWAYRCIESHSSRDSRVIGGIKCGENIYMATYPAKWTDIIHAWHGEYKDFKYGVGAVPSDAVIGHYTQIVWYKSYRAGCAAAYCPSSKYSYFYVCQYCPAGNIIGKTATPYKSGPPCGDCPSDCDNGLCTNPCTRENEFTNCDSLVQKSSCQDNYMKSKCPASCFCQNKII 240
               SCOP domains d1wvra1 A:1-164 automated matches                                                                                                                                   d1wvra2 A:165-221 automated matches                       SCOP domains
               CATH domains 1wvrA01 A:1-180 Pathogenesis-related Protein p14a                                                                                                                                   ----------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhh...hhhhhhhhhhhhhhhhh............eehhhhhhhhhhhhh.......hhhh.ee..ee.eeeeeee....hhhhhhhhhhhhhh.ee...ee......hhhhhhhh.....eeeeeeee.......eeeeeeee.........................ee..ee...........hhhhhhhhh...hhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------CRISP_1    -----------------CRISP_2     -----------------------------SHKT  PDB: A:183-216              ----- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wvr A   1 NVDFDSESPRKPEIQNEIIDLHNSLRRSVNPTASNMLKMEWYPEAAANAERWAYRCIESHSSRDSRVIGGIKCGENIYMATYPAKWTDIIHAWHGEYKDFKYGVGAVPSDAVIGHYTQIVWYKSYRAGCAAAYCPSSKYSYFYVCQYCPAGNIIGKTATPYKSGPPCGDCPSDCDNGLCTNPCTRENEFTNCDSLVQKSSCQDNYMKSKCPASCFCQNKII 221
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: PR-1-like (14)

Superfamily: PR-1-like (14)

Family: PR-1-like (10)

Protein domain: automated matches (6)

Habu snake (Trimeresurus flavoviridis) [TaxId: 88087] (1)

d1wvra1

A:1-164

Class: Small proteins (3458)

Fold: Crisp domain-like (13)

Superfamily: Crisp domain-like (13)

Family: automated matches (8)

Protein domain: automated matches (8)

Habu snake (Trimeresurus flavoviridis) [TaxId: 88087] (1)

d1wvra2

A:165-221

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Pathogenesis-related Protein p14a (12)

Homologous Superfamily: Pathogenesis-related Protein p14a (12)

Trimeresurus flavoviridis. Organism_taxid: 88087. Strain: tokunoshima (1)

1wvrA01

A:1-180

(no "Pfam Domain" information available for 1WVR)

Asymmetric Unit(hide GO term definitions)

Chain A (CRVP_PROFL | Q8JI39)

cellular component
	GO:0005576		extracellular region		The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Asn A:30 - Pro A:31	[ RasMol ]
		Cys A:148 - Pro A:149	[ RasMol ]
		Val A:107 - Pro A:108	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1wvr
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CRVP_PROFL \| Q8JI39
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CRVP_PROFL \| Q8JI39
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
