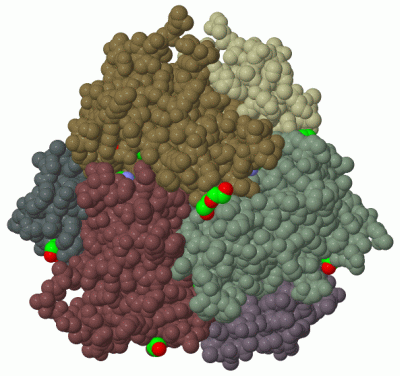

Biol.Unit 1 - manually (Jmol Viewer)

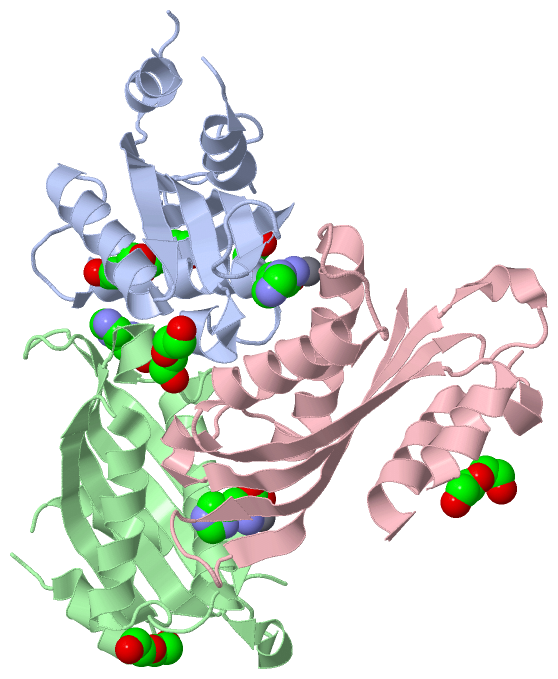

Asymmetric Unit (Jmol Viewer)

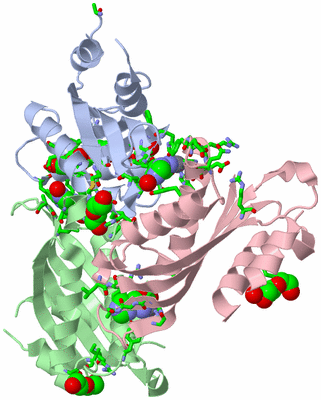

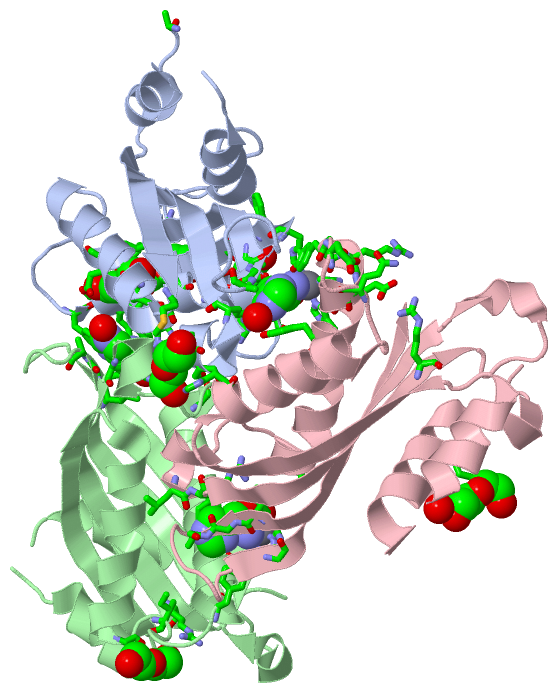

Asym. Unit - sites (Jmol Viewer)

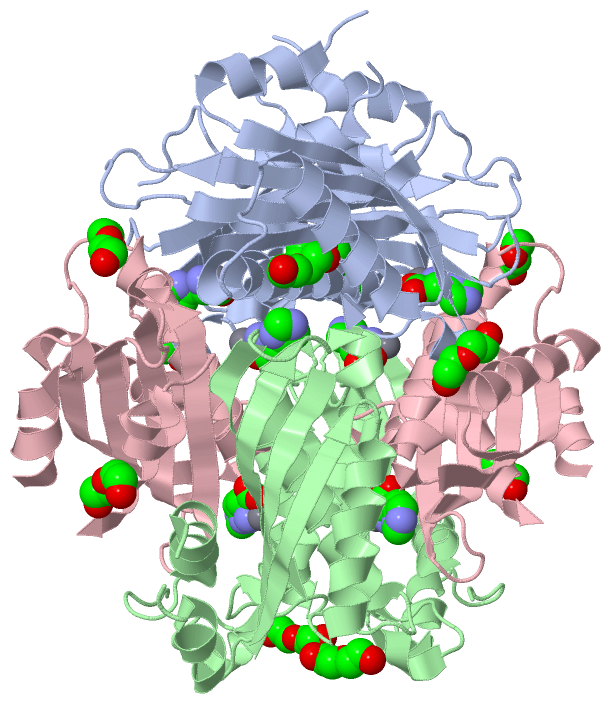

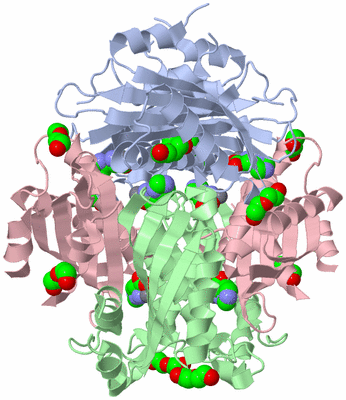

Biological Unit 1 (Jmol Viewer)

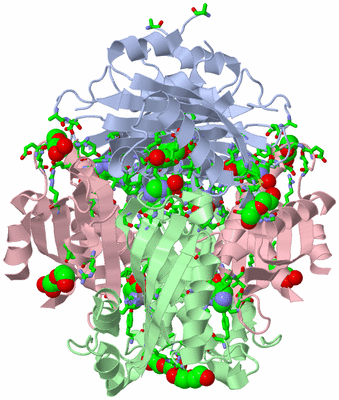

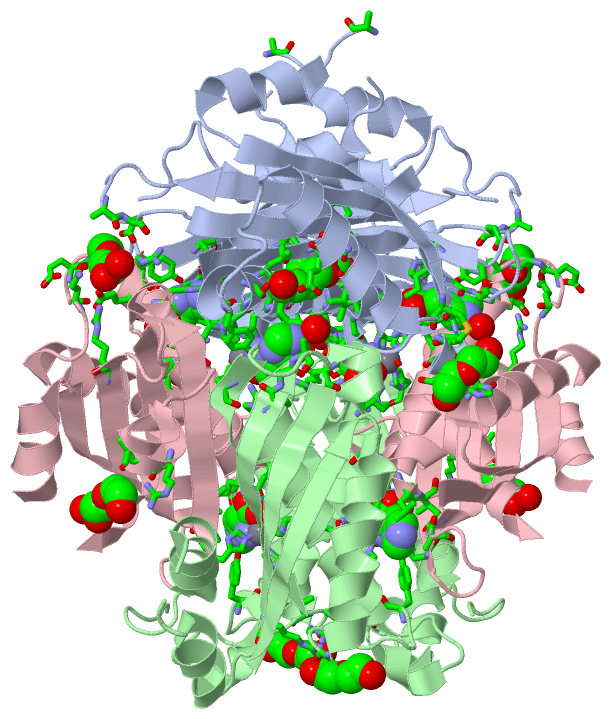

Biol. Unit 1 - sites (Jmol Viewer)

Title :   METAL ION DEPENDENCY OF THE ANTITERMINATOR PROTEIN, HUTP, FOR BINDING TO THE TERMINATOR REGION OF HUT MRNA- A STRUCTURAL BASIS

Authors :   T. Kumarevel, H. Mizuno, P. K. R. Kumar

Date :   25 Oct 04 (Deposition) - 30 Aug 05 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B,C  (2x)

Keywords :   Hutp, Rna Binding Protein, Antitermination, L-Histidine, Metal Ions, Conformational Change (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. Kumarevel, H. Mizuno, P. K. R. Kumar
Characterization Of The Metal Ion Binding Site In The Anti-Terminator Protein, Hutp, Of Bacillus Subtilis
Nucleic Acids Res. V. 33 5494 2005
PubMed-ID: 16192572 | Reference-DOI: 10.1093/NAR/GKI868
(for further references see the PDB file header)

Molecule 1 - HUT OPERON POSITIVE REGULATORY PROTEIN
	Chains	:	A, B, C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET5A
	Expression System Strain	:	PETHP4
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Mutation	:	YES
	Organism Scientific	:	BACILLUS SUBTILIS
	Organism Taxid	:	1423
	Synonym	:	HUTP

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (2x)	:	A	B	C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 12)

No.	Name	Count	Type	Full Name
1	HIS	3	Mod. Amino Acid	HISTIDINE
2	MN	3	Ligand/Ion	MANGANESE (II) ION
3	PEG	6	Ligand/Ion	DI(HYDROXYETHYL)ETHER

Biological Unit 1 (2, 18)

No.	Name	Count	Type	Full Name
1	HIS	6	Mod. Amino Acid	HISTIDINE
2	MN	-1	Ligand/Ion	MANGANESE (II) ION
3	PEG	12	Ligand/Ion	DI(HYDROXYETHYL)ETHER

Asymmetric Unit (12, 12)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	HIS A:138 , HIS A:1001 , HIS C:73 , HIS C:77 , HOH C:4046	BINDING SITE FOR RESIDUE MN C 4001
02	AC2	SOFTWARE	HIS A:73 , HIS A:77 , HOH A:4084 , HIS B:138 , HIS B:2001	BINDING SITE FOR RESIDUE MN A 4002
03	AC3	SOFTWARE	HIS B:73 , HIS B:77 , HOH B:4046 , HIS C:138 , HIS C:3001	BINDING SITE FOR RESIDUE MN B 4003
04	AC4	SOFTWARE	ARG A:88 , ARG A:98 , ILE A:129 , GLY A:130 , ALA A:131 , HIS A:138 , HOH A:4067 , TYR C:69 , TYR C:76 , HIS C:77 , MN C:4001	BINDING SITE FOR RESIDUE HIS A 1001
05	AC5	SOFTWARE	TYR A:69 , TYR A:76 , HIS A:77 , MN A:4002 , ARG B:88 , ARG B:98 , ILE B:129 , GLY B:130 , ALA B:131 , HIS B:138 , HOH B:4030	BINDING SITE FOR RESIDUE HIS B 2001
06	AC6	SOFTWARE	TYR B:69 , TYR B:76 , HIS B:77 , MN B:4003 , ARG C:88 , LEU C:97 , ARG C:98 , ILE C:129 , GLY C:130 , ALA C:131 , HIS C:138	BINDING SITE FOR RESIDUE HIS C 3001
07	AC7	SOFTWARE	GLU A:81 , ALA A:82 , HIS A:84 , GLY A:85 , ARG A:88 , PHE A:141 , GLY A:142 , VAL A:143	BINDING SITE FOR RESIDUE PEG A 3801
08	AC8	SOFTWARE	ALA A:116 , GLU A:117 , HOH A:4094 , GLN C:65 , GLU C:67 , GLY C:68 , TYR C:69 , ARG C:70 , GLU C:71 , ARG C:108	BINDING SITE FOR RESIDUE PEG A 3802
09	AC9	SOFTWARE	GLU A:23 , GLY B:62 , ILE B:64 , ARG B:108	BINDING SITE FOR RESIDUE PEG B 3803
10	BC1	SOFTWARE	MET A:45 , GLY A:94 , SER A:95 , HIS C:48	BINDING SITE FOR RESIDUE PEG A 3804
11	BC2	SOFTWARE	ARG C:11 , LEU C:12 , HOH C:4088	BINDING SITE FOR RESIDUE PEG C 3805
12	BC3	SOFTWARE	ILE A:51 , ILE A:54 , GLU A:55 , SER A:72 , LEU A:75 , TYR A:76 , THR A:79	BINDING SITE FOR RESIDUE PEG A 3806

(no "SS Bond" information available for 1WRN)

(no "Cis Peptide Bond" information available for 1WRN)

(no "SAP(SNP)/Variant" information available for 1WRN)

(no "PROSITE Motif" information available for 1WRN)

(no "Exon" information available for 1WRN)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:146
 aligned with HUTP_BACSU | P10943 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:147
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           HUTP_BACSU     2 TLHKERRIGRLSVLLLLNEAEESTQVEELERDGWKVCLGKVGSMDAHKVVAAIETASKKSGVIQSEGYRESHALYHATMEALHGVTRGEMLLGSLLRTVGLRFAVLRGNPYESEAEGDWIAVSLYGTIGAPIKGLEHETFGVGINHI 148
               SCOP domains d1wrna_ A: automated  matches                                                                                                                       SCOP domains
               CATH domains 1wrnA00 A:2-148 Hut  operon positive regulatory protein HutP                                                                                        CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhh...-..hhhhhhhhh..eeeeeeeee.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh....hhhhh.eeeeeeeeeee..........eeeeeeeeeee......eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wrn A   2 TLHKERRIGRLSVLLLLNEA-ESTQVEELERDGWKVCLGKVGSMDAHKVIAAIETASKKSGVIQSEGYRESHALYHATMEALHGVTRGEMLLGSLLRTVGLRFAVLRGNPYESEAEGDWIAVSLYGTIGAPIKGLEHETFGVGINHI 148
                                    11        21 |      31        41        51        61        71        81        91       101       111       121       131       141
                                              21 |
                                                23

Chain B from PDB  Type:PROTEIN  Length:146
 aligned with HUTP_BACSU | P10943 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:147
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           HUTP_BACSU     2 TLHKERRIGRLSVLLLLNEAEESTQVEELERDGWKVCLGKVGSMDAHKVVAAIETASKKSGVIQSEGYRESHALYHATMEALHGVTRGEMLLGSLLRTVGLRFAVLRGNPYESEAEGDWIAVSLYGTIGAPIKGLEHETFGVGINHI 148
               SCOP domains d1wrnb_ B: automated  matches                                                                                                                       SCOP domains
               CATH domains 1wrnB00 B:2-148 Hut  operon positive regulatory protein HutP                                                                                        CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhh..-..hhhhhhhhh..eeeeeeeee.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh....hhhhh.eeeeeeeeeee....hhhhh.eeeeeeeeeee......eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wrn B   2 TLHKERRIGRLSVLLLLNEA-ESTQVEELERDGWKVCLGKVGSMDAHKVIAAIETASKKSGVIQSEGYRESHALYHATMEALHGVTRGEMLLGSLLRTVGLRFAVLRGNPYESEAEGDWIAVSLYGTIGAPIKGLEHETFGVGINHI 148
                                    11        21 |      31        41        51        61        71        81        91       101       111       121       131       141
                                              21 |
                                                23

Chain C from PDB  Type:PROTEIN  Length:143
 aligned with HUTP_BACSU | P10943 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:147
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           HUTP_BACSU     2 TLHKERRIGRLSVLLLLNEAEESTQVEELERDGWKVCLGKVGSMDAHKVVAAIETASKKSGVIQSEGYRESHALYHATMEALHGVTRGEMLLGSLLRTVGLRFAVLRGNPYESEAEGDWIAVSLYGTIGAPIKGLEHETFGVGINHI 148
               SCOP domains d1wrnc_ C: automate    d matches                                                                                                                    SCOP domains
               CATH domains 1wrnC00 C:2-148 Hut     operon positive regulatory protein HutP                                                                                     CATH domains
           Pfam domains (1) ------HutP-1wrnC01     C:8-146                                                                                                                   -- Pfam domains (1)
           Pfam domains (2) ------HutP-1wrnC02     C:8-146                                                                                                                   -- Pfam domains (2)
           Pfam domains (3) ------HutP-1wrnC03     C:8-146                                                                                                                   -- Pfam domains (3)
         Sec.struct. author ..hhhhhhhhhhhhhhhh.----hhhhhhhhh..eeeeeeeee.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh....hhhhh.eeeeeeeeeee....hhhhh.eeeeeeeeeee......eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wrn C   2 TLHKERRIGRLSVLLLLNE----TQVEELERDGWKVCLGKVGSMDAHKVIAAIETASKKSGVIQSEGYRESHALYHATMEALHGVTRGEMLLGSLLRTVGLRFAVLRGNPYESEAEGDWIAVSLYGTIGAPIKGLEHETFGVGINHI 148
                                    11        |-   |    31        41        51        61        71        81        91       101       111       121       131       141
                                             20   25

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Hut operon positive regulatory protein HutP (13)

Superfamily: Hut operon positive regulatory protein HutP (13)

Family: Hut operon positive regulatory protein HutP (13)

Protein domain: automated matches (10)

Bacillus subtilis [TaxId: 1423] (8)

1a	d1wrna_	A:
1b	d1wrnb_	B:
1c	d1wrnc_	C:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Hut operon positive regulatory protein HutP (11)

Homologous Superfamily: Hut operon positive regulatory protein HutP (11)

Bacillus subtilis. Organism_taxid: 1423. (6)

1a	1wrnC00	C:2-148
1b	1wrnA00	A:2-148
1c	1wrnB00	B:2-148

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: HutP] (9)

Family: HutP (9)

Bacillus subtilis (9)

1a	HutP-1wrnC01	C:8-146
1b	HutP-1wrnC02	C:8-146
1c	HutP-1wrnC03	C:8-146

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (HUTP_BACSU | P10943)

molecular function
	GO:0003723	RNA binding	Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
	GO:0003729	mRNA binding	Interacting selectively and non-covalently with messenger RNA (mRNA), an intermediate molecule between DNA and protein. mRNA includes UTR and coding sequences, but does not contain introns.
biological process
	GO:0006547	histidine metabolic process	The chemical reactions and pathways involving histidine, 2-amino-3-(1H-imidazol-4-yl)propanoic acid.
	GO:0010628	positive regulation of gene expression	Any process that increases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
