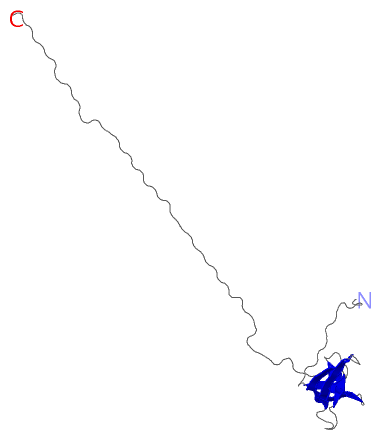

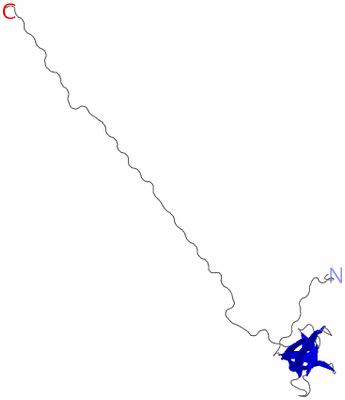

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

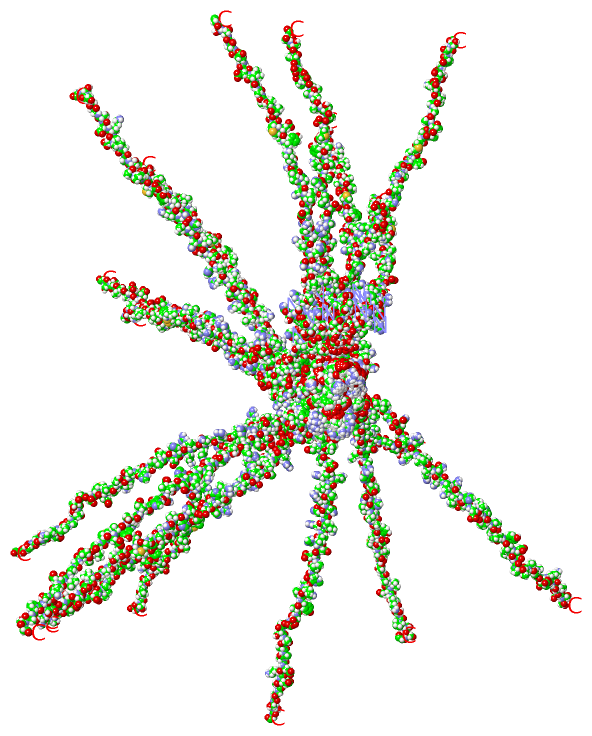

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE TUDOR DOMAIN FROM MOUSE HYPOTHETICAL PROTEIN HOMOLOGOUS TO HISTONE ACETYLTRANSFERASE

Authors :  H. Li, K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Str Genomics/Proteomics Initiative (Rsgi)
Date :  28 May 04  (Deposition) - 28 Nov 04  (Release) - 16 Feb 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Tudor Domain, Myst Family, Histone Acetyltransferase, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  H. Li, K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The Tudor Domain From Mouse Hypothetical Protein Homologous To Histone Acetyltransferas
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - MYST HISTONE ACETYLTRANSFERASE 1
    ChainsA
    EC Number2.3.1.48
    EngineeredYES
    Expression System PlasmidP031110-09
    Expression System Vector TypePLASMID
    FragmentTUDOR DOMAIN
    GeneRIKEN CDNA 5830450F21
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    Other DetailsCELL-FREE PROTEIN SYNTHESIS
    SynonymHYPOTHETICAL PROTEIN 5830450F21RIK

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WGS)

(-) Sites  (0, 0)

(no "Site" information available for 1WGS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WGS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WGS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WGS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1WGS)

(-) Exons   (0, 0)

(no "Exon" information available for 1WGS)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:133
 aligned with KAT8_MOUSE | Q9D1P2 from UniProtKB/Swiss-Prot  Length:458

    Alignment length:160
                                    25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175
           KAT8_MOUSE    16 GTVGEGEPGPGENAAVEGPARSPGRVSPPTPARGEPEVTVEIGETYLCRRPDSTWHSAEVIQSRVNDQEGREEFYVHYVGFNRRLDEWVDKNRLALTKTVKDAVQKNSEKYLSELAEQPERKITRNQKRKHDEINHVQKTYAEMDPTTAALEKEHEAITK 175
               SCOP domains d1wg                           sa_ A: Probable histone acetyltransferase MYST1                                                                                   SCOP domains
               CATH domains 1wgs                           A00 A:1-133 Myst histone acetyltransferase 1.                                                                                     CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....---------------------------.............eeeeee...eeeeeeeeeeeee....eeeeeee.........eee....ee................................................................. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wgs A   1 GSSG---------------------------SSGEPEVTVEIGETYLCRRPDSTWHSAEVIQSRVNDQEGREEFYVHYVGFNRRLDEWVDKNRLALTKTVKDAVQKNSEKYLSELAEQPERKITRNQKRKHDEINHVQKTYAEMDPTTAALEKESGPSSG 133
                               |     -         -         - |      13        23        33        43        53        63        73        83        93       103       113       123       133
                               4                           5

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1WGS)

(-) Gene Ontology  (29, 29)

NMR Structure(hide GO term definitions)
Chain A   (KAT8_MOUSE | Q9D1P2)
molecular function
    GO:0016407    acetyltransferase activity    Catalysis of the transfer of an acetyl group to an acceptor molecule.
    GO:0019899    enzyme binding    Interacting selectively and non-covalently with any enzyme.
    GO:0004402    histone acetyltransferase activity    Catalysis of the reaction: acetyl-CoA + histone = CoA + acetyl-histone.
    GO:0046972    histone acetyltransferase activity (H4-K16 specific)    Catalysis of the reaction: acetyl-CoA + histone H4 L-lysine (position 16) = CoA + histone H4 N6-acetyl-L-lysine (position 16). This reaction represents the addition of an acetyl group to the lysine at position 16 of histone H4.
    GO:0043995    histone acetyltransferase activity (H4-K5 specific)    Catalysis of the reaction: acetyl-CoA + histone H4 L-lysine (position 5) = CoA + histone H4 N6-acetyl-L-lysine (position 5).
    GO:0043996    histone acetyltransferase activity (H4-K8 specific)    Catalysis of the reaction: acetyl-CoA + histone H4 L-lysine (position 8) = CoA + histone H4 N6-acetyl-L-lysine (position 8).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0035064    methylated histone binding    Interacting selectively and non-covalently with a histone in which a residue has been modified by methylation. Histones are any of a group of water-soluble proteins found in association with the DNA of eukaroytic chromosomes.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016746    transferase activity, transferring acyl groups    Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
    GO:0016747    transferase activity, transferring acyl groups other than amino-acyl groups    Catalysis of the transfer of an acyl group, other than amino-acyl, from one compound (donor) to another (acceptor).
biological process
    GO:0043984    histone H4-K16 acetylation    The modification of histone H4 by the addition of an acetyl group to a lysine residue at position 16 of the histone.
    GO:0043981    histone H4-K5 acetylation    The modification of histone H4 by the addition of an acetyl group to a lysine residue at position 5 of the histone.
    GO:0043982    histone H4-K8 acetylation    The modification of histone H4 by the addition of an acetyl group to a lysine residue at position 8 of the histone.
    GO:0016573    histone acetylation    The modification of a histone by the addition of an acetyl group.
    GO:0030099    myeloid cell differentiation    The process in which a relatively unspecialized myeloid precursor cell acquires the specialized features of any cell of the myeloid leukocyte, megakaryocyte, thrombocyte, or erythrocyte lineages.
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0010506    regulation of autophagy    Any process that modulates the frequency, rate or extent of autophagy. Autophagy is the process in which cells digest parts of their own cytoplasm.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0071339    MLL1 complex    A protein complex that can methylate lysine-4 of histone H3. MLL1/MLL is the catalytic methyltransferase subunit, and the complex also contains the core components ASH2L, HCFC1/HCF1 WDR5 and RBBP5.
    GO:0072487    MSL complex    A histone acetyltransferase complex that catalyzes the acetylation of a histone H4 lysine residue at position 16. In human, it contains the catalytic subunit MOF, and MSL1, MSL2 and MSL3.
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0000123    histone acetyltransferase complex    A protein complex that possesses histone acetyltransferase activity.
    GO:0000776    kinetochore    A multisubunit complex that is located at the centromeric region of DNA and provides an attachment point for the spindle microtubules.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
