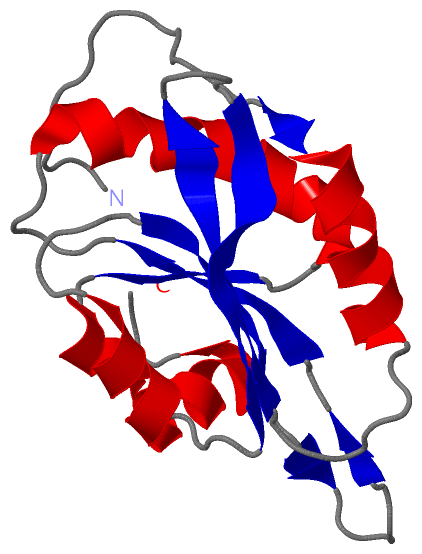

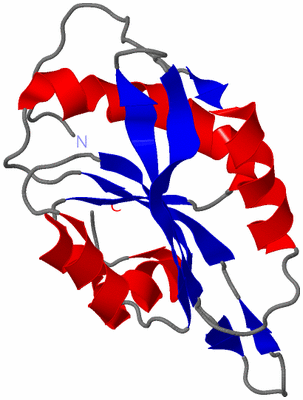

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

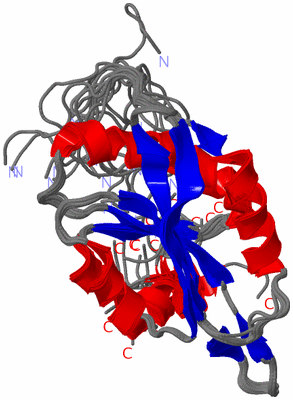

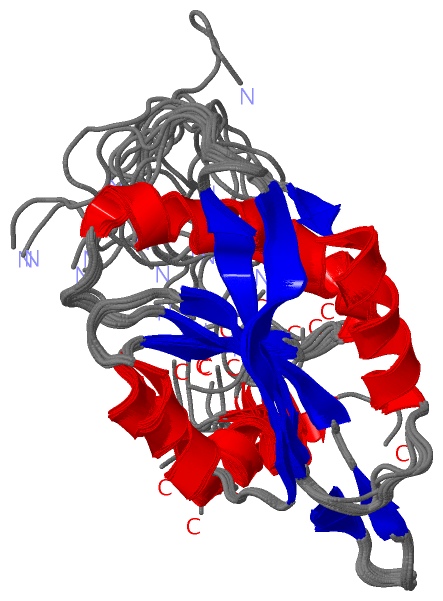

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF GLIA MATURATION FACTOR-GAMMA FROM MUS MUSCULUS

Authors :  A. K. Goroncy, T. Kigawa, S. Koshiba, N. Kobayashi, N. Tochio, M. Inoue, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  26 May 04  (Deposition) - 26 Nov 04  (Release) - 02 Feb 10  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Actin Binding Protein, Cytoskeleton, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. K. Goroncy, S. Koshiba, N. Tochio, T. Tomizawa, M. Sato, M. Inoue, S. Watanabe, Y. Hayashizaki, A. Tanaka, T. Kigawa, S. Yokoyama
Nmr Solution Structures Of Actin Depolymerizing Factor Homology Domains.
Protein Sci. V. 18 2384 2009
PubMed-ID: 19768801  |  Reference-DOI: 10.1002/PRO.248

(-) Compounds

Molecule 1 - GLIA MATURATION FACTOR GAMMA
    Chains: A
    Engineered: YES
    Expression System Plasmid: P030324-83
    Expression System Vector Type: PLASMID
    Fragment: COFILIN-ADF-DOMAIN
    Gene: RIKEN CDNA 2310057N07
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS
    Synonym: GMF-GAMMA, MGMF-GAMMA

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WFS)

(-) Sites  (0, 0)

(no "Site" information available for 1WFS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WFS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WFS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WFS)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ADF_HPS51263 ADF-H domain profile.GMFG_MOUSE4-139  1A:10-145

(-) Exons   (0, 0)

(no "Exon" information available for 1WFS)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:151
 aligned with GMFG_MOUSE | Q9ERL7 from UniProtKB/Swiss-Prot  Length:142

    Alignment length:151
                                  1                                                                                                                                          142
                                  |  4        14        24        34        44        54        64        74        84        94       104       114       124       134       | -
           GMFG_MOUSE     - ------MSDSLVVCEVDPELKETLRKFRFRKETNNAAIIMKVDKDRQMVVLEDELQNISPEELKLELPERQPRFVVYSYKYVHDDGRVSYPLCFIFSSPVGCKPEQQMMYAGSKNRLVQTAELTKVFEIRTTDDLTETWLKEKLAFFR---   -
               SCOP domains d1wfsa_ A: Glia maturation factor gamma, GMF-gamma                                                                                                      SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----------------Cofilin_ADF-1wfsA01 A:18-145                                                                                                    ------ Pfam domains
         Sec.struct. author ..............eehhhhhhhhhhhh.......eeeeeeee....eeeeeeeee....hhhhhhh.....eeeeee..ee.....ee..eeeeee.....hhhhhhhhhhhhhhhhhhhh...eeee.hhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------ADF_H  PDB: A:10-145 UniProt: 4-139                                                                                                     ------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wfs A   1 GSSGSSGSDSLVVCEVDPELKETLRKFRFRKETNNAAIIMKVDKDRQMVVLEDELQNISPEELKLELPERQPRFVVYSYKYVHDDGRVSYPLCFIFSSPVGCKPEQQMMYAGSKNRLVQTAELTKVFEIRTTDDLTETWLKEKLASGPSSG 151
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WFS)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: ADF (44)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (GMFG_MOUSE | Q9ERL7)
molecular function
    GO:0071933    Arp2/3 complex binding    Interacting selectively and non-covalently with an Arp2/3 complex, a protein complex that contains two actin-related proteins, Arp2 and Arp3, and five novel proteins (ARPC1-5).
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
    GO:0008083    growth factor activity    The function that stimulates a cell to grow or proliferate. Most growth factors have other actions besides the induction of cell growth or proliferation.
biological process
    GO:0071846    actin filament debranching    An actin filament severing process that results in the removal of actin filament branches specifically at the branch points.
    GO:0034316    negative regulation of Arp2/3 complex-mediated actin nucleation    Any process that stops, prevents, or reduces the frequency, rate or extent of actin nucleation mediated by the Arp2/3 complex and interacting proteins.
    GO:2000249    regulation of actin cytoskeleton reorganization    Any process that modulates the frequency, rate or extent of actin cytoskeleton reorganization.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wfs)

  Sites
(no "Sites" information available for 1wfs)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wfs)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1wfs
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GMFG_MOUSE | Q9ERL7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GMFG_MOUSE | Q9ERL7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GMFG_MOUSE | Q9ERL7: 1vkk 4jd2

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1WFS)
