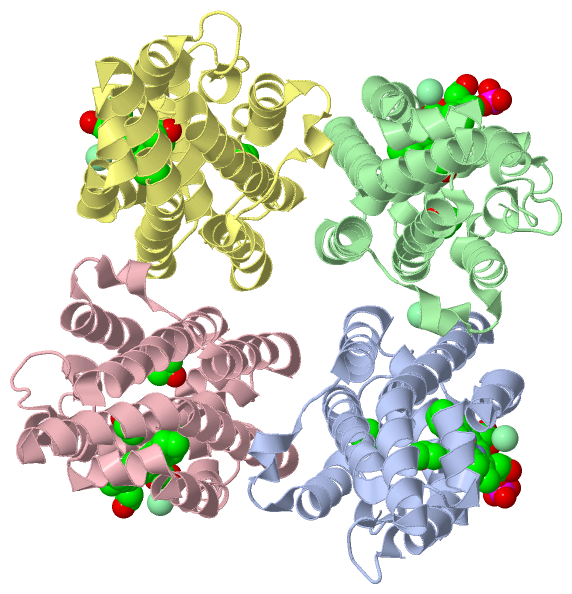

Asymmetric Unit (Jmol Viewer)

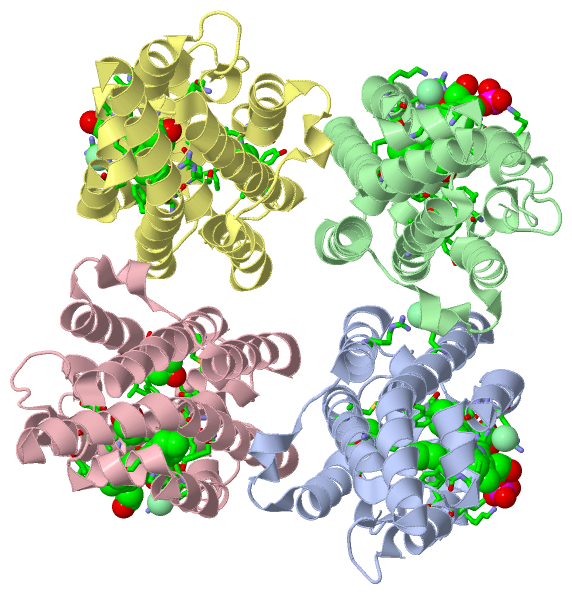

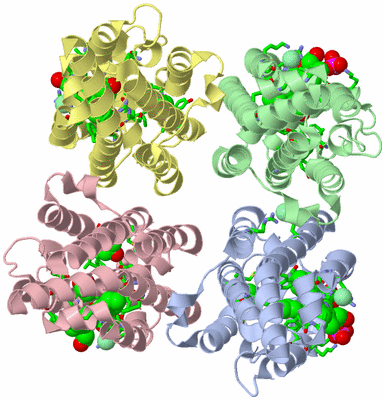

Asym. Unit - sites (Jmol Viewer)

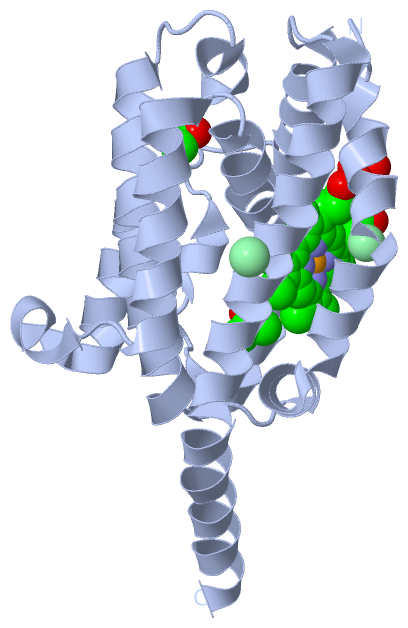

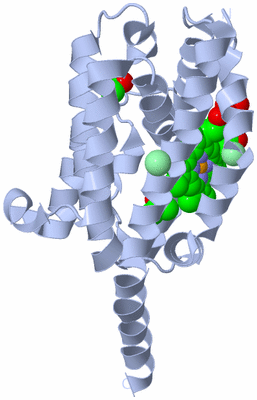

Biological Unit 1 (Jmol Viewer)

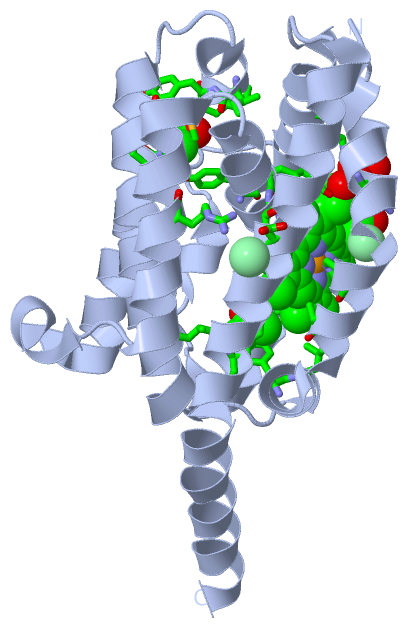

Biol. Unit 1 - sites (Jmol Viewer)

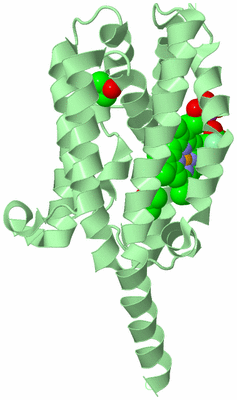

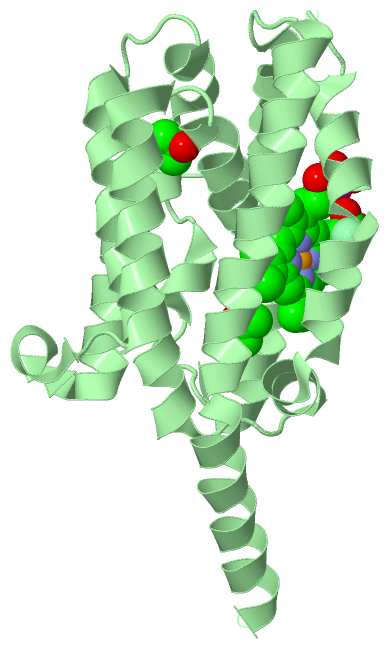

Biological Unit 2 (Jmol Viewer)

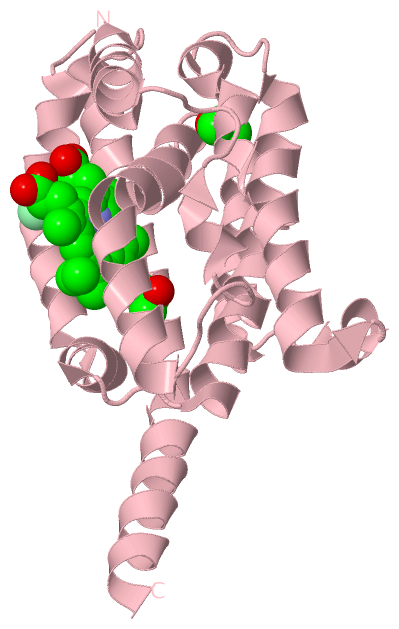

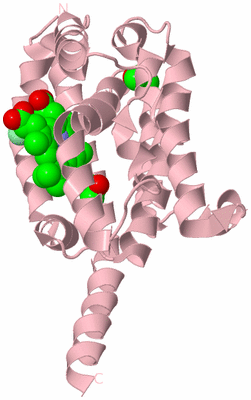

Biological Unit 3 (Jmol Viewer)

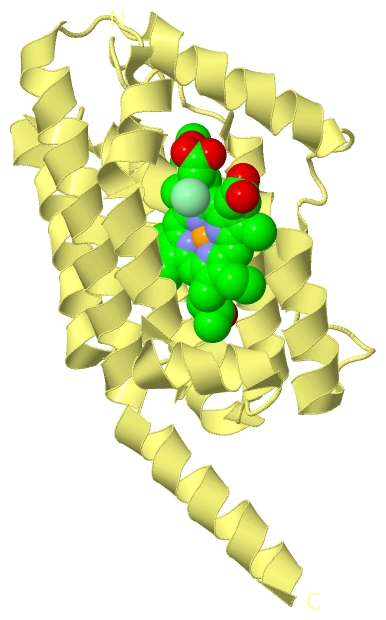

Biological Unit 4 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF HEME OXYGENASE-1 FROM CYANOBACTERIUM SYNECHOCYSTIS SP. PCC6803 IN COMPLEX WITH HEME

Authors :   M. Sugishima, C. T. Migita, X. Zhang, T. Yoshida, K. Fukuyama

Date :   21 May 04 (Deposition) - 21 Dec 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Sugishima, C. T. Migita, X. Zhang, T. Yoshida, K. Fukuyama
Crystal Structure Of Heme Oxygenase-1 From Cyanobacterium Synechocystis Sp. Pcc 6803 In Complex With Heme
Eur. J. Biochem. V. 271 4517 2004
PubMed-ID: 15560792 | Reference-DOI: 10.1111/J.1432-1033.2004.04411.X
(for further references see the PDB file header)

Molecule 1 - HEME OXYGENASE 1
	Chains	:	A, B, C, D
	EC Number	:	1.14.99.3
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PMW172
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	SYNECHOCYSTIS SP.
	Organism Taxid	:	1148
	Strain	:	PCC 6803

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (4, 19)

No.	Name	Count	Type	Full Name
1	CL	5	Ligand/Ion	CHLORIDE ION
2	HEM	4	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
3	IPA	8	Ligand/Ion	ISOPROPYL ALCOHOL
4	PO4	2	Ligand/Ion	PHOSPHATE ION

Biological Unit 1 (3, 4)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
3	IPA	2	Ligand/Ion	ISOPROPYL ALCOHOL
4	PO4	1	Ligand/Ion	PHOSPHATE ION

Biological Unit 2 (3, 4)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
3	IPA	2	Ligand/Ion	ISOPROPYL ALCOHOL
4	PO4	1	Ligand/Ion	PHOSPHATE ION

Biological Unit 3 (2, 3)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
3	IPA	2	Ligand/Ion	ISOPROPYL ALCOHOL
4	PO4	-1	Ligand/Ion	PHOSPHATE ION

Biological Unit 4 (2, 3)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
3	IPA	2	Ligand/Ion	ISOPROPYL ALCOHOL
4	PO4	-1	Ligand/Ion	PHOSPHATE ION

Asymmetric Unit (17, 17)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	LYS A:165 , LYS A:168 , LYS D:165 , LYS D:168 , ARG D:172	BINDING SITE FOR RESIDUE PO4 A 241
02	AC2	SOFTWARE	LYS B:165 , LYS B:168 , ARG B:172 , LYS C:165 , LYS C:168 , ARG C:172	BINDING SITE FOR RESIDUE PO4 B 241
03	AC3	SOFTWARE	LYS B:14	BINDING SITE FOR RESIDUE CL B 242
04	AC4	SOFTWARE	ARG C:10	BINDING SITE FOR RESIDUE CL C 241
05	AC5	SOFTWARE	ARG A:108 , ASP A:194	BINDING SITE FOR RESIDUE CL A 243
06	AC6	SOFTWARE	ARG A:10 , HIS A:17 , ALA A:20 , LEU A:30 , TYR A:125 , THR A:126 , GLY A:130 , SER A:133 , ILE A:137 , LEU A:138 , LYS A:168 , ARG A:172 , PHE A:203 , HOH A:1006 , LYS D:165	BINDING SITE FOR RESIDUE HEM A 300
07	AC7	SOFTWARE	ARG B:10 , HIS B:17 , ALA B:20 , VAL B:26 , LEU B:30 , TYR B:125 , THR B:126 , GLY B:130 , SER B:133 , GLY B:134 , LEU B:138 , PHE B:196 , ASN B:199 , HOH B:1007 , HOH B:1051 , LYS C:165	BINDING SITE FOR RESIDUE HEM B 300
08	AC8	SOFTWARE	LYS B:165 , ARG C:10 , HIS C:17 , ALA C:20 , VAL C:26 , TYR C:125 , THR C:126 , GLY C:130 , SER C:133 , ILE C:137 , LEU C:138 , PHE C:196 , ASN C:199 , HOH C:1008 , HOH C:1011 , HOH C:1012	BINDING SITE FOR RESIDUE HEM C 300
09	AC9	SOFTWARE	LYS A:165 , ARG D:10 , HIS D:17 , ALA D:20 , VAL D:26 , LEU D:30 , TYR D:125 , THR D:126 , ARG D:127 , GLY D:130 , SER D:133 , ILE D:137 , ARG D:172 , PHE D:196 , ASN D:199 , PHE D:203 , HOH D:1009	BINDING SITE FOR RESIDUE HEM D 300
10	BC1	SOFTWARE	TYR D:156 , PHE D:203	BINDING SITE FOR RESIDUE IPA D 1004
11	BC2	SOFTWARE	TYR C:156 , HOH C:1072	BINDING SITE FOR RESIDUE IPA C 1003
12	BC3	SOFTWARE	PHE B:203	BINDING SITE FOR RESIDUE IPA B 1002
13	BC4	SOFTWARE	PHE A:29 , LEU A:42	BINDING SITE FOR RESIDUE IPA A 1001
14	BC5	SOFTWARE	GLU A:54 , MET A:57 , ILE A:69 , TYR A:70 , PHE A:71 , ASN A:75 , TYR A:128	BINDING SITE FOR RESIDUE IPA A 1005
15	BC6	SOFTWARE	MET B:57 , ILE B:69 , TYR B:70 , PHE B:71 , LEU B:74 , SER B:124 , TYR B:128	BINDING SITE FOR RESIDUE IPA B 1006
16	BC7	SOFTWARE	MET C:57 , ILE C:69 , PHE C:71 , LEU C:74 , ASN C:75 , SER C:124	BINDING SITE FOR RESIDUE IPA C 1007
17	BC8	SOFTWARE	MET D:57 , ILE D:69 , TYR D:70 , PHE D:71 , ASN D:75 , SER D:124 , TYR D:128	BINDING SITE FOR RESIDUE IPA D 1008

(no "SS Bond" information available for 1WE1)

(no "Cis Peptide Bond" information available for 1WE1)

(no "SAP(SNP)/Variant" information available for 1WE1)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HEME_OXYGENASE	PS00593	Heme oxygenase signature.	HO1_SYNY3	120-130	4	A:120-130 B:120-130 C:120-130 D:120-130

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HEME_OXYGENASE	PS00593	Heme oxygenase signature.	HO1_SYNY3	120-130	1	A:120-130 - - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HEME_OXYGENASE	PS00593	Heme oxygenase signature.	HO1_SYNY3	120-130	1	- B:120-130 - -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HEME_OXYGENASE	PS00593	Heme oxygenase signature.	HO1_SYNY3	120-130	1	- - C:120-130 -

Biological Unit 4 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HEME_OXYGENASE	PS00593	Heme oxygenase signature.	HO1_SYNY3	120-130	1	- - - D:120-130

(no "Exon" information available for 1WE1)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:222
 aligned with HO1_SYNY3 | P72849 from UniProtKB/Swiss-Prot  Length:240

    Alignment length:222
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221
            HO1_SYNY3     2 SVNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
               SCOP domains d1we1a_ A: Heme oxygenase-1 (HO-1)                                                                                                                                                                                             SCOP domains
               CATH domains 1we1A00 A:2-223 Heme Oxygenase; Chain A                                                                                                                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhh.....hhhhhhhhhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhh.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------HEME_OXYGEN--------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1we1 A   2 SVNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221

Chain B from PDB  Type:PROTEIN  Length:222
 aligned with HO1_SYNY3 | P72849 from UniProtKB/Swiss-Prot  Length:240

    Alignment length:222
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221
            HO1_SYNY3     2 SVNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
               SCOP domains d1we1b_ B: Heme oxygenase-1 (HO-1)                                                                                                                                                                                             SCOP domains
               CATH domains 1we1B00 B:2-223 Heme Oxygenase; Chain A                                                                                                                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhh.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------HEME_OXYGEN--------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1we1 B   2 SVNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221

Chain C from PDB  Type:PROTEIN  Length:222
 aligned with HO1_SYNY3 | P72849 from UniProtKB/Swiss-Prot  Length:240

    Alignment length:222
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221
            HO1_SYNY3     2 SVNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
               SCOP domains d1we1c_ C: Heme oxygenase-1 (HO-1)                                                                                                                                                                                             SCOP domains
               CATH domains 1we1C00 C:2-223 Heme Oxygenase; Chain A                                                                                                                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhh.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------HEME_OXYGEN--------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1we1 C   2 SVNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221

Chain D from PDB  Type:PROTEIN  Length:221
 aligned with HO1_SYNY3 | P72849 from UniProtKB/Swiss-Prot  Length:240

    Alignment length:221
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222
            HO1_SYNY3     3 VNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
               SCOP domains d1we1d_ D: Heme oxygenase-1 (HO-1)                                                                                                                                                                                            SCOP domains
               CATH domains 1we1D00 D:3-223 Heme Oxygenase; Chain A                                                                                                                                                                                       CATH domains
           Pfam domains (1) Heme_oxygenase-1we1D01 D:3-205                                                                                                                                                                             ------------------ Pfam domains (1)
           Pfam domains (2) Heme_oxygenase-1we1D02 D:3-205                                                                                                                                                                             ------------------ Pfam domains (2)
           Pfam domains (3) Heme_oxygenase-1we1D03 D:3-205                                                                                                                                                                             ------------------ Pfam domains (3)
           Pfam domains (4) Heme_oxygenase-1we1D04 D:3-205                                                                                                                                                                             ------------------ Pfam domains (4)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhh.hhhhh...hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhh.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------HEME_OXYGEN--------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1we1 D   3 VNLASQLREGTKKSHSMAENVGFVKCFLKGVVEKNSYRKLVGNLYFVYSAMEEEMAKFKDHPILSHIYFPELNRKQSLEQDLQFYYGSNWRQEVKISAAGQAYVDRVRQVAATAPELLVAHSYTRYLGDLSGGQILKKIAQNAMNLHDGGTAFYEFADIDDEKAFKNTYRQAMNDLPIDQATAERIVDEANDAFAMNMKMFNELEGNLIKAIGIMVFNSLT 223
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Heme oxygenase-like (107)

Superfamily: Heme oxygenase-like (107)

Family: Eukaryotic type heme oxygenase (69)

Protein domain: Heme oxygenase-1 (HO-1) (49)

Synechocystis sp. [TaxId: 1143] (1)

1a	d1we1a_	A:
1b	d1we1b_	B:
1c	d1we1c_	C:
1d	d1we1d_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Heme Oxygenase; Chain A (84)

Homologous Superfamily: Heme Oxygenase; Chain A (84)

Pcc 6803 (Synechocystis sp) (4)

1a	1we1D00	D:3-223
1b	1we1A00	A:2-223
1c	1we1B00	B:2-223
1d	1we1C00	C:2-223

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HO (49)

Family: Heme_oxygenase (37)

Synechocystis sp. (strain ATCC 27184 / PCC 6803 / N-1) (4)

1a	Heme_oxygenase-1we1D01	D:3-205
1b	Heme_oxygenase-1we1D02	D:3-205
1c	Heme_oxygenase-1we1D03	D:3-205
1d	Heme_oxygenase-1we1D04	D:3-205

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (HO1_SYNY3 | P72849)

molecular function
	GO:0004392	heme oxygenase (decyclizing) activity	Catalysis of the reaction: heme + 3 donor-H2 + 3 O2 = biliverdin + Fe2+ + CO + 3 acceptor + 3 H2O.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0006788	heme oxidation	The chemical reactions and pathways resulting in the loss of electrons from one or more atoms in heme.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0015979	photosynthesis	The synthesis by organisms of organic chemical compounds, especially carbohydrates, from carbon dioxide (CO2) using energy obtained from light rather than from the oxidation of chemical compounds.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		IPA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1we1)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1we1
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	HO1_SYNY3 \| P72849
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.14.99.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	HO1_SYNY3 \| P72849
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1WE1)

(no "Related Entries Specified in the PDB File" available for 1WE1)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 19)

Sites (17, 17)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 4)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
