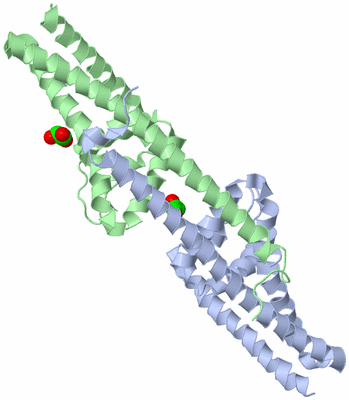

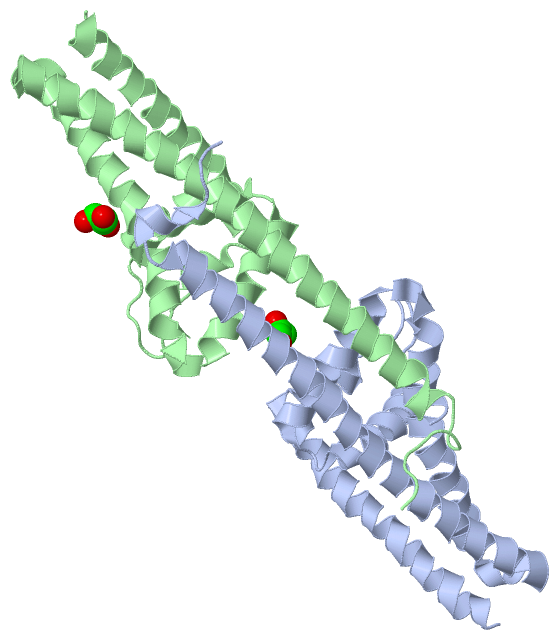

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

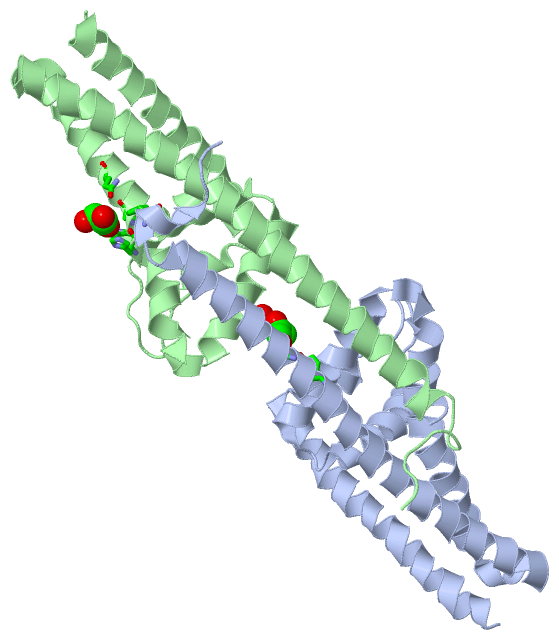

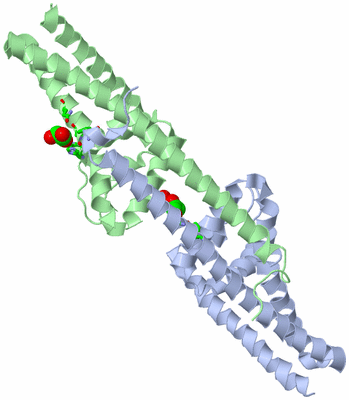

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  BBCRASP-1 FROM BORRELIA BURGDORFERI

Authors :  F. S. Cordes, P. Roversi, L. Goodstadt, C. Ponting, P. Kraiczy, C. Skerka, M. Kirschfink, M. M. Simon, V. Brade, P. Zipfel, R. Wallich, S. M. Lea
Date :  13 Jul 04  (Deposition) - 09 Feb 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Complement Regulator, Complement Regulator Acquiring Surface Protein, Lyme Borreliosis, Factor H Binding, Tick, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. S. Cordes, P. Roversi, P. Kraiczy, M. M. Simon, V. Brade, O. Jahraus, R. Wallis, C. Skerka, P. Zipfel, R. Wallich, S. M. Lea
A Novel Fold For The Factor H-Binding Protein Bbcrasp-1 Of Borrelia Burgdorferi
Nat. Struct. Mol. Biol. V. 12 276 2005
PubMed-ID: 15711564  |  Reference-DOI: 10.1038/NSMB902
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BBCRASP-1
    Atcc: 35210
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX-2T
    Expression System Strain: JM109
    Expression System Taxid: 562
    Fragment: EXTRACELLULAR DOMAIN, RESIDUES 70-250
    Organism Common: LYME DISEASE SPIROCHETE
    Organism Scientific: BORRELIA BURGDORFERI
    Organism Taxid: 445985
    Other Details: FACTOR H BINDING DIMER
    Other Details - Source: TICK ISOLATE GERMANY
    Strain: ZS7
    Variant: TICK ISOLATE

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1GOL2Ligand/IonGLYCEROL

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR A:221 , THR A:225 , HOH A:2018BINDING SITE FOR RESIDUE GOL A1251
2AC2SOFTWAREPHE A:243 , HIS B:165 , TRP B:168 , GLY B:169 , GLN B:173BINDING SITE FOR RESIDUE GOL B1250

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1W33)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Glu A:70 -Thr A:71
2Glu B:70 -Thr B:71

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1W33)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1W33)

(-) Exons   (0, 0)

(no "Exon" information available for 1W33)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:181
 aligned with O50957_BORBU | O50957 from UniProtKB/TrEMBL  Length:251

    Alignment length:181
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         O50957_BORBU    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPAF 250
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 1w33A00 A:70-250 Bbcrasp-1                                                                                                                                                            CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1w33 A  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPAF 250
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249


Chain B from PDB  Type:PROTEIN  Length:180
 aligned with O50957_BORBU | O50957 from UniProtKB/TrEMBL  Length:251

    Alignment length:180
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
         O50957_BORBU    70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains 1w33B00 B:70-249 Bbcrasp-1                                                                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.........hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1w33 B  70 ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPA 249
                                    79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1W33)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1W33)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1W33)
