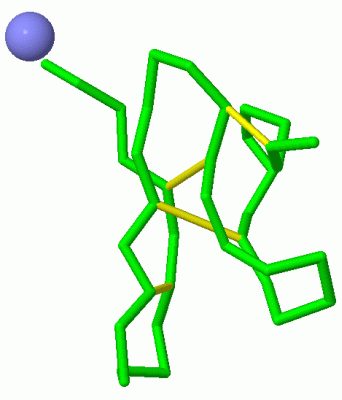

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

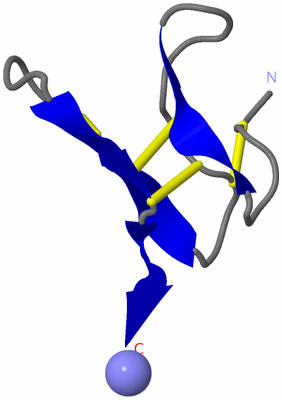

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

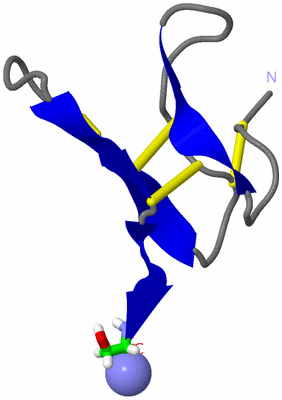

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

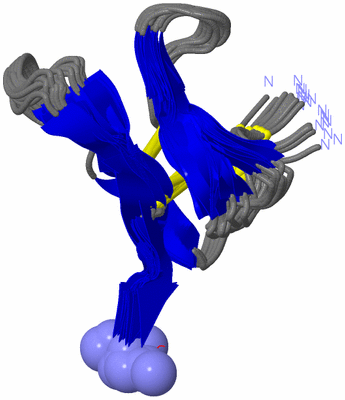

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE BY NMR MEANS OF DELTA-PALUIT1-NH2

Authors :  G. Ferrat, F. Bosmans, J. Tytgat, C. Pimentel, B. Chagot, T. Nakajima, H. Darbon, G. Corzo
Date :  19 Jan 04  (Deposition) - 29 Mar 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Insecticidal Toxin, Spider Toxin, Ick Fold, Nmr Structure (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Ferrat, F. Bosmans, J. Tytgat, C. Pimentel, B. Chagot, N. Gilles, T. Nakajima, H. Darbon, G. Corzo
Solution Structure Of Two Insect-Specific Spider Toxins And Their Pharmacological Interaction With The Insect Voltage-Gated Na(+) Channel
Proteins V. 59 368 2005
PubMed-ID: 15726637  |  Reference-DOI: 10.1002/PROT.20424
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DELTA-PALUTOXIN IT1
    Chains: A
    Organism Scientific: PARACOELOTES LUCTUOSUS
    Organism Taxid: 185217
    Synonym: DELTA-PALUIT1

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1NH21Mod. Amino AcidAMINO GROUP

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:37BINDING SITE FOR RESIDUE NH2 A 38

(-) SS Bonds  (4, 4)

NMR Structure
No.Residues
1A:2 -A:18
2A:9 -A:23
3A:17 -A:33
4A:25 -A:31

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1V90)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1V90)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1MU_AGATOXINPS60015 Mu-agatoxin family signature.T3D1A_PIRLC2-33  1A:2-33

(-) Exons   (0, 0)

(no "Exon" information available for 1V90)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:38
 aligned with T3D1A_PIRLC | P83256 from UniProtKB/Swiss-Prot  Length:37

    Alignment length:38
                                                               37
                                    10        20        30      |
           T3D1A_PIRLC    1 GCLGEGEKCADWSGPSCCDGFYCSCRSMPYCRCRNNS-  -
               SCOP domains -------------------------------------- SCOP domains
               CATH domains -------------------------------------- CATH domains
               Pfam domains -------------------------------------- Pfam domains
         Sec.struct. author ...................................... Sec.struct. author
                 SAPs(SNPs) -------------------------------------- SAPs(SNPs)
                    PROSITE -MU_AGATOXIN  PDB: A:2-33        ----- PROSITE
                 Transcript -------------------------------------- Transcript
                  1v90 A  1 GCLGEGEKCADWSGPSCCDGFYCSCRSMPYCRCRNNSx 38
                                    10        20        30       |
                                                                38-NH2
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1V90)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1V90)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1V90)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (T3D1A_PIRLC | P83256)
molecular function
    GO:0019871    sodium channel inhibitor activity    Stops, prevents, or reduces the activity of a sodium channel.
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NH2  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1v90)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

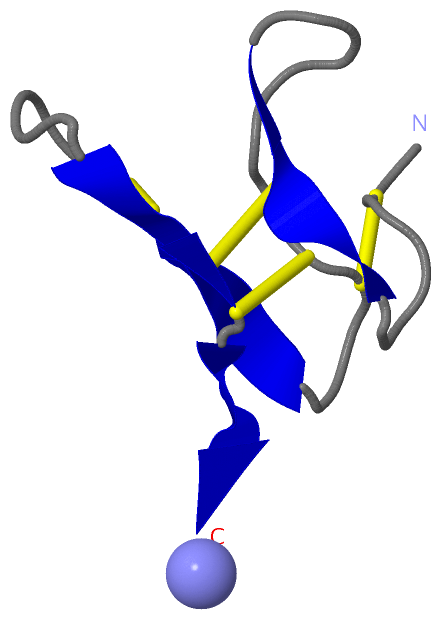

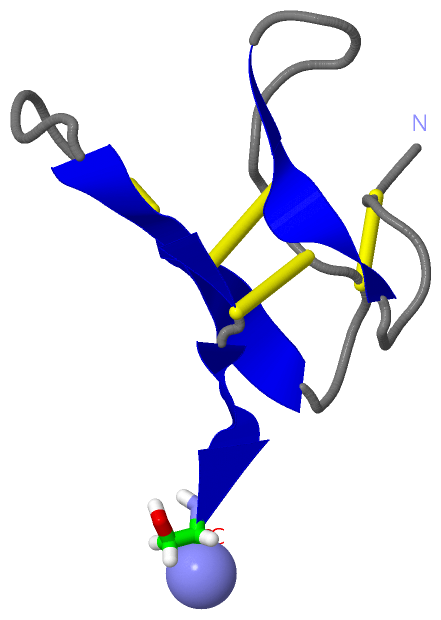

[ NMR Structure - model 1 PNG format | NMR Structure - model 1, sites PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1v90
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  T3D1A_PIRLC | P83256
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  T3D1A_PIRLC | P83256
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1V90)

(-) Related Entries Specified in the PDB File

1v91 DELTA-PALUIT2-NH2
