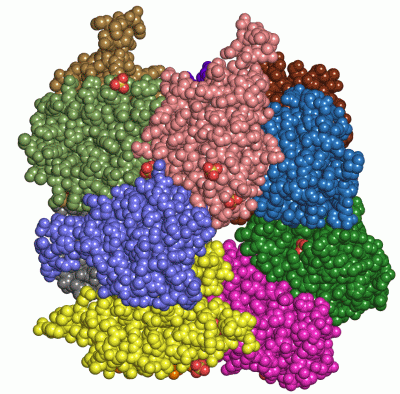

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

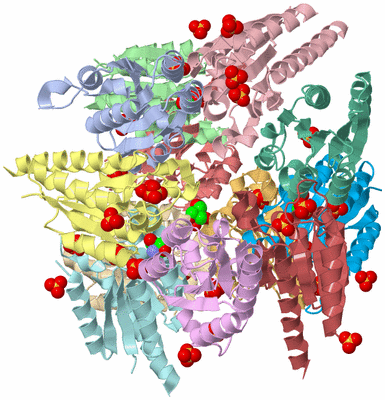

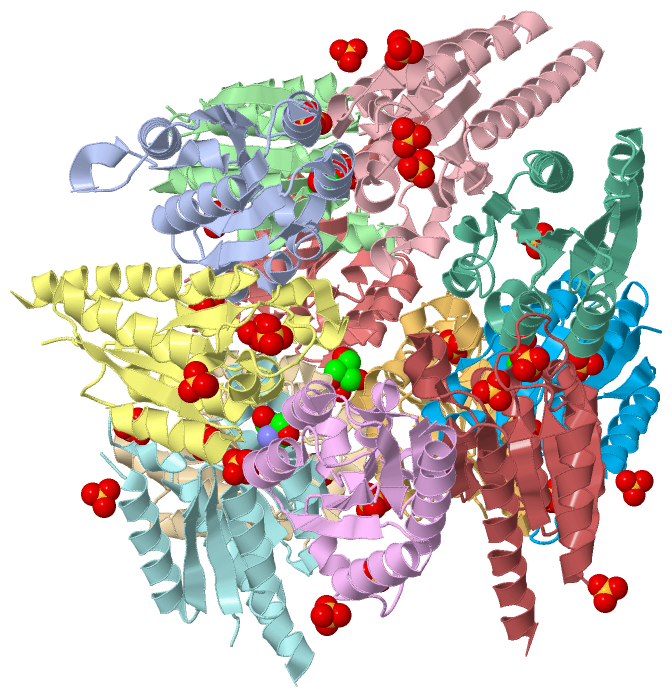

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

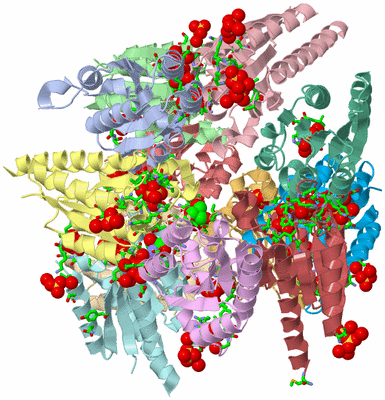

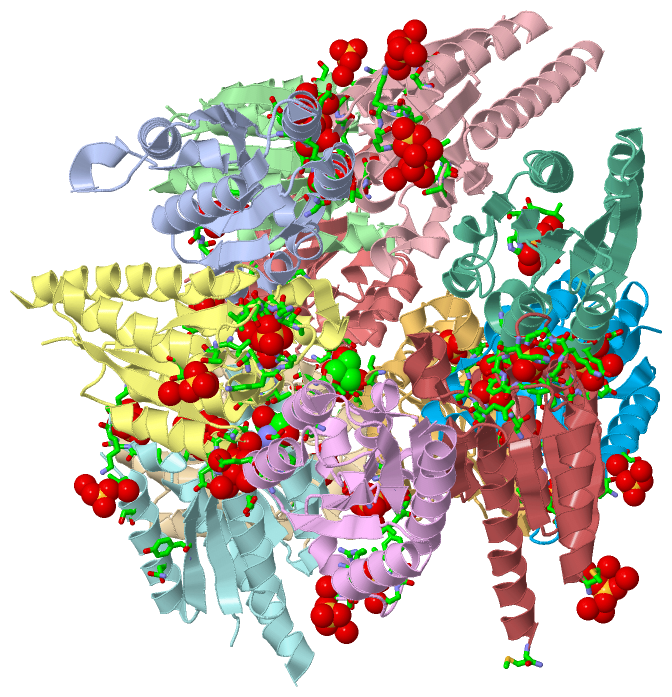

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  TYPE II 3-DEHYDROQUINATE DEHYDRATASE (DHQASE) FROM ACTINOBACILLUS PLEUROPNEUMONIAE

Authors :  D. Maes, L. A. Gonzalez-Ramirez, J. Lopez-Jaramillo, B. Yu, H. De Bondt, I. Zegers, E. Afonina, J. M. Garcia-Ruiz, S. Gulnik
Date :  16 Oct 03  (Deposition) - 30 Oct 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Keywords :  Shikimate Pathway, Aromatic Amino Acid Biosynthesis, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Maes, L. A. Gonzalez-Ramirez, J. Lopez-Jaramillo, B. Yu, H. De Bondt, I. Zegers, E. Afonina, J. M. Garcia-Ruiz, S. Gulnik
Structural Study Of The Type Ii 3-Dehydroquinate Dehydratase From Actinobacillus Pleuropneumoniae
Acta Crystallogr. , Sect. D V. 60 463 2004
PubMed-ID: 14993670  |  Reference-DOI: 10.1107/S090744490302969X

(-) Compounds

Molecule 1 - 3-DEHYDROQUINATE DEHYDRATASE
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    EC Number: 4.2.1.10
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ACTINOBACILLUS PLEUROPNEUMONIAE
    Organism Taxid: 715
    Synonym: 3-DEHYDROQUINASE, TYPE II DHQASE

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric/Biological Unit : ABCDEFGHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 35)

Asymmetric/Biological Unit (2, 35)
No.NameCountTypeFull Name
1SO431Ligand/IonSULFATE ION
2TRS4Ligand/Ion2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

(-) Sites  (35, 35)

Asymmetric Unit (35, 35)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLY A:53 , GLU A:54 , GLU A:55 , HOH A:2098 , HOH A:2191 , HOH A:2192 , GLY B:53 , GLU B:54 , GLU B:55 , HOH B:2098 , HOH B:2103 , GLY C:53 , GLU C:54 , GLU C:55 , HOH C:2102 , HOH C:2104BINDING SITE FOR RESIDUE SO4 A1147
02AC2SOFTWAREASN A:74 , LEU A:101 , SER A:102 , HOH A:2136 , HOH A:2193 , HOH A:2194 , HOH A:2195BINDING SITE FOR RESIDUE SO4 A1148
03AC3SOFTWAREASN B:74 , HIS B:100 , LEU B:101 , SER B:102 , HOH B:2155 , HOH B:2156 , HOH B:2199 , HOH B:2200 , HOH B:2202BINDING SITE FOR RESIDUE SO4 B1147
04AC4SOFTWARELYS B:17 , THR B:27 , SER B:29 , HOH B:2203BINDING SITE FOR RESIDUE SO4 B1148
05AC5SOFTWAREASN C:74 , HIS C:100 , LEU C:101 , SER C:102 , HOH C:2208 , HOH C:2209 , HOH C:2210BINDING SITE FOR RESIDUE SO4 C1154
06AC6SOFTWARELYS C:17 , THR C:27 , SER C:29 , HOH C:2211 , HOH C:2212 , HOH C:2213BINDING SITE FOR RESIDUE SO4 C1155
07AC7SOFTWARELEU C:15 , GLY C:16 , LYS C:17 , ARG C:18 , HOH C:2215 , HOH C:2216BINDING SITE FOR RESIDUE SO4 C1156
08AC8SOFTWAREASN D:74 , HIS D:100 , LEU D:101 , SER D:102 , HOH D:2031 , HOH D:2201 , HOH D:2202BINDING SITE FOR RESIDUE SO4 D1152
09AC9SOFTWARELYS D:17 , THR D:27 , SER D:29 , HOH D:2042 , HOH D:2203BINDING SITE FOR RESIDUE SO4 D1153
10BC1SOFTWARELEU D:15 , GLY D:16 , LYS D:17 , ARG D:18 , HIS D:21 , ILE D:22 , TYR D:23 , GLY D:24BINDING SITE FOR RESIDUE SO4 D1154
11BC2SOFTWAREASN E:74 , HIS E:100 , LEU E:101 , SER E:102 , HOH E:2025 , HOH E:2119 , HOH E:2160BINDING SITE FOR RESIDUE SO4 E1147
12BC3SOFTWARELYS E:17 , THR E:27 , HOH E:2161 , HOH E:2162BINDING SITE FOR RESIDUE SO4 E1148
13BC4SOFTWARELEU E:15 , GLY E:16 , LYS E:17 , ARG E:18 , ILE E:22 , TYR E:23 , GLY E:24 , HOH E:2026BINDING SITE FOR RESIDUE SO4 E1149
14BC5SOFTWAREGLY D:53 , GLU D:54 , GLU D:55 , HOH D:2098 , HOH D:2099 , HOH D:2107 , GLY E:53 , GLU E:54 , GLU E:55 , GLY F:53 , GLU F:54 , GLU F:55 , HOH F:2107 , HOH F:2108 , HOH F:2206 , HOH F:2207BINDING SITE FOR RESIDUE SO4 F1152
15BC6SOFTWAREASN F:74 , LEU F:101 , SER F:102 , HOH F:2141 , HOH F:2153 , HOH F:2209 , HOH F:2210BINDING SITE FOR RESIDUE SO4 F1153
16BC7SOFTWARELYS F:17 , THR F:27 , SER F:29 , HOH F:2211 , HOH F:2212 , MET K:151 , MET K:152BINDING SITE FOR RESIDUE SO4 F1154
17BC8SOFTWARELEU F:15 , GLY F:16 , LYS F:17 , ARG F:18 , HOH F:2032 , HOH F:2213 , HOH F:2214 , HOH F:2215 , HOH F:2216BINDING SITE FOR RESIDUE SO4 F1155
18BC9SOFTWAREASN G:74 , HIS G:100 , LEU G:101 , SER G:102 , HOH G:2156BINDING SITE FOR RESIDUE SO4 G1147
19CC1SOFTWAREGLY G:53 , GLU G:54 , GLU G:55 , HOH G:2065 , HOH G:2066 , GLY H:53 , GLU H:54 , GLU H:55 , HOH H:2084 , HOH H:2088 , HOH H:2192 , GLY I:53 , GLU I:54 , GLU I:55 , HOH I:2083 , HOH I:2085BINDING SITE FOR RESIDUE SO4 H1154
20CC2SOFTWAREASN H:74 , HIS H:100 , LEU H:101 , SER H:102 , HOH H:2139 , HOH H:2193 , HOH H:2194 , HOH H:2195 , HOH H:2196BINDING SITE FOR RESIDUE SO4 H1155
21CC3SOFTWARELYS H:17 , THR H:27 , SER H:29 , HOH H:2197 , HOH H:2198BINDING SITE FOR RESIDUE SO4 H1156
22CC4SOFTWARELEU H:15 , GLY H:16 , ARG H:18BINDING SITE FOR RESIDUE SO4 H1157
23CC5SOFTWAREASN I:74 , HIS I:100 , LEU I:101 , SER I:102 , HOH I:2019 , HOH I:2179BINDING SITE FOR RESIDUE SO4 I1147
24CC6SOFTWAREASN J:74 , HIS J:100 , LEU J:101 , SER J:102 , HOH J:2029 , HOH J:2115 , HOH J:2149BINDING SITE FOR RESIDUE SO4 J1147
25CC7SOFTWARELYS J:17 , THR J:27 , SER J:29 , HOH J:2150 , HOH J:2151BINDING SITE FOR RESIDUE SO4 J1148
26CC8SOFTWARELEU J:15 , GLY J:16 , LYS J:17 , ARG J:18 , ILE J:22 , TYR J:23 , GLY J:24BINDING SITE FOR RESIDUE SO4 J1149
27CC9SOFTWAREASN K:74 , HIS K:100 , LEU K:101 , SER K:102 , HOH K:2138 , HOH K:2194BINDING SITE FOR RESIDUE SO4 K1152
28DC1SOFTWARELEU K:15 , GLY K:16 , LYS K:17 , ARG K:18 , HIS K:21 , ILE K:22 , TYR K:23 , GLY K:24BINDING SITE FOR RESIDUE SO4 K1153
29DC2SOFTWAREGLN F:36 , TYR F:48 , MET K:1 , HOH K:2001 , HOH K:2195 , HOH K:2196 , HOH K:2197 , HOH K:2198 , HOH K:2199BINDING SITE FOR RESIDUE SO4 K1154
30DC3SOFTWAREGLY J:53 , GLU J:54 , GLU J:55 , HOH J:2074 , GLY K:53 , GLU K:54 , GLU K:55 , HOH K:2090 , HOH K:2093 , GLY L:53 , GLU L:54 , GLU L:55 , HOH L:2084 , HOH L:2085 , HOH L:2088 , HOH L:2178BINDING SITE FOR RESIDUE SO4 L1147
31DC4SOFTWAREASN L:74 , HIS L:100 , LEU L:101 , SER L:102 , HOH L:2130 , HOH L:2179 , HOH L:2180BINDING SITE FOR RESIDUE SO4 L1148
32DC5SOFTWAREGLU A:54 , THR A:81 , SER A:82 , GLU B:54 , THR B:81 , GLU C:54 , THR C:81 , SER C:82BINDING SITE FOR RESIDUE TRS B1149
33DC6SOFTWAREGLU D:54 , THR D:81 , SER D:82 , GLU E:54 , THR E:81 , GLU F:54 , THR F:81 , SER F:82BINDING SITE FOR RESIDUE TRS E1150
34DC7SOFTWAREGLU G:54 , THR G:81 , SER G:82 , GLU H:54 , THR H:81 , GLU I:54 , THR I:81 , SER I:82BINDING SITE FOR RESIDUE TRS H1158
35DC8SOFTWAREGLU J:54 , THR J:81 , SER J:82 , GLU K:54 , THR K:81 , GLU L:54 , THR L:81 , SER L:82BINDING SITE FOR RESIDUE TRS K1155

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UQR)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UQR)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UQR)

(-) PROSITE Motifs  (1, 12)

Asymmetric/Biological Unit (1, 12)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DEHYDROQUINASE_IIPS01029 Dehydroquinase class II signature.AROQ_ACTPL7-24










 		  12A:7-24
B:7-17
C:7-18
D:7-24
E:7-24
F:7-18
G:7-18
H:7-18
I:7-19
J:7-24
K:7-24
L:7-17

(-) Exons   (0, 0)

(no "Exon" information available for 1UQR)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:146
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
               SCOP domains d1uqra_ A: Type II 3-dehydroquinate dehydratase                                                                                                    SCOP domains
               CATH domains 1uqrA00 A:1-146  [code=3.40.50.9100, no name defined]                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...hhhhh...hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhh...hhhhh.eeee...hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr A   1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140


Chain B from PDB  Type:PROTEIN  Length:138
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
               SCOP domains d1uqrb_ B: Type I        I 3-dehydroquinate dehydratase                                                                                            SCOP domains
               CATH domains 1uqrB00 B:1-146          [code=3.40.50.9100, no name defined]                                                                                      CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh..--------.hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr B   1 MKKILLLNGPNLNMLGK--------QTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
                                    10      |  -     |  30        40        50        60        70        80        90       100       110       120       130       140
                                           17       26


Chain C from PDB  Type:PROTEIN  Length:148
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:154
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMMNG 154
               SCOP domains d1uqrc_ C: Type II       3-dehydroquinate dehydratase                                                                                                      SCOP domains
               CATH domains 1uqrC00 C:1-154  [      code=3.40.50.9100, no name defined]                                                                                                CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...------..hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr C   1 MKKILLLNGPNLNMLGKR------SQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMMNG 154
                                    10       | -    |   30        40        50        60        70        80        90       100       110       120       130       140       150
                                            18     25


Chain D from PDB  Type:PROTEIN  Length:152
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMM 152
               SCOP domains d1uqrd_ D: Type II 3-dehydroquinate dehydratase                                                                                                          SCOP domains
               CATH domains 1uqrD00 D:1-152  [code=3.40.50.9100, no name defined]                                                                                                    CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...........hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr D   1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMM 152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150


Chain E from PDB  Type:PROTEIN  Length:143
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
               SCOP domains d1uqre_ E: Type II    3-dehydroquinate dehydratase                                                                                                 SCOP domains
               CATH domains 1uqrE00 E:1-146  [   code=3.40.50.9100, no name defined]                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...---.....hhhhhhhhhhhhhhh...eeeeee..hhhhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhh...eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr E   1 MKKILLLNGPNLNMLGKR---IYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
                                    10       | - |      30        40        50        60        70        80        90       100       110       120       130       140
                                            18  22


Chain F from PDB  Type:PROTEIN  Length:146
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMM 152
               SCOP domains d1uqrf_ F: Type II       3-dehydroquinate dehydratase                                                                                                    SCOP domains
               CATH domains 1uqrF00 F:1-152  [      code=3.40.50.9100, no name defined]                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...------..hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr F   1 MKKILLLNGPNLNMLGKR------SQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMM 152
                                    10       | -    |   30        40        50        60        70        80        90       100       110       120       130       140       150
                                            18     25


Chain G from PDB  Type:PROTEIN  Length:140
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
               SCOP domains d1uqrg_ G: Type II       3-dehydroquinate dehydratase                                                                                              SCOP domains
               CATH domains 1uqrG00 G:1-146  [      code=3.40.50.9100, no name defined]                                                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...------..hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr G   1 MKKILLLNGPNLNMLGKR------SQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
                                    10       | -    |   30        40        50        60        70        80        90       100       110       120       130       140
                                            18     25


Chain H from PDB  Type:PROTEIN  Length:148
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:154
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMMNG 154
               SCOP domains d1uqrh_ H: Type II       3-dehydroquinate dehydratase                                                                                                      SCOP domains
               CATH domains 1uqrH00 H:1-154  [      code=3.40.50.9100, no name defined]                                                                                                CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...------..hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhh...eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr H   1 MKKILLLNGPNLNMLGKR------SQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMMNG 154
                                    10       | -    |   30        40        50        60        70        80        90       100       110       120       130       140       150
                                            18     25


Chain I from PDB  Type:PROTEIN  Length:141
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
               SCOP domains d1uqri_ I: Type II      3-dehydroquinate dehydratase                                                                                               SCOP domains
               CATH domains 1uqrI00 I:1-146  [c     ode=3.40.50.9100, no name defined]                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh....-----..hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr I   1 MKKILLLNGPNLNMLGKRE-----SQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
                                    10        |-    |   30        40        50        60        70        80        90       100       110       120       130       140
                                             19    25


Chain J from PDB  Type:PROTEIN  Length:146
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
               SCOP domains d1uqrj_ J: Type II 3-dehydroquinate dehydratase                                                                                                    SCOP domains
               CATH domains 1uqrJ00 J:1-146  [code=3.40.50.9100, no name defined]                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...........hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr J   1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140


Chain K from PDB  Type:PROTEIN  Length:152
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMM 152
               SCOP domains d1uqrk_ K: Type II 3-dehydroquinate dehydratase                                                                                                          SCOP domains
               CATH domains 1uqrK00 K:1-152  [code=3.40.50.9100, no name defined]                                                                                                    CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..hhhhh...........hhhhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhh..hhhhh.eeee...hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr K   1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKIQLGEMM 152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150


Chain L from PDB  Type:PROTEIN  Length:138
 aligned with AROQ_ACTPL | P43877 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           AROQ_ACTPL     1 MKKILLLNGPNLNMLGKREPHIYGSQTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
               SCOP domains d1uqrl_ L: Type I        I 3-dehydroquinate dehydratase                                                                                            SCOP domains
               CATH domains 1uqrL00 L:1-146          [code=3.40.50.9100, no name defined]                                                                                      CATH domains
           Pfam domains (1) -DHquinase_II-1uq        rL01 L:2-141                                                                                                        ----- Pfam domains (1)
           Pfam domains (2) -DHquinase_II-1uq        rL02 L:2-141                                                                                                        ----- Pfam domains (2)
           Pfam domains (3) -DHquinase_II-1uq        rL03 L:2-141                                                                                                        ----- Pfam domains (3)
           Pfam domains (4) -DHquinase_II-1uq        rL04 L:2-141                                                                                                        ----- Pfam domains (4)
           Pfam domains (5) -DHquinase_II-1uq        rL05 L:2-141                                                                                                        ----- Pfam domains (5)
           Pfam domains (6) -DHquinase_II-1uq        rL06 L:2-141                                                                                                        ----- Pfam domains (6)
           Pfam domains (7) -DHquinase_II-1uq        rL07 L:2-141                                                                                                        ----- Pfam domains (7)
           Pfam domains (8) -DHquinase_II-1uq        rL08 L:2-141                                                                                                        ----- Pfam domains (8)
           Pfam domains (9) -DHquinase_II-1uq        rL09 L:2-141                                                                                                        ----- Pfam domains (9)
          Pfam domains (10) -DHquinase_II-1uq        rL10 L:2-141                                                                                                        ----- Pfam domains (10)
          Pfam domains (11) -DHquinase_II-1uq        rL11 L:2-141                                                                                                        ----- Pfam domains (11)
          Pfam domains (12) -DHquinase_II-1uq        rL12 L:2-141                                                                                                        ----- Pfam domains (12)
         Sec.struct. author ..eeeeee..hhhhh..--------.hhhhhhhhhhhhhhh...eeeeee..hhhhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhh...eeeee..hhhhhhhhhhh........eeee...hhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------DEHYDROQUINASE_II -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1uqr L   1 MKKILLLNGPNLNMLGK--------QTLSDIEQHLQQSAQAQGYELDYFQANGEESLINRIHQAFQNTDFIIINPGAFTHTSVAIRDALLAVSIPFIEVHLSNVHAREPFRHHSYLSDVAKGVICGLGAKGYDYALDFAISELQKI 146
                                    10      |  -     |  30        40        50        60        70        80        90       100       110       120       130       140
                                           17       26
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 12)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 12)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 12)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: DHquinase_II] (16)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L   (AROQ_ACTPL | P43877)
molecular function
    GO:0003855    3-dehydroquinate dehydratase activity    Catalysis of the reaction: 3-dehydroquinate = 3-dehydroshikimate + H(2)O.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
    GO:0009073    aromatic amino acid family biosynthetic process    The chemical reactions and pathways resulting in the formation of aromatic amino acid family, amino acids with aromatic ring (phenylalanine, tyrosine, tryptophan).
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0009423    chorismate biosynthetic process    The chemical reactions and pathways resulting in the formation of the unsymmetrical ether derived from phosphoenolpyruvate and 5-phosphoshikimic acid formed as an intermediate in the biosynthesis of aromatic amino acids and many other compounds.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TRS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1uqr)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1uqr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AROQ_ACTPL | P43877
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.2.1.10
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  AROQ_ACTPL | P43877
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1UQR)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1UQR)
