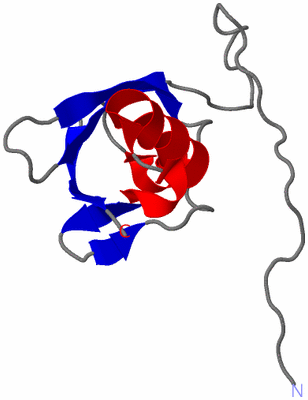

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

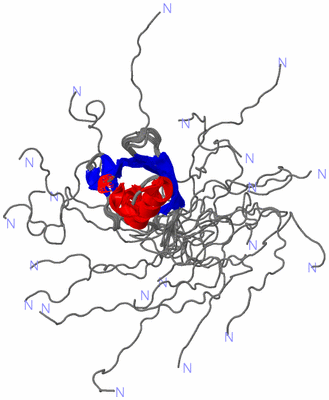

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE MURINE UBIQUITIN-LIKE 5 PROTEIN FROM RIKEN CDNA 0610031K06

Authors :  F. Hayashi, M. Shirouzu, T. Terada, T. Kigawa, M. Inoue, T. Yabuki, M. Aoki, E. Seki, T. Matsuda, H. Hirota, M. Yoshida, A. Tanaka, T. Osanai, T. Arakawa, P. Carninci, J. Kawai, Y. Hayashizaki, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  25 Jun 03  (Deposition) - 25 Dec 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Beta-Grasp Fold, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Hayashi, M. Shirouzu, T. Terada, T. Kigawa, M. Inoue, T. Yabuki, M. Aoki, E. Seki, T. Matsuda, H. Hirota, M. Yoshida, A. Tanaka, T. Osanai, T. Arakawa, P. Carninci, J. Kawai, Y. Hayashizaki, S. Yokoyama
Solution Structure Of The Murine Ubiquitin-Like 5 Protein From Riken Cdna 0610031K06
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UBIQUITIN-LIKE 5
    Chains: A
    Engineered: YES
    Expression System Plasmid: 011010-5
    Expression System Vector Type: PLASMID
    Gene: RIKEN CDNA 0610031K06
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1UH6)

(-) Sites  (0, 0)

(no "Site" information available for 1UH6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1UH6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1UH6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1UH6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1UH6)

(-) Exons   (0, 0)

(no "Exon" information available for 1UH6)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:100
 aligned with UBL5_MOUSE | Q9EPV8 from UniProtKB/Swiss-Prot  Length:73

    Alignment length:100
                                                       1
                                     -         -       | 3        13        23        33        43        53        63        73
           UBL5_MOUSE     - ---------------------------MIEVVCNDRLGKKVRVKCNTDDTIGDLKKLIAAQTGTRWNKIVLKKWYTIFKDHVSLGDYEIHDGMNLELYYQ  73
               SCOP domains d1uh6a_ A: Ubiquitin-like protein 5, ubl5                                                            SCOP domains
               CATH domains 1uh6A00 A:1-100 Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1                   CATH domains
               Pfam domains ----------------------------------ubiquitin-1uh6A01 A:35-100                                         Pfam domains
         Sec.struct. author ...........................eeeeeee......eeeeee...hhhhhhhhhhhhhh.hhhhheeee..ee.....hhhhhh....eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 1uh6 A   1 MKGSSHHHHHHSSGASLVPRGSEGAATMIEVVCNDRLGKKVRVKCNTDDTIGDLKKLIAAQTGTRWNKIVLKKWYTIFKDHVSLGDYEIHDGMNLELYYQ 100
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Ubiquitin (279)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (UBL5_MOUSE | Q9EPV8)
molecular function
    GO:0031386    protein tag    A molecular function exhibited by a protein that is covalently attached (AKA tagged or conjugated) to another protein where it acts as a marker, recognized by the cellular apparatus to target the tagged protein for some cellular process such as modification, sequestration, transport or degradation.
biological process
    GO:0006464    cellular protein modification process    The covalent alteration of one or more amino acids occurring in proteins, peptides and nascent polypeptides (co-translational, post-translational modifications) occurring at the level of an individual cell. Includes the modification of charged tRNAs that are destined to occur in a protein (pre-translation modification).
    GO:0000398    mRNA splicing, via spliceosome    The joining together of exons from one or more primary transcripts of messenger RNA (mRNA) and the excision of intron sequences, via a spliceosomal mechanism, so that mRNA consisting only of the joined exons is produced.
    GO:1903955    positive regulation of protein targeting to mitochondrion    Any process that activates or increases the frequency, rate or extent of protein targeting to mitochondrion.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
