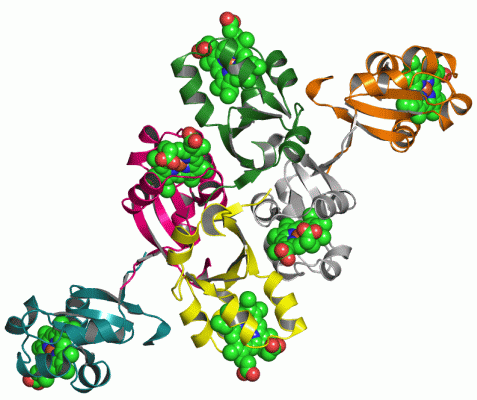

Asym.Unit - manually (Jmol Viewer)

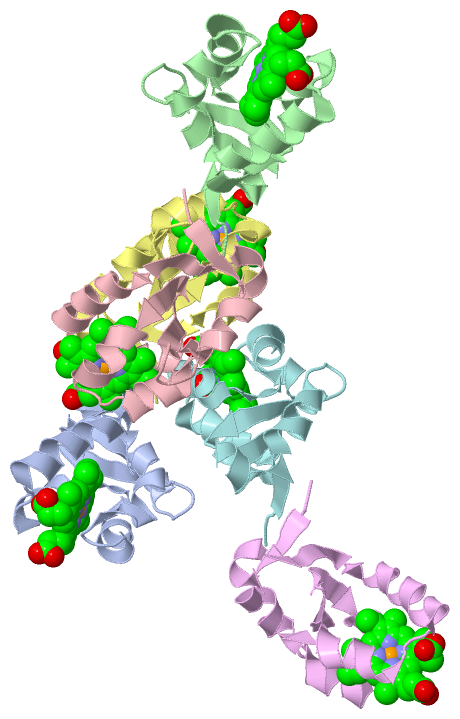

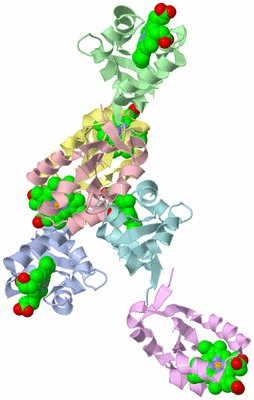

Asymmetric Unit (Jmol Viewer)

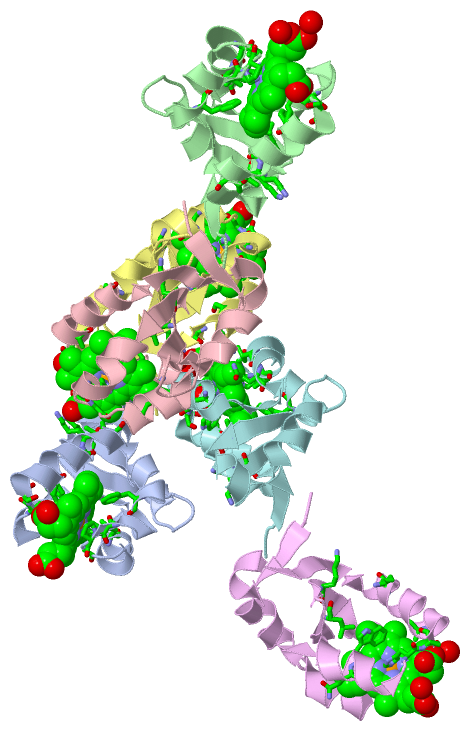

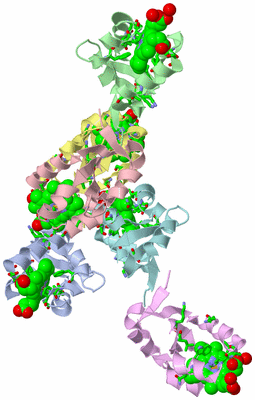

Asym. Unit - sites (Jmol Viewer)

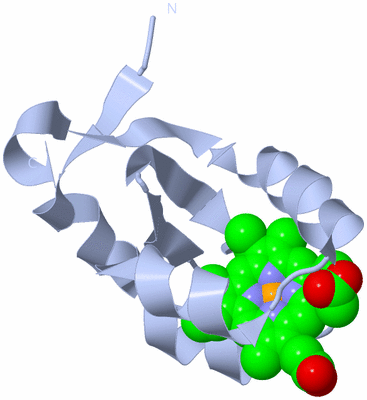

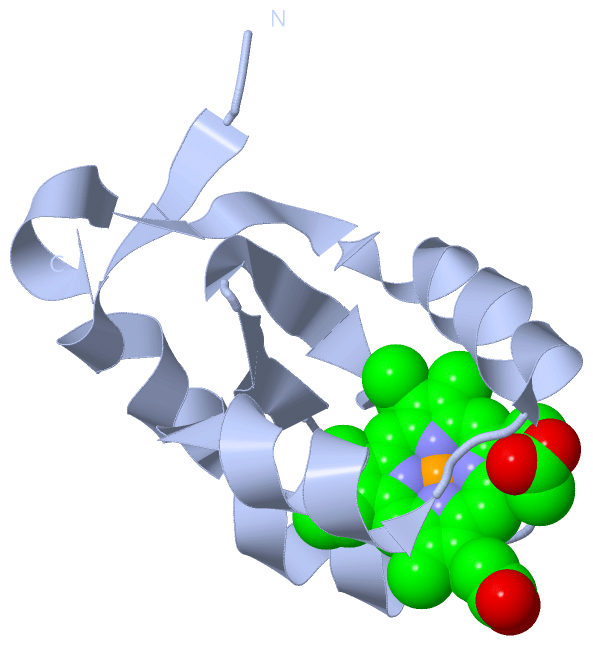

Biological Unit 1 (Jmol Viewer)

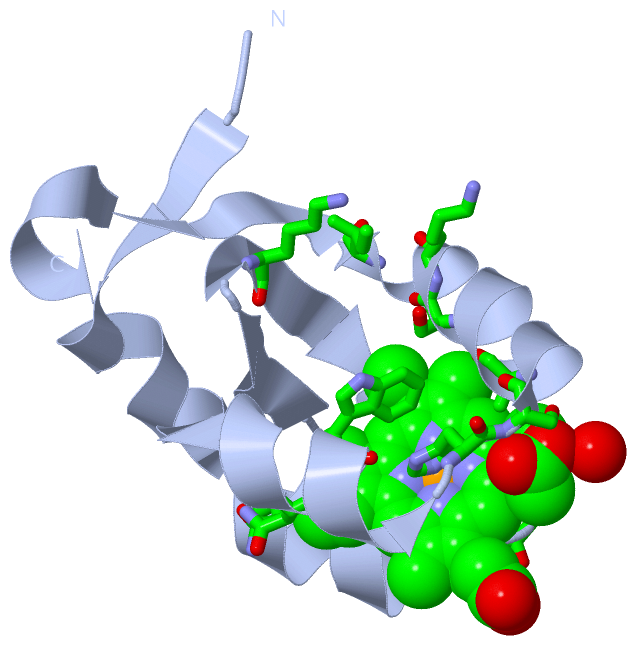

Biol. Unit 1 - sites (Jmol Viewer)

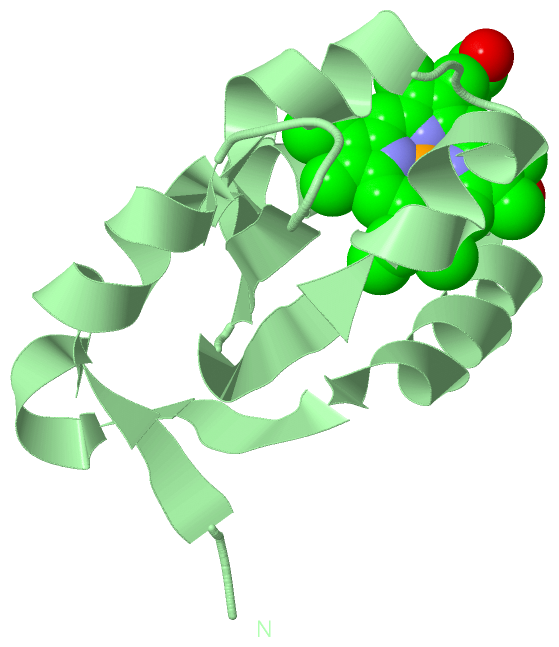

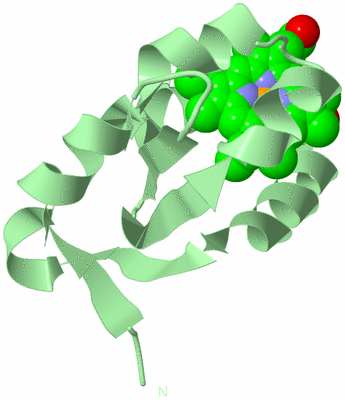

Biological Unit 2 (Jmol Viewer)

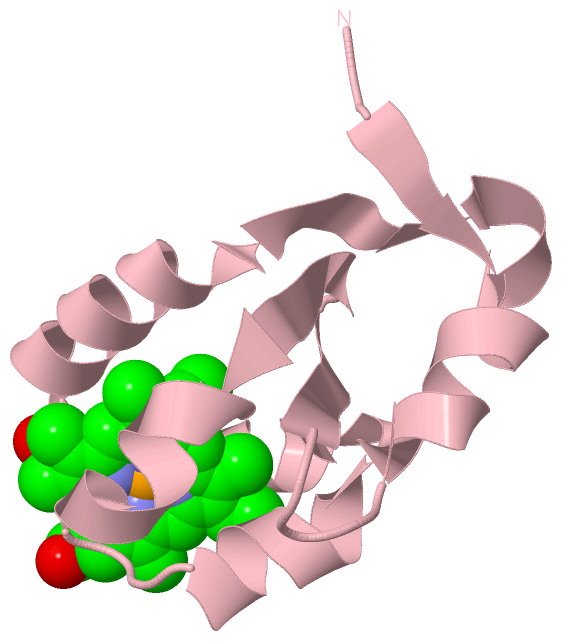

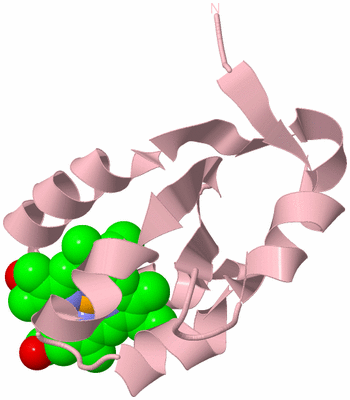

Biological Unit 3 (Jmol Viewer)

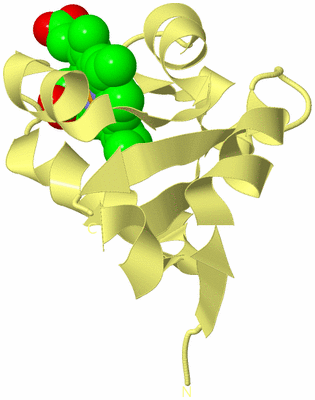

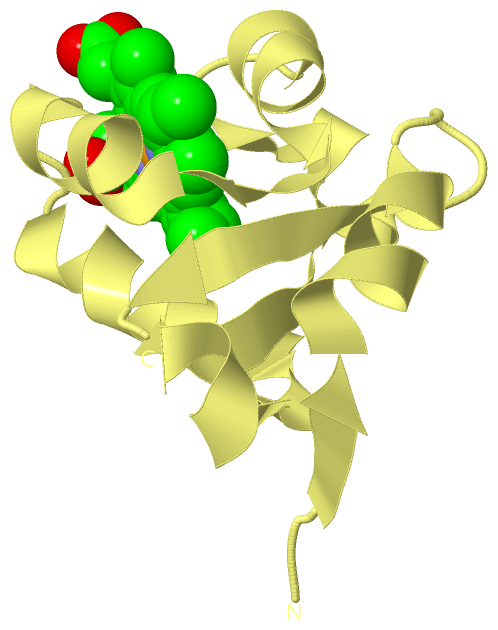

Biological Unit 4 (Jmol Viewer)

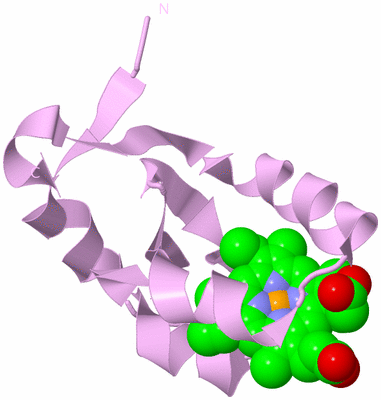

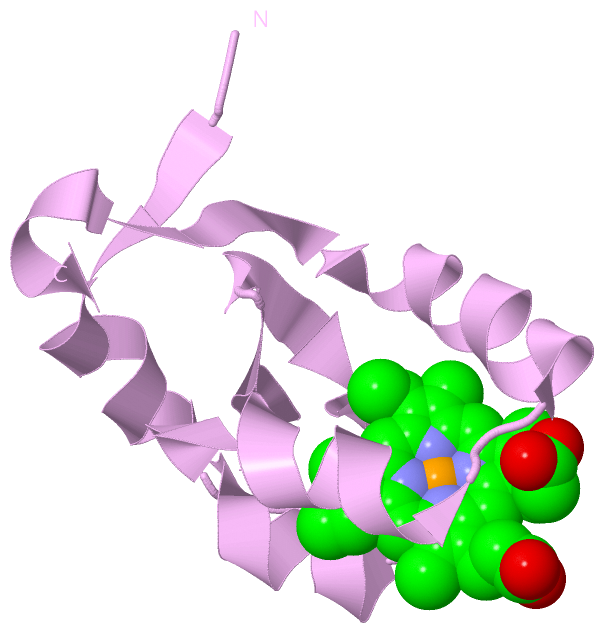

Biological Unit 5 (Jmol Viewer)

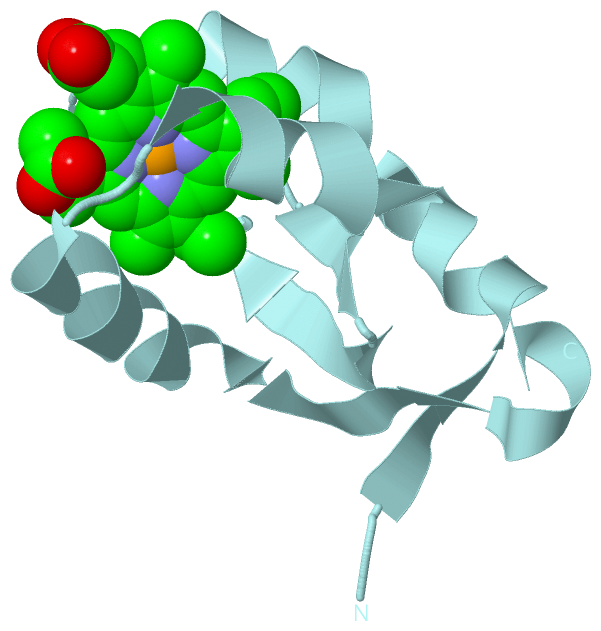

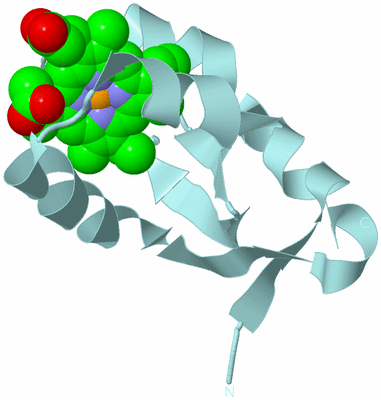

Biological Unit 6 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF F58W MUTANT OF CYTOCHROME B5

Authors :   L. Shan, J. -X. Lu, J. -H. Gan, Y. -H. Wang, Z. -X. Huang, Z. -X. Xia

Date :   10 Aug 04 (Deposition) - 01 Feb 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)
Biol. Unit 5: E  (1x)
Biol. Unit 6: F  (1x)

Keywords :   Crystal Structure, Hemoprotein, F58Y And F58W Mutants, Conformational Changes, Aromatic-Aromatic Interactions, Structure-Function Relationship, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   L. Shan, J. X. Lu, J. H. Gan, Y. H. Wang, Z. X. Huang, Z. X. Xia
Structure Of The F58W Mutant Of Cytochrome B5: The Mutation Leads To Multiple Conformations And Weakens Stacking Interactions.
Acta Crystallogr. , Sect. D V. 61 180 2005
PubMed-ID: 15681869 | Reference-DOI: 10.1107/S0907444904031798
(for further references see the PDB file header)

Molecule 1 - CYTOCHROME B5
	Chains	:	A, B, C, D, E, F
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PU19
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	TRYPSIN-SOLUBILIZED FRAGMENT
	Mutation	:	YES
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D
Biological Unit 5 (1x)	:					E
Biological Unit 6 (1x)	:						F

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 6)

No.	Name	Count	Type	Full Name
1	HEM	6	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 3 (1, 1)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 4 (1, 1)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 5 (1, 1)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Biological Unit 6 (1, 1)

No.	Name	Count	Type	Full Name
1	HEM	1	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	PHE A:35 , HIS A:39 , PRO A:40 , GLY A:41 , LEU A:46 , GLN A:49 , ASN A:57 , TRP A:58 , HIS A:63 , SER A:64 , ALA A:67 , SER A:71 , HOH A:743 , LYS E:28 , LYS E:72	BINDING SITE FOR RESIDUE HEM A 90
2	AC2	SOFTWARE	LEU B:25 , PHE B:35 , HIS B:39 , PRO B:40 , GLY B:41 , VAL B:45 , LEU B:46 , GLN B:49 , ASN B:57 , TRP B:58 , HIS B:63 , SER B:64 , ALA B:67 , SER B:71 , HOH B:654 , HOH B:719 , LYS C:28 , LYS C:72	BINDING SITE FOR RESIDUE HEM B 90
3	AC3	SOFTWARE	LYS A:28 , LYS A:72 , ILE A:75 , LEU C:25 , HIS C:39 , GLY C:41 , VAL C:45 , ASN C:57 , TRP C:58 , HIS C:63 , SER C:64 , ALA C:67 , HOH C:627 , HOH C:637	BINDING SITE FOR RESIDUE HEM C 90
4	AC4	SOFTWARE	LEU D:25 , PHE D:35 , HIS D:39 , PRO D:40 , GLY D:41 , VAL D:45 , LEU D:46 , GLN D:49 , ASN D:57 , TRP D:58 , VAL D:61 , HIS D:63 , SER D:64 , SER D:71 , LYS F:28 , LYS F:72	BINDING SITE FOR RESIDUE HEM D 90
5	AC5	SOFTWARE	LYS B:28 , LYS B:72 , ILE B:75 , LEU E:25 , PHE E:35 , HIS E:39 , PRO E:40 , GLY E:41 , LEU E:46 , ASN E:57 , TRP E:58 , HIS E:63 , SER E:64 , ALA E:67 , HOH E:625 , HOH E:666	BINDING SITE FOR RESIDUE HEM E 90
6	AC6	SOFTWARE	LYS D:28 , LYS D:72 , ILE D:75 , LEU F:25 , PHE F:35 , HIS F:39 , GLY F:41 , VAL F:45 , LEU F:46 , GLN F:49 , TRP F:58 , HIS F:63 , SER F:64 , ALA F:67 , HOH F:641 , HOH F:649 , HOH F:672	BINDING SITE FOR RESIDUE HEM F 90

(no "SS Bond" information available for 1U9M)

(no "Cis Peptide Bond" information available for 1U9M)

(no "SAP(SNP)/Variant" information available for 1U9M)

Asymmetric Unit (2, 12)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_B5_2	PS50255	Cytochrome b5 family, heme-binding domain profile.	CYB5_BOVIN	9-85	6	A:4-80 B:4-80 C:4-80 D:4-80 E:4-80 F:4-80
2	CYTOCHROME_B5_1	PS00191	Cytochrome b5 family, heme-binding domain signature.	CYB5_BOVIN	40-47	6	A:35-42 B:35-42 C:35-42 D:35-42 E:35-42 F:35-42

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_B5_2	PS50255	Cytochrome b5 family, heme-binding domain profile.	CYB5_BOVIN	9-85	1	A:4-80 - - - - -
2	CYTOCHROME_B5_1	PS00191	Cytochrome b5 family, heme-binding domain signature.	CYB5_BOVIN	40-47	1	A:35-42 - - - - -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_B5_2	PS50255	Cytochrome b5 family, heme-binding domain profile.	CYB5_BOVIN	9-85	1	- B:4-80 - - - -
2	CYTOCHROME_B5_1	PS00191	Cytochrome b5 family, heme-binding domain signature.	CYB5_BOVIN	40-47	1	- B:35-42 - - - -

Biological Unit 3 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_B5_2	PS50255	Cytochrome b5 family, heme-binding domain profile.	CYB5_BOVIN	9-85	1	- - C:4-80 - - -
2	CYTOCHROME_B5_1	PS00191	Cytochrome b5 family, heme-binding domain signature.	CYB5_BOVIN	40-47	1	- - C:35-42 - - -

Biological Unit 4 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_B5_2	PS50255	Cytochrome b5 family, heme-binding domain profile.	CYB5_BOVIN	9-85	1	- - - D:4-80 - -
2	CYTOCHROME_B5_1	PS00191	Cytochrome b5 family, heme-binding domain signature.	CYB5_BOVIN	40-47	1	- - - D:35-42 - -

Biological Unit 5 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_B5_2	PS50255	Cytochrome b5 family, heme-binding domain profile.	CYB5_BOVIN	9-85	1	- - - - E:4-80 -
2	CYTOCHROME_B5_1	PS00191	Cytochrome b5 family, heme-binding domain signature.	CYB5_BOVIN	40-47	1	- - - - E:35-42 -

Biological Unit 6 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CYTOCHROME_B5_2	PS50255	Cytochrome b5 family, heme-binding domain profile.	CYB5_BOVIN	9-85	1	- - - - - F:4-80
2	CYTOCHROME_B5_1	PS00191	Cytochrome b5 family, heme-binding domain signature.	CYB5_BOVIN	40-47	1	- - - - - F:35-42

Asymmetric Unit (3, 18)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	ENSBTAT00000015944	1	ENSBTAE00000393096	chr24:4050846-4051086	241	CYB5_BOVIN	1-43	43	6	A:3-38 B:3-38 C:3-38 D:3-38 E:3-38 F:3-38	36 36 36 36 36 36
1.2	ENSBTAT00000015944	2	ENSBTAE00000129704	chr24:4080076-4080204	129	CYB5_BOVIN	44-86	43	6	A:39-81 B:39-81 C:39-81 D:39-81 E:39-81 F:39-81	43 43 43 43 43 43
1.3	ENSBTAT00000015944	3	ENSBTAE00000129730	chr24:4082277-4082306	30	CYB5_BOVIN	87-96	10	6	A:82-84 B:82-84 C:82-84 D:82-84 E:82-84 F:82-84	3 3 3 3 3 3
1.4	ENSBTAT00000015944	4	ENSBTAE00000129757	chr24:4086121-4086155	35	CYB5_BOVIN	97-108	12	0	-	-
1.5	ENSBTAT00000015944	5	ENSBTAE00000365447	chr24:4088024-4088393	370	CYB5_BOVIN	108-134	27	0	-	-

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:82
 aligned with CYB5_BOVIN | P00171 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:82
                                    17        27        37        47        57        67        77        87
            CYB5_BOVIN    8 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENFEDVGHSTDARELSKTFIIGELHPDDR 89
               SCOP domains d1u9ma_ A: automated matches                                                       SCOP domains
               CATH domains 1u9mA00 A:3-84 Flavocytochrome B2, subunit A, domain 1                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) ..eeehhhhhhhh.....eeeee.-----hhhhhhhh...hhhhhhhh---hhhhhhhh..hhhhhhhhhhhh----hhhhh Sec.struct. author (1)
     Sec.struct. author (2) ------------------------eeeeee------------------eeee-------------------eeeeeee---- Sec.struct. author (2)
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -CYTOCHROME_B5_2  PDB: A:4-80 UniProt: 9-85                                   ---- PROSITE (1)
                PROSITE (2) --------------------------------CYTOCHRO------------------------------------------ PROSITE (2)
               Transcript 1 Exon 1.1  PDB: A:3-38 UniProt: 1-43 Exon 1.2  PDB: A:39-81 UniProt: 44-86      1.3 Transcript 1
                  1u9m A  3 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENWEDVGHSTDARELSKTFIIGELHPDDR 84
                                    12        22        32        42        52        62        72        82

Chain B from PDB  Type:PROTEIN  Length:82
 aligned with CYB5_BOVIN | P00171 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:82
                                    17        27        37        47        57        67        77        87
            CYB5_BOVIN    8 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENFEDVGHSTDARELSKTFIIGELHPDDR 89
               SCOP domains d1u9mb_ B: automated matches                                                       SCOP domains
               CATH domains 1u9mB00 B:3-84 Flavocytochrome B2, subunit A, domain 1                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) ..eeehhhhhhhh.....eeeee.-----hhhhhhhh...hhhhhhhh---hhhhhhhh..hhhhhhhhhhhh----hhhhh Sec.struct. author (1)
     Sec.struct. author (2) ------------------------eeeeee------------------eeee-------------------eeeeeee---- Sec.struct. author (2)
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -CYTOCHROME_B5_2  PDB: B:4-80 UniProt: 9-85                                   ---- PROSITE (1)
                PROSITE (2) --------------------------------CYTOCHRO------------------------------------------ PROSITE (2)
               Transcript 1 Exon 1.1  PDB: B:3-38 UniProt: 1-43 Exon 1.2  PDB: B:39-81 UniProt: 44-86      1.3 Transcript 1
                  1u9m B  3 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENWEDVGHSTDARELSKTFIIGELHPDDR 84
                                    12        22        32        42        52        62        72        82

Chain C from PDB  Type:PROTEIN  Length:82
 aligned with CYB5_BOVIN | P00171 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:82
                                    17        27        37        47        57        67        77        87
            CYB5_BOVIN    8 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENFEDVGHSTDARELSKTFIIGELHPDDR 89
               SCOP domains d1u9mc_ C: automated matches                                                       SCOP domains
               CATH domains 1u9mC00 C:3-84 Flavocytochrome B2, subunit A, domain 1                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) ..eeehhhhhhhh.....eeeee.-----hhhhhhhh...hhhhhhhh---hhhhhhhh..hhhhhhhhhhhh----hhhhh Sec.struct. author (1)
     Sec.struct. author (2) ------------------------eeeeee------------------eeee-------------------eeeeeee---- Sec.struct. author (2)
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -CYTOCHROME_B5_2  PDB: C:4-80 UniProt: 9-85                                   ---- PROSITE (1)
                PROSITE (2) --------------------------------CYTOCHRO------------------------------------------ PROSITE (2)
               Transcript 1 Exon 1.1  PDB: C:3-38 UniProt: 1-43 Exon 1.2  PDB: C:39-81 UniProt: 44-86      1.3 Transcript 1
                  1u9m C  3 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENWEDVGHSTDARELSKTFIIGELHPDDR 84
                                    12        22        32        42        52        62        72        82

Chain D from PDB  Type:PROTEIN  Length:82
 aligned with CYB5_BOVIN | P00171 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:82
                                    17        27        37        47        57        67        77        87
            CYB5_BOVIN    8 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENFEDVGHSTDARELSKTFIIGELHPDDR 89
               SCOP domains d1u9md_ D: automated matches                                                       SCOP domains
               CATH domains 1u9mD00 D:3-84 Flavocytochrome B2, subunit A, domain 1                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) ..eeehhhhhhhh.....eeeee.-----hhhhhhhh...hhhhhhhh---hhhhhhhh..hhhhhhhhhhhh----hhhhh Sec.struct. author (1)
     Sec.struct. author (2) ------------------------eeeeee------------------eeee-------------------eeeeeee---- Sec.struct. author (2)
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -CYTOCHROME_B5_2  PDB: D:4-80 UniProt: 9-85                                   ---- PROSITE (1)
                PROSITE (2) --------------------------------CYTOCHRO------------------------------------------ PROSITE (2)
               Transcript 1 Exon 1.1  PDB: D:3-38 UniProt: 1-43 Exon 1.2  PDB: D:39-81 UniProt: 44-86      1.3 Transcript 1
                  1u9m D  3 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENWEDVGHSTDARELSKTFIIGELHPDDR 84
                                    12        22        32        42        52        62        72        82

Chain E from PDB  Type:PROTEIN  Length:82
 aligned with CYB5_BOVIN | P00171 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:82
                                    17        27        37        47        57        67        77        87
            CYB5_BOVIN    8 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENFEDVGHSTDARELSKTFIIGELHPDDR 89
               SCOP domains d1u9me_ E: automated matches                                                       SCOP domains
               CATH domains 1u9mE00 E:3-84 Flavocytochrome B2, subunit A, domain 1                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) ..eeehhhhhhhh.....eeeee.-----hhhhhhhh...hhhhhhhh---hhhhhhhh..hhhhhhhhhhhh----hhhhh Sec.struct. author (1)
     Sec.struct. author (2) ------------------------eeeeee------------------eeee-------------------eeeeeee---- Sec.struct. author (2)
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -CYTOCHROME_B5_2  PDB: E:4-80 UniProt: 9-85                                   ---- PROSITE (1)
                PROSITE (2) --------------------------------CYTOCHRO------------------------------------------ PROSITE (2)
               Transcript 1 Exon 1.1  PDB: E:3-38 UniProt: 1-43 Exon 1.2  PDB: E:39-81 UniProt: 44-86      1.3 Transcript 1
                  1u9m E  3 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENWEDVGHSTDARELSKTFIIGELHPDDR 84
                                    12        22        32        42        52        62        72        82

Chain F from PDB  Type:PROTEIN  Length:82
 aligned with CYB5_BOVIN | P00171 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:82
                                    17        27        37        47        57        67        77        87
            CYB5_BOVIN    8 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENFEDVGHSTDARELSKTFIIGELHPDDR 89
               SCOP domains d1u9mf_ F: automated matches                                                       SCOP domains
               CATH domains 1u9mF00 F:3-84 Flavocytochrome B2, subunit A, domain 1                             CATH domains
           Pfam domains (1) ---Cyt-b5-1u9mF01 F:6-80                                                      ---- Pfam domains (1)
           Pfam domains (2) ---Cyt-b5-1u9mF02 F:6-80                                                      ---- Pfam domains (2)
           Pfam domains (3) ---Cyt-b5-1u9mF03 F:6-80                                                      ---- Pfam domains (3)
           Pfam domains (4) ---Cyt-b5-1u9mF04 F:6-80                                                      ---- Pfam domains (4)
           Pfam domains (5) ---Cyt-b5-1u9mF05 F:6-80                                                      ---- Pfam domains (5)
           Pfam domains (6) ---Cyt-b5-1u9mF06 F:6-80                                                      ---- Pfam domains (6)
     Sec.struct. author (1) ..eeehhhhhhhh.....eeeee.-----hhhhhhhh...hhhhhhhh---hhhhhhhh..hhhhhhhhhhhh----hhhhh Sec.struct. author (1)
     Sec.struct. author (2) ------------------------eeeeee------------------eeee-------------------eeeeeee---- Sec.struct. author (2)
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -CYTOCHROME_B5_2  PDB: F:4-80 UniProt: 9-85                                   ---- PROSITE (1)
                PROSITE (2) --------------------------------CYTOCHRO------------------------------------------ PROSITE (2)
               Transcript 1 Exon 1.1  PDB: F:3-38 UniProt: 1-43 Exon 1.2  PDB: F:39-81 UniProt: 44-86      1.3 Transcript 1
                  1u9m F  3 AVKYYTLEEIQKHNNSKSTWLILHYKVYDLTKFLEEHPGGEEVLREQAGGDATENWEDVGHSTDARELSKTFIIGELHPDDR 84
                                    12        22        32        42        52        62        72        82

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Cytochrome b5-like heme/steroid binding domain (64)

Superfamily: Cytochrome b5-like heme/steroid binding domain (64)

Family: Cytochrome b5 (57)

Protein domain: automated matches (10)

Cow (Bos taurus) [TaxId: 9913] (4)

1a	d1u9ma_	A:
1b	d1u9mb_	B:
1c	d1u9mc_	C:
1d	d1u9md_	D:
1e	d1u9me_	E:
1f	d1u9mf_	F:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Flavocytochrome B2; Chain A, domain 1 (56)

Homologous Superfamily: Flavocytochrome B2, subunit A, domain 1 (56)

Cattle (Bos taurus) (17)

1a	1u9mA00	A:3-84
1b	1u9mB00	B:3-84
1c	1u9mC00	C:3-84
1d	1u9mD00	D:3-84
1e	1u9mE00	E:3-84
1f	1u9mF00	F:3-84

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: Cyt-b5] (29)

Family: Cyt-b5 (29)

Bos taurus (Bovine) (9)

1a	Cyt-b5-1u9mF01	F:6-80
1b	Cyt-b5-1u9mF02	F:6-80
1c	Cyt-b5-1u9mF03	F:6-80
1d	Cyt-b5-1u9mF04	F:6-80
1e	Cyt-b5-1u9mF05	F:6-80
1f	Cyt-b5-1u9mF06	F:6-80

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (CYB5_BOVIN | P00171)

molecular function
	GO:0019899	enzyme binding	Interacting selectively and non-covalently with any enzyme.
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005783	endoplasmic reticulum	The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
	GO:0005789	endoplasmic reticulum membrane	The lipid bilayer surrounding the endoplasmic reticulum.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0043231	intracellular membrane-bounded organelle	Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005739	mitochondrion	A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
	GO:0031090	organelle membrane	A membrane that is one of the two lipid bilayers of an organelle envelope or the outermost membrane of single membrane bound organelle.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1u9m)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1u9m
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CYB5_BOVIN \| P00171
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CYB5_BOVIN \| P00171
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1ehb
1u9u	F58Y MUTANT OF CYTOCHROME B5

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 6)

Sites (6, 6)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 12)

Exons (3, 18)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (1, 6)

Pfam Domains (1, 6)

Gene Ontology (13, 13)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
