Title :   CRYSTAL STRUCTURE OF AMTB FROM E.COLI WITH METHYL AMMONIUM.

Authors :   S. Khademi, J. O'Connell Iii, J. Remis, Y. Robles-Colmenares, L. J. W. R. M. Stroud

Date :   03 Aug 04 (Deposition) - 21 Sep 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.85

Chains :   Asym. Unit : A
Biol. Unit 1: A  (3x)

Keywords :   Right Handed Helical Bundle, Transmembrane Helices, Ammonia Channel, Methy Ammonium, Membrane Protein, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Khademi, J. O'Connell Iii, J. Remis, Y. Robles-Colmenares, L. J. W. Miercke, R. M. Stroud
Mechanism Of Ammonia Transport By Amt/Mep/Rh: Structure Of Amtb At 1. 35 A
Science V. 305 1587 2004
PubMed-ID: 15361618 | Reference-DOI: 10.1126/SCIENCE.1101952

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 12)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:383
 aligned with AMTB_ECOLI | P69681 from UniProtKB/Swiss-Prot  Length:428

    Alignment length:383
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404
           AMTB_ECOLI    25 AVADKADNAFMMICTALVLFMTIPGIALFYGGLIRGKNVLSMLTQVTVTFALVCILWVVYGYSLAFGEGNNFFGNINWLMLKNIELTAVMGSIYQYIHVAFQGSFACITVGLIVGALAERIRFSAVLIFVVVWLTLSYIPIAHMVWGGGLLASHGALDFAGGTVVHINAAIAGLVGAYLIGKRVGFGKEAFKPHNLPMVFTGTAILYIGWFGFNAGSAGTANEIAALAFVNTVVATAAAILGWIFGEWALRGKPSLLGACSGAIAGLVGVTPACGYIGVGGALIIGVVAGLAGLWGVTMLKRLLRVDDPCDVFGVHGVCGIVGCIMTGIFAASSLGGVGFAEGVTMGHQLLVQLESIAITIVWSGVVAFIGYKLADLTVGLRV 407
               SCOP domains d1u7ca_ A: Ammonium transporter AmtB                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1u7cA00 A:3-385 Ammonium transporter AmtB like domains                                                                                                                                                                                                                                                                                                                                          CATH domains
               Pfam domains --------Ammonium_transp-1u7cA01 A:11-385                                                                                                                                                                                                                                                                                                                                                        Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhh......ee..eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh..........hhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------AMMONIUM_TRANSP           -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1u7c A   3 AVADKADNAFmmICTALVLFmTIPGIALFYGGLIRGKNVLSmLTQVTVTFALVCILWVVYGYSLASGEGNNFFGNINWLmLKNIELTAVmGSIYQYIHVAFQGSFACITVGLIVGALAERIRFPAVLIFVVVWLTLSYIPIAHmVWGGGLLASHGALDFAGGTVVHINAAIAGLVGAYLIGKRVGFGKEAFKPHNLPmVFTGTAILYIGWFGFNAGSAGTANEIAALAFVNTVVATAAAILGWIFGEWALRGLPSLLGACSGAIAGLVGVTPACGYIGVGGALIIGVVAGLAGLWGVTmLKRLLRVDDPCDVFGVHGVCGIVGCImTGIFAASSLGGVGFAEGVTmGHQLLVQLESIAITIVWSGVVAFIGYKLADLTVGLRV 385
                                    12||      22|       32        42 |      52        62        72        82        92       102       112       122       132       142   |   152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322     | 332       342     | 352       362       372       382
                                     13-MSE    23-MSE               44-MSE                                82-MSE    92-MSE                                               146-MSE                                               200-MSE                                                                                              301-MSE                    328-MSE             348-MSE
                                      14-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (1, 1)

Gene Ontology (12, 12)

Asymmetric Unit(hide GO term definitions)

Chain A (AMTB_ECOLI | P69681)

molecular function
	GO:0008519	ammonium transmembrane transporter activity	Enables the transfer of ammonium from one side of a membrane to the other. Ammonium is the cation NH4+ which is formed from N2 by root-nodule bacteria in leguminous plants and is an excretory product in ammonotelic animals.
	GO:0015292	uniporter activity	Catalysis of the transport of a single molecular species across a membrane; transport is independent of the movement of any other molecular species.
biological process
	GO:0072488	ammonium transmembrane transport	The directed movement of ammonium across a membrane by means of some agent such as a transporter or pore. Ammonium is the cation NH4+.
	GO:0015696	ammonium transport	The directed movement of ammonium into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore. Ammonium is the cation NH4+ which is formed from N2 by root-nodule bacteria in leguminous plants and is an excretory product in ammonotelic animals.
	GO:0015670	carbon dioxide transport	The directed movement of carbon dioxide (CO2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0019740	nitrogen utilization	A series of processes that forms an integrated mechanism by which a cell or an organism detects the depletion of primary nitrogen source, usually ammonia, and then activates genes to scavenge the last traces of the primary nitrogen source and to transport and metabolize alternative nitrogen sources. The utilization process begins when the cell or organism detects nitrogen levels, includes the activation of genes whose products detect, transport or metabolize nitrogen-containing substances, and ends when nitrogen is incorporated into the cell or organism's metabolism.
	GO:0015695	organic cation transport	The directed movement of organic cations into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore. Organic cations are atoms or small molecules with a positive charge which contain carbon in covalent linkage.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0005887	integral component of plasma membrane	The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

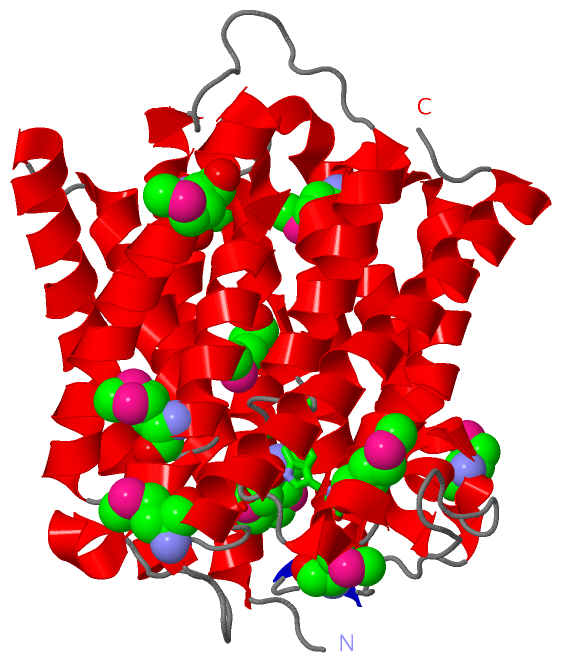

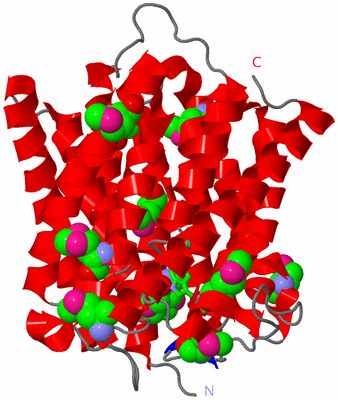

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NME	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ile A:25 - Pro A:26	[ RasMol ]

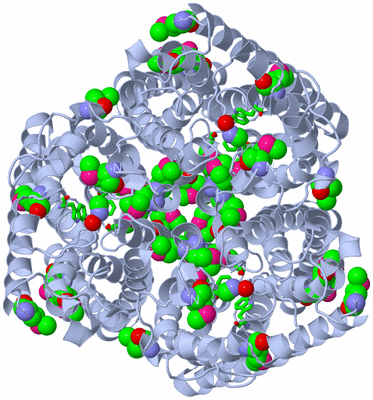

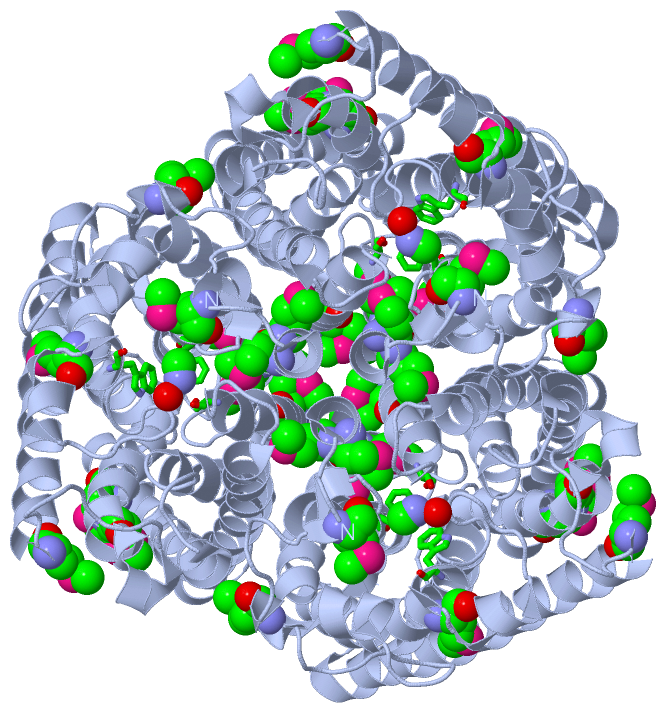

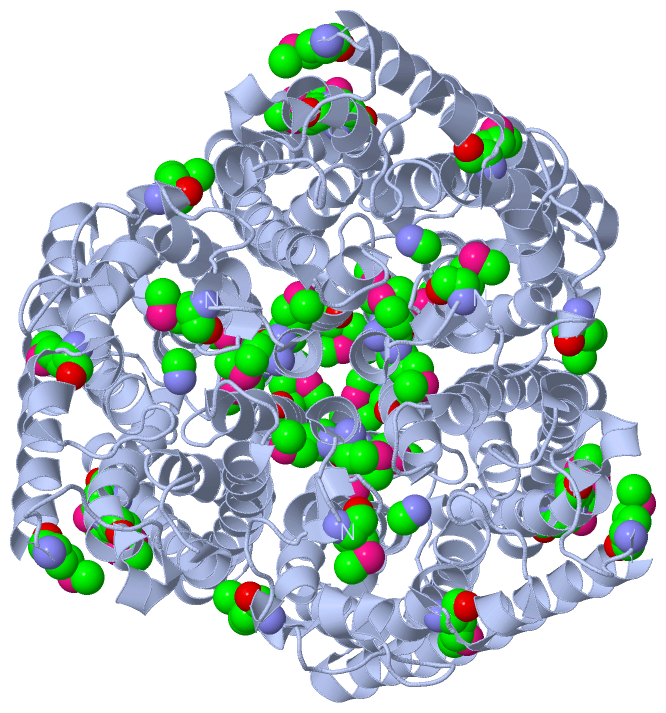

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]
