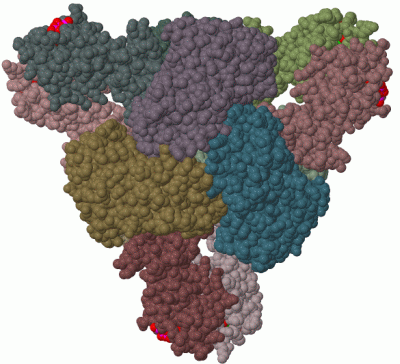

Biol.Unit 1 - manually (Jmol Viewer)

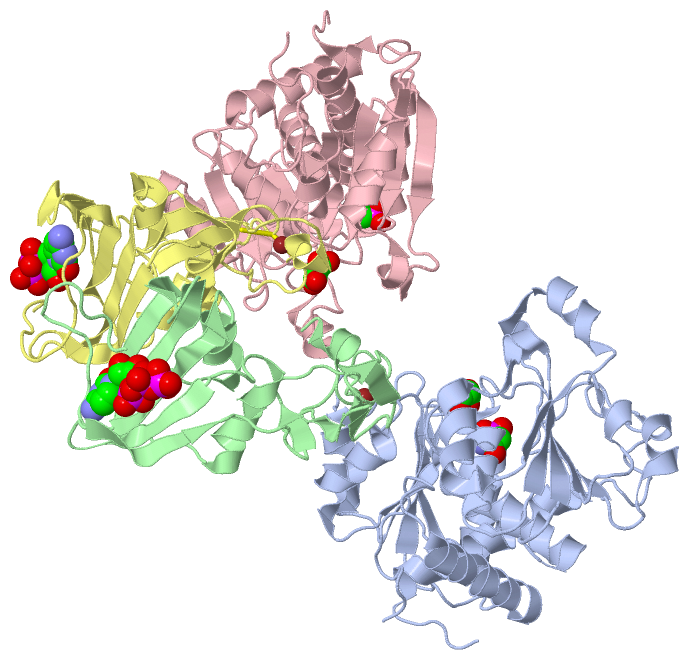

Asymmetric Unit (Jmol Viewer)

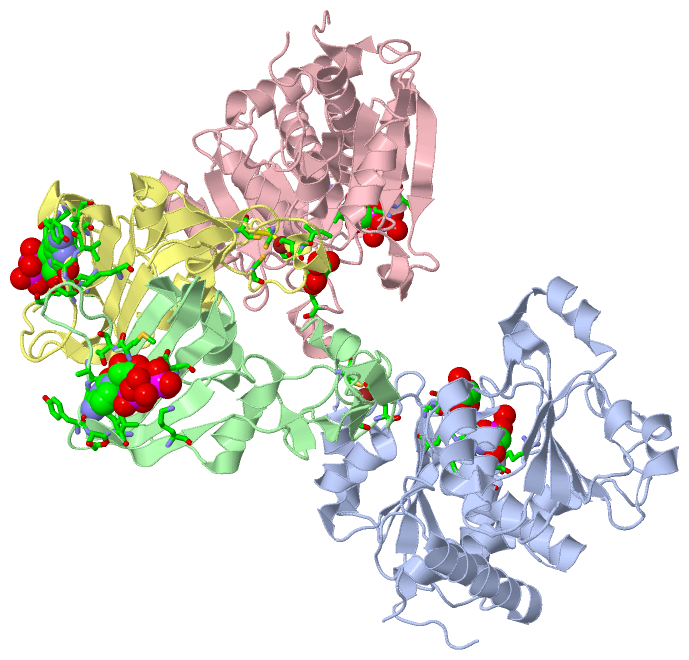

Asym. Unit - sites (Jmol Viewer)

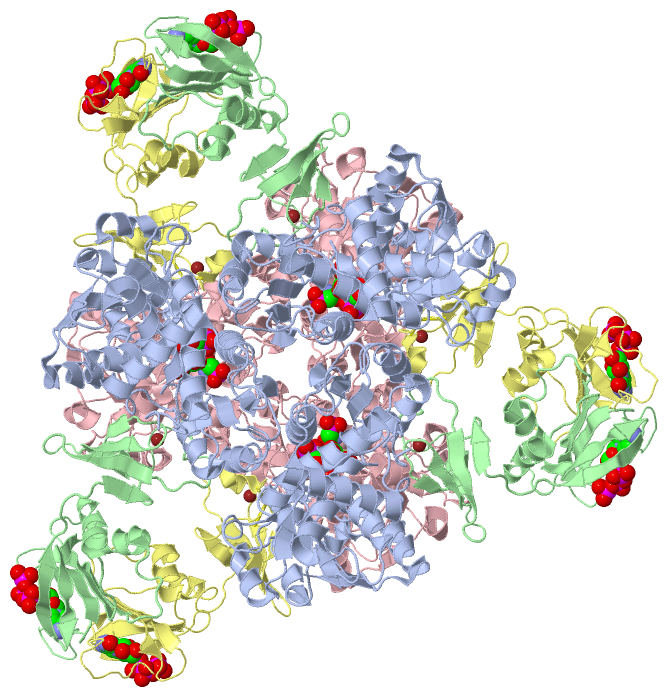

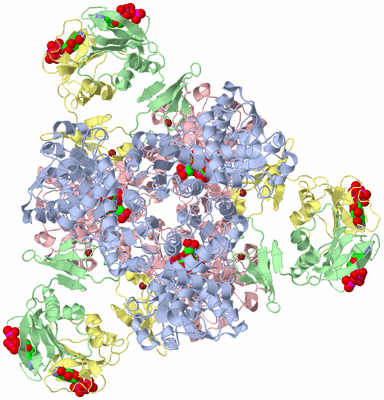

Biological Unit 1 (Jmol Viewer)

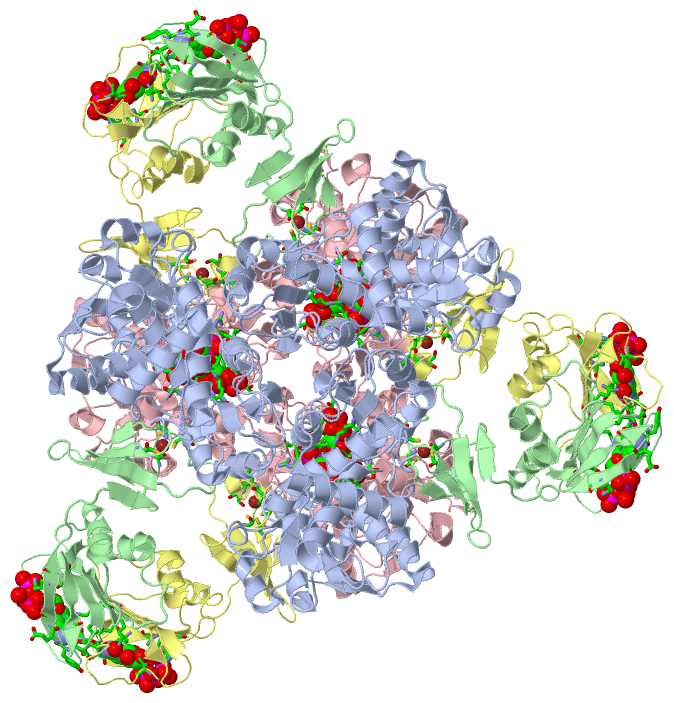

Biol. Unit 1 - sites (Jmol Viewer)

Title :   ASPARTATE TRANSCARBAMOYLASE CATALYTIC CHAIN MUTANT E50A COMPLEX WITH PHOSPHONOACETAMIDE, MALONATE, AND CYTIDINE-5-PRIME-TRIPHOSPHATE (CTP)

Authors :   K. Stieglitz, B. Stec, D. P. Baker, E. R. Kantrowitz

Date :   24 Jun 04 (Deposition) - 20 Jul 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B,C,D  (3x)

Keywords :   Protein Structure-Function, Site Specific Mutagenesis, Domain Closure, Allosteric Transition, Hydrolase/Hydrolase Regulator Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. Stieglitz, B. Stec, D. P. Baker, E. R. Kantrowitz
Monitoring The Transition From The T To The R State In E. Coli Aspartate Transcarbamoylase By X-Ray Crystallography: Crystal Structures Of The E50A Mutant Enzyme In Four Distinct Allosteric States.
J. Mol. Biol. V. 341 853 2004
PubMed-ID: 15288791 | Reference-DOI: 10.1016/J.JMB.2004.06.002
(for further references see the PDB file header)

Molecule 1 - ASPARTATE CARBAMOYLTRANSFERASE CATALYTIC CHAIN
	Chains	:	A, C
	EC Number	:	2.1.3.2
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PEK91
	Expression System Strain	:	EK1104
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	PYRB, B4245, C5345, Z5856, ECS5222, SF4245, S4507
	Mutation	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	ASPARTATE TRANSCARBAMYLASE, ATCASE

Molecule 2 - ASPARTATE CARBAMOYLTRANSFERASE REGULATORY CHAIN
	Chains	:	B, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PEK91
	Expression System Strain	:	EK1104
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	PYRI, B4244, C5344, Z5855, ECS5221
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (3x)	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (4, 8)

No.	Name	Count	Type	Full Name
1	CTP	2	Ligand/Ion	CYTIDINE-5'-TRIPHOSPHATE
2	MLI	2	Ligand/Ion	MALONATE ION
3	PCT	2	Ligand/Ion	PHOSPHONOACETAMIDE
4	ZN	2	Ligand/Ion	ZINC ION

Biological Unit 1 (3, 18)

No.	Name	Count	Type	Full Name
1	CTP	6	Ligand/Ion	CYTIDINE-5'-TRIPHOSPHATE
2	MLI	6	Ligand/Ion	MALONATE ION
3	PCT	6	Ligand/Ion	PHOSPHONOACETAMIDE
4	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS B:109 , CYS B:114 , CYS B:138 , CYS B:141	BINDING SITE FOR RESIDUE ZN B 154
2	AC2	SOFTWARE	CYS D:109 , CYS D:114 , ILE D:115 , SER D:116 , CYS D:138 , CYS D:141	BINDING SITE FOR RESIDUE ZN D 155
3	AC3	SOFTWARE	ARG C:234 , HOH C:1440	BINDING SITE FOR RESIDUE MLI C 1311
4	AC4	SOFTWARE	GLY A:130 , SER A:131 , ARG A:167 , HOH A:1354	BINDING SITE FOR RESIDUE MLI A 1312
5	AC5	SOFTWARE	SER C:52 , THR C:53 , ARG C:54 , THR C:55 , ARG C:105 , HIS C:134 , LEU C:267 , HOH C:1398 , HOH C:1415 , HOH C:1429 , HOH C:1436 , HOH C:1461 , HOH C:1474	BINDING SITE FOR RESIDUE PCT C 1313
6	AC6	SOFTWARE	SER A:52 , ARG A:54 , THR A:55 , ARG A:105 , HIS A:134 , GLN A:137 , HOH A:1398	BINDING SITE FOR RESIDUE PCT A 1314
7	AC7	SOFTWARE	MET B:1 , THR B:2 , ALA B:11 , ILE B:12 , ASP B:19 , LYS B:60 , ILE B:86 , TYR B:89 , GLU B:90 , VAL B:91 , LYS B:94 , HOH B:1201	BINDING SITE FOR RESIDUE CTP B 1156
8	AC8	SOFTWARE	THR D:2 , GLU D:10 , ALA D:11 , ILE D:12 , ASP D:19 , HIS D:20 , LYS D:60 , ASN D:84 , ILE D:86 , TYR D:89 , LYS D:94 , HOH D:1244	BINDING SITE FOR RESIDUE CTP D 1157

Asymmetric Unit

No.	Residues
1	D:114	-	D:141
2	D:138	-	D:141

Asymmetric Unit

No.	Residues
1	Leu A:267	-	Pro A:268

(no "SAP(SNP)/Variant" information available for 1TUG)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CARBAMOYLTRANSFERASE	PS00097	Aspartate and ornithine carbamoyltransferases signature.	PYRB_ECOLI	49-56	2	A:48-55 C:48-55

Biological Unit 1 (1, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CARBAMOYLTRANSFERASE	PS00097	Aspartate and ornithine carbamoyltransferases signature.	PYRB_ECOLI	49-56	6	A:48-55 C:48-55

(no "Exon" information available for 1TUG)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:310
 aligned with PYRB_ECOLI | P0A786 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:310
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311
           PYRB_ECOLI     2 ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFEASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLDPSEYANVKAQFVLRASDLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL 311
               SCOP domains d1tuga1 A:1-150,A:151-310 Aspartate carbamoyltransferase catalytic subunit                                                                            d1tuga1 A:1-150,A:151-310 Aspartate carbamoyltransferase catalytic subunit                                                                                       SCOP domains
               CATH domains 1tugA01 A:1-133,A:292-310  [code=3.40.50.1370, no name defined]                                                                      1tugA02 A:134-291  [code=3.40.50.1370, no name defined]                                                                                                       1tugA01             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............hhhhhhhhhhhhhhhhhh.........eeeeee...hhhhhhhhhhhhhhh..eeeeee............hhhhhhhhhh....eeeeee...hhhhhhhhhhh...eeeeee....hhhhhhhhhhhhhhhhh.....eeeee.....hhhhhhhhhhhh.....eeeee.hhhhh.hhhhhhhhhhhh..eeee.hhhhh.....eeee...hhhhhhhhhhhhhh.....hhhhhhhh....eee...................hhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------CARBAMOY--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tug A   1 ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFAASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLDPSEYANVKAQFVLRASDLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL 310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310

Chain B from PDB  Type:PROTEIN  Length:153
 aligned with PYRI_ECOLI | P0A7F3 from UniProtKB/Swiss-Prot  Length:153

    Alignment length:153
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           PYRI_ECOLI     1 MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN 153
               SCOP domains d1tugb1 B:1-100 Aspartate carbamoyltransferase                                                      d1tugb2 B:101-153                                     SCOP domains
               CATH domains -------1tugB01 B:8-100  [code=3.30.70.140, no name defined]                                         1tugB02 B:101-153  [code=2.30.30.20, no name defined] CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeeeeeee..hhhhhhhhh........eeeeeeee.....eeeeeeee....hhhhhhhhhh.....eeeeee..eeeeee......eee...................eeeee......eeee.....eeehhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tug B   1 MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN 153
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain C from PDB  Type:PROTEIN  Length:310
 aligned with PYRB_ECOLI | P0A786 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:310
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311
           PYRB_ECOLI     2 ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFEASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLDPSEYANVKAQFVLRASDLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL 311
               SCOP domains d1tugc1 C:1-150,C:151-310 Aspartate carbamoyltransferase catalytic subunit                                                                            d1tugc1 C:1-150,C:151-310 Aspartate carbamoyltransferase catalytic subunit                                                                                       SCOP domains
               CATH domains 1tugC01 C:1-133,C:292-310  [code=3.40.50.1370, no name defined]                                                                      1tugC02 C:134-291  [code=3.40.50.1370, no name defined]                                                                                                       1tugC01             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............hhhhhhhhhhhhhhhhhh.........eeeeee...hhhhhhhhhhhhhh...eeeeee......hhhhh.hhhhhhhhhh....eeeeee...hhhhhhhh......eeeeee....hhhhhhhhhhhhhhhh......eeeee.....hhhhhhhhhhhh.....eeeee.......hhhhhhhhhhhh..eee..hhhhh.....eeee........hhhhhhhh......hhhhhhh.....eee.........hhhhhhh...hhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------CARBAMOY--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tug C   1 ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFAASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLDPSEYANVKAQFVLRASDLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL 310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310

Chain D from PDB  Type:PROTEIN  Length:153
 aligned with PYRI_ECOLI | P0A7F3 from UniProtKB/Swiss-Prot  Length:153

    Alignment length:153
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           PYRI_ECOLI     1 MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN 153
               SCOP domains d1tugd1 D:1-100 Aspartate carbamoyltransferase                                                      d1tugd2 D:101-153                                     SCOP domains
               CATH domains -------1tugD01 D:8-100  [code=3.30.70.140, no name defined]                                         1tugD02 D:101-153  [code=2.30.30.20, no name defined] CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeeeeee...hhhhhhhhh........eeeeeeee.....eeeeeeee....hhhhhhh........eeeeee..eeeeee......eee.........hhhhh.....eeeeee....eeeee.....eeehhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tug D   1 MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN 153
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Alpha-Beta Plaits (1688)

Homologous Superfamily: [code=3.30.70.140, no name defined] (53)

Escherichia coli. Organism_taxid: 562. (21)

1a	1tugB01	B:8-100
1b	1tugD01	D:8-100

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1370, no name defined] (91)

Escherichia coli. Organism_taxid: 562. (22)

2a	1tugA02	A:134-291
2b	1tugC02	C:134-291
2c	1tugA01	A:1-133,A:292-310
2d	1tugC01	C:1-133,C:292-310

Class: Mainly Beta (13760)

Architecture: Roll (1513)

Topology: SH3 type barrels. (648)

Homologous Superfamily: [code=2.30.30.20, no name defined] (53)

Escherichia coli. Organism_taxid: 562. (21)

3a	1tugB02	B:101-153
3b	1tugD02	D:101-153

(no "Pfam Domain" information available for 1TUG)

Asymmetric Unit(hide GO term definitions)

Chain A,C (PYRB_ECOLI | P0A786)

molecular function
	GO:0016597	amino acid binding	Interacting selectively and non-covalently with an amino acid, organic acids containing one or more amino substituents.
	GO:0004070	aspartate carbamoyltransferase activity	Catalysis of the reaction: L-aspartate + carbamoyl phosphate = N-carbamoyl-L-aspartate + H(+) + phosphate.
	GO:0016743	carboxyl- or carbamoyltransferase activity	Catalysis of the transfer of a carboxyl- or carbamoyl group from one compound (donor) to another (acceptor).
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0044205	'de novo' UMP biosynthetic process	The chemical reactions and pathways resulting in the formation of UMP, uridine monophosphate, starting with the synthesis of (S)-dihydroorotate from bicarbonate; UMP biosynthesis may either occur via reduction by quinone, NAD(+) or oxygen.
	GO:0006207	'de novo' pyrimidine nucleobase biosynthetic process	The chemical reactions and pathways resulting in the formation of pyrimidine nucleobases, 1,3-diazine, organic nitrogenous bases, beginning with the synthesis of a pyrimidine ring from simpler precursors.
	GO:0006520	cellular amino acid metabolic process	The chemical reactions and pathways involving amino acids, carboxylic acids containing one or more amino groups, as carried out by individual cells.
	GO:0006221	pyrimidine nucleotide biosynthetic process	The chemical reactions and pathways resulting in the formation of a pyrimidine nucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a deoxyribose or ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
	GO:0009220	pyrimidine ribonucleotide biosynthetic process	The chemical reactions and pathways resulting in the formation of a pyrimidine ribonucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
	GO:0000050	urea cycle	The sequence of reactions by which arginine is synthesized from ornithine, then cleaved to yield urea and regenerate ornithine. The overall reaction equation is NH3 + CO2 + aspartate + 3 ATP + 2 H2O = urea + fumarate + 2 ADP + 2 phosphate + AMP + diphosphate.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Chain B,D (PYRI_ECOLI | P0A7F3)

molecular function
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0006207	'de novo' pyrimidine nucleobase biosynthetic process	The chemical reactions and pathways resulting in the formation of pyrimidine nucleobases, 1,3-diazine, organic nitrogenous bases, beginning with the synthesis of a pyrimidine ring from simpler precursors.
	GO:0006221	pyrimidine nucleotide biosynthetic process	The chemical reactions and pathways resulting in the formation of a pyrimidine nucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a deoxyribose or ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
cellular component
	GO:0009347	aspartate carbamoyltransferase complex	A multienzyme complex that catalyzes the formation N-carbamoyl-L-aspartate from carbamoyl phosphate and L-aspartate. It exhibits a variety of architectural organizations, but in all microorganisms the core catalytic component is a homotrimer of approximately 34 kDa polypeptides.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CTP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MLI	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PCT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Leu A:267 - Pro A:268	[ RasMol ]

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1tug
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PYRB_ECOLI \| P0A786
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	PYRI_ECOLI \| P0A7F3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.1.3.2
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PYRB_ECOLI \| P0A786
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	PYRI_ECOLI \| P0A7F3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1nbe	REGULATORY CHAIN MUTANT T82A OVER-ROTATED T STATE.
1tth	ASPARTATE TRANSCARBAMOYLASE CATALYTIC CHAIN MUTANT GLU50ALA COMPLEXED WITH N-(PHOSPHONACETYL-L-ASPARTATE) (PALA)
1tu0	ASPARTATE TRANSCARBAMOYLASE CATALYTIC CHAIN MUTANT E50A COMPLEX WITH PHOSPHONOACETAMIDE.
3at1	WILD-TYPE ATCASE COMPLEX WITH PHOSPHONOACETAMIDE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 8)

Sites (8, 8)

SS Bonds (2, 2)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (3, 6)

CATH Domains (3, 8)

Pfam Domains (0, 0)

Gene Ontology (16, 20)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
