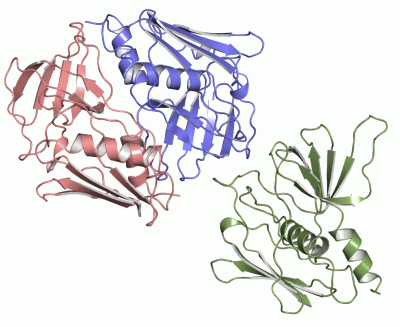

Asym.Unit - manually (Jmol Viewer)

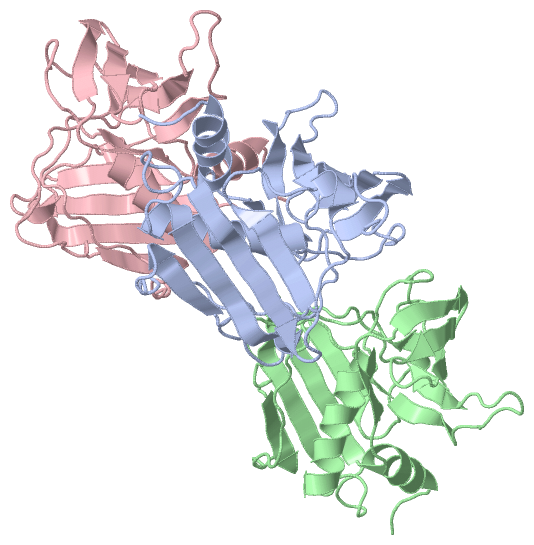

Asymmetric Unit (Jmol Viewer)

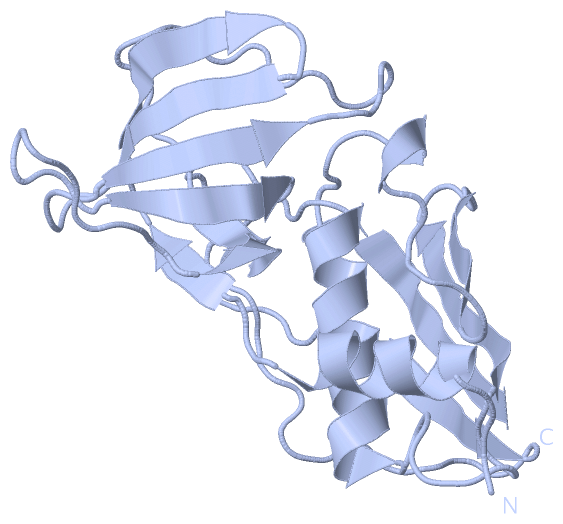

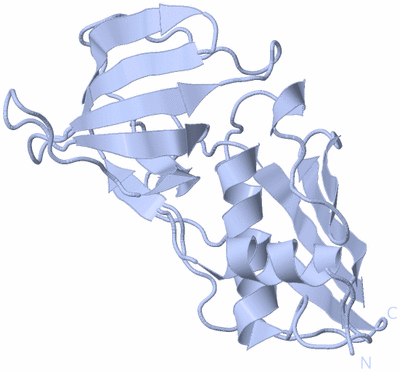

Biological Unit 1 (Jmol Viewer)

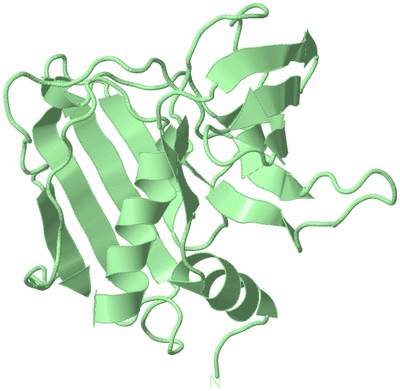

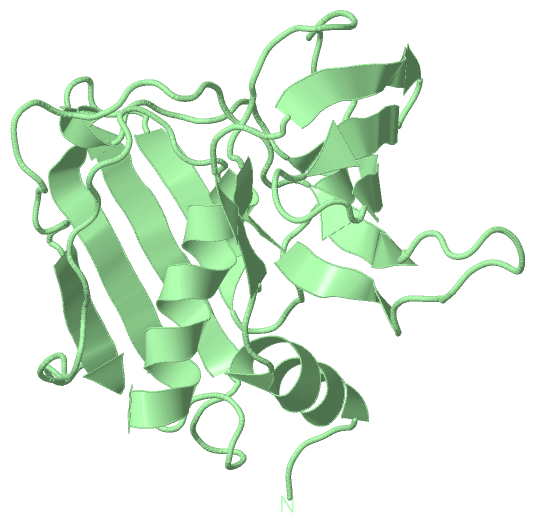

Biological Unit 2 (Jmol Viewer)

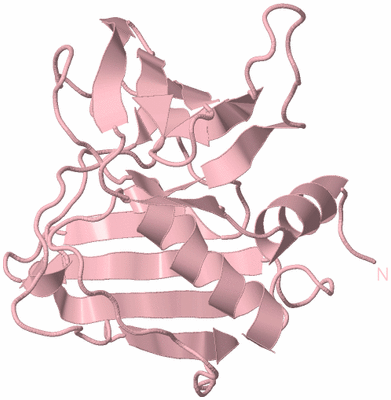

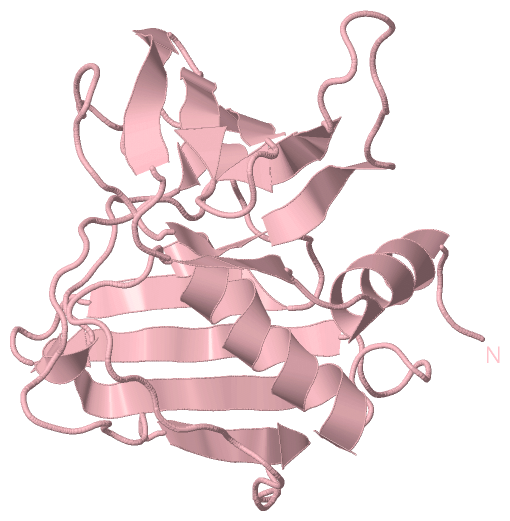

Biological Unit 3 (Jmol Viewer)

Title :   H135A MUTANT OF TOXIC SHOCK SYNDROME TOXIN-1 FROM S. AUREUS

Authors :   C. A. Earhart, D. T. Mitchell, D. L. Murray, D. M. Pinheiro, M. Matsumura, P. M. Schlievert, D. H. Ohlendorf

Date :   10 Oct 97 (Deposition) - 16 Dec 98 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)

Keywords :   Toxin, Superantigen (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. A. Earhart, D. T. Mitchell, D. L. Murray, D. M. Pinheiro, M. Matsumura, P. M. Schlievert, D. H. Ohlendorf
Structures Of Five Mutants Of Toxic Shock Syndrome Toxin-1 With Reduced Biological Activity.
Biochemistry V. 37 7194 1998
PubMed-ID: 9585531 | Reference-DOI: 10.1021/BI9721896
(for further references see the PDB file header)

Molecule 1 - TOXIC SHOCK SYNDROME TOXIN-1
	Chains	:	A, B, C
	Engineered	:	YES
	Expression System	:	STAPHYLOCOCCUS AUREUS
	Expression System Taxid	:	1280
	Mutation	:	YES
	Organism Scientific	:	STAPHYLOCOCCUS AUREUS
	Organism Taxid	:	1280
	Synonym	:	TSST-1

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1TS3)

(no "Site" information available for 1TS3)

(no "SS Bond" information available for 1TS3)

(no "Cis Peptide Bond" information available for 1TS3)

(no "SAP(SNP)/Variant" information available for 1TS3)

Asymmetric Unit (1, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	STAPH_STREP_TOXIN_2	PS00278	Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.	TSST_STAAU	161-184	3	A:121-144 B:321-344 C:521-544

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	STAPH_STREP_TOXIN_2	PS00278	Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.	TSST_STAAU	161-184	1	A:121-144 - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	STAPH_STREP_TOXIN_2	PS00278	Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.	TSST_STAAU	161-184	1	- B:321-344 -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	STAPH_STREP_TOXIN_2	PS00278	Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.	TSST_STAAU	161-184	1	- - C:521-544

(no "Exon" information available for 1TS3)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:194
 aligned with TSST_STAAU | P06886 from UniProtKB/Swiss-Prot  Length:234

    Alignment length:194
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           TSST_STAAU    41 STNDNIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRTKKSQHTSEGTYIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYGPKFDKKQLAISTLDFEIRHQLTQIHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 234
               SCOP domains d1ts3a1 A:1-93 Toxic shock syndrome toxin-1 (TSST-1)                                         d1ts3a2 A:94-194 Toxic shock syndrome toxin-1 (TSST-1)                                                SCOP domains
               CATH domains 1ts3A01          1ts3A02 A:18-88  [code=2.40.50.110, no name defined]                   1ts3A01 A:1-17,A:89-194  [code=3.10.20.120, no name defined]                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhh...eee...eeeeee..eeeee.....eeeee.................eeeeeee..........eeeee................eeeee...................hhhhhhhhhhhhhhh..........eeeeeeee....eeeee......hhh......hhheeeeeeeee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------STAPH_STREP_TOXIN_2     -------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ts3 A   1 STNDNIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRTKKSQHTSEGTYIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYWPKFDKKQLAISTLDFEIRAQLTQIHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 194
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190

Chain B from PDB  Type:PROTEIN  Length:194
 aligned with TSST_STAAU | P06886 from UniProtKB/Swiss-Prot  Length:234

    Alignment length:194
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           TSST_STAAU    41 STNDNIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRTKKSQHTSEGTYIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYGPKFDKKQLAISTLDFEIRHQLTQIHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 234
               SCOP domains d1ts3b1 B:201-293 Toxic shock syndrome toxin-1 (TSST-1)                                      d1ts3b2 B:294-394 Toxic shock syndrome toxin-1 (TSST-1)                                               SCOP domains
               CATH domains 1ts3B01          1ts3B02 B:218-288  [code=2.40.50.110, no name defined]                 1ts3B01 B:201-217,B:289-394  [code=3.10.20.120, no name defined]                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhh...eee...eeeeee..eeeee.....eeeee.................eeeeeee..........eeeee................eeeee...................hhhhhhhhhhhhhhh..........eeeeeeee....eeeee......hhh......hhheeeeeeeee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------STAPH_STREP_TOXIN_2     -------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ts3 B 201 STNDNIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRTKKSQHTSEGTYIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYWPKFDKKQLAISTLDFEIRAQLTQIHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 394
                                   210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390

Chain C from PDB  Type:PROTEIN  Length:194
 aligned with TSST_STAAU | P06886 from UniProtKB/Swiss-Prot  Length:234

    Alignment length:194
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           TSST_STAAU    41 STNDNIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRTKKSQHTSEGTYIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYGPKFDKKQLAISTLDFEIRHQLTQIHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 234
               SCOP domains d1ts3c1 C:401-493 Toxic shock syndrome toxin-1 (TSST-1)                                      d1ts3c2 C:494-594 Toxic shock syndrome toxin-1 (TSST-1)                                               SCOP domains
               CATH domains 1ts3C01          1ts3C02 C:418-488  [code=2.40.50.110, no name defined]                 1ts3C01 C:401-417,C:489-594  [code=3.10.20.120, no name defined]                                           CATH domains
           Pfam domains (1) ----Stap_Strp_toxin-1ts3C04 C:405-491                                                      -------Stap_Strp_tox_C-1ts3C01 C:499-594                                                                Pfam domains (1)
           Pfam domains (2) ----Stap_Strp_toxin-1ts3C05 C:405-491                                                      -------Stap_Strp_tox_C-1ts3C02 C:499-594                                                                Pfam domains (2)
           Pfam domains (3) ----Stap_Strp_toxin-1ts3C06 C:405-491                                                      -------Stap_Strp_tox_C-1ts3C03 C:499-594                                                                Pfam domains (3)
         Sec.struct. author ...hhhhhhhhhhh...eee...eeeeee..eeeee.....eeeee.................eeeeeee..........eeeee................eeeee...................hhhhhhhhhhhhhhh..........eeeeeeee....eeeee......hhh......hhheeeeeeeee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------STAPH_STREP_TOXIN_2     -------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ts3 C 401 STNDNIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRTKKSQHTSEGTYIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYWPKFDKKQLAISTLDFEIRAQLTQIHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 594
                                   410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Ubiquitin-like (UB roll) (674)

Homologous Superfamily: [code=3.10.20.120, no name defined] (91)

Staphylococcus aureus. Organism_taxid: 1280. (14)

1a	1ts3A01	A:1-17,A:89-194
1b	1ts3B01	B:201-217,B:289-394
1c	1ts3C01	C:401-417,C:489-594

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: OB fold (Dihydrolipoamide Acetyltransferase, E2P) (1040)

Homologous Superfamily: [code=2.40.50.110, no name defined] (136)

Staphylococcus aureus. Organism_taxid: 1280. (14)

2a	1ts3A02	A:18-88
2b	1ts3B02	B:218-288
2c	1ts3C02	C:418-488

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Ant-toxin_C (48)

Family: Stap_Strp_tox_C (48)

Staphylococcus aureus (41)

1a	Stap_Strp_tox_C-1ts3C01	C:499-594
1b	Stap_Strp_tox_C-1ts3C02	C:499-594
1c	Stap_Strp_tox_C-1ts3C03	C:499-594

Clan: no clan defined [family: Stap_Strp_toxin] (39)

Family: Stap_Strp_toxin (39)

Staphylococcus aureus (33)

2a	Stap_Strp_toxin-1ts3C04	C:405-491
2b	Stap_Strp_toxin-1ts3C05	C:405-491
2c	Stap_Strp_toxin-1ts3C06	C:405-491

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (TSST_STAAU | P06886)

biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ts3)

	Sites
(no "Sites" information available for 1ts3)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ts3)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ts3
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	TSST_STAAU \| P06886
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	TSST_STAAU \| P06886
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	TSST_STAAU \| P06886	:	1aw7 1qil 1ts2 1ts4 1ts5 2ij0 2qil 2tss 3tss 4ohj 4tss 5tss

(no "Related Entries Specified in the PDB File" available for 1TS3)
