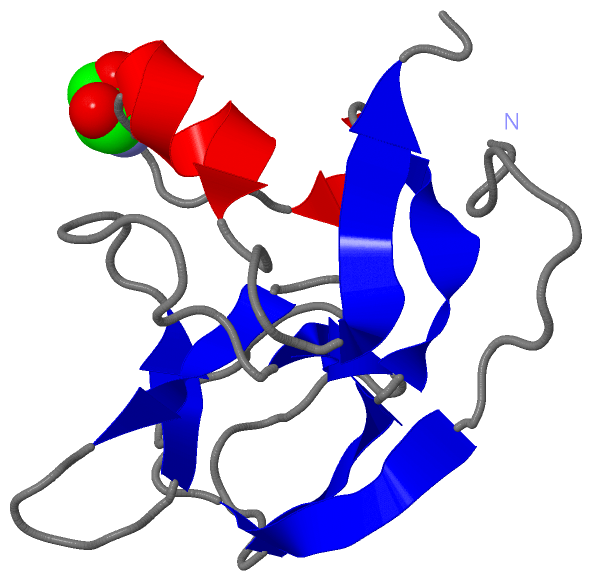

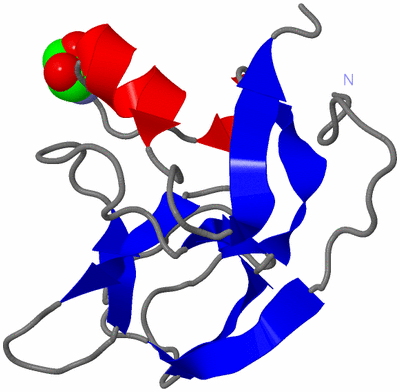

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

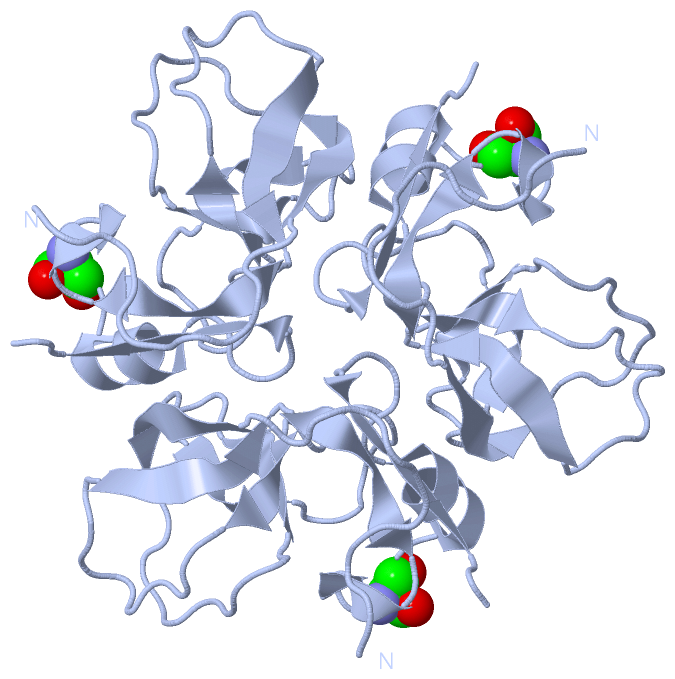

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF VSHP_BPP21 IN SPACE GROUP H3 WITH HIGH RESOLUTION.

Authors :  C. Chang, P. Forrer, D. Ott, A. Wlodawer, A. Plueckthun
Date :  21 May 04  (Deposition) - 02 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Shp, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Forrer, C. Chang, D. Ott, A. Wlodawer, A. Plueckthun
Kinetic Stability And Crystal Structure Of The Viral Capsid Protein Shp.
J. Mol. Biol. V. 344 179 2004
PubMed-ID: 15504410  |  Reference-DOI: 10.1016/J.JMB.2004.09.030
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HEAD DECORATION PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ENTEROBACTERIA PHAGE P21
    Organism Taxid: 10711
    Synonym: HEAD PROTEIN GPSHP

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1DSN1Mod. Amino AcidD-SERINE
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1DSN3Mod. Amino AcidD-SERINE

(-) Sites  (0, 0)

(no "Site" information available for 1TD4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TD4)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Leu A:113 -Pro A:114

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TD4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TD4)

(-) Exons   (0, 0)

(no "Exon" information available for 1TD4)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:103
 aligned with DECO_BPP21 | P36275 from UniProtKB/Swiss-Prot  Length:115

    Alignment length:103
                                    22        32        42        52        62        72        82        92       102       112
           DECO_BPP21    13 VRIFAGNDPAHTATGSSGISSPTPALTPLMLDEATGKLVVWDGQKAGSAVGILVLPLEGTETALTYYKSGTFATEAIHWPESVDEHKKANAFAGSALSHAALP 115
               SCOP domains d1td4a_ A: Head decoration protein D (gpD, major capsid protein D)                                      SCOP domains
               CATH domains 1td4A00 A:12-114  [code=2.40.300.10, no name defined]                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeee...........eeee......eee..........eee.........eeeee.eeeee.hhh......hhhhhhh.....eeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 1td4 A  12 VRIFAGNDPAHTATGSSGISSPTPALTPLMLDEATGKLVVWDGQKAGSAVGILVLPLEGTETALTYYKSGTFATEAIHWPExVDEHKKANAFAGSALSHAALP 114
                                    21        31        41        51        61        71        81        91 |     101       111
                                                                                                            93-DSN
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1TD4)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A   (DECO_BPP21 | P36275)
cellular component
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    DSN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1td4)

  Cis Peptide Bonds
    Leu A:113 - Pro A:114   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1td4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DECO_BPP21 | P36275
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DECO_BPP21 | P36275
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DECO_BPP21 | P36275: 1td0 1td3

(-) Related Entries Specified in the PDB File

1td3 SAME PROTEIN, C 2 SPACE GROUP
