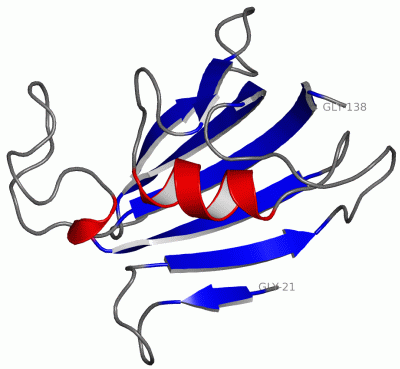

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)
Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

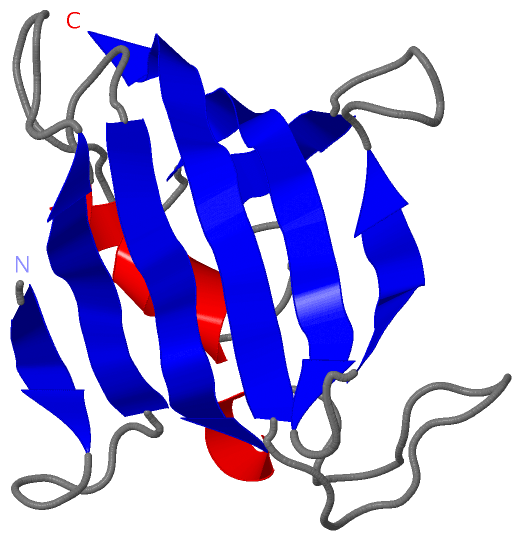

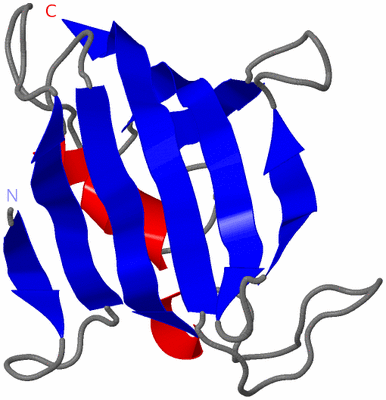

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF FKBP59-I, THE N-TERMINAL DOMAIN OF A 59 KDA FK506-BINDING PROTEIN, NMR, MINIMIZED AVERAGE STRUCTURE

Authors :  C. T. Craescu, N. Rouviere, A. Popescu, E. Cerpolini, M. -C. Lebeau, E. - E. Baulieu, J. Mispelter
Date :  14 Jun 96  (Deposition) - 07 Dec 96  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Rotamase (Isomerase), Domain I (N-Term) Of A 59 Kda, Fk506- Binding Protein, Peptidyl Prolyl Cis-Trans Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  C. T. Craescu, N. Rouviere, A. Popescu, E. Cerpolini, M. C. Lebeau, E. E. Baulieu, J. Mispelter
Three-Dimensional Structure Of The Immunophilin-Like Domain Of Fkbp59 In Solution.
Biochemistry V. 35 11045 1996
PubMed-ID: 8780506  |  Reference-DOI: 10.1021/BI960975P
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FKBP59-I
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    OrganLIVER
    Organism CommonRABBIT
    Organism ScientificORYCTOLAGUS CUNICULUS
    Organism Taxid9986
    SynonymFKBP52 OR HSP56

 Structural Features

(-) Chains, Units


NMR Structure

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ROT)

(-) Sites  (0, 0)

(no "Site" information available for 1ROT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ROT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ROT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ROT)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FKBP_PPIASEPS50059 FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.FKBP4_RABIT50-138
167-253
  1A:49-137
-

(-) Exons   (4, 4)

NMR Structure (4, 4)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENSOCUT000000146031ENSOCUE00000170086chr8:29030189-29030296108FKBP4_RABIT1-35351A:21-3414
1.2ENSOCUT000000146032ENSOCUE00000170089chr8:29032039-29032183145FKBP4_RABIT36-84491A:35-8349
1.3ENSOCUT000000146033ENSOCUE00000170093chr8:29032563-29032705143FKBP4_RABIT84-131481A:83-13048
1.4ENSOCUT000000146034ENSOCUE00000170096chr8:29033423-29033544122FKBP4_RABIT132-172411A:131-1388
1.5ENSOCUT000000146035ENSOCUE00000170100chr8:29033809-29033970162FKBP4_RABIT172-226550--
1.6ENSOCUT000000146036ENSOCUE00000170104chr8:29034463-2903455391FKBP4_RABIT226-256310--
1.7ENSOCUT000000146037ENSOCUE00000170110chr8:29034640-2903472384FKBP4_RABIT257-284280--
1.8ENSOCUT000000146038ENSOCUE00000170116chr8:29034922-29035107186FKBP4_RABIT285-346620--
1.9ENSOCUT000000146039ENSOCUE00000170124chr8:29035580-29035819240FKBP4_RABIT347-426800--
1.10ENSOCUT0000001460310ENSOCUE00000170130chr8:29036791-29037576786FKBP4_RABIT427-460340--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:118
 aligned with FKBP4_RABIT | P27124 from UniProtKB/Swiss-Prot  Length:458

    Alignment length:118
                                    31        41        51        61        71        81        91       101       111       121       131
          FKBP4_RABIT    22 GVDISPKQDEGVLKVIKREGTGTETPMIGDRVFVHYTGWLLDGTKFDSSLDRKDKFSFDLGKGEVIKAWDIAVATMKVGELCRITCKPEYAYGSAGSPPKIPPNATLVFEVELFEFKG 139
               SCOP domains d1rota_ A: FKBP59-I, N-terminal domain                                                                                 SCOP domains
               CATH domains 1rotA00 A:21-138  [code=3.10.50.40, no name defined]                                                                   CATH domains
               Pfam domains ---------------------FKBP_C-1rotA01 A:42-134                                                                      ---- Pfam domains
         Sec.struct. author .eee.......eeeeee............eeeeeeeeeee...eeeee.......eeeee......hhhhhhhhh.....eeeeeeehhh................eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------FKBP_PPIASE  PDB: A:49-137 UniProt: 50-138                                               - PROSITE
           Transcript 1 (1) Exon 1.1      Exon 1.2  PDB: A:35-83 UniProt: 36-84            -----------------------------------------------Exon 1.4 Transcript 1 (1)
           Transcript 1 (2) --------------------------------------------------------------Exon 1.3  PDB: A:83-130 UniProt: 84-131         -------- Transcript 1 (2)
                 1rot A  21 GVDISPKQDEGVLKVIKREGTGTETPMIGDRVFVHYTGWLLDGTKFDSSLDRKDKFSFDLGKGEVIKAWDIAVATMKVGELCRITCKPEYAYGSAGSPPKIPPNATLVFEVELFEFKG 138
                                    30        40        50        60        70        80        90       100       110       120       130

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure

(-) Gene Ontology  (31, 31)

NMR Structure(hide GO term definitions)
Chain A   (FKBP4_RABIT | P27124)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0005528    FK506 binding    Interacting selectively and non-covalently with the 23-membered macrolide lactone FK506.
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0035259    glucocorticoid receptor binding    Interacting selectively and non-covalently with a glucocorticoid receptor.
    GO:0031072    heat shock protein binding    Interacting selectively and non-covalently with a heat shock protein, any protein synthesized or activated in response to heat shock.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
    GO:0051219    phosphoprotein binding    Interacting selectively and non-covalently with a phosphorylated protein.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0048156    tau protein binding    Interacting selectively and non-covalently with tau protein. tau is a microtubule-associated protein, implicated in Alzheimer's disease, Down Syndrome and ALS.
biological process
    GO:0030521    androgen receptor signaling pathway    Any series of molecular signals generated as a consequence of an androgen binding to its receptor.
    GO:0061077    chaperone-mediated protein folding    The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
    GO:0007566    embryo implantation    Attachment of the blastocyst to the uterine lining.
    GO:0046661    male sex differentiation    The establishment of the sex of a male organism by physical differentiation.
    GO:0031111    negative regulation of microtubule polymerization or depolymerization    Any process that stops, prevents, or reduces the frequency, rate or extent of microtubule polymerization or depolymerization.
    GO:0010977    negative regulation of neuron projection development    Any process that decreases the rate, frequency or extent of neuron projection development. Neuron projection development is the process whose specific outcome is the progression of a neuron projection over time, from its formation to the mature structure. A neuron projection is any process extending from a neural cell, such as axons or dendrites (collectively called neurites).
    GO:0030850    prostate gland development    The process whose specific outcome is the progression of the prostate gland over time, from its formation to the mature structure. The prostate gland is a partly muscular, partly glandular body that is situated near the base of the mammalian male urethra and secretes an alkaline viscid fluid which is a major constituent of the ejaculatory fluid.
    GO:0031503    protein complex localization    A localization process that acts on a protein complex; the complex is transported to, or maintained in, a specific location.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
    GO:0048608    reproductive structure development    The reproductive developmental process whose specific outcome is the progression of structures that will be used in the process of creating new individuals from one or more parents, from their formation to the mature structures.
    GO:0006463    steroid hormone receptor complex assembly    The aggregation, arrangement and bonding together of a set of components to form a steroid hormone receptor complex, an intracellular receptor that binds steroid hormones. The complex is often a dimer, and forms after the steroid has bound the receptor.
cellular component
    GO:0044295    axonal growth cone    The migrating motile tip of a growing nerve cell axon.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005874    microtubule    Any of the long, generally straight, hollow tubes of internal diameter 12-15 nm and external diameter 24 nm found in a wide variety of eukaryotic cells; each consists (usually) of 13 protofilaments of polymeric tubulin, staggered in such a manner that the tubulin monomers are arranged in a helical pattern on the microtubular surface, and with the alpha/beta axes of the tubulin subunits parallel to the long axis of the tubule; exist in equilibrium with pool of tubulin monomers and can be rapidly assembled or disassembled in response to physiological stimuli; concerned with force generation, e.g. in the spindle.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1rot)

  Sites
(no "Sites" information available for 1rot)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1rot)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1rot
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FKBP4_RABIT | P27124
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  FKBP4_RABIT | P27124
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FKBP4_RABIT | P271241rou

(-) Related Entries Specified in the PDB File

1rou
