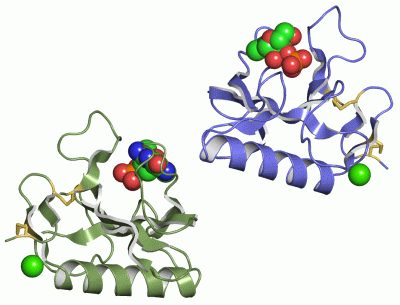

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

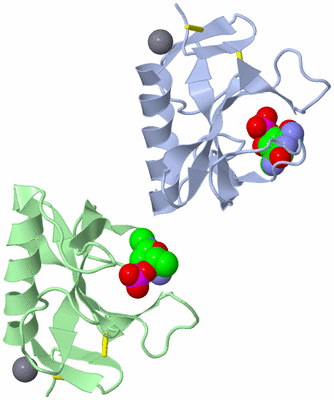

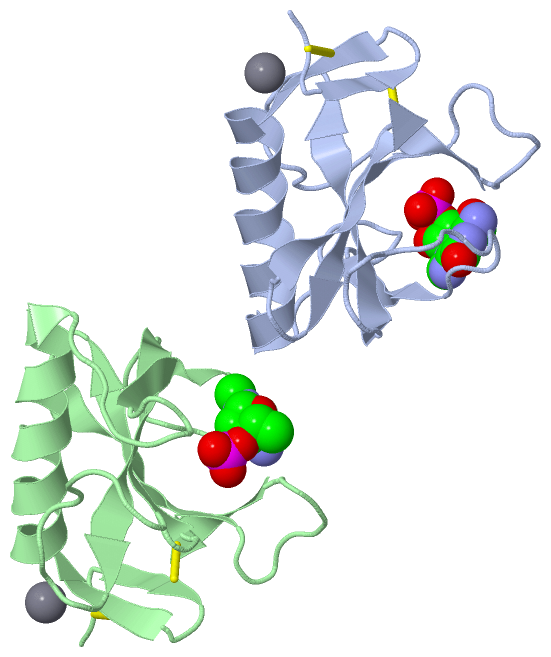

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

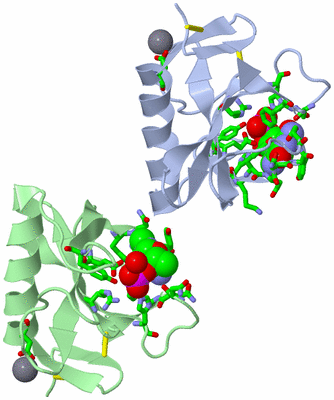

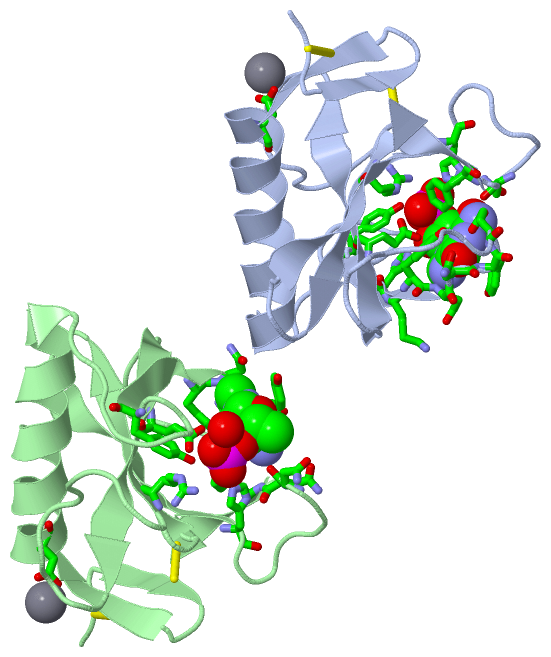

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

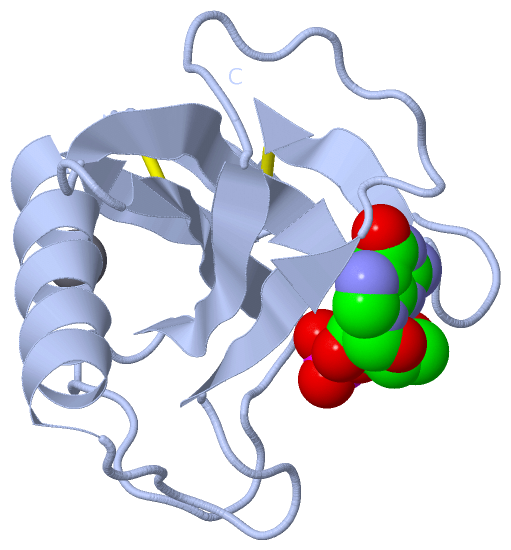

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

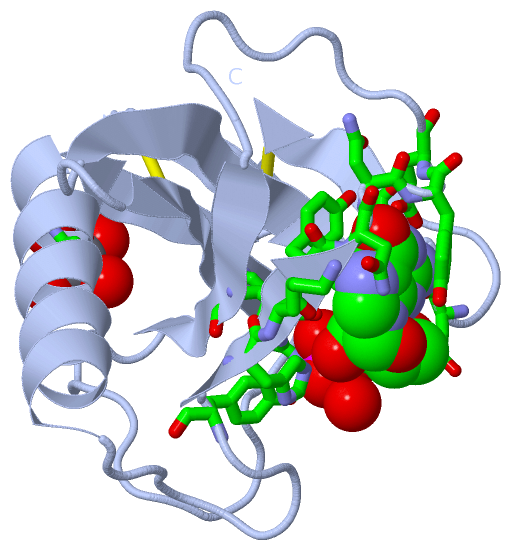

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

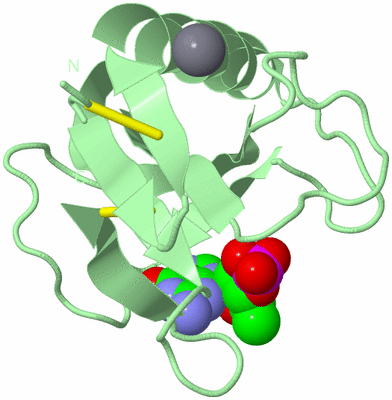

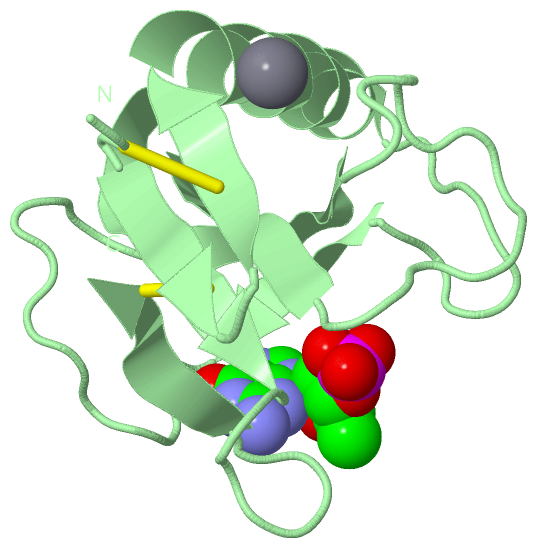

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE COMPLEX BETWEEN RIBONUCLEASE T1 AND 3'-GUANYLIC ACID SUGGESTS GEOMETRY OF ENZYMATIC REACTION PATH. AN X-RAY STUDY

Authors :  A. Heydenreich, G. Koellner, H. W. Choe, F. Cordes, C. Kisker, H. Schindelin, R. Adamiak, U. Hahn, W. Saenger
Date :  12 May 93  (Deposition) - 31 Jan 94  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Hydrolase(Endoribonuclease) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Heydenreich, G. Koellner, H. W. Choe, F. Cordes, C. Kisker, H. Schindelin, R. Adamiak, U. Hahn, W. Saenger
The Complex Between Ribonuclease T1 And 3'Gmp Suggests Geometry Of Enzymic Reaction Path. An X-Ray Study.
Eur. J. Biochem. V. 218 1005 1993
PubMed-ID: 8281918  |  Reference-DOI: 10.1111/J.1432-1033.1993.TB18459.X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RIBONUCLEASE T1
    Chains: A, B
    EC Number: 3.1.27.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ASPERGILLUS ORYZAE
    Organism Taxid: 5062

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric Unit (2, 4)
No.NameCountTypeFull Name
13GP2Ligand/IonGUANOSINE-3'-MONOPHOSPHATE
2CA2Ligand/IonCALCIUM ION
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
13GP1Ligand/IonGUANOSINE-3'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
13GP1Ligand/IonGUANOSINE-3'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:15 , HOH A:502 , HOH A:512 , HOH A:522 , HOH A:528 , HOH A:532 , HOH A:539BINDING SITE FOR RESIDUE CA A 401
2AC2SOFTWAREASP B:15 , HOH B:595 , HOH B:596 , HOH B:599 , HOH B:607 , HOH B:608BINDING SITE FOR RESIDUE CA B 402
3AC3SOFTWARETYR A:38 , HIS A:40 , LYS A:41 , TYR A:42 , ASN A:43 , ASN A:44 , TYR A:45 , GLU A:46 , GLU A:58 , ARG A:77 , HIS A:92 , ASN A:98 , PHE A:100 , HOH A:525BINDING SITE FOR RESIDUE 3GP A 105
4AC4SOFTWARETYR B:38 , TYR B:42 , ASN B:43 , ASN B:44 , TYR B:45 , GLU B:46 , GLU B:58 , ARG B:77 , HIS B:92 , ASN B:98 , ASN B:99 , PHE B:100 , HOH B:630BINDING SITE FOR RESIDUE 3GP B 105

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:2 -A:10
2A:6 -A:103
3B:2 -B:10
4B:6 -B:103

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Tyr A:38 -Pro A:39
2Ser A:54 -Pro A:55
3Tyr B:38 -Pro B:39
4Ser B:54 -Pro B:55

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RGC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1RGC)

(-) Exons   (0, 0)

(no "Exon" information available for 1RGC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with RNT1_ASPOR | P00651 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:104
                                    36        46        56        66        76        86        96       106       116       126
           RNT1_ASPOR    27 ACDYTCGSNCYSSSDVSTAQAAGYQLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 130
               SCOP domains d1rgca_ A: RNase T1                                                                                      SCOP domains
               CATH domains 1rgcA00 A:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee..eeeehhhhhhhhhhhhhhhhh.........eeee............eeeeeeee.............eeeeee...eeeeeee........eeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 1rgc A   1 ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:104
 aligned with RNT1_ASPOR | P00651 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:104
                                    36        46        56        66        76        86        96       106       116       126
           RNT1_ASPOR    27 ACDYTCGSNCYSSSDVSTAQAAGYQLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 130
               SCOP domains d1rgcb_ B: RNase T1                                                                                      SCOP domains
               CATH domains 1rgcB00 B:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
           Pfam domains (1) ----------------Ribonuclease-1rgcB01 B:17-99                                                       ----- Pfam domains (1)
           Pfam domains (2) ----------------Ribonuclease-1rgcB02 B:17-99                                                       ----- Pfam domains (2)
         Sec.struct. author ...eee..eeeehhhhhhhhhhhhhhhhh.........eeee............eeeeeeee.............eeeeee...eeeeeee........eeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 1rgc B   1 ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: no clan defined [family: Ribonuclease] (57)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (RNT1_ASPOR | P00651)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0046589    ribonuclease T1 activity    Catalysis of the endonucleolytic cleavage to nucleoside 3'-phosphates and 3'-phosphooligonucleotides ending in Gp with 2',3'-cyclic phosphate intermediates.
    GO:0004540    ribonuclease activity    Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
    GO:0090501    RNA phosphodiester bond hydrolysis    The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0030428    cell septum    A structure composed of peptidoglycan and often chitin in addition to other materials. It usually forms perpendicular to the long axis of a cell or hypha and grows centripetally from the cell wall to the center of the cell and often functions in the compartmentalization of a cell into two daughter cells.
    GO:0001411    hyphal tip    The end, or tip, of a fungal hypha, where polarized growth occurs during hyphal elongation.
