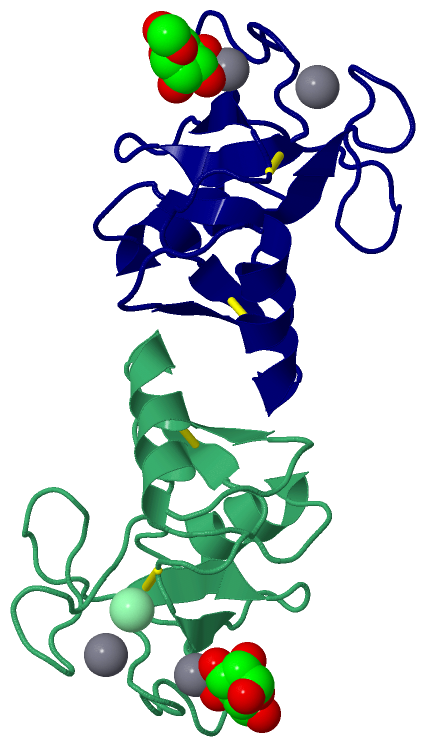

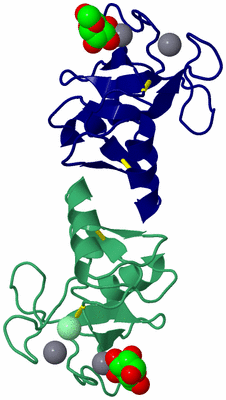

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

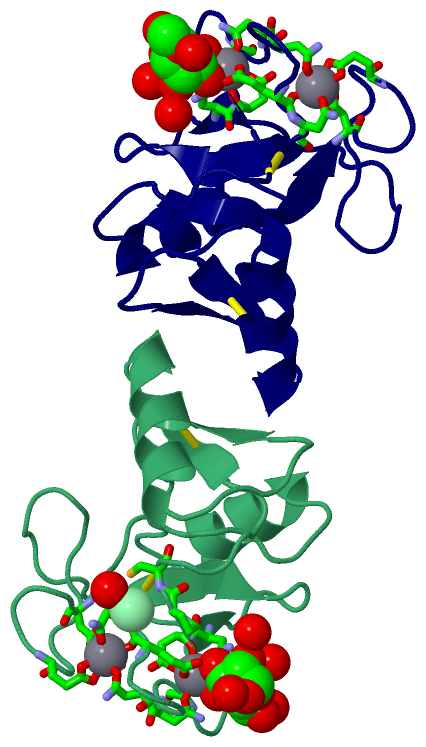

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  MANNOSE-BINDING PROTEIN, SUBTILISIN DIGEST FRAGMENT COMPLEX WITH ALPHA-METHYL-D-MANNOPYRANOSIDE (0.2 M)

Authors :  K. K. -S. Ng, K. Drickamer, W. I. Weis
Date :  05 Sep 95  (Deposition) - 08 Mar 96  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  1,2
Keywords :  C-Type Lectin, Calcium-Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. K. Ng, K. Drickamer, W. I. Weis
Structural Analysis Of Monosaccharide Recognition By Rat Liver Mannose-Binding Protein.
J. Biol. Chem. V. 271 663 1996
PubMed-ID: 8557671  |  Reference-DOI: 10.1074/JBC.271.2.663
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MANNOSE-BINDING PROTEIN-C
    Chains: 1, 2
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PINIIIOMPA2
    Expression System Taxid: 562
    Fragment: SUBTILISIN FRAGMENT (RESIDUES 114 - 226)
    Organ: LIVER
    Organism Common: BLACK RAT
    Organism Scientific: RATTUS RATTUS
    Organism Taxid: 10117
    Other Details: THE BACTERIALLY EXPRESSED MATERIAL IS DIGESTED WITH SUBTILISIN TO PRODUCE THE PROTEIN USED IN THE CRYSTAL STRUCTURE ANALYSIS
    Synonym: SUB-MBP-C

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : 12

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 7)

Asymmetric/Biological Unit (3, 7)
No.NameCountTypeFull Name
1CA4Ligand/IonCALCIUM ION
2CL1Ligand/IonCHLORIDE ION
3MMA2Ligand/IonO1-METHYL-MANNOSE

(-) Sites  (11, 11)

Asymmetric Unit (11, 11)
No.NameEvidenceResiduesDescription
01AC1SOFTWARECA 1:2 , GLU 1:190 , ASN 1:192 , GLU 1:198 , ASN 1:210 , ASP 1:211 , HOH 1:343 , HOH 1:358 , HOH 1:360 , HOH 1:361BINDING SITE FOR RESIDUE MMA 1 1
02AC2SOFTWARECA 2:2 , GLU 2:190 , ASN 2:192 , GLU 2:198 , ASN 2:210 , ASP 2:211 , HOH 2:362 , HOH 2:367 , HOH 2:386BINDING SITE FOR RESIDUE MMA 2 1
03AC3SOFTWAREASP 1:166 , GLU 1:170 , ASN 1:193 , GLU 1:198 , ASN 1:199 , HOH 1:274BINDING SITE FOR RESIDUE CA 1 227
04AC4SOFTWAREMMA 1:1 , GLU 1:190 , ASN 1:192 , GLU 1:198 , ASN 1:210 , ASP 1:211BINDING SITE FOR RESIDUE CA 1 2
05AC5SOFTWAREASN 1:199 , PRO 1:213 , CYS 1:214 , HOH 1:243BINDING SITE FOR RESIDUE CL 1 3
06AC6SOFTWAREASP 2:166 , GLU 2:170 , ASN 2:193 , GLU 2:198 , ASN 2:199 , HOH 2:232BINDING SITE FOR RESIDUE CA 2 227
07AC7SOFTWAREMMA 2:1 , GLU 2:190 , ASN 2:192 , GLU 2:198 , ASN 2:210 , ASP 2:211BINDING SITE FOR RESIDUE CA 2 2
08CA1AUTHORCA 1:227 , ASP 1:166 , GLU 1:170 , ASN 1:193 , GLU 1:198 , ASN 1:199 , HOH 1:274CALCIUM BINDING SITES
09CA2AUTHORCA 2:227 , ASP 2:166 , GLU 2:170 , ASN 2:193 , GLU 2:198 , ASN 2:199 , HOH 2:232CALCIUM BINDING SITES
10CA3AUTHORCA 1:2 , GLU 1:190 , ASN 1:192 , GLU 1:198 , ASN 1:210 , ASP 1:211 , MMA 1:1CALCIUM BINDING SITES
11CA4AUTHORCA 2:2 , GLU 2:190 , ASN 2:192 , GLU 2:198 , ASN 2:210 , ASP 2:211 , MMA 2:1CALCIUM BINDING SITES

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
11:133 -1:222
21:200 -1:214
32:133 -2:222
42:200 -2:214

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Glu 1:190 -Pro 1:191
2Glu 2:190 -Pro 2:191

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RDL)

(-) PROSITE Motifs  (2, 4)

Asymmetric/Biological Unit (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1C_TYPE_LECTIN_2PS50041 C-type lectin domain profile.MBL2_RAT134-241
 		  21:116-223
2:116-223
2C_TYPE_LECTIN_1PS00615 C-type lectin domain signature.MBL2_RAT218-240
 		  21:200-222
2:200-222

(-) Exons   (0, 0)

(no "Exon" information available for 1RDL)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain 1 from PDB  Type:PROTEIN  Length:111
 aligned with MBL2_RAT | P08661 from UniProtKB/Swiss-Prot  Length:244

    Alignment length:111
                                   142       152       162       172       182       192       202       212       222       232       242
             MBL2_RAT   133 KYFMSSVRRMPLNRAKALCSELQGTVATPRNAEENRAIQNVAKDVAFLGITDQRTENVFEDLTGNRVRYTNWNEGEPNNVGSGENCVVLLTNGKWNDVPCSDSFLVVCEFS 243
               SCOP domains d1rdl1_ 1: Mannose-binding protein A, C-lectin domain                                                           SCOP domains
               CATH domains 1rdl100 1:115-225 Mannose-Binding Protein A, subunit A                                                          CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee......hhhhhhhhhhh.........hhhhhhhhhh............................................eeee.....eeee........eeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -C_TYPE_LECTIN_2  PDB: 1:116-223 UniProt: 134-241                                                            -- PROSITE (1)
                PROSITE (2) -------------------------------------------------------------------------------------C_TYPE_LECTIN_1        --- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 1rdl 1 115 KYFMSSVRRMPLNRAKALCSELQGTVATPRNAEENRAIQNVAKDVAFLGITDQRTENVFEDLTGNRVRYTNWNEGEPNNVGSGENCVVLLTNGKWNDVPCSDSFLVVCEFS 225
                                   124       134       144       154       164       174       184       194       204       214       224


Chain 2 from PDB  Type:PROTEIN  Length:112
 aligned with MBL2_RAT | P08661 from UniProtKB/Swiss-Prot  Length:244

    Alignment length:112
                                   141       151       161       171       181       191       201       211       221       231       241
             MBL2_RAT   132 KKYFMSSVRRMPLNRAKALCSELQGTVATPRNAEENRAIQNVAKDVAFLGITDQRTENVFEDLTGNRVRYTNWNEGEPNNVGSGENCVVLLTNGKWNDVPCSDSFLVVCEFS 243
               SCOP domains d1rdl2_ 2: Mannose-binding protein A, C-lectin domain                                                            SCOP domains
               CATH domains 1rdl200 2:114-225 Mannose-Binding Protein A, subunit A                                                           CATH domains
           Pfam domains (1) --------Lectin_C-1rdl201 2:122-224                                                                             - Pfam domains (1)
           Pfam domains (2) --------Lectin_C-1rdl202 2:122-224                                                                             - Pfam domains (2)
         Sec.struct. author ..eeee......hhhhhhhhhhh.........hhhhhhhhhh....eeeeee..................................eeee.....eeee........eeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --C_TYPE_LECTIN_2  PDB: 2:116-223 UniProt: 134-241                                                            -- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------C_TYPE_LECTIN_1        --- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 1rdl 2 114 KKYFMSSVRRMPLNRAKALCSELQGTVATPRNAEENRAIQNVAKDVAFLGITDQRTENVFEDLTGNRVRYTNWNEGEPNNVGSGENCVVLLTNGKWNDVPCSDSFLVVCEFS 225
                                   123       133       143       153       163       173       183       193       203       213       223
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
