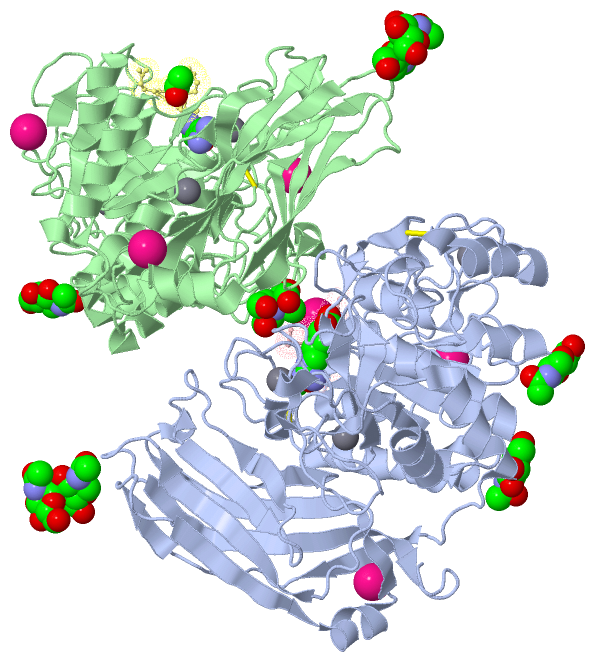

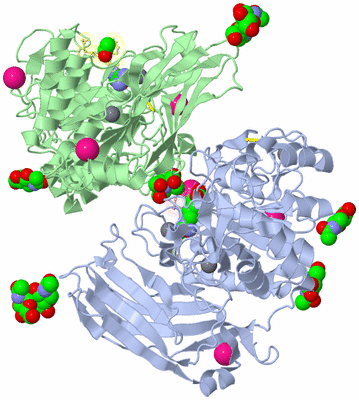

Asymmetric Unit (Jmol Viewer)

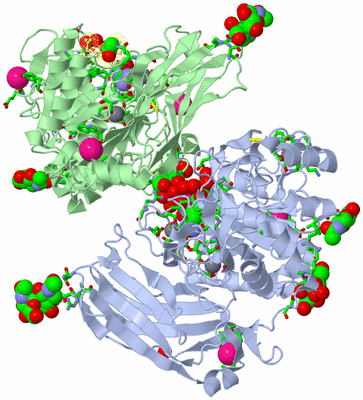

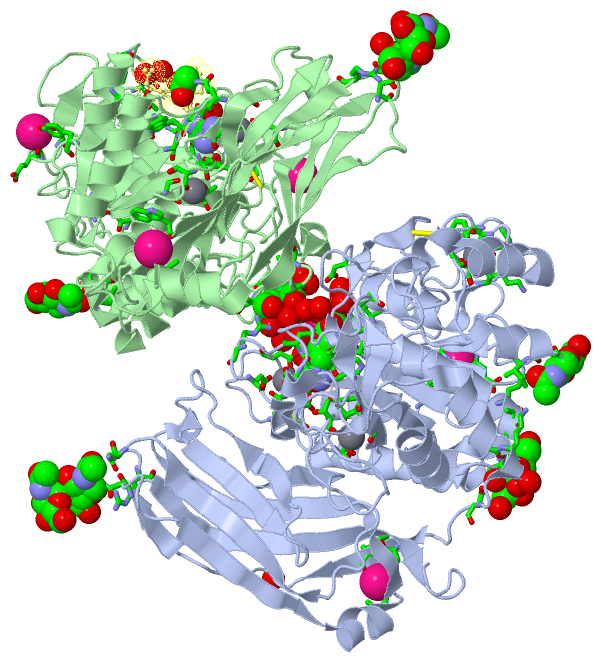

Asym. Unit - sites (Jmol Viewer)

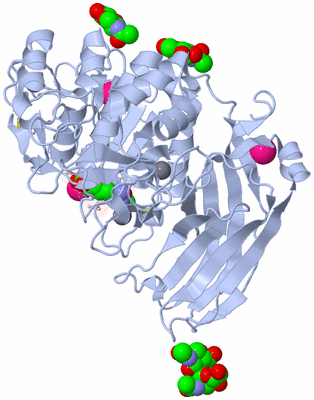

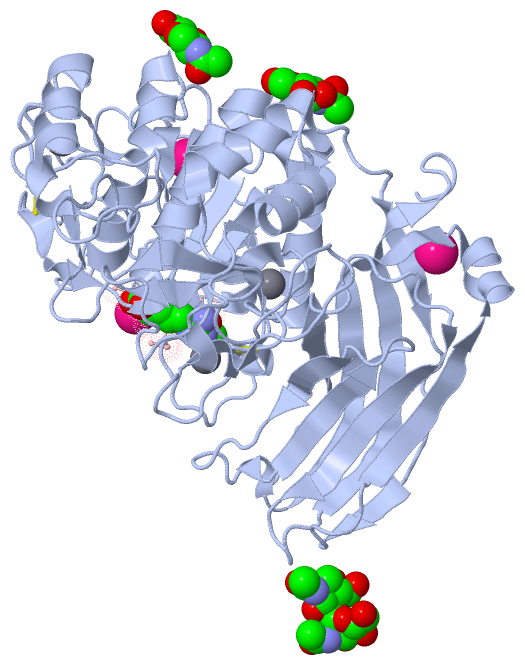

Biological Unit 1 (Jmol Viewer)

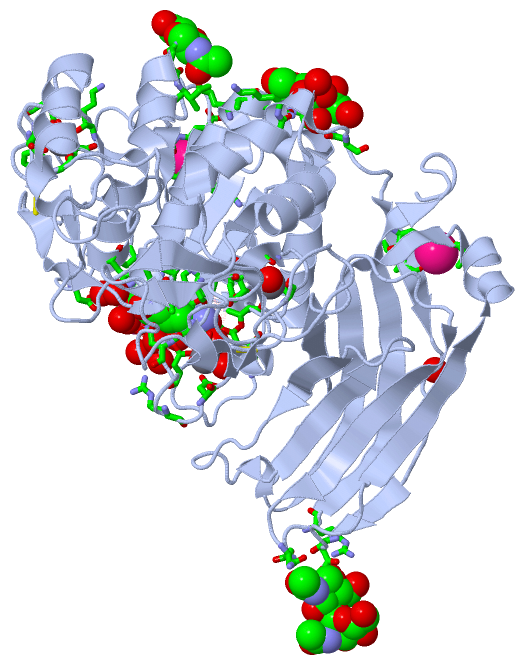

Biol. Unit 1 - sites (Jmol Viewer)

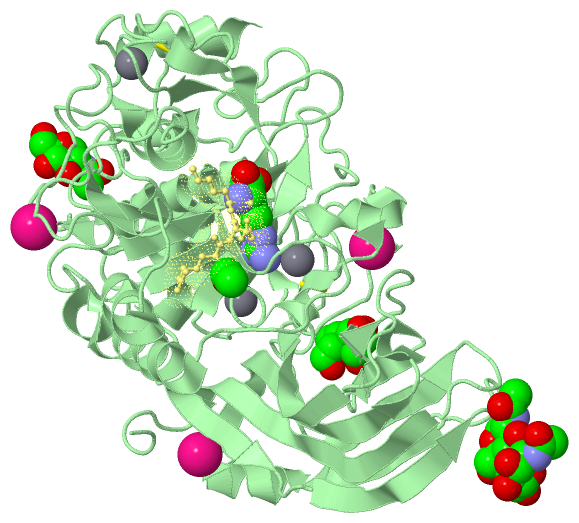

Biological Unit 2 (Jmol Viewer)

Title :   THE 2.2 A CRYSTAL STRUCTURE OF KEX2 PROTEASE IN COMPLEX WITH AC-ARG-GLU-LYS-BOROARG PEPTIDYL BORONIC ACID INHIBITOR

Authors :   T. Holyoak, C. A. Kettner, G. A. Petsko, R. S. Fuller, D. Ringe

Date :   14 Oct 03 (Deposition) - 09 Mar 04 (Release) - 16 Nov 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.20

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,C  (1x)
Biol. Unit 2: B,D  (1x)

Keywords :   Kex2, Kexin, Protease, Protein Convertase, Prohormone Processing, Proprotein Convertase, Subtilisin, Hydrolase-Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. Holyoak, C. A. Kettner, G. A. Petsko, R. S. Fuller, D. Ringe
Structural Basis For Differences In Substrate Selectivity I Kex2 And Furin Protein Convertases
Biochemistry V. 43 2412 2004
PubMed-ID: 14992578 | Reference-DOI: 10.1021/BI035849H

Molecule 1 - KEXIN
	Chains	:	A, B
	EC Number	:	3.4.21.61
	Engineered	:	YES
	Expression System	:	SACCHAROMYCES CEREVISIAE
	Expression System Common	:	BAKER'S YEAST
	Expression System Plasmid	:	PG5
	Expression System Strain	:	ASY1
	Expression System Taxid	:	4932
	Expression System Vector Type	:	PLASMID
	Fragment	:	RESIDUES 121-601
	Gene	:	KEX2 OR QDS1 OR YNL238W OR N1122
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932
	Synonym	:	KEX2 PROTEASE, PROTEINASE YSCF

Molecule 2 - AC-ARG-GLU-LYS-BOROARG PEPTIDE INHIBITOR
	Chains	:	C, D
	Engineered	:	YES
	Other Details	:	THE PEPTIDE WAS CHEMICALLY SYNTHESIZED.
	Synthetic	:	YES

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A		C
Biological Unit 2 (1x)	:		B		D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (6, 24)

No.	Name	Count	Type	Full Name
1	ACE	2	Mod. Amino Acid	ACETYL GROUP
2	BOR	2	Mod. Amino Acid	(1R)-1-AMINO-4-{[(E)-AMINO(IMINO)METHYL]AMINO}BUTYLBORONIC ACID
3	BTB	1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
4	CA	6	Ligand/Ion	CALCIUM ION
5	K	6	Ligand/Ion	POTASSIUM ION
6	NAG	7	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Biological Unit 1 (3, 6)

No.	Name	Count	Type	Full Name
1	ACE	1	Mod. Amino Acid	ACETYL GROUP
2	BOR	1	Mod. Amino Acid	(1R)-1-AMINO-4-{[(E)-AMINO(IMINO)METHYL]AMINO}BUTYLBORONIC ACID
3	BTB	-1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
4	CA	-1	Ligand/Ion	CALCIUM ION
5	K	-1	Ligand/Ion	POTASSIUM ION
6	NAG	4	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Biological Unit 2 (4, 6)

No.	Name	Count	Type	Full Name
1	ACE	1	Mod. Amino Acid	ACETYL GROUP
2	BOR	1	Mod. Amino Acid	(1R)-1-AMINO-4-{[(E)-AMINO(IMINO)METHYL]AMINO}BUTYLBORONIC ACID
3	BTB	1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
4	CA	-1	Ligand/Ion	CALCIUM ION
5	K	-1	Ligand/Ion	POTASSIUM ION
6	NAG	3	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Asymmetric Unit (20, 20)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ASN A:163 , ILE A:164 , GLU A:400	BINDING SITE FOR RESIDUE NAG A 903
02	AC2	SOFTWARE	ALA A:401 , ASN A:402 , ASN A:404 , SER A:456 , LYS A:457 , ASN A:461 , HOH A:984 , HOH A:1108 , HOH A:1148	BINDING SITE FOR RESIDUE NAG A 906
03	AC3	SOFTWARE	ASN B:163 , ILE B:164 , GLU B:400	BINDING SITE FOR RESIDUE NAG B 903
04	AC4	SOFTWARE	ASP A:277 , ASP A:320 , GLU A:350 , HOH A:1128 , HOH A:1129 , HOH A:1130	BINDING SITE FOR RESIDUE CA A 700
05	AC5	SOFTWARE	ASP A:135 , ASP A:184 , LYS A:224 , ASN A:227 , PHE A:229 , GLY A:231	BINDING SITE FOR RESIDUE CA A 701
06	AC6	SOFTWARE	THR A:328 , SER A:330 , SER A:333 , THR A:335 , HOH A:959	BINDING SITE FOR RESIDUE CA A 702
07	AC7	SOFTWARE	ALA A:191 , GLU A:192 , SER A:194 , TYR A:261	BINDING SITE FOR RESIDUE K A 800
08	AC8	SOFTWARE	THR A:466 , TRP A:467 , ALA A:500 , HOH A:1221	BINDING SITE FOR RESIDUE K A 801
09	AC9	SOFTWARE	LEU A:246 , HOH A:1244 , HOH B:1920 , HOH B:2002 , HOH B:2043 , HOH C:988	BINDING SITE FOR RESIDUE K A 802
10	BC1	SOFTWARE	ASP B:277 , ASP B:320 , GLU B:350 , HOH B:1950 , HOH B:2003 , HOH B:2029	BINDING SITE FOR RESIDUE CA B 700
11	BC2	SOFTWARE	ASP B:135 , ASP B:184 , LYS B:224 , ASN B:227 , PHE B:229 , GLY B:231	BINDING SITE FOR RESIDUE CA B 701
12	BC3	SOFTWARE	THR B:328 , SER B:330 , SER B:333 , THR B:335 , HOH B:1911	BINDING SITE FOR RESIDUE CA B 702
13	BC4	SOFTWARE	ALA B:191 , GLU B:192 , SER B:194 , TYR B:261	BINDING SITE FOR RESIDUE K B 800
14	BC5	SOFTWARE	THR B:466 , TRP B:467 , ALA B:500 , HOH B:2172 , HOH B:2175 , HOH B:2176	BINDING SITE FOR RESIDUE K B 801
15	BC6	SOFTWARE	HOH B:2083	BINDING SITE FOR RESIDUE K B 803
16	BC7	SOFTWARE	ARG A:318 , HOH A:1135 , ASP B:431 , SER B:432 , ALA B:433 , ALA B:530 , ILE B:532 , HOH B:1956 , HOH B:1957 , HOH B:2005 , HOH B:2035 , LYS C:4 , HOH C:281 , HOH C:306	BINDING SITE FOR RESIDUE BTB B1901
17	BC8	SOFTWARE	ASN A:480 , ASN A:577 , GLY A:578 , ARG A:580 , HOH A:1269	BINDING SITE FOR CHAIN A OF SUGAR BOUND TO ASN A 480 RESIDUES 904 TO 905
18	BC9	SOFTWARE	ASN B:480 , GLY B:578 , ARG B:580 , HOH B:2184	BINDING SITE FOR CHAIN B OF SUGAR BOUND TO ASN B 480 RESIDUES 904 TO 905
19	CC1	SOFTWARE	ASP A:176 , ASP A:210 , HIS A:213 , LEU A:246 , ILE A:250 , GLU A:255 , SER A:272 , TRP A:273 , GLY A:274 , PRO A:275 , ASP A:277 , GLN A:283 , ALA A:311 , GLY A:313 , ASN A:314 , ASP A:325 , THR A:328 , THR A:384 , SER A:385 , HOH A:971 , HOH A:993 , HOH A:1128 , HOH A:1271 , BTB B:1901 , HOH B:2043 , HOH C:135 , HOH C:156 , HOH C:281 , HOH C:306 , HOH C:320 , HOH C:343 , HOH C:465 , HOH C:988	BINDING SITE FOR CHAIN C OF AC-ARG-GLU-LYS- BOROARG PEPTIDE INHIBITOR
20	CC2	SOFTWARE	HOH A:1294 , ASP B:176 , ASP B:210 , HIS B:213 , LEU B:246 , ILE B:250 , GLU B:255 , SER B:272 , TRP B:273 , GLY B:274 , PRO B:275 , ASP B:277 , GLN B:283 , ALA B:311 , GLY B:313 , ASN B:314 , ASP B:325 , THR B:328 , GLY B:382 , GLY B:383 , THR B:384 , SER B:385 , HOH B:1945 , HOH B:2029 , HOH B:2126 , HOH B:2154 , HOH D:398 , HOH D:941	BINDING SITE FOR CHAIN D OF AC-ARG-GLU-LYS- BOROARG PEPTIDE INHIBITOR

Asymmetric Unit

No.	Residues
1	A:230	-	A:377
2	A:322	-	A:352
3	B:230	-	B:377
4	B:322	-	B:352

(no "Cis Peptide Bond" information available for 1R64)

(no "SAP(SNP)/Variant" information available for 1R64)

Asymmetric Unit (4, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SUBTILASE_ASP	PS00136	Serine proteases, subtilase family, aspartic acid active site.	KEX2_YEAST	171-182	2	A:171-182 B:171-182
2	SUBTILASE_HIS	PS00137	Serine proteases, subtilase family, histidine active site.	KEX2_YEAST	213-223	2	A:213-223 B:213-223
3	SUBTILASE_SER	PS00138	Serine proteases, subtilase family, serine active site.	KEX2_YEAST	383-393	2	A:383-393 B:383-393
4	P_HOMO_B	PS51829	P/Homo B domain profile.	KEX2_YEAST	462-596	2	A:462-596 B:462-596

Biological Unit 1 (4, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SUBTILASE_ASP	PS00136	Serine proteases, subtilase family, aspartic acid active site.	KEX2_YEAST	171-182	1	A:171-182 -
2	SUBTILASE_HIS	PS00137	Serine proteases, subtilase family, histidine active site.	KEX2_YEAST	213-223	1	A:213-223 -
3	SUBTILASE_SER	PS00138	Serine proteases, subtilase family, serine active site.	KEX2_YEAST	383-393	1	A:383-393 -
4	P_HOMO_B	PS51829	P/Homo B domain profile.	KEX2_YEAST	462-596	1	A:462-596 -

Biological Unit 2 (4, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SUBTILASE_ASP	PS00136	Serine proteases, subtilase family, aspartic acid active site.	KEX2_YEAST	171-182	1	- B:171-182
2	SUBTILASE_HIS	PS00137	Serine proteases, subtilase family, histidine active site.	KEX2_YEAST	213-223	1	- B:213-223
3	SUBTILASE_SER	PS00138	Serine proteases, subtilase family, serine active site.	KEX2_YEAST	383-393	1	- B:383-393
4	P_HOMO_B	PS51829	P/Homo B domain profile.	KEX2_YEAST	462-596	1	- B:462-596

Asymmetric Unit (1, 2)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	YNL238W	1	YNL238W.1	XIV:202429-204873	2445	KEX2_YEAST	1-814	814	2	A:121-601 B:121-601	481 481

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:481
 aligned with KEX2_YEAST | P13134 from UniProtKB/Swiss-Prot  Length:814

    Alignment length:481
                                   130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600
           KEX2_YEAST   121 LLPVKEAEDKLSINDPLFERQWHLVNPSFPGSDINVLDLWYNNITGAGVVAAIVDDGLDYENEDLKDNFCAEGSWDFNDNTNLPKPRLSDDYHGTRCAGEIAAKKGNNFCGVGVGYNAKISGIRILSGDITTEDEAASLIYGLDVNDIYSCSWGPADDGRHLQGPSDLVKKALVKGVTEGRDSKGAIYVFASGNGGTRGDNCNYDGYTNSIYSITIGAIDHKDLHPPYSEGCSAVMAVTYSSGSGEYIHSSDINGRCSNSHGGTSAAAPLAAGVYTLLLEANPNLTWRDVQYLSILSAVGLEKNADGDWRDSAMGKKYSHRYGFGKIDAHKLIEMSKTWENVNAQTWFYLPTLYVSQSTNSTEETLESVITISEKSLQDANFKRIEHVTVTVDIDTEIRGTTTVDLISPAGIISNLGVVRPRDVSSEGFKDWTFMSVAHWGENGVGDWKIKVKTTENGHRIDFHSWRLKLFGESIDSSKTE 601
               SCOP domains d1r64a2 A:121-460 Kexin, N-terminal domain                                                                                                                                                                                                                                                                                                          d1r64a1 A:461-601 Kexin, C-terminal domain                                                                                                    SCOP domains
               CATH domains --1r64A01 A:123-461  [code=3.40.50.200, no name defined]                                                                                                                                                                                                                                                                                             1r64A02 A:462-599 Galactose-binding domain-like                                                                                           -- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhh.....hhhhh..............hhhhhhh.......eeeeee...................ee...............hhhhhhhhhhhh...............eeeeee......hhhhhhhhh........eeee.ee...........hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhh.......eeeeeee...............eeeeee.......eeee.....eeeee.hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh.....hhhhh...................hhhhhhhhhhh......eeeee.......eee......eeeeeeehhhhhhhh.eeeeeeeeeeeeeee.hhh.eeeeee.....eeeee...........eeeeeeee.........eeeeeeeee......eeeeeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------SUBTILASE_AS------------------------------SUBTILASE_H---------------------------------------------------------------------------------------------------------------------------------------------------------------SUBTILASE_S--------------------------------------------------------------------P_HOMO_B  PDB: A:462-596 UniProt: 462-596                                                                                              ----- PROSITE
               Transcript 1 Exon 1.1  PDB: A:121-601 UniProt: 1-814 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                                                                                                              Transcript 1
                 1r64 A 121 LLPVKEAEDKLSINDPLFERQWHLVNPSFPGSDINVLDLWYNNITGAGVVAAIVDDGLDYENEDLKDNFCAEGSWDFNDNTNLPKPRLSDDYHGTRCAGEIAAKKGNNFCGVGVGYNAKISGIRILSGDITTEDEAASLIYGLDVNDIYSCSWGPADDGRHLQGPSDLVKKALVKGVTEGRDSKGAIYVFASGNGGTRGDNCNYDGYTNSIYSITIGAIDHKDLHPPYSEGCSAVMAVTYSSGSGEYIHSSDINGRCSNSHGGTSAAAPLAAGVYTLLLEANPNLTWRDVQYLSILSAVGLEKNADGDWRDSAMGKKYSHRYGFGKIDAHKLIEMSKTWENVNAQTWFYLPTLYVSQSTNSTEETLESVITISEKSLQDANFKRIEHVTVTVDIDTEIRGTTTVDLISPAGIISNLGVVRPRDVSSEGFKDWTFMSVAHWGENGVGDWKIKVKTTENGHRIDFHSWRLKLFGESIDSSKTE 601
                                   130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600

Chain B from PDB  Type:PROTEIN  Length:481
 aligned with KEX2_YEAST | P13134 from UniProtKB/Swiss-Prot  Length:814

    Alignment length:481
                                   130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600
           KEX2_YEAST   121 LLPVKEAEDKLSINDPLFERQWHLVNPSFPGSDINVLDLWYNNITGAGVVAAIVDDGLDYENEDLKDNFCAEGSWDFNDNTNLPKPRLSDDYHGTRCAGEIAAKKGNNFCGVGVGYNAKISGIRILSGDITTEDEAASLIYGLDVNDIYSCSWGPADDGRHLQGPSDLVKKALVKGVTEGRDSKGAIYVFASGNGGTRGDNCNYDGYTNSIYSITIGAIDHKDLHPPYSEGCSAVMAVTYSSGSGEYIHSSDINGRCSNSHGGTSAAAPLAAGVYTLLLEANPNLTWRDVQYLSILSAVGLEKNADGDWRDSAMGKKYSHRYGFGKIDAHKLIEMSKTWENVNAQTWFYLPTLYVSQSTNSTEETLESVITISEKSLQDANFKRIEHVTVTVDIDTEIRGTTTVDLISPAGIISNLGVVRPRDVSSEGFKDWTFMSVAHWGENGVGDWKIKVKTTENGHRIDFHSWRLKLFGESIDSSKTE 601
               SCOP domains d1r64b2 B:121-460 Kexin, N-terminal domain                                                                                                                                                                                                                                                                                                          d1r64b1 B:461-601 Kexin, C-terminal domain                                                                                                    SCOP domains
               CATH domains --1r64B01 B:123-461  [code=3.40.50.200, no name defined]                                                                                                                                                                                                                                                                                             1r64B02 B:462-599 Galactose-binding domain-like                                                                                           -- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhh........................hhhhhhh.......eeeeee...................ee...............hhhhhhhhhhhh...............eeeeee......hhhhhhhhh........eeee.ee...........hhhhhhhhhhhhhhhhhhh..eeeee..hhhhh..hhhhh.......eeeeeee...............eeeeee.......eeee.....eeeee.hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh.....hhhhh...................hhhhhhhhhhh......eeeee...eeeeeee......eeeeeeehhhhhhhh.eeeeeeeeeeeeeee.hhh.eeeeee.....eeeee...........eeeeeeee.........eeeeeeeee......eeeeeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------SUBTILASE_AS------------------------------SUBTILASE_H---------------------------------------------------------------------------------------------------------------------------------------------------------------SUBTILASE_S--------------------------------------------------------------------P_HOMO_B  PDB: B:462-596 UniProt: 462-596                                                                                              ----- PROSITE
               Transcript 1 Exon 1.1  PDB: B:121-601 UniProt: 1-814 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                                                                                                              Transcript 1
                 1r64 B 121 LLPVKEAEDKLSINDPLFERQWHLVNPSFPGSDINVLDLWYNNITGAGVVAAIVDDGLDYENEDLKDNFCAEGSWDFNDNTNLPKPRLSDDYHGTRCAGEIAAKKGNNFCGVGVGYNAKISGIRILSGDITTEDEAASLIYGLDVNDIYSCSWGPADDGRHLQGPSDLVKKALVKGVTEGRDSKGAIYVFASGNGGTRGDNCNYDGYTNSIYSITIGAIDHKDLHPPYSEGCSAVMAVTYSSGSGEYIHSSDINGRCSNSHGGTSAAAPLAAGVYTLLLEANPNLTWRDVQYLSILSAVGLEKNADGDWRDSAMGKKYSHRYGFGKIDAHKLIEMSKTWENVNAQTWFYLPTLYVSQSTNSTEETLESVITISEKSLQDANFKRIEHVTVTVDIDTEIRGTTTVDLISPAGIISNLGVVRPRDVSSEGFKDWTFMSVAHWGENGVGDWKIKVKTTENGHRIDFHSWRLKLFGESIDSSKTE 601
                                   130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600

Chain C from PDB  Type:PROTEIN  Length:5

               SCOP domains ----- SCOP domains
               CATH domains ----- CATH domains
               Pfam domains ----- Pfam domains
         Sec.struct. author ..ee. Sec.struct. author
                 SAPs(SNPs) ----- SAPs(SNPs)
                    PROSITE ----- PROSITE
                 Transcript ----- Transcript
                 1r64 C   1 xREKr   5
                            |   |
                            1-ACE
                                5-BOR

Chain D from PDB  Type:PROTEIN  Length:5

               SCOP domains ----- SCOP domains
               CATH domains ----- CATH domains
               Pfam domains ----- Pfam domains
         Sec.struct. author ..ee. Sec.struct. author
                 SAPs(SNPs) ----- SAPs(SNPs)
                    PROSITE ----- PROSITE
                 Transcript ----- Transcript
                 1r64 D   1 xREKr   5
                            |   |
                            |   |
                            1-ACE
                                5-BOR

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.200, no name defined] (198)

Baker's yeast (Saccharomyces cerevisiae) (3)

1a	1r64A01	A:123-461
1b	1r64B01	B:123-461

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Jelly Rolls (1293)

Homologous Superfamily: Galactose-binding domain-like (195)

Baker's yeast (Saccharomyces cerevisiae) (6)

2a	1r64A02	A:462-599
2b	1r64B02	B:462-599

(no "Pfam Domain" information available for 1R64)

Asymmetric Unit(hide GO term definitions)

Chain A,B (KEX2_YEAST | P13134)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004252	serine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
	GO:0008236	serine-type peptidase activity	Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0007323	peptide pheromone maturation	The generation of a mature, active peptide pheromone via processes unique to its processing and modification. An example of this process is found in Saccharomyces cerevisiae.
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0005794	Golgi apparatus	A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005802	trans-Golgi network	The network of interconnected tubular and cisternal structures located within the Golgi apparatus on the side distal to the endoplasmic reticulum, from which secretory vesicles emerge. The trans-Golgi network is important in the later stages of protein secretion where it is thought to play a key role in the sorting and targeting of secreted proteins to the correct destination.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		BOR	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		BTB	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		K	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NAG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1r64)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1r64
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	KEX2_YEAST \| P13134
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.21.61
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	KEX2_YEAST \| P13134
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	KEX2_YEAST \| P13134	:	1ot5 2id4

(no "Related Entries Specified in the PDB File" available for 1R64)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (6, 24)

Sites (20, 20)

SS Bonds (4, 4)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (4, 8)

Exons (1, 2)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 4)

CATH Domains (2, 4)

Pfam Domains (0, 0)

Gene Ontology (12, 12)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
