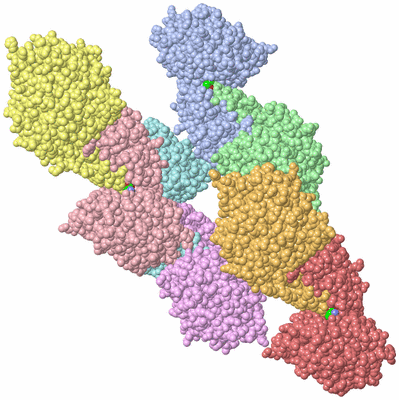

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

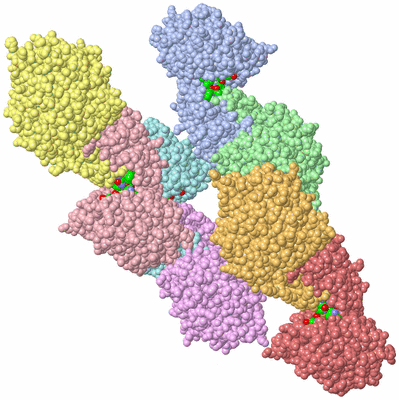

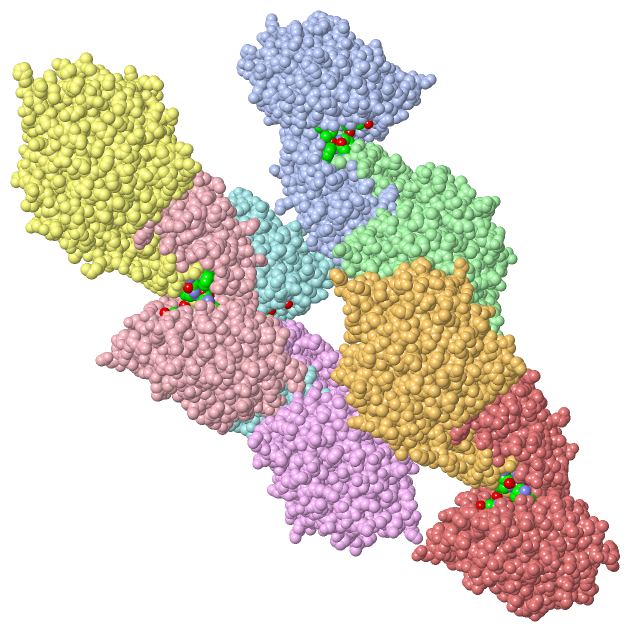

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

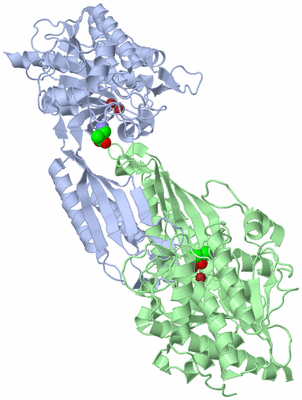

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

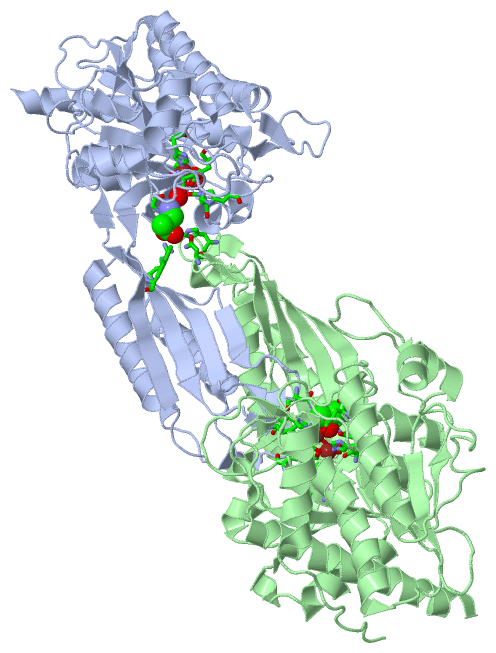

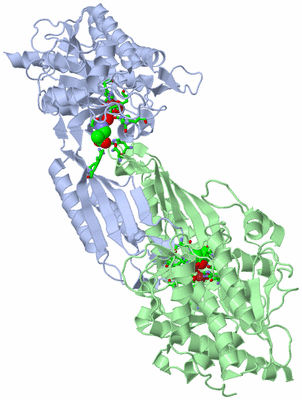

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

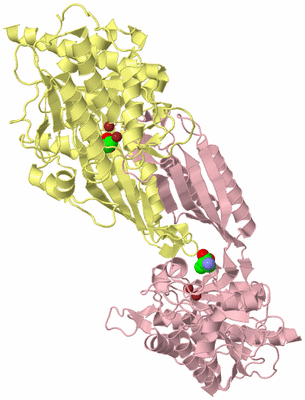

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

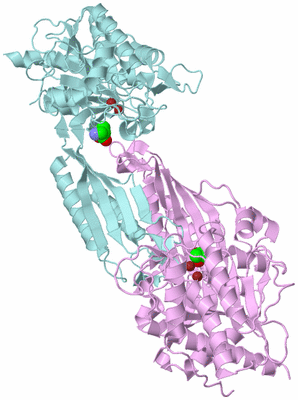

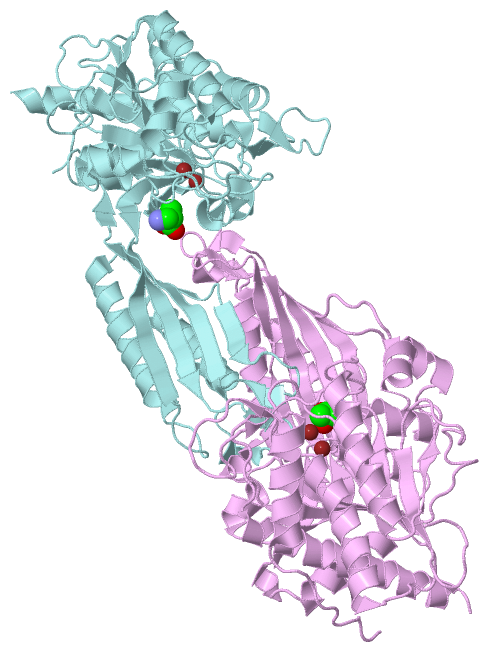

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

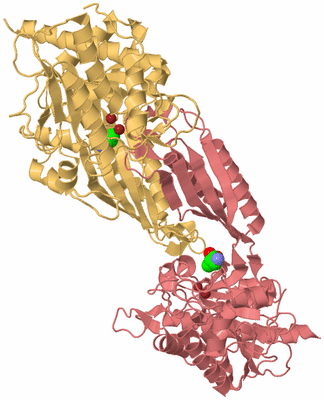

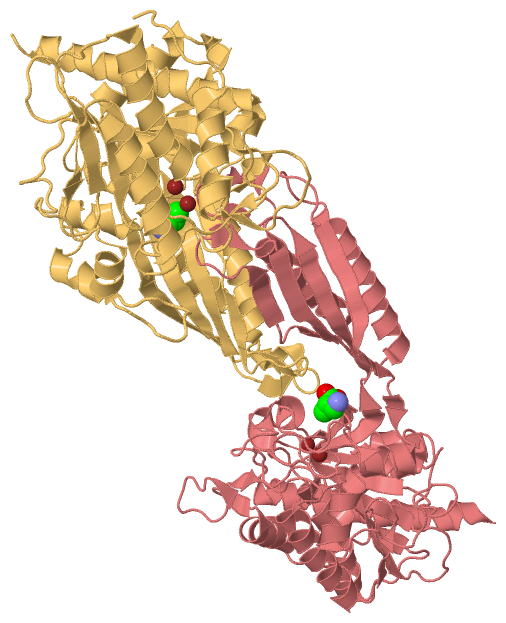

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BETA-ALANINE SYNTHASE FROM SACCHAROMYCES KLUYVERI

Authors :  S. Lundgren, Z. Gojkovic, J. Piskur, D. Dobritzsch
Date :  02 Oct 03  (Deposition) - 11 Nov 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Keywords :  Alpha And Beta Protein, Di-Zinc Center, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Lundgren, Z. Gojkovic, J. Piskur, D. Dobritzsch
Yeast Beta-Alanine Synthase Shares A Structural Scaffold And Origin With Dizinc-Dependent Exopeptidases
J. Biol. Chem. V. 278 51851 2003
PubMed-ID: 14534321  |  Reference-DOI: 10.1074/JBC.M308674200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-ALANINE SYNTHASE
    Chains: A, B, C, D, E, F, G, H
    EC Number: 3.5.1.6
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: P491
    Expression System Strain: BL21-CODONPLUS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: PYD3
    Organism Scientific: LACHANCEA KLUYVERI
    Organism Taxid: 4934

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 24)

Asymmetric Unit (2, 24)
No.NameCountTypeFull Name
1BIB8Ligand/IonBETA-AMINO ISOBUTYRATE
2ZN16Ligand/IonZINC ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1BIB2Ligand/IonBETA-AMINO ISOBUTYRATE
2ZN-1Ligand/IonZINC ION
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1BIB2Ligand/IonBETA-AMINO ISOBUTYRATE
2ZN-1Ligand/IonZINC ION
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
1BIB2Ligand/IonBETA-AMINO ISOBUTYRATE
2ZN-1Ligand/IonZINC ION
Biological Unit 4 (1, 2)
No.NameCountTypeFull Name
1BIB2Ligand/IonBETA-AMINO ISOBUTYRATE
2ZN-1Ligand/IonZINC ION

(-) Sites  (24, 24)

Asymmetric Unit (24, 24)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREHIS A:114 , ASP A:125 , HIS A:226 , ZN A:501 , HOH A:2503 , HOH A:2504BINDING SITE FOR RESIDUE ZN A 500
02AC2SOFTWAREASP A:125 , GLU A:160 , GLN A:229 , HIS A:421 , ZN A:500 , HOH A:2503BINDING SITE FOR RESIDUE ZN A 501
03AC3SOFTWAREHIS B:114 , ASP B:125 , GLU B:159 , HIS B:226 , ZN B:501 , HOH B:1503 , HOH B:1506BINDING SITE FOR RESIDUE ZN B 500
04AC4SOFTWAREASP B:125 , GLU B:160 , GLN B:229 , HIS B:421 , ZN B:500 , HOH B:1506BINDING SITE FOR RESIDUE ZN B 501
05AC5SOFTWAREHIS C:114 , ASP C:125 , HIS C:226 , ZN C:501 , HOH C:3503 , HOH C:3504BINDING SITE FOR RESIDUE ZN C 500
06AC6SOFTWAREASP C:125 , GLU C:160 , GLN C:229 , HIS C:421 , ZN C:500 , HOH C:3503BINDING SITE FOR RESIDUE ZN C 501
07AC7SOFTWAREHIS D:114 , ASP D:125 , HIS D:226 , ZN D:501 , HOH D:4503 , HOH D:4504BINDING SITE FOR RESIDUE ZN D 500
08AC8SOFTWAREASP D:125 , GLU D:160 , HIS D:421 , ZN D:500 , HOH D:4503BINDING SITE FOR RESIDUE ZN D 501
09AC9SOFTWAREHIS E:114 , ASP E:125 , GLU E:159 , HIS E:226 , ZN E:501 , HOH E:6503BINDING SITE FOR RESIDUE ZN E 500
10BC1SOFTWAREASP E:125 , GLU E:160 , HIS E:421 , ZN E:500 , HOH E:6503BINDING SITE FOR RESIDUE ZN E 501
11BC2SOFTWAREHIS F:114 , ASP F:125 , HIS F:226 , ZN F:501 , HOH F:502 , HOH F:504BINDING SITE FOR RESIDUE ZN F 500
12BC3SOFTWAREASP F:125 , GLU F:160 , GLN F:229 , HIS F:421 , ZN F:500 , HOH F:504BINDING SITE FOR RESIDUE ZN F 501
13BC4SOFTWAREHIS G:114 , ASP G:125 , GLY G:126 , HIS G:226 , ZN G:501 , HOH G:8503 , HOH G:8504BINDING SITE FOR RESIDUE ZN G 500
14BC5SOFTWAREASP G:125 , GLU G:160 , HIS G:421 , ZN G:500 , HOH G:8503BINDING SITE FOR RESIDUE ZN G 501
15BC6SOFTWAREHIS H:114 , ASP H:125 , HIS H:226 , ZN H:501 , HOH H:502 , HOH H:503BINDING SITE FOR RESIDUE ZN H 500
16BC7SOFTWAREASP H:125 , GLU H:160 , GLN H:229 , HIS H:421 , ZN H:500 , HOH H:502BINDING SITE FOR RESIDUE ZN H 501
17BC8SOFTWARETRP A:251 , ARG A:322 , GLY A:396 , HOH A:2508 , HIS B:262 , ASN B:309BINDING SITE FOR RESIDUE BIB B 1502
18BC9SOFTWAREHIS A:262 , ASN A:309 , TYR B:249 , ARG B:322 , GLY B:396BINDING SITE FOR RESIDUE BIB A 2502
19CC1SOFTWARETRP C:251 , ARG C:322 , GLY C:396 , HIS D:262 , ASN D:309BINDING SITE FOR RESIDUE BIB C 3502
20CC2SOFTWAREHIS C:262 , ASN C:309 , SER D:167 , TYR D:249 , TRP D:251 , ARG D:322 , ALA D:395 , GLY D:396BINDING SITE FOR RESIDUE BIB D 4502
21CC3SOFTWARETYR E:249 , TRP E:251 , ARG E:322 , ALA E:395 , GLY E:396 , ASN F:309BINDING SITE FOR RESIDUE BIB E 5502
22CC4SOFTWAREHIS E:262 , ASN E:309 , TYR F:249 , ARG F:322 , GLY F:396BINDING SITE FOR RESIDUE BIB E 6502
23CC5SOFTWAREARG G:322 , GLY G:396 , HIS H:262 , ASN H:309BINDING SITE FOR RESIDUE BIB G 7502
24CC6SOFTWAREHIS G:262 , ASN G:309 , ARG H:322 , GLY H:396BINDING SITE FOR RESIDUE BIB G 8502

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R3N)

(-) Cis Peptide Bonds  (8, 8)

Asymmetric Unit
No.Residues
1Lys A:304 -Pro A:305
2Lys B:304 -Pro B:305
3Lys C:304 -Pro C:305
4Lys D:304 -Pro D:305
5Lys E:304 -Pro E:305
6Lys F:304 -Pro F:305
7Lys G:304 -Pro G:305
8Lys H:304 -Pro H:305

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R3N)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1R3N)

(-) Exons   (0, 0)

(no "Exon" information available for 1R3N)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:438
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:438
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447
         Q96W94_LACKL    18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3na1 A:18-247,A:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                                     d1r3na2 A:248-363 Peptidase-like beta-alanine synthase                                                              d1r3na1 A:18-247,A:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nA01 A:18-247,A:364-455 Zn peptidases                                                                                                                                                                                              1r3nA02 A:248-363  [code=3.30.70.360, no name defined]                                                              1r3nA01 A:18-247,A:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...............hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhhh..eeee.....eeeee........eeeee............hhhhhhhhhhhhhhhhhh.......eeeee............hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1r3n A  18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447


Chain B from PDB  Type:PROTEIN  Length:433
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:433
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452
         Q96W94_LACKL    23 PAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3nb1 B:23-247,B:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                                d1r3nb2 B:248-363 Peptidase-like beta-alanine synthase                                                              d1r3nb1 B:23-247,B:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nB01 B:23-247,B:364-455 Zn peptidases                                                                                                                                                                                         1r3nB02 B:248-363  [code=3.30.70.360, no name defined]                                                              1r3nB01 B:23-247,B:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhh...eeee.....eeeee........eeeee............hhhhhhhhhhhhhhhhhh.......eeeee............hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r3n B  23 PAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452


Chain C from PDB  Type:PROTEIN  Length:438
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:438
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447
         Q96W94_LACKL    18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3nc1 C:18-247,C:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                                     d1r3nc2 C:248-363 Peptidase-like beta-alanine synthase                                                              d1r3nc1 C:18-247,C:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nC01 C:18-247,C:364-455 Zn peptidases                                                                                                                                                                                              1r3nC02 C:248-363  [code=3.30.70.360, no name defined]                                                              1r3nC01 C:18-247,C:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...............hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhh...eeee.....eeeee........eeeee............hhhhhhhhhhhhhhhhhh.......eeeee............hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1r3n C  18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447


Chain D from PDB  Type:PROTEIN  Length:437
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:437
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448
         Q96W94_LACKL    19 TLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3nd1 D:19-247,D:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                                    d1r3nd2 D:248-363 Peptidase-like beta-alanine synthase                                                              d1r3nd1 D:19-247,D:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nD01 D:19-247,D:364-455 Zn peptidases                                                                                                                                                                                             1r3nD02 D:248-363  [code=3.30.70.360, no name defined]                                                              1r3nD01 D:19-247,D:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhhh..eeee.....eeeee........eeeee............hhhhhhhhhhhhhhhhhh.......eeeee............hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r3n D  19 TLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448


Chain E from PDB  Type:PROTEIN  Length:433
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:433
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452
         Q96W94_LACKL    23 PAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3ne1 E:23-247,E:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                                d1r3ne2 E:248-363 Peptidase-like beta-alanine synthase                                                              d1r3ne1 E:23-247,E:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nE01 E:23-247,E:364-455 Zn peptidases                                                                                                                                                                                         1r3nE02 E:248-363  [code=3.30.70.360, no name defined]                                                              1r3nE01 E:23-247,E:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhh...eeee.....eeeee........eeeeee...........hhhhhhhhhhhhhhhhhh.......eeeeee...........hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r3n E  23 PAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452


Chain F from PDB  Type:PROTEIN  Length:438
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:438
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447
         Q96W94_LACKL    18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3nf1 F:18-247,F:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                                     d1r3nf2 F:248-363 Peptidase-like beta-alanine synthase                                                              d1r3nf1 F:18-247,F:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nF01 F:18-247,F:364-455 Zn peptidases                                                                                                                                                                                              1r3nF02 F:248-363  [code=3.30.70.360, no name defined]                                                              1r3nF01 F:18-247,F:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...............hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhhh..eeee.....eeeee........eeeee............hhhhhhhhhhhhhhhhhh.......eeeee............hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1r3n F  18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447


Chain G from PDB  Type:PROTEIN  Length:430
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:430
                                    35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455
         Q96W94_LACKL    26 APLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3ng1 G:26-247,G:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                             d1r3ng2 G:248-363 Peptidase-like beta-alanine synthase                                                              d1r3ng1 G:26-247,G:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nG01 G:26-247,G:364-455 Zn peptidases                                                                                                                                                                                      1r3nG02 G:248-363  [code=3.30.70.360, no name defined]                                                              1r3nG01 G:26-247,G:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhh...eeee.....eeeee........eeeeee...........hhhhhhhhhhhhhhhhhh.......eeeeee...........hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r3n G  26 APLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455


Chain H from PDB  Type:PROTEIN  Length:438
 aligned with Q96W94_LACKL | Q96W94 from UniProtKB/TrEMBL  Length:455

    Alignment length:438
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447
         Q96W94_LACKL    18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
               SCOP domains d1r3nh1 H:18-247,H:364-455 Peptidase-like beta-alanine synthase, catalytic domain                                                                                                                                                     d1r3nh2 H:248-363 Peptidase-like beta-alanine synthase                                                              d1r3nh1 H:18-247,H:364-455 Peptidase-like beta-alanine synthase, catalytic domain            SCOP domains
               CATH domains 1r3nH01 H:18-247,H:364-455 Zn peptidases                                                                                                                                                                                              1r3nH02 H:248-363  [code=3.30.70.360, no name defined]                                                              1r3nH01 H:18-247,H:364-455 Zn peptidases                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...............hhhhhhhhhhhhhh.ee..........ee.....hhhhhhhhhhhhhhhhh...eeee.....eeeee........eeeee............hhhhhhhhhhhhhhhhhh.......eeeee............hhhhhhhh...hhhhhhh..........hhhhhhhhh.................eeeeee...hhhhhh...eeeeeee.eeeeeeeeee...ee....hhhhh.hhhhhhhhhhhhhhhhhhhh..eee...eeee.....ee..eeeeeeeeee.hhhhhhhhhhhhhhhhhhhh........eeeeeeeeee..ee.hhhhhhhhhhhhhh..hhh.eeeeee....hhhhhh....eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1r3n H  18 GTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGH 455
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 16)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Alpha and beta proteins (a/b) (23833)
(-)
Fold: Phosphorylase/hydrolase-like (558)
(-)
Superfamily: Zn-dependent exopeptidases (214)
(-)
Family: Bacterial dinuclear zinc exopeptidases (55)
(-)
Protein domain: Peptidase-like beta-alanine synthase, catalytic domain (2)
(-)
Yeast (Saccharomyces kluyveri) [TaxId: 4934] (2)
2ad1r3na1A:18-247,A:364-455
2bd1r3nb1B:23-247,B:364-455
2cd1r3nc1C:18-247,C:364-455
2dd1r3nd1D:19-247,D:364-455
2ed1r3ne1E:23-247,E:364-455
2fd1r3nf1F:18-247,F:364-455
2gd1r3ng1G:26-247,G:364-455
2hd1r3nh1H:18-247,H:364-455

(-) CATH Domains  (2, 16)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)
(-)
Architecture: 2-Layer Sandwich (8480)
(-)
Architecture: 3-Layer(aba) Sandwich (12045)
(-)
Topology: Aminopeptidase (284)
(-)
Homologous Superfamily: Zn peptidases (137)
(-)
Lachancea kluyveri. Organism_taxid: 4934. (2)
2a1r3nG01G:26-247,G:364-455
2b1r3nB01B:23-247,B:364-455
2c1r3nE01E:23-247,E:364-455
2d1r3nD01D:19-247,D:364-455
2e1r3nA01A:18-247,A:364-455
2f1r3nC01C:18-247,C:364-455
2g1r3nF01F:18-247,F:364-455
2h1r3nH01H:18-247,H:364-455

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1R3N)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (Q96W94_LACKL | Q96W94)
molecular function
    GO:0003837    beta-ureidopropionase activity    Catalysis of the reaction: N-carbamoyl-beta-alanine + H2O = beta-alanine + CO2 + NH3.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016813    hydrolase activity, acting on carbon-nitrogen (but not peptide) bonds, in linear amidines    Catalysis of the hydrolysis of any non-peptide carbon-nitrogen bond in a linear amidine, a compound of the form R-C(=NH)-NH2.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BIB  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:304 - Pro A:305   [ RasMol ]
    Lys B:304 - Pro B:305   [ RasMol ]
    Lys C:304 - Pro C:305   [ RasMol ]
    Lys D:304 - Pro D:305   [ RasMol ]
    Lys E:304 - Pro E:305   [ RasMol ]
    Lys F:304 - Pro F:305   [ RasMol ]
    Lys G:304 - Pro G:305   [ RasMol ]
    Lys H:304 - Pro H:305   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1r3n
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q96W94_LACKL | Q96W94
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  3.5.1.6
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q96W94_LACKL | Q96W94
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q96W94_LACKL | Q96W94: 1r43 2v8d 2v8g 2v8h 2v8v 2vl1

(-) Related Entries Specified in the PDB File

1r43 BETA-ALANINE SYNTHASE FROM SACCHAROMYCES KLUYVEI (SELENOMETHIONINE SUBSTITUTED)
