1Q6U - JenaLib

Title :   CRYSTAL STRUCTURE OF FKPA FROM ESCHERICHIA COLI

Authors :   F. A. Saul, J. -P. Arie, B. Vulliez-Le Normand, R. Kahn, J. -M. Betton, G. A. Bentley

Date :   14 Aug 03 (Deposition) - 13 Jan 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.45

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Chaperone, Peptidyl-Prolyl Isomerase, Heat Shock Protein, Fkbp Family, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. A. Saul, J. P. Arie, B. Vulliez-Le Normand, R. Kahn, J. M. Betton, G. A. Bentley
Structural And Functional Studies Of Fkpa From Escherichia Coli, A Cis/Trans Peptidyl-Prolyl Isomerase With Chaperone Activity.
J. Mol. Biol. V. 335 595 2004
PubMed-ID: 14672666 | Reference-DOI: 10.1016/J.JMB.2003.10.056

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:213
 aligned with FKBA_ECOLI | P45523 from UniProtKB/Swiss-Prot  Length:270

    Alignment length:213
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
           FKBA_ECOLI    40 AFKNDDQKSAYALGASLGRYMENSLKEQEKLGIKLDKDQLIAGVQDAFADKSKLSDQEIEQTLQAFEARVKSSAQAKMEKDAADNEAKGKEYREKFAKEKGVKTSSTGLVYQVVEAGKGEAPKDSDTVVVNYKGTLIDGKEFDNSYTRGEPLSFRLDGVIPGWTEGLKNIKKGGKIKLVIPPELAYGKAGVPGIPPNSTLVFDVELLDVKPAP 252
               SCOP domains d1q6ua_ A: Peptidyl-prolyl cis-trans isomerase FkpA                                                                                                                                                                   SCOP domains
               CATH domains -----------------------------------------------------------------------------------------------------------1q6uA02 A:122-227  [code=3.10.50.40, no name defined]                                                      CATH domains
               Pfam domains FKBP_N-1q6uA02 A:15-127                                                                                          ----FKBP_C-1q6uA01 A:132-221                                                                  ------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eee.....eeeeee...........eeeeeeeeee.......hhhhhh..eeee....hhhhhhhhh......eeeeeehhhhh..............eeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------FKBP_PPIASE  PDB: A:139-224 UniProt: 164-249                                          --- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q6u A  15 AFKNDDQKSAYALGASLGRYMENSLKEQEKLGIKLDKDQLIAGVQDAFADKSKLSDQEIEQTLQAFEARVKSSAQAKMEKDAADNEAKGKEYREKFAKEKGVKTSSTGLVYQVVEAGKGEAPKDSDTVVVNYKGTLIDGKEFDNSYTRGEPLSFRLDGVIPGWTEGLKNIKKGGKIKLVIPPELAYGKAGVPGIPPNSTLVFDVELLDVKPAP 227
                                    24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (2, 2)

Gene Ontology (11, 11)

Asymmetric Unit(hide GO term definitions)

Chain A (FKBA_ECOLI | P45523)

molecular function
	GO:0005528	FK506 binding	Interacting selectively and non-covalently with the 23-membered macrolide lactone FK506.
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0003755	peptidyl-prolyl cis-trans isomerase activity	Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0061077	chaperone-mediated protein folding	The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0000413	protein peptidyl-prolyl isomerization	The modification of a protein by cis-trans isomerization of a proline residue.
	GO:0042026	protein refolding	The process carried out by a cell that restores the biological activity of an unfolded or misfolded protein, using helper proteins such as chaperones.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0030288	outer membrane-bounded periplasmic space	The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
	GO:0042597	periplasmic space	The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

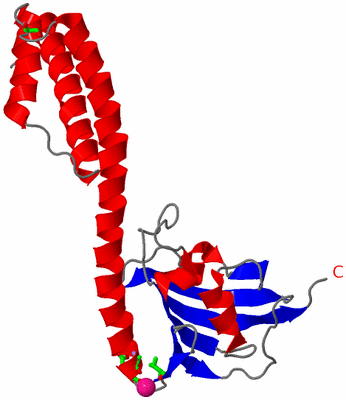

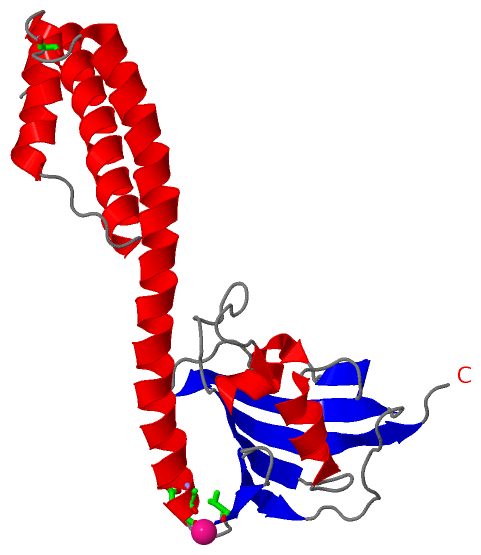

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1q6u)

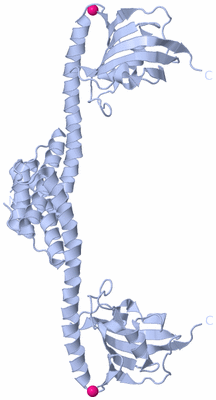

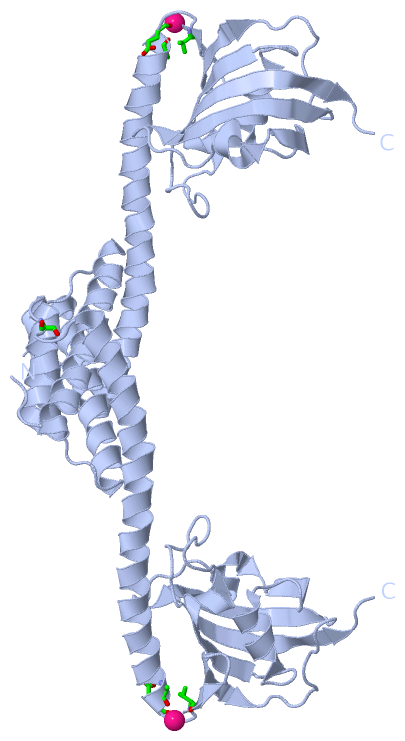

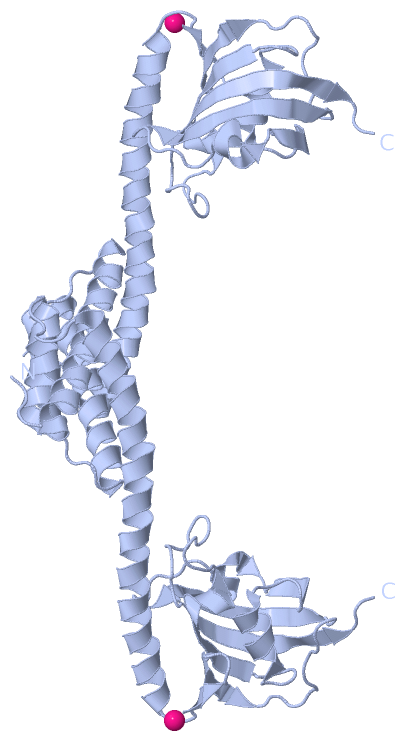

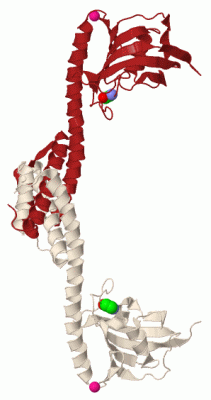

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images
