(-) Description

Title :  CRYSTAL STRUCTURE OF A TRUNCATED FORM OF FKPA FROM ESCHERICHIA COLI

Authors :  F. A. Saul, J. -P. Arie, B. Vulliez-Le Normand, R. Kahn, J. -M. Betton, G. A. Bentley
Date :  13 Aug 03  (Deposition) - 13 Jan 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.97
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Chaperone, Peptidyl-Prolyl Isomerase, Heat Shock Protein, Fkbp Family, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. A. Saul, J. P. Arie, B. Vulliez-Le Normand, R. Kahn, J. M. Betton, G. A. Bentley
Structural And Functional Studies Of Fkpa From Escherichia Coli, A Cis/Trans Peptidyl-Prolyl Isomerase With Chaperone Activity.
J. Mol. Biol. V. 335 595 2004
PubMed-ID: 14672666  |  Reference-DOI: 10.1016/J.JMB.2003.10.056

(-) Compounds

Molecule 1 - FKBP-TYPE PEPTIDYL-PROLYL CIS-TRANS ISOMERASE FKPA
    Chains: A, B
    EC Number: 5.2.1.8
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PTFKPDCT
    Expression System Strain: MC4100 DERIVATIVE
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: FKPA OR B3347
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: PPIASE, ROTAMASE

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1Q6H)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Q6H)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Q6H)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Q6H)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FKBP_PPIASEPS50059 FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.FKBA_ECOLI164-249
 		  2A:139-224
B:139-224

(-) Exons   (0, 0)

(no "Exon" information available for 1Q6H)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:210
 aligned with FKBA_ECOLI | P45523 from UniProtKB/Swiss-Prot  Length:270

    Alignment length:210
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
           FKBA_ECOLI    40 AFKNDDQKSAYALGASLGRYMENSLKEQEKLGIKLDKDQLIAGVQDAFADKSKLSDQEIEQTLQAFEARVKSSAQAKMEKDAADNEAKGKEYREKFAKEKGVKTSSTGLVYQVVEAGKGEAPKDSDTVVVNYKGTLIDGKEFDNSYTRGEPLSFRLDGVIPGWTEGLKNIKKGGKIKLVIPPELAYGKAGVPGIPPNSTLVFDVELLDVK 249
               SCOP domains d1q6ha_ A: Peptidyl-prolyl cis-trans isomerase FkpA                                                                                                                                                                SCOP domains
               CATH domains -----------------------------------------------------------------------------------------------------------1q6hA02 A:122-224  [code=3.10.50.40, no name defined]                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eee.....eeeeee...........eeeeeeeeee....eeee.hhhh..eeee.hhhhhhhhhhhhhh....eeeeeehhhhh..............eeeeeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------FKBP_PPIASE  PDB: A:139-224 UniProt: 164-249                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1q6h A  15 AFKNDDQKSAYALGASLGRYmENSLKEQEKLGIKLDKDQLIAGVQDAFADKSKLSDQEIEQTLQAFEARVKSSAQAKmEKDAADNEAKGKEYREKFAKEKGVKTSSTGLVYQVVEAGKGEAPKDSDTVVVNYKGTLIDGKEFDNSYTRGEPLSFRLDGVIPGWTEGLKNIKKGGKIKLVIPPELAYGKAGVPGIPPNSTLVFDVELLDVK 224
                                    24        34|       44        54        64        74        84       |94       104       114       124       134       144       154       164       174       184       194       204       214       224
                                               35-MSE                                                   92-MSE


Chain B from PDB  Type:PROTEIN  Length:210
 aligned with FKBA_ECOLI | P45523 from UniProtKB/Swiss-Prot  Length:270

    Alignment length:210
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
           FKBA_ECOLI    40 AFKNDDQKSAYALGASLGRYMENSLKEQEKLGIKLDKDQLIAGVQDAFADKSKLSDQEIEQTLQAFEARVKSSAQAKMEKDAADNEAKGKEYREKFAKEKGVKTSSTGLVYQVVEAGKGEAPKDSDTVVVNYKGTLIDGKEFDNSYTRGEPLSFRLDGVIPGWTEGLKNIKKGGKIKLVIPPELAYGKAGVPGIPPNSTLVFDVELLDVK 249
               SCOP domains d1q6hb_ B: Peptidyl-prolyl cis-trans isomerase FkpA                                                                                                                                                                SCOP domains
               CATH domains -----------------------------------------------------------------------------------------------------------1q6hB02 B:122-224  [code=3.10.50.40, no name defined]                                                   CATH domains
           Pfam domains (1) FKBP_N-1q6hB03 B:15-127                                                                                          ----FKBP_C-1q6hB01 B:132-221                                                                  --- Pfam domains (1)
           Pfam domains (2) FKBP_N-1q6hB04 B:15-127                                                                                          ----FKBP_C-1q6hB02 B:132-221                                                                  --- Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eee.....eeeeee...........eeeeeeeeee....eeee.hhhh..eeee.hhhhhhhhhhhhhh....eeeeeehhhhh..............eeeeeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------FKBP_PPIASE  PDB: B:139-224 UniProt: 164-249                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1q6h B  15 AFKNDDQKSAYALGASLGRYmENSLKEQEKLGIKLDKDQLIAGVQDAFADKSKLSDQEIEQTLQAFEARVKSSAQAKmEKDAADNEAKGKEYREKFAKEKGVKTSSTGLVYQVVEAGKGEAPKDSDTVVVNYKGTLIDGKEFDNSYTRGEPLSFRLDGVIPGWTEGLKNIKKGGKIKLVIPPELAYGKAGVPGIPPNSTLVFDVELLDVK 224
                                    24        34|       44        54        64        74        84       |94       104       114       124       134       144       154       164       174       184       194       204       214       224
                                               35-MSE                                                   92-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: FKBP_C] (58)
(-)
Clan: no clan defined [family: FKBP_N] (5)

(-) Gene Ontology  (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (FKBA_ECOLI | P45523)
molecular function
    GO:0005528    FK506 binding    Interacting selectively and non-covalently with the 23-membered macrolide lactone FK506.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0061077    chaperone-mediated protein folding    The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
    GO:0042026    protein refolding    The process carried out by a cell that restores the biological activity of an unfolded or misfolded protein, using helper proteins such as chaperones.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1q6h)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1q6h)


(-) Still Images

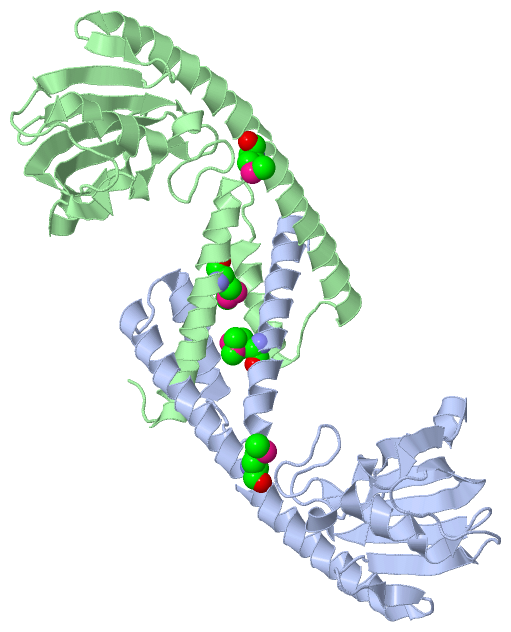

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1q6h
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FKBA_ECOLI | P45523
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.2.1.8
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  FKBA_ECOLI | P45523
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FKBA_ECOLI | P45523: 1q6i 1q6u

(-) Related Entries Specified in the PDB File

1q6i TRUNCATED FKPA FROM E. COLI: COMPLEX WITH IMMUNOSUPPRESSOR FK506
1q6u FKPA FROM E. COLI
