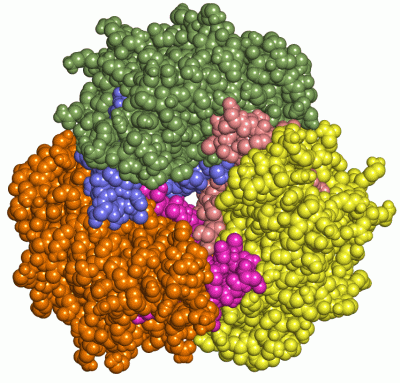

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

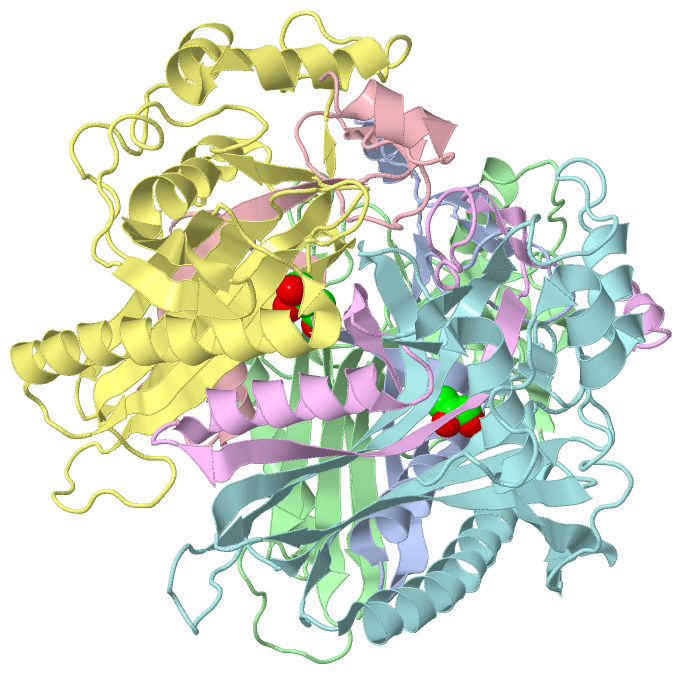

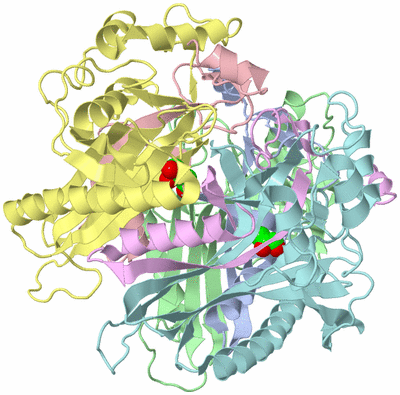

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  REFINED STRUCTURE OF THE PYRUVOYL-DEPENDENT HISTIDINE DECARBOXYLASE FROM LACTOBACILLUS 30A

Authors :  T. Gallagher, D. A. Rozwarski, S. R. Ernst, M. L. Hackert
Date :  18 Dec 92  (Deposition) - 31 Jan 94  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Carboxy-Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Gallagher, D. A. Rozwarski, S. R. Ernst, M. L. Hackert
Refined Structure Of The Pyruvoyl-Dependent Histidine Decarboxylase From Lactobacillus 30A.
J. Mol. Biol. V. 230 516 1993
PubMed-ID: 8464063  |  Reference-DOI: 10.1006/JMBI.1993.1168
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PYRUVOYL-DEPENDENT HISTIDINE DECARBOXYLASE (L- HISTIDINE CARBOXYLASE)
    Chains: A, C, E
    EC Number: 4.1.1.22
    Engineered: YES
    Organism Scientific: LACTOBACILLUS SP. 30A
    Organism Taxid: 1593
    Strain: 30A

Molecule 2 - PYRUVOYL-DEPENDENT HISTIDINE DECARBOXYLASE (L- HISTIDINE CARBOXYLASE)
    Chains: B, D, F
    EC Number: 4.1.1.22
    Engineered: YES
    Organism Scientific: LACTOBACILLUS SP. 30A
    Organism Taxid: 1593
    Strain: 30A

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric/Biological Unit (1, 3)
No.NameCountTypeFull Name
1PYR3Mod. Amino AcidPYRUVIC ACID

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1ACBAUTHORPYR B:82ACTIVE SITE 1
2ACDAUTHORPYR D:82ACTIVE SITE 2
3ACFAUTHORPYR F:82ACTIVE SITE 3

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1PYA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1PYA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1PYA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1PYA)

(-) Exons   (0, 0)

(no "Exon" information available for 1PYA)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:81
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:81
                                    11        21        31        41        51        61        71        81
           DCHS_LACS3     2 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  82
               SCOP domains d1pya.1 A:,B: Histidine decarboxylase                                             SCOP domains
               CATH domains 1pyaA00 A:1-81 Pyruvoyl-Dependent Histidine Decarboxylas, subunit A               CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhh......eee.............eee..eeeeeeeeeeeeee..hhhhhhhhhhhhhhhh.....eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1pya A   1 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  81
                                    10        20        30        40        50        60        70        80


Chain B from PDB  Type:PROTEIN  Length:229
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:229
                                    92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302
           DCHS_LACS3    83 SFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 311
               SCOP domains d1pya.1 A:,B: Histidine decarboxylase                                                                                                                                                                                                 SCOP domains
               CATH domains -1pyaB00 B:83-310 Pyruvoyl-Dependent Histidine Decarboxylase, subunit B                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) eee....eee.................eeee..--------hhhhhhhhhhhhh-..eee.....eeeeeeeeeeeeeee............eeeeeeeeeee........eeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeee..eeeeeeeeeeeeeee.............hhhhhhhhhhhhhhhhhhhh............ Sec.struct. author (1)
     Sec.struct. author (2) ---------------------------------eeeeeeeee----------eee------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pya B  82 xFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 310
                            |       91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
                           82-PYR


Chain C from PDB  Type:PROTEIN  Length:81
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:81
                                    11        21        31        41        51        61        71        81
           DCHS_LACS3     2 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  82
               SCOP domains d1pya.2 C:,D: Histidine decarboxylase                                             SCOP domains
               CATH domains 1pyaC00 C:1-81 Pyruvoyl-Dependent Histidine Decarboxylas, subunit A               CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhh......eee.............eee..eeeeeeeeeeeeee..hhhhhhhhhhhhhhhh.....eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1pya C   1 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  81
                                    10        20        30        40        50        60        70        80


Chain D from PDB  Type:PROTEIN  Length:229
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:229
                                    92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302
           DCHS_LACS3    83 SFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 311
               SCOP domains d1pya.2 C:,D: Histidine decarboxylase                                                                                                                                                                                                 SCOP domains
               CATH domains -1pyaD00 D:83-310 Pyruvoyl-Dependent Histidine Decarboxylase, subunit B                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) eee....eee.................eeee..--------hhhhhhhhhhhhh-..eee.....eeeeeeeeeeeeeee............eeeeeeeeeee........eeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeee..eeeeeeeeeeeeeee.............hhhhhhhhhhhhhhhhhhhh............ Sec.struct. author (1)
     Sec.struct. author (2) ---------------------------------eeeeeeeee----------eee------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pya D  82 xFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 310
                            |       91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
                           82-PYR


Chain E from PDB  Type:PROTEIN  Length:81
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:81
                                    11        21        31        41        51        61        71        81
           DCHS_LACS3     2 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  82
               SCOP domains d1pya.3 E:,F: Histidine decarboxylase                                             SCOP domains
               CATH domains 1pyaE00 E:1-81 Pyruvoyl-Dependent Histidine Decarboxylas, subunit A               CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhh......eee.............eee..eeeeeeeeeeeeee..hhhhhhhhhhhhhhhh.....eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1pya E   1 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  81
                                    10        20        30        40        50        60        70        80


Chain F from PDB  Type:PROTEIN  Length:229
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:229
                                    92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302
           DCHS_LACS3    83 SFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 311
               SCOP domains d1pya.3 E:,F: Histidine decarboxylase                                                                                                                                                                                                 SCOP domains
               CATH domains -1pyaF00 F:83-310 Pyruvoyl-Dependent Histidine Decarboxylase, subunit B                                                                                                                                                               CATH domains
           Pfam domains (1) -HDC-1pyaF01 F:83-309                                                                                                                                                                                                               - Pfam domains (1)
           Pfam domains (2) -HDC-1pyaF02 F:83-309                                                                                                                                                                                                               - Pfam domains (2)
           Pfam domains (3) -HDC-1pyaF03 F:83-309                                                                                                                                                                                                               - Pfam domains (3)
           Pfam domains (4) -HDC-1pyaF04 F:83-309                                                                                                                                                                                                               - Pfam domains (4)
           Pfam domains (5) -HDC-1pyaF05 F:83-309                                                                                                                                                                                                               - Pfam domains (5)
           Pfam domains (6) -HDC-1pyaF06 F:83-309                                                                                                                                                                                                               - Pfam domains (6)
     Sec.struct. author (1) eee....eee.................eeee..--------hhhhhhhhhhhhh-..eee.....eeeeeeeeeeeeeee............eeeeeeeeeee........eeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeee..eeeeeeeeeeeeeee.............hhhhhhhhhhhhhhhhhhhh............ Sec.struct. author (1)
     Sec.struct. author (2) ---------------------------------eeeeeeeee----------eee------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pya F  82 xFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 310
                            |       91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
                           82-PYR
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Few Secondary Structures (1120)

(-) Pfam Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: HDC] (1)
(-)
Family: HDC (1)
(-)
Lactobacillus sp. (strain 30a) (1)
1aHDC-1pyaF01F:83-309
1bHDC-1pyaF02F:83-309
1cHDC-1pyaF03F:83-309
1dHDC-1pyaF04F:83-309
1eHDC-1pyaF05F:83-309
1fHDC-1pyaF06F:83-309

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (DCHS_LACS3 | P00862)
molecular function
    GO:0016831    carboxy-lyase activity    Catalysis of the nonhydrolytic addition or removal of a carboxyl group to or from a compound.
    GO:0004398    histidine decarboxylase activity    Catalysis of the reaction: L-histidine = histamine + CO2.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
    GO:0006520    cellular amino acid metabolic process    The chemical reactions and pathways involving amino acids, carboxylic acids containing one or more amino groups, as carried out by individual cells.
    GO:0006547    histidine metabolic process    The chemical reactions and pathways involving histidine, 2-amino-3-(1H-imidazol-4-yl)propanoic acid.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PYR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    ACB  [ RasMol ]  +environment [ RasMol ]
    ACD  [ RasMol ]  +environment [ RasMol ]
    ACF  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1pya)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1pya
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DCHS_LACS3 | P00862
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.1.1.22
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DCHS_LACS3 | P00862
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DCHS_LACS3 | P00862: 1hq6 1ibt 1ibu 1ibv 1ibw

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1PYA)
