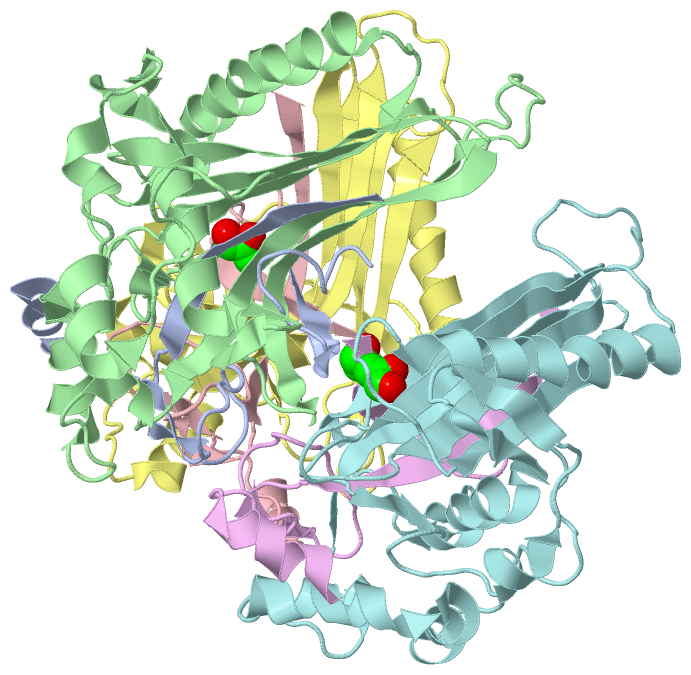

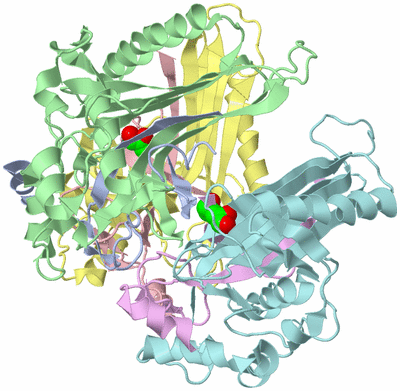

Asymmetric Unit (Jmol Viewer)

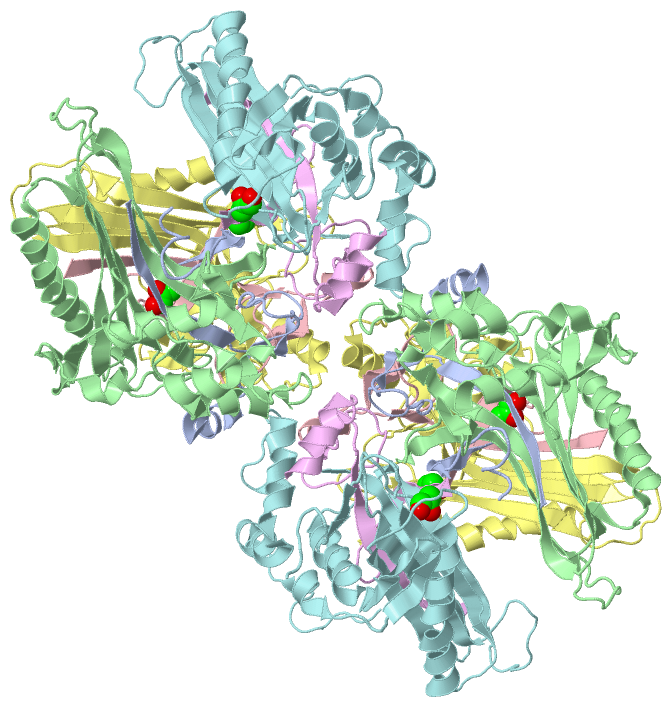

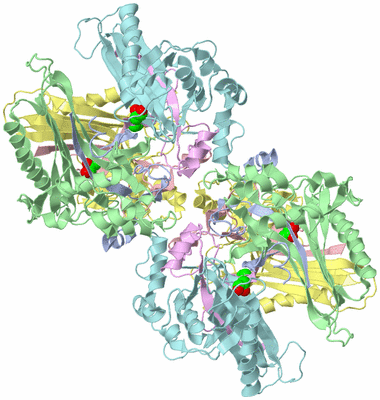

Biological Unit 1 (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   STRUCTURE OF THE D53,54N MUTANT OF HISTIDINE DECARBOXYLASE AT 25 C

Authors :   S. Worley, E. Schelp, A. F. Monzingo, S. Ernst, J. D. Robertus

Date :   29 Mar 01 (Deposition) - 13 Mar 02 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.10

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A,B,C,D,E,F  (2x)
Biol. Unit 2: A,B,C,D,E,F  (1x)

Keywords :   Helix Disorder, Less Active Form, Site-Directed Mutant, Pyruvoyl, Carboxy-Lyase, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Worley, E. Schelp, A. F. Monzingo, S. Ernst, J. D. Robertus
Structure And Cooperativity Of A T-State Mutant Of Histidin Decarboxylase From Lactobacillus 30A.
Proteins V. 46 321 2002
PubMed-ID: 11835507 | Reference-DOI: 10.1002/PROT.10042

Molecule 1 - HISTIDINE DECARBOXYLASE BETA CHAIN
	Chains	:	A, C, E
	EC Number	:	4.1.1.22
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	BETA CHAIN (RESIDUES 1-81)
	Gene	:	HDCA
	Mutation	:	YES
	Organism Scientific	:	LACTOBACILLUS SP.
	Organism Taxid	:	1593
	Strain	:	30A
	Synonym	:	PI CHAIN

Molecule 2 - HISTIDINE DECARBOXYLASE ALPHA CHAIN
	Chains	:	B, D, F
	EC Number	:	4.1.1.22
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	ALPHA CHAIN (RESIDUES 82-310)
	Gene	:	HDCA
	Organism Scientific	:	LACTOBACILLUS SP.
	Organism Taxid	:	1593
	Strain	:	30A

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (2x)	:	A	B	C	D	E	F
Biological Unit 2 (1x)	:	A	B	C	D	E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 3)

No.	Name	Count	Type	Full Name
1	PYR	3	Mod. Amino Acid	PYRUVIC ACID

Biological Unit 1 (1, 6)

No.	Name	Count	Type	Full Name
1	PYR	6	Mod. Amino Acid	PYRUVIC ACID

Biological Unit 2 (1, 3)

No.	Name	Count	Type	Full Name
1	PYR	3	Mod. Amino Acid	PYRUVIC ACID

(no "Site" information available for 1IBU)

(no "SS Bond" information available for 1IBU)

(no "Cis Peptide Bond" information available for 1IBU)

(no "SAP(SNP)/Variant" information available for 1IBU)

(no "PROSITE Motif" information available for 1IBU)

(no "Exon" information available for 1IBU)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:65
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:81
                                    11        21        31        41        51        61        71        81
           DCHS_LACS3     2 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  82
               SCOP domains d1ibu.1 A:,B: Histidine decarboxylase                                             SCOP domains
               CATH domains 1ibuA00 A:1-81 Pyruvoyl-Dependent Histidine Dec                arboxylas, subunit CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhh......eee.............eee..eeeeeeeeeee----------------..........eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1ibu A   1 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGV----------------RAETKNAYIGQINMTTAS  81
                                    10        20        30        40      |  -         -   |    70        80
                                                                         47               64

Chain B from PDB  Type:PROTEIN  Length:229
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:229
                                    92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302
           DCHS_LACS3    83 SFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 311
               SCOP domains d1ibu.1 A:,B: Histidine decarboxylase                                                                                                                                                                                                 SCOP domains
               CATH domains -1ibuB00 B:83-310 Pyruvoyl-Dependent Histidine Decarboxylase, subunit B                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) eee....eee.......hhhhhh....eeee..--------hhhhhhhhhhhhh-..eee.....eeeeeeeeeeeeeee............eeeeeeeeeee........eeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeee..eeeeeeeeeeeeeee..hhh......hhhhhhhhhhhhhhhhhhhhhh............ Sec.struct. author (1)
     Sec.struct. author (2) ---------------------------------eeeeeeeee----------eee------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ibu B  82 xFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 310
                            |       91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
                           82-PYR

Chain C from PDB  Type:PROTEIN  Length:67
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:81
                                    11        21        31        41        51        61        71        81
           DCHS_LACS3     2 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  82
               SCOP domains d1ibu.2 C:,D: Histidine decarboxylase                                             SCOP domains
               CATH domains 1ibuC00 C:1-81 Pyruvoyl-Dependent Histidine Decar              boxylas, subunit A CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhh......eee.............eee..eeeeeeeeeeeee--------------..........eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1ibu C   1 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRD--------------RAETKNAYIGQINMTTAS  81
                                    10        20        30        40        |-         -   |    70        80
                                                                           49             64

Chain D from PDB  Type:PROTEIN  Length:229
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:229
                                    92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302
           DCHS_LACS3    83 SFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 311
               SCOP domains d1ibu.2 C:,D: Histidine decarboxylase                                                                                                                                                                                                 SCOP domains
               CATH domains -1ibuD00 D:83-310 Pyruvoyl-Dependent Histidine Decarboxylase, subunit B                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) eee....eee.......hhhhhh....eeee..--------hhhhhhhhhhhhh-..eee.....eeeeeeeeeeeeeee............eeeeeeeeeee........eeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeee..eeeeeeeeeeeeeee..hhh......hhhhhhhhhhhhhhhhhhhhhh............ Sec.struct. author (1)
     Sec.struct. author (2) ---------------------------------eeeeeeeee----------eee------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ibu D  82 xFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 310
                            |       91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
                           82-PYR

Chain E from PDB  Type:PROTEIN  Length:70
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:81
                                    11        21        31        41        51        61        71        81
           DCHS_LACS3     2 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKSDDDVLDGIVSYDRAETKNAYIGQINMTTAS  82
               SCOP domains d1ibu.3 E:,F: Histidine decarboxylase                                             SCOP domains
               CATH domains 1ibuE00 E:1-81 Pyruvoyl-Dependent Histidine Decarbo           xylas, subunit A    CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhh......eee.............eee..eeeeeeeeeeeeee.-----------...........eeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1ibu E   1 SELDAKLNKLGVDRIAISPYKQWTRGYMEPGNIGNGYVTGLKVDAGVRDKS-----------DRAETKNAYIGQINMTTAS  81
                                    10        20        30        40        50|        -  |     70        80
                                                                             51          63

Chain F from PDB  Type:PROTEIN  Length:229
 aligned with DCHS_LACS3 | P00862 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:229
                                    92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302
           DCHS_LACS3    83 SFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 311
               SCOP domains d1ibu.3 E:,F: Histidine decarboxylase                                                                                                                                                                                                 SCOP domains
               CATH domains -1ibuF00 F:83-310 Pyruvoyl-Dependent Histidine Decarboxylase, subunit B                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) eee....eee.......hhhhhh....eeee..--------hhhhhhhhhhhhh-..eee.....eeeeeeeeeeeeeee............eeeeeeeeeee........eeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhh........eeeeeeeeeee..eeeeeeeeeeeeeee..hhh......hhhhhhhhhhhhhhhhhhhhhh............ Sec.struct. author (1)
     Sec.struct. author (2) ---------------------------------eeeeeeeee----------eee------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ibu F  82 xFTGVQGRVIGYDILRSPEVDKAKPLFTETQWDGSELPIYDAKPLQDALVEYFGTEQDRRHYPAPGSFIVCANKGVTAERPKNDADMKPGQGYGVWSAIAISFAKDPTKDSSMFVEDAGVWETPNEDELLEYLEGRRKAMAKSIAECGQDAHASFESSWIGFAYTMMEPGQIGNAITVAPYVSLPIDSIPGGSILTPDKDMEIMENLTMPEWLEKMGYKSLSANNALKY 310
                            |       91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301
                           82-PYR

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Pyruvoyl-dependent histidine and arginine decarboxylases (10)

Superfamily: Pyruvoyl-dependent histidine and arginine decarboxylases (10)

Family: Histidine decarboxylase (6)

Protein domain: Histidine decarboxylase (6)

Lactobacillus sp., strain 30a [TaxId: 1591] (6)

1a	d1ibu.1	A:,B:
1b	d1ibu.2	C:,D:
1c	d1ibu.3	E:,F:

(no "Pfam Domain" information available for 1IBU)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (DCHS_LACS3 | P00862)

molecular function
	GO:0016831	carboxy-lyase activity	Catalysis of the nonhydrolytic addition or removal of a carboxyl group to or from a compound.
	GO:0004398	histidine decarboxylase activity	Catalysis of the reaction: L-histidine = histamine + CO2.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
	GO:0006520	cellular amino acid metabolic process	The chemical reactions and pathways involving amino acids, carboxylic acids containing one or more amino groups, as carried out by individual cells.
	GO:0006547	histidine metabolic process	The chemical reactions and pathways involving histidine, 2-amino-3-(1H-imidazol-4-yl)propanoic acid.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		PYR	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1ibu)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ibu)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ibu
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	DCHS_LACS3 \| P00862
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	4.1.1.22
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	DCHS_LACS3 \| P00862
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	DCHS_LACS3 \| P00862	:	1hq6 1ibt 1ibv 1ibw 1pya

1hq6	STRUCTURE OF PYRUVOYL-DEPENDENT HISTIDINE DECARBOXYLASE AT PH 8
1ibt	STRUCTURE OF THE D53,54N MUTANT OF HISTIDINE DECARBOXYLASE AT -170 C
1ibv	STRUCTURE OF THE D53,54N MUTANT OF HISTIDINE DECARBOXYLASE BOUND WITH HISTIDINE METHYL ESTER AT -170 C
1ibw	STRUCTURE OF THE D53,54N MUTANT OF HISTIDINE DECARBOXYLASE BOUND WITH HISTIDINE METHYL ESTER AT 25 C
1pya	STRUCTURE OF PYRUVOYL-DEPENDENT HISTIDINE DECARBOXYLASE AT PH 4.8

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 3)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 3)

CATH Domains (2, 6)

Pfam Domains (0, 0)

Gene Ontology (5, 5)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
