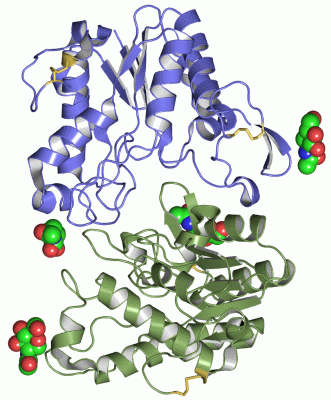

Asym.Unit - manually (Jmol Viewer)

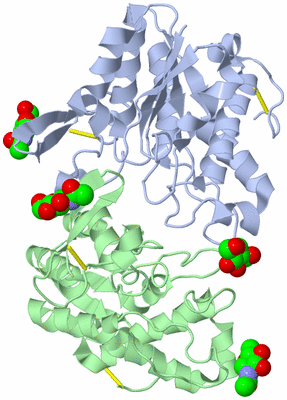

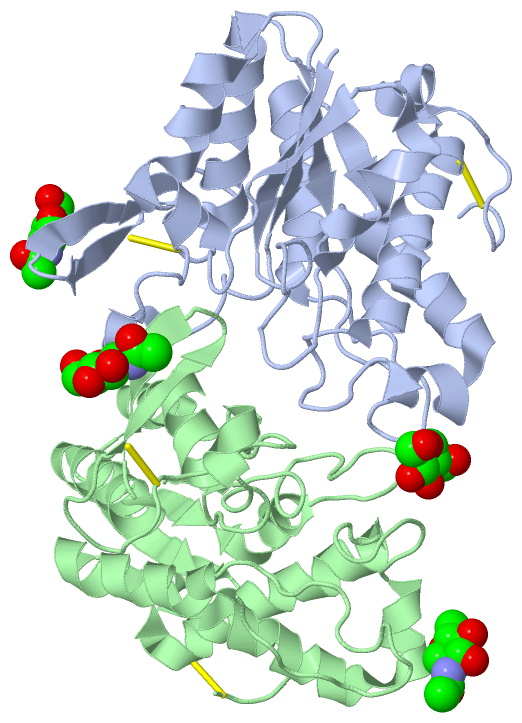

Asymmetric Unit (Jmol Viewer)

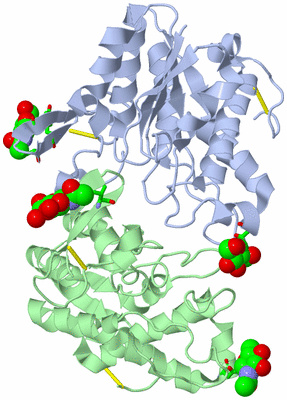

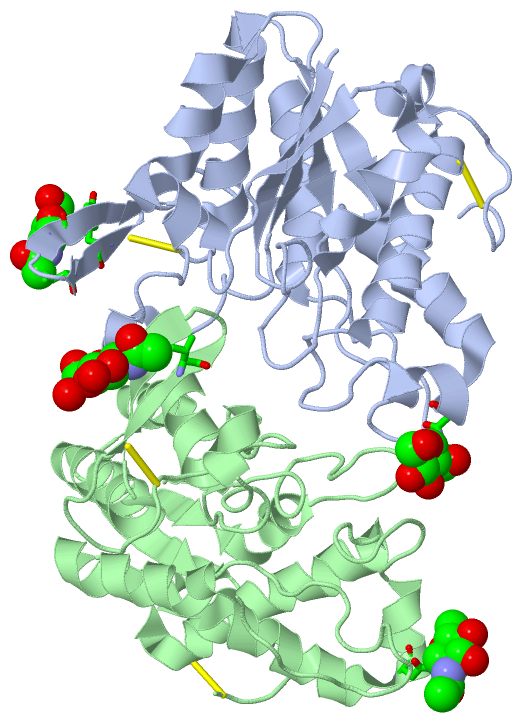

Asym. Unit - sites (Jmol Viewer)

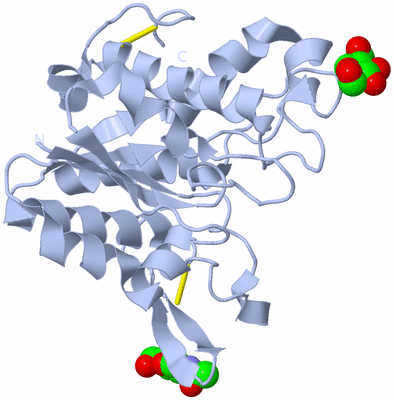

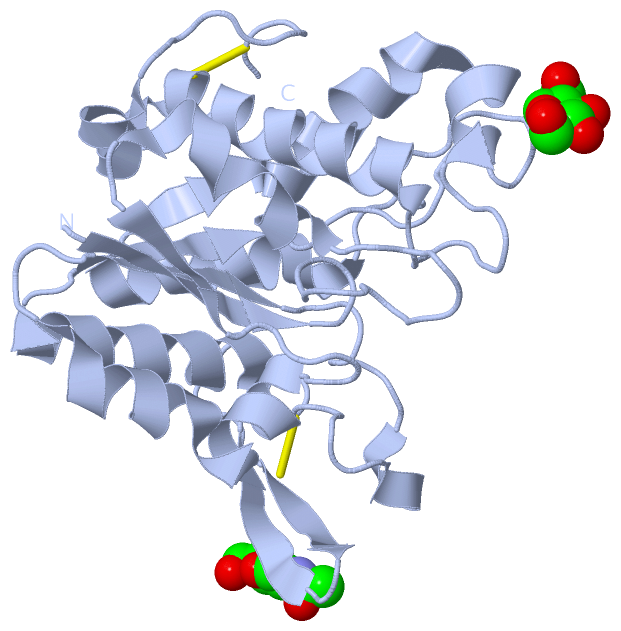

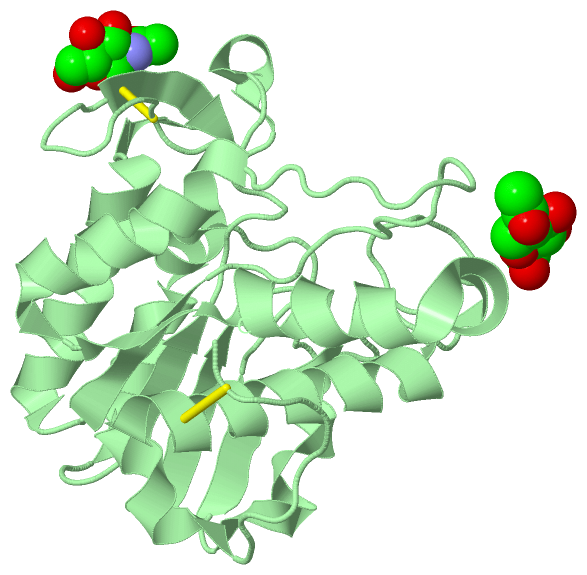

Biological Unit 1 (Jmol Viewer)

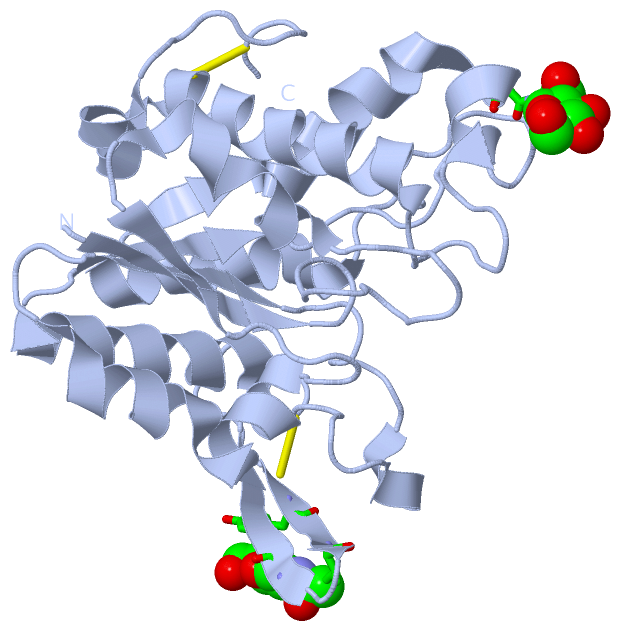

Biol. Unit 1 - sites (Jmol Viewer)

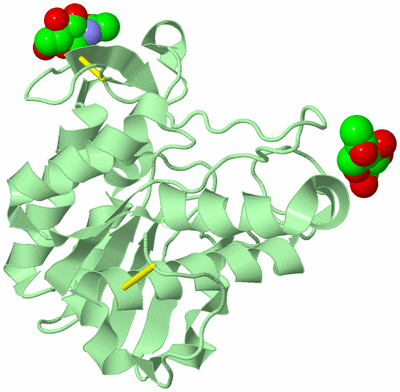

Biological Unit 2 (Jmol Viewer)

Title :   THE CRYSTAL STRUCTURE OF RHAMNOGALACTURONAN ACETYLESTERASE IN SPACE GROUP P3121

Authors :   A. Molgaard, S. Larsen

Date :   16 Jun 03 (Deposition) - 02 Mar 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Gds(L) Hydrolase, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Molgaard, S. Larsen
Crystal Packing In Two Ph-Dependent Crystal Forms Of Rhamnogalacturonan Acetylesterase.
Acta Crystallogr. , Sect. D V. 60 472 2004
PubMed-ID: 14993671 | Reference-DOI: 10.1107/S0907444903029767
(for further references see the PDB file header)

Molecule 1 - RHAMNOGALACTURONAN ACETYLESTERASE
	Chains	:	A, B
	EC Number	:	3.1.1.-
	Engineered	:	YES
	Expression System	:	ASPERGILLUS ORYZAE
	Expression System Plasmid	:	PHD464
	Expression System Strain	:	KSM 510
	Expression System Taxid	:	5062
	Expression System Vector Type	:	PLASMID
	Gene	:	RHA1
	Organism Scientific	:	ASPERGILLUS ACULEATUS
	Organism Taxid	:	5053
	Synonym	:	RGAE

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 4)

No.	Name	Count	Type	Full Name
1	NAG	4	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	NAG	2	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	NAG	2	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN A:182	BINDING SITE FOR RESIDUE NAG A 301
2	AC2	SOFTWARE	TYR A:97 , VAL A:99 , ASN A:104	BINDING SITE FOR RESIDUE NAG A 302
3	AC3	SOFTWARE	ASN B:182	BINDING SITE FOR RESIDUE NAG B 301
4	AC4	SOFTWARE	VAL B:99 , ASN B:104 , HOH B:304 , HOH B:330	BINDING SITE FOR RESIDUE NAG B 302

Asymmetric Unit

No.	Residues
1	A:88	-	A:96
2	A:214	-	A:232
3	B:88	-	B:96
4	B:214	-	B:232

(no "Cis Peptide Bond" information available for 1PP4)

(no "SAP(SNP)/Variant" information available for 1PP4)

(no "PROSITE Motif" information available for 1PP4)

(no "Exon" information available for 1PP4)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:233
 aligned with RHA1_ASPAC | Q00017 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:233
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247
           RHA1_ASPAC    18 TTVYLAGDSTMAKNGGGSGTNGWGEYLASYLSATVVNDAVAGRSARSYTREGRFENIADVVTAGDYVIVEFGHNDGGSLSTDNGRTDCSGTGAEVCYSVYDGVNETILTFPAYLENAAKLFTAKGAKVILSSQTPNNPWETGTFVNSPTRFVEYAELAAEVAGVEYVDHWSYVDSIYETLGNATVNSYFPIDHTHTSPAGAEVVAEAFLKAVVCTGTSLKSVLTTTSFEGTCL 250
               SCOP domains d1pp4a_ A: Rhamnogalacturonan acetylesterase                                                                                                                                                                                              SCOP domains
               CATH domains 1pp4A00 A:1-233  [code=3.40.50.1110, no name defined]                                                                                                                                                                                     CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..............hhhhhhhhhh..eeee......hhhhhhhhhhhhhhhhhh....eeeee.......hhhhh.............eeeee..eeeee.hhhhhhhhhhhhhhhh..eeeee.................hhhhhhhhhhhhhhh.eeehhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pp4 A   1 TTVYLAGDSTMAKNGGGSGTNGWGEYLASYLSATVVNDAVAGRSARSYTREGRFENIADVVTAGDYVIVEFGHNDGGSLSTDNGRTDCSGTGAEVCYSVYDGVNETILTFPAYLENAAKLFTAKGAKVILSSQTPNNPWETGTFVNSPTRFVEYAELAAEVAGVEYVDHWSYVDSIYETLGNATVNSYFPIDHTHTSPAGAEVVAEAFLKAVVCTGTSLKSVLTTTSFEGTCL 233
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain B from PDB  Type:PROTEIN  Length:233
 aligned with RHA1_ASPAC | Q00017 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:233
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247
           RHA1_ASPAC    18 TTVYLAGDSTMAKNGGGSGTNGWGEYLASYLSATVVNDAVAGRSARSYTREGRFENIADVVTAGDYVIVEFGHNDGGSLSTDNGRTDCSGTGAEVCYSVYDGVNETILTFPAYLENAAKLFTAKGAKVILSSQTPNNPWETGTFVNSPTRFVEYAELAAEVAGVEYVDHWSYVDSIYETLGNATVNSYFPIDHTHTSPAGAEVVAEAFLKAVVCTGTSLKSVLTTTSFEGTCL 250
               SCOP domains d1pp4b_ B: Rhamnogalacturonan acetylesterase                                                                                                                                                                                              SCOP domains
               CATH domains 1pp4B00 B:1-233  [code=3.40.50.1110, no name defined]                                                                                                                                                                                     CATH domains
           Pfam domains (1) --Lipase_GDSL-1pp4B01 B:3-208                                                                                                                                                                                   ------------------------- Pfam domains (1)
           Pfam domains (2) --Lipase_GDSL-1pp4B02 B:3-208                                                                                                                                                                                   ------------------------- Pfam domains (2)
         Sec.struct. author .eeeee...............hhhhhhhhhh..eeee......hhhhhhhhhhhhhhhhhh....eeee........hhhhh.............eeeee..eeeee.hhhhhhhhhhhhhhhh..eeeee.................hhhhhhhhhhhhhhh.eeehhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pp4 B   1 TTVYLAGDSTMAKNGGGSGTNGWGEYLASYLSATVVNDAVAGRSARSYTREGRFENIADVVTAGDYVIVEFGHNDGGSLSTDNGRTDCSGTGAEVCYSVYDGVNETILTFPAYLENAAKLFTAKGAKVILSSQTPNNPWETGTFVNSPTRFVEYAELAAEVAGVEYVDHWSYVDSIYETLGNATVNSYFPIDHTHTSPAGAEVVAEAFLKAVVCTGTSLKSVLTTTSFEGTCL 233
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Flavodoxin-like (1057)

Superfamily: SGNH hydrolase (48)

Family: Rhamnogalacturonan acetylesterase (5)

Protein domain: Rhamnogalacturonan acetylesterase (5)

Fungus (Aspergillus aculeatus) [TaxId: 5053] (5)

1a	d1pp4a_	A:
1b	d1pp4b_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1110, no name defined] (34)

Aspergillus aculeatus. Organism_taxid: 5053. (1)

1a	1pp4A00	A:1-233
1b	1pp4B00	B:1-233

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: SGNH_hydrolase (17)

Family: Lipase_GDSL (7)

Aspergillus aculeatus (2)

1a	Lipase_GDSL-1pp4B01	B:3-208
1b	Lipase_GDSL-1pp4B02	B:3-208

Asymmetric Unit(hide GO term definitions)

Chain A,B (RHA1_ASPAC | Q00017)

molecular function
	GO:0016787		hydrolase activity		Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		NAG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1pp4)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1pp4
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RHA1_ASPAC \| Q00017
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.1.1.-
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RHA1_ASPAC \| Q00017
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RHA1_ASPAC \| Q00017	:	1deo 1dex 1k7c 3c1u

1deo	THE SAME PROTEIN, ORTHORHOMBIC P212121 SPACE GROUP, 1.55 AA, SO4 IN ACTIVE SITE
1dex	THE SAME PROTEIN, ORTHORHOMBIC P212121 SPACE GROUP, 1.9 AA, NO SO4 IN ACTIVE SITE
1k7c	THE SAME PROTEIN, ORTHORHOMBIC P212121 SPACE GROUP, 1.12 AA, SO4 IN ACTIVE SITE
