Title :   CRYSTALLIZATION AND STRUCTURE DETERMINATION OF BOVINE PROFILIN AT 2.0 ANGSTROMS RESOLUTION

Authors :   E. S. Cedergren-Zeppezauer, N. C. W. Goonesekere, M. D. Rozycki, J. C. Myslik, Z. Dauter, U. Lindberg, C. E. Schutt

Date :   05 May 95 (Deposition) - 31 Jul 95 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym./Biol. Unit : A

Keywords :   Actin Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   E. S. Cedergren-Zeppezauer, N. C. Goonesekere, M. D. Rozycki, J. C. Myslik, Z. Dauter, U. Lindberg, C. E. Schutt
Crystallization And Structure Determination Of Bovine Profilin At 2. 0 A Resolution.
J. Mol. Biol. V. 240 459 1994
PubMed-ID: 8046751 | Reference-DOI: 10.1006/JMBI.1994.1461
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (3, 3)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:140
 aligned with PROF1_BOVIN | P02584 from UniProtKB/Swiss-Prot  Length:140

    Alignment length:140
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
          PROF1_BOVIN     1 MAGWNAYIDNLMADGTCQDAAIVGYKDSPSVWAAVPGKTFVNITPAEVGILVGKDRSSFFVNGLTLGGQKCSVIRDSLLQDGEFTMDLRTKSTGGAPTFNITVTMTAKTLVLLMGKEGVHGGMINKKCYEMASHLRRSQY 140
               SCOP domains d1pnea_ A: Profilin (actin-binding protein)                                                                                                  SCOP domains
               CATH domains -1pneA00 A:1-139 Dynein light chain 2a, cytoplasmic                                                                                          CATH domains
               Pfam domains --Profilin-1pneA01 A:2-134                                                                                                             ----- Pfam domains
         Sec.struct. author ....hhhhhhhhh.....eeeeee.....eeeee..........hhhhhhhh.....hhhhh.eee..eeeeeeee........eeeeeee.....eeeeeeeee....eeeee......hhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE PROFILIN ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1  PDB: A:0-43 UniProt: 1-44         Exon 1.2  PDB: A:44-108 UniProt: 45-109                          ------------------------------- Transcript 1 (1)
           Transcript 1 (2) ------------------------------------------------------------------------------------------------------------Exon 1.3  PDB: A:108-139         Transcript 1 (2)
                 1pne A   0 xAGWNAYIDNLMADGTCQDAAIVGYKDSPSVWAAVPGKTFVNITPAEVGILVGKDRSSFFVNGLTLGGQKCSVIRDSLLQDGEFTMDLRTKSTGGAPTFNITVTMTAKTLVLLMGKEGVHGGMINKKCYEMASHLRRSQY 139
                            |        9        19        29        39        49        59        69        79        89        99       109       119       129       139
                            |
                            0-ACE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (1, 1)

Gene Ontology (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (PROF1_BOVIN | P02584)

molecular function
	GO:0003779	actin binding	Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
biological process
	GO:0030036	actin cytoskeleton organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments and their associated proteins.
	GO:0032233	positive regulation of actin filament bundle assembly	Any process that activates or increases the frequency, rate or extent of the assembly of actin filament bundles.
	GO:0030833	regulation of actin filament polymerization	Any process that modulates the frequency, rate or extent of the assembly of actin filaments by the addition of actin monomers to a filament.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005856	cytoskeleton	Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.

Visualization

Interactive Views

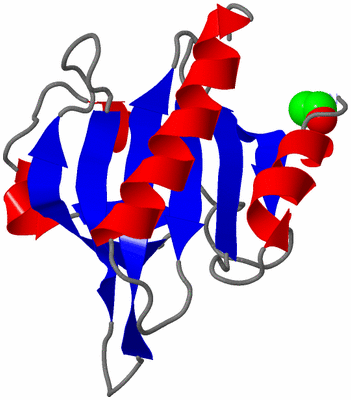

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1pne)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1pne)
