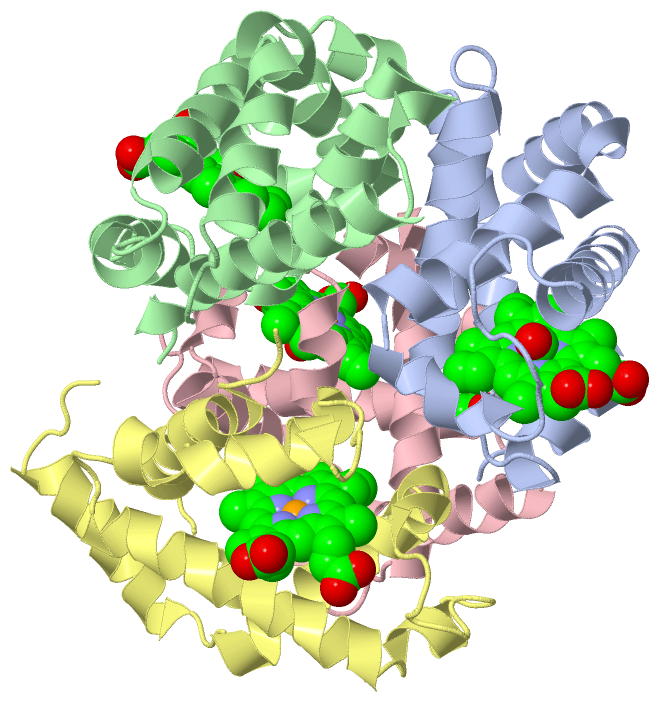

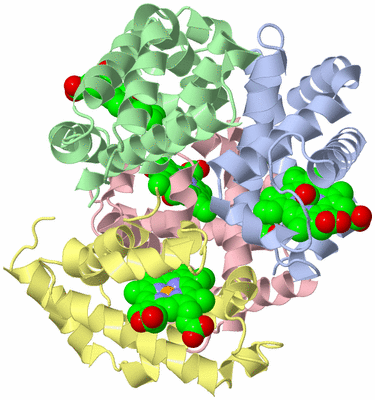

Asym./Biol. Unit (Jmol Viewer)

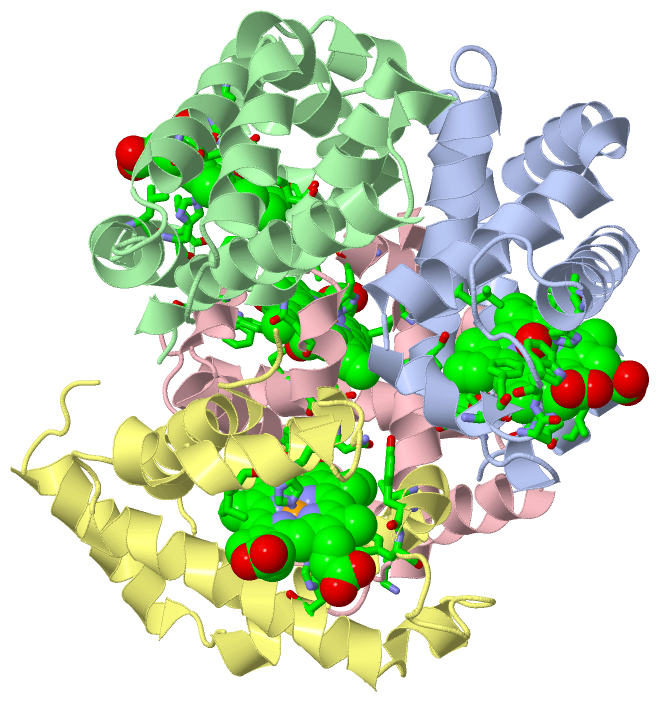

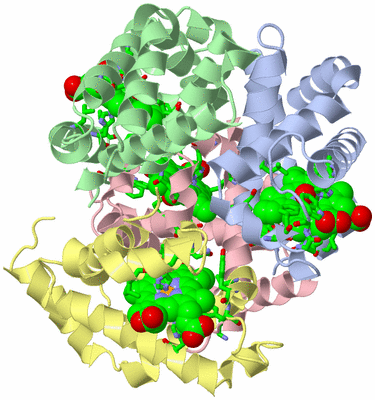

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CARBONMONOXY TROUT HEMOGLOBIN I

Authors :   J. Tame, J. Wilson

Date :   21 Jun 96 (Deposition) - 11 Jan 97 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Heme, Oxygen Transport, Respiratory Protein, Erythrocyte (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. R. Tame, J. C. Wilson, R. E. Weber
The Crystal Structures Of Trout Hb I In The Deoxy And Carbonmonoxy Forms.
J. Mol. Biol. V. 259 749 1996
PubMed-ID: 8683580 | Reference-DOI: 10.1006/JMBI.1996.0355
(for further references see the PDB file header)

Molecule 1 - HEMOGLOBIN I
	Chains	:	A, C
	Engineered	:	YES
	Mutation	:	YES
	Organism Common	:	RAINBOW TROUT
	Organism Scientific	:	ONCORHYNCHUS MYKISS
	Organism Taxid	:	8022
	Other Details	:	CARBONMONOXY

Molecule 2 - HEMOGLOBIN I
	Chains	:	B, D
	Engineered	:	YES
	Mutation	:	YES
	Organism Common	:	RAINBOW TROUT
	Organism Scientific	:	ONCORHYNCHUS MYKISS
	Organism Taxid	:	8022
	Other Details	:	CARBONMONOXY
	Tissue	:	BLOOD

		1	2	3	4
Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (3, 10)

No.	Name	Count	Type	Full Name
1	ACE	2	Mod. Amino Acid	ACETYL GROUP
2	CMO	4	Ligand/Ion	CARBON MONOXIDE
3	HEM	4	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	TYR A:42 , PHE A:43 , HIS A:45 , TRP A:46 , HIS A:59 , LEU A:84 , LEU A:87 , HIS A:88 , VAL A:94 , ASN A:98 , LEU A:102 , LEU A:137 , CMO A:144 , LYS C:16	BINDING SITE FOR RESIDUE HEM A 143
2	AC2	SOFTWARE	HIS A:59 , ILE A:63 , HEM A:143	BINDING SITE FOR RESIDUE CMO A 144
3	AC3	SOFTWARE	THR B:38 , TYR B:41 , PHE B:42 , HIS B:63 , ALA B:70 , LEU B:71 , LEU B:88 , HIS B:92 , LEU B:96 , ASN B:102 , PHE B:103 , LEU B:106 , CMO B:149	BINDING SITE FOR RESIDUE HEM B 148
4	AC4	SOFTWARE	HIS B:63 , VAL B:67 , HEM B:148	BINDING SITE FOR RESIDUE CMO B 149
5	AC5	SOFTWARE	TYR C:42 , PHE C:43 , HIS C:45 , TRP C:46 , HIS C:59 , LEU C:87 , HIS C:88 , LEU C:92 , ASN C:98 , LEU C:102 , VAL C:133 , LEU C:137 , CMO C:144 , HOH C:179	BINDING SITE FOR RESIDUE HEM C 143
6	AC6	SOFTWARE	HIS C:59 , ILE C:63 , HEM C:143	BINDING SITE FOR RESIDUE CMO C 144
7	AC7	SOFTWARE	THR D:38 , TYR D:41 , PHE D:42 , HIS D:63 , LEU D:88 , HIS D:92 , ASN D:102 , PHE D:103 , LEU D:106 , CMO D:149	BINDING SITE FOR RESIDUE HEM D 148
8	AC8	SOFTWARE	HIS D:63 , VAL D:67 , HEM D:148	BINDING SITE FOR RESIDUE CMO D 149

(no "SS Bond" information available for 1OUU)

(no "Cis Peptide Bond" information available for 1OUU)

(no "SAP(SNP)/Variant" information available for 1OUU)

Asymmetric/Biological Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLOBIN	PS01033	Globin family profile.	HBA1_ONCMY	2-144	2	A:2-142 C:2-142
1	GLOBIN	PS01033	Globin family profile.	HBB1_ONCMY	4-145	2	B:4-145 D:4-145

(no "Exon" information available for 1OUU)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:143
 aligned with HBA1_ONCMY | P02019 from UniProtKB/Swiss-Prot  Length:144

    Alignment length:145
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139
           HBA1_ONCMY     - -SLTAKDKSVVKAFWGKISGKADVVGAEALGRDKMLTAYPQTKTYFSHWADLSPGSGPVKKHGGIIMGAIGKAVGLMDDLVGGMSALSDLHAFKLRVDPGNFKILSHNILVTLAIHFPSDFTPEVHIAVDKFLAAVSAALADKYR 144
               SCOP domains d1ouua_ A: Hemoglobin, alpha-cha  in                                                                                                              SCOP domains
               CATH domains -1ouuA00 A:1-142 Globins                                                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhh--hhhh.hhhhhhh..........hhhhhhhhhhhhhhhhhhh....hhhh.hhhhhhhhh.....hhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --GLOBIN  PDB: A:2-142 UniProt: 2-144                                                                                                             PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ouu A   0 xSLTAKDKSVVKAFWGKISGKADVVGAEALGR--MLTAYPQTKTYFSHWADLSPGSGPVKKHGGIIMGAIGKAVGLMDDLVGGMSALSDLHAFKLRVDPGNFKILSHNILVTLAIHFPSDFTPEVHIAVDKFLAAVSAALADKYR 142
                            |        9        19        29 |  |   37        47        57        67        77        87        97       107       117       127       137
                            |                             31 32
                            0-ACE

Chain B from PDB  Type:PROTEIN  Length:146
 aligned with HBB1_ONCMY | P02142 from UniProtKB/Swiss-Prot  Length:146

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           HBB1_ONCMY     1 VEWTDAEKSTISAVWGKVNIDEIGPLALARVLIVYPWTQRYFGSFGNVSTPAAIMGNPKVAAHGKVVCGALDKAVKNMGNILATYKSLSETHANKLFVDPDNFRVLADVLTIVIAAKFGASFTPEIQATWQKFMKVVVAAMGSRYF 146
               SCOP domains d1ouub_ B: Hemoglobin, beta-chain                                                                                                                  SCOP domains
               CATH domains 1ouuB00 B:1-146 Globins                                                                                                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhh.hhh.....hhhhh..hhhhhhhhhhhhhhhhhhh....hhhh.hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---GLOBIN  PDB: B:4-145 UniProt: 4-145                                                                                                           - PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ouu B   1 VEWTDAEKSTISAVWGKVNIDEIGPLALARVLIVYPWTQRYFGSFGNVSTPAAIMGNPKVAAHGKVVCGALDKAVKNMGNILATYKSLSETHANKLFVDPDNFRVLADVLTIVIAAKFGASFTPEIQATWQKFMKVVVAAMGSRYF 146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain C from PDB  Type:PROTEIN  Length:143
 aligned with HBA1_ONCMY | P02019 from UniProtKB/Swiss-Prot  Length:144

    Alignment length:145
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139
           HBA1_ONCMY     - -SLTAKDKSVVKAFWGKISGKADVVGAEALGRDKMLTAYPQTKTYFSHWADLSPGSGPVKKHGGIIMGAIGKAVGLMDDLVGGMSALSDLHAFKLRVDPGNFKILSHNILVTLAIHFPSDFTPEVHIAVDKFLAAVSAALADKYR 144
               SCOP domains d1ouuc_ C: Hemoglobin, alpha-cha  in                                                                                                              SCOP domains
               CATH domains -1ouuC00 C:1-142 Globins                                                                                                                          CATH domains
           Pfam domains (1) ------Globin-1ouuC01 C:6-107    --                                                                            ----------------------------------- Pfam domains (1)
           Pfam domains (2) ------Globin-1ouuC02 C:6-107    --                                                                            ----------------------------------- Pfam domains (2)
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhh--hhhh.hhhhhhh..........hhhhhhhhhhhhhhhhhhhh...hhhh.hhhhhhhh......hhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh.hhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --GLOBIN  PDB: C:2-142 UniProt: 2-144                                                                                                             PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ouu C   0 xSLTAKDKSVVKAFWGKISGKADVVGAEALGR--MLTAYPQTKTYFSHWADLSPGSGPVKKHGGIIMGAIGKAVGLMDDLVGGMSALSDLHAFKLRVDPGNFKILSHNILVTLAIHFPSDFTPEVHIAVDKFLAAVSAALADKYR 142
                            |        9        19        29 |  |   37        47        57        67        77        87        97       107       117       127       137
                            0-ACE                         31 32

Chain D from PDB  Type:PROTEIN  Length:146
 aligned with HBB1_ONCMY | P02142 from UniProtKB/Swiss-Prot  Length:146

    Alignment length:146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           HBB1_ONCMY     1 VEWTDAEKSTISAVWGKVNIDEIGPLALARVLIVYPWTQRYFGSFGNVSTPAAIMGNPKVAAHGKVVCGALDKAVKNMGNILATYKSLSETHANKLFVDPDNFRVLADVLTIVIAAKFGASFTPEIQATWQKFMKVVVAAMGSRYF 146
               SCOP domains d1ouud_ D: Hemoglobin, beta-chain                                                                                                                  SCOP domains
               CATH domains 1ouuD00 D:1-146 Globins                                                                                                                            CATH domains
           Pfam domains (1) ------Globin-1ouuD01 D:7-111                                                                                   ----------------------------------- Pfam domains (1)
           Pfam domains (2) ------Globin-1ouuD02 D:7-111                                                                                   ----------------------------------- Pfam domains (2)
         Sec.struct. author ....hhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhh.........hhhhh..hhhhhhhhhhhhhhhhhhh....hhhh.hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---GLOBIN  PDB: D:4-145 UniProt: 4-145                                                                                                           - PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ouu D   1 VEWTDAEKSTISAVWGKVNIDEIGPLALARVLIVYPWTQRYFGSFGNVSTPAAIMGNPKVAAHGKVVCGALDKAVKNMGNILATYKSLSETHANKLFVDPDNFRVLADVLTIVIAAKFGASFTPEIQATWQKFMKVVVAAMGSRYF 146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Globin-like (1351)

Superfamily: Globin-like (1308)

Family: Globins (1157)

Protein domain: Hemoglobin, alpha-chain (292)

Rainbow trout (Oncorhynchus mykiss) [TaxId: 8022] (2)

1a	d1ouua_	A:
1b	d1ouuc_	C:

Protein domain: Hemoglobin, beta-chain (292)

Rainbow trout (Oncorhynchus mykiss) [TaxId: 8022] (2)

2a	d1ouub_	B:
2b	d1ouud_	D:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Globin-like (786)

Homologous Superfamily: Globins (743)

Rainbow trout (Oncorhynchus mykiss) (4)

1a	1ouuB00	B:1-146
1b	1ouuA00	A:1-142
1c	1ouuC00	C:1-142
1d	1ouuD00	D:1-146

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Globin (291)

Family: Globin (264)

Oncorhynchus mykiss (Rainbow trout) (Salmo gairdneri) (3)

1a	Globin-1ouuC01	C:6-107
1b	Globin-1ouuC02	C:6-107
1c	Globin-1ouuD01	D:7-111
1d	Globin-1ouuD02	D:7-111

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,C (HBA1_ONCMY | P02019)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0019825	oxygen binding	Interacting selectively and non-covalently with oxygen (O2).
	GO:0005344	oxygen transporter activity	Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
	GO:0015671	oxygen transport	The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005833	hemoglobin complex	An iron-containing, oxygen carrying complex. In vertebrates it is made up of two pairs of associated globin polypeptide chains, each chain carrying a noncovalently bound heme prosthetic group.

Chain B,D (HBB1_ONCMY | P02142)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0019825	oxygen binding	Interacting selectively and non-covalently with oxygen (O2).
	GO:0005344	oxygen transporter activity	Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
	GO:0015671	oxygen transport	The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005833	hemoglobin complex	An iron-containing, oxygen carrying complex. In vertebrates it is made up of two pairs of associated globin polypeptide chains, each chain carrying a noncovalently bound heme prosthetic group.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CMO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ouu)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ouu
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	HBA1_ONCMY \| P02019
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	HBB1_ONCMY \| P02142
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	HBA1_ONCMY \| P02019
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	HBB1_ONCMY \| P02142
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	HBA1_ONCMY \| P02019	:	1out
	HBB1_ONCMY \| P02142	:	1out

(no "Related Entries Specified in the PDB File" available for 1OUU)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 10)

Sites (8, 8)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 4)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (8, 16)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
