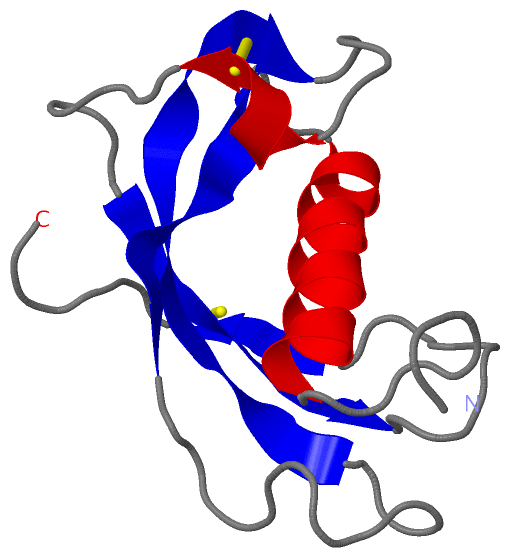

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

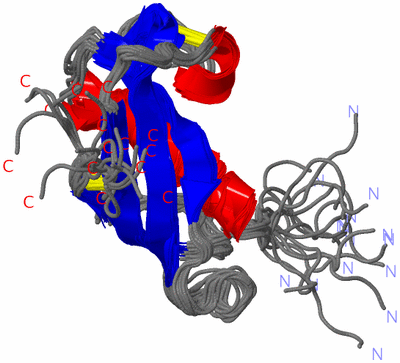

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE CATHELIN-LIKE DOMAIN OF PROTEGRINS (ALL AMIDE BONDS INVOLVING PROLINE RESIDUES ARE IN TRANS CONFORMATION)

Authors :  Y. Yang, J. F. Sanchez, M. P. Strub, B. Brutscher, A. Aumelas
Date :  07 Nov 02  (Deposition) - 03 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Cathelin-Like Domain, Cathelicidin, Proline Isomerization, Cystatin Fold, Antibiotic (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Yang, J. F. Sanchez, M. P. Strub, B. Brutscher, A. Aumelas
Nmr Structure Of The Cathelin-Like Domain Of The Protegrin-3 Precursor
Biochemistry V. 42 4669 2003
PubMed-ID: 12705830  |  Reference-DOI: 10.1021/BI027133C
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEGRINS
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-15B
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: CATHELIN-LIKE DOMAIN
    Organism Common: PIG
    Organism Scientific: SUS SCROFA
    Organism Taxid: 9823
    Synonym: PROTEGRIN 1, PROTEGRIN 2, PROTEGRIN 3, PROTEGRIN 4, PROTEGRIN 5

 Structural Features

(-) Chains, Units


NMR Structure (15x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1N5P)

(-) Sites  (0, 0)

(no "Site" information available for 1N5P)

(-) SS Bonds  (2, 2)

NMR Structure
No.Residues
1A:85 -A:96
2A:107 -A:124

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1N5P)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1N5P)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CATHELICIDINS_1PS00946 Cathelicidins signature 1.PG4_PIG34-47  1A:34-47
2CATHELICIDINS_2PS00947 Cathelicidins signature 2.PG4_PIG78-100  1A:78-100

(-) Exons   (0, 0)

(no "Exon" information available for 1N5P)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:105
 aligned with PG4_PIG | P49933 from UniProtKB/Swiss-Prot  Length:149

    Alignment length:105
                                    35        45        55        65        75        85        95       105       115       125
              PG4_PIG    26 SASAQALSYREAVLRAVDRLNEQSSEANLYRLLELDQPPKADEDPGTPKPVSFTVKETVCPRPTRQPPELCDFKENGRVKQCVGTVTLDQIKDPLDITCNEVQGV 130
               SCOP domains d1n5pa_ A: Cathelicidin motif of protegrin-3                                                              SCOP domains
               CATH domains 1n5pA00 A:26-130  [code=3.10.450.10, no name defined]                                                     CATH domains
               Pfam domains -----Cathelicidins-1n5pA01 A:31-97                                      --------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhh...eeeeeeee.............eeeeeeeeeeeee.....hhhhh.......eeeeeeee..........eee...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------CATHELICIDINS_------------------------------CATHELICIDINS_2        ------------------------------ PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------- Transcript
                 1n5p A  26 GSHMQALSYREAVLRAVDRLNEQSSEANLYRLLELDQPPKADEDPGTPKPVSFTVKETVCPRPTRQPPELCDFKENGRVKQCVGTVTLDQIKDPLDITCNEVQGV 130
                                    35        45        55        65        75        85        95       105       115       125
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Cystatin (20)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (PG4_PIG | P49933)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0042742    defense response to bacterium    Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1n5p)

  Sites
(no "Sites" information available for 1n5p)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1n5p)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

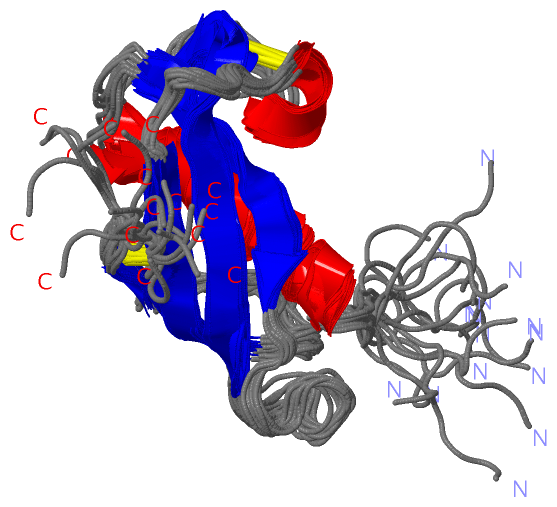

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1n5p
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PG4_PIG | P49933
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PG4_PIG | P49933
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PG4_PIG | P49933: 1n5h

(-) Related Entries Specified in the PDB File

1n5h STRUCTURE WITH THE R87-P88 AND D118-P119 AMIDE BONDS IN THE CIS CONFORMATION
