1MHX - JenaLib

Title :   CRYSTAL STRUCTURES OF THE REDESIGNED PROTEIN G VARIANT NUG1

Authors :   S. Nauli, B. Kuhlman, I. Le Trong, R. E. Stenkamp, D. C. Teller, D. Baker

Date :   21 Aug 02 (Deposition) - 18 Sep 02 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym./Biol. Unit : A

Keywords :   Alpha-Beta Protein, Redesigned First Beta-Hairpin, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Nauli, B. Kuhlman, I. Le Trong, R. E. Stenkamp, D. C. Teller, D. Bake
Crystal Structures And Increased Stabilization Of The Protein G Variants With Switched Folding Pathways Nug1 And Nug2
Protein Sci. V. 11 2924 2002
PubMed-ID: 12441390 | Reference-DOI: 10.1110/PS.0216902

Compounds

Molecule 1 - IMMUNOGLOBULIN-BINDING PROTEIN G
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	REDESIGNED B1 DOMAIN
	Mutation	:	YES
	Organism Scientific	:	FINEGOLDIA MAGNA
	Organism Taxid	:	334413
	Other Details	:	REDESIGNED FIRST BETA-HAIRPIN, VARIANT NUG1
	Strain	:	ATCC 29328

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:65
 aligned with Q53291_FINMA | Q53291 from UniProtKB/TrEMBL  Length:455

    Alignment length:65
                                   329       339       349       359       369       379
         Q53291_FINMA   320 VDEKPEEPMDTYKLILNGKTLKGETTTEAVDAATAEKVFKQYANDNGVDGEWTYDDATKTFTVTE 384
               SCOP domains d1mhxa_ A:                                                        SCOP domains
               CATH domains 1mhxA00 A:1-65  [code=3.10.20.10, no name defined]                CATH domains
               Pfam domains ----------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeee..eeeeeeeee.hhhhhhhhhhhhhhhh....eeeee....eeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------- Transcript
                 1mhx A   1 MHHHHHHAMDTYKLFIVIGDRVVVVTTEAVDAATAEKVFKQYANDNGVDGEWTYDDAAKTFTVTE  65
                                    10        20        30        40        50        60

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (Q53291_FINMA | Q53291)

cellular component
	GO:0005618		cell wall		The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.

Visualization

Interactive Views

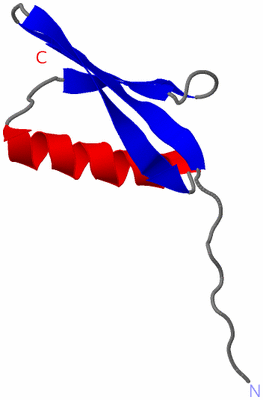

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1mhx)

	Sites
(no "Sites" information available for 1mhx)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1mhx)

Still Images

Jmol

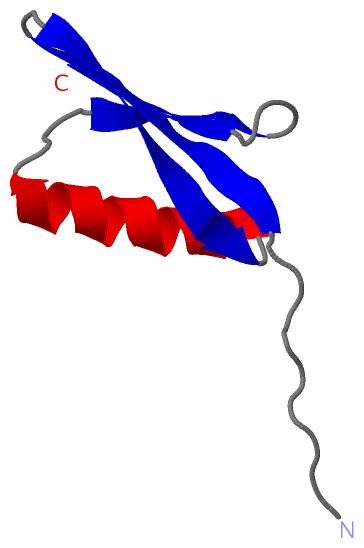

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
