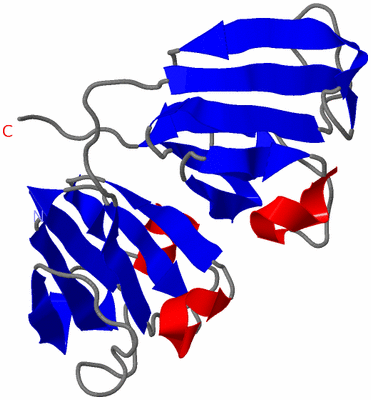

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BOVINE GAMMA-E AT 1.65 ANG RESOLUTION

Authors :  C. Mayer, N. Agueznay, F. Skouri-Panet, K. Prat, T. Putilina, S. Biarrotte-Sorin, A. Tardieu
Date :  26 Jul 02  (Deposition) - 05 Aug 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.65
Chains :  Asym./Biol. Unit :  A
Keywords :  Gamma-Crystallin, Gamma-E, Crystal Structure, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Mayer, N. Agueznay, F. Skouri-Panet, K. Prat, T. Putilina, S. Biarrotte-Sorin, A. Tardieu
Crystal Structure Of Bovine Gamma-E
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GAMMA-E
    Chains: A
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913
    Other Details: EXTRACTED FROM CALF EYE LENS

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1M8U)

(-) Sites  (0, 0)

(no "Site" information available for 1M8U)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1M8U)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1M8U)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1M8U)

(-) PROSITE Motifs  (1, 4)

Asymmetric/Biological Unit (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CRYSTALLIN_BETA_GAMMAPS50915 Crystallins beta and gamma 'Greek key' motif profile.CRGF_BOVIN2-40
41-83
88-128
129-171		  4A:1-39
A:40-82
A:88-128
A:129-171

(-) Exons   (0, 0)

(no "Exon" information available for 1M8U)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:173
 aligned with CRGF_BOVIN | P23005 from UniProtKB/Swiss-Prot  Length:174

    Alignment length:173
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
           CRGF_BOVIN     2 GKITFYEDRGFQGRHYECSSDHSNLQPYFSRCNSIRVDSGCWMLYEQPNFQGPQYFLRRGDYPDYQQWMGLNDSIRSCRLIPHTGSHRLRIYEREDYRGQMVEITEDCSSLHDRFHFSEIHSFNVLEGWWVLYEMTNYRGRQYLLRPGDYRRYHDWGATNARVGSLRRAVDFY 174
               SCOP domains d1m8ua1 A:1-85 gamma-Crystallin                                                      d1m8ua2 A:87-174 gamma-Crystallin                                                        SCOP domains
               CATH domains 1m8uA01 A:1-83 Crystallins                                                         1m8uA02 A:84-174 Crystallins                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee...eeeeeee...............eeeeee..eeee.hhhhh..eeee..eee.hhhhhh.......eeee.......eeeeeee...eeeeeee.................eeeeee..eeeeee...eeeeeee..eee.hhhhhh.......eeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE CRYSTALLIN_BETA_GAMMA  PDB: A:1-39     CRYSTALLIN_BETA_GAMMA  PDB: A:40-82        ----CRYSTALLIN_BETA_GAMMA  PDB: A:88-128     CRYSTALLIN_BETA_GAMMA  PDB: A:129-171      --- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1m8u A   1 GKITFYEDRGFQGRHYECSSDHSNLQPYFSRCNSIRVDSGCWMIYEQPNFQGPQYFLRRGDYPDYQQWMGLNDSIRSCRLIPHTSSHRLRIYEREDYRGQMVEITEDCSSLHERFHFSEIHSFHVLEGWWVLYEMPNYRGRQYLLRPGDYRRYHEWGAVDARVGSLRRAVDFY 174
                                    10        20        30        40        50        60        70        80    ||  91       101       111       121       131       141       151       161       171
                                                                                                               85|
                                                                                                                87
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1M8U)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CRGF_BOVIN | P23005)
molecular function
    GO:0005212    structural constituent of eye lens    The action of a molecule that contributes to the structural integrity of the lens of an eye.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1m8u)

  Sites
(no "Sites" information available for 1m8u)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1m8u)


(-) Still Images

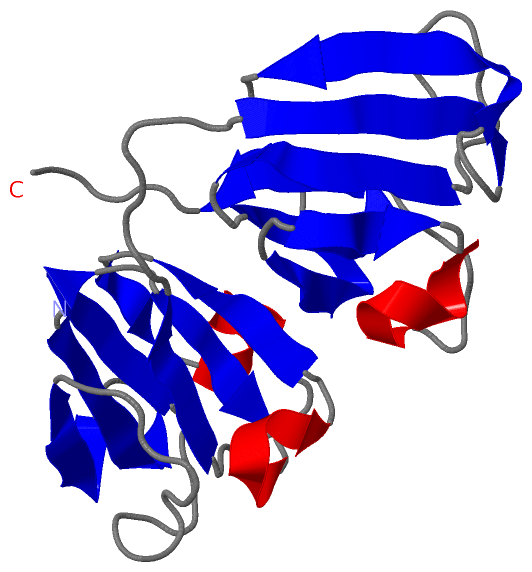

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
