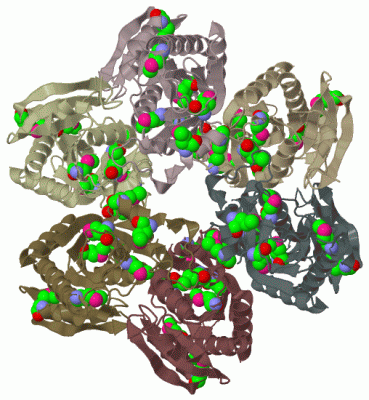

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

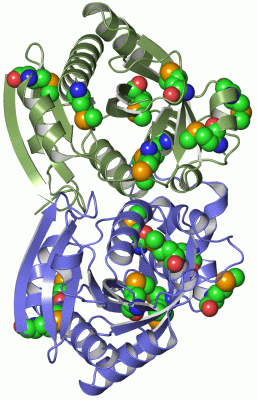

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

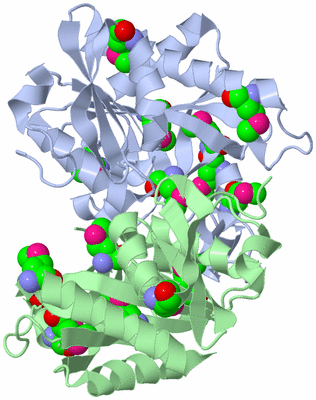

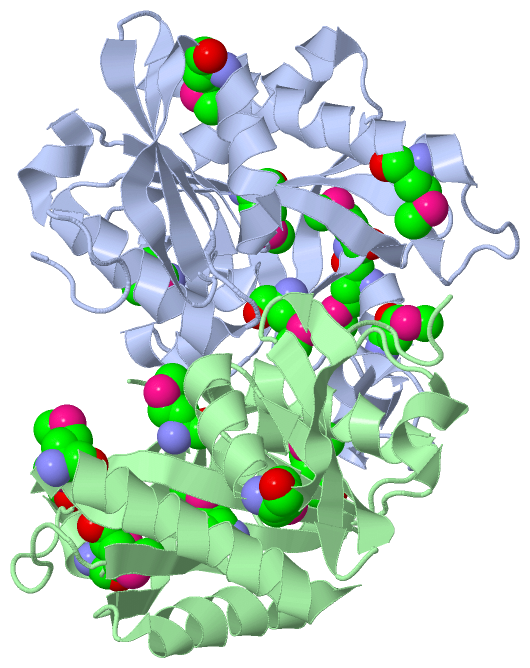

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF E. COLI URIDINE PHOSPHORYLASE AT 2.0A

Authors :  T. Burling, J. A. Buglino, R. Kniewel, T. Chadna, A. Beckwith, C. D. Lima S. K. Burley, New York Sgx Research Center For Structural Geno (Nysgxrc)
Date :  04 Jun 02  (Deposition) - 12 Jun 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (3x)
Keywords :  Structural Genomics, Udrpase, P12758, Phosphorylase, Nucleotide Metabolism, Psi, Protein Structure Initiative, New York Sgx Research Center For Structural Genomics, Nysgxrc, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  F. T. Burling, R. Kniewel, J. A. Buglino, T. Chadha, A. Beckwith, C. D. Lima
Structure Of Escherichia Coli Uridine Phosphorylase At 2. 0 A.
Acta Crystallogr. , Sect. D V. 59 73 2003
PubMed-ID: 12499542  |  Reference-DOI: 10.1107/S0907444902018929

(-) Compounds

Molecule 1 - URIDINE PHOSPHORYLASE
    ChainsA, B
    EC Number2.4.2.3
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPSMT3
    Expression System StrainB834 DE3
    Expression System Taxid562
    Expression System Vector TypePLASMID
    Organism ScientificESCHERICHIA COLI
    Organism Taxid562
    Other DetailsT7 EXPRESSION SYSTEM
    SynonymUDRPASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (3x)AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 16)

Asymmetric Unit (1, 16)
No.NameCountTypeFull Name
1MSE16Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 48)
No.NameCountTypeFull Name
1MSE48Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1LX7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1LX7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1LX7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1LX7)

(-) PROSITE Motifs  (1, 2)

Asymmetric Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PNP_UDP_1PS01232 Purine and other phosphorylases family 1 signature.UDP_ECOLI66-81

  2A:66-81
B:66-81
Biological Unit 1 (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PNP_UDP_1PS01232 Purine and other phosphorylases family 1 signature.UDP_ECOLI66-81

  6A:66-81
B:66-81

(-) Exons   (0, 0)

(no "Exon" information available for 1LX7)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:250
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:250
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
            UDP_ECOLI     4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1lx7a_ A: Uridine phosphorylase                                                                                                                                                                                                                           SCOP domains
               CATH domains 1lx7A00 A:4-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhh...eeeee.hhhhhhhhhhh.eeeeeeeee..eeeeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhh...eeeeeeeee...hhhhh.........hhhhhhhhhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1lx7 A   4 SDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALmDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSmEEWQAmGVmNYEmESATLLTmCASQGLRAGmVAGVIVNRTQQEIPNAETmKQTESHAVKIVVEAARRLL 253
                                    13        23        33    |   43        53        63        73        83        93       103       113       123       133       143       153       163       173       183|     |193   |   203 |     213 |     223       233|      243       253
                                                             38-MSE                                                                                                                                           184-MSE |  |   |     205-MSE   215-MSE            234-MSE
                                                                                                                                                                                                                    190-MSE  |
                                                                                                                                                                                                                       193-MSE
                                                                                                                                                                                                                           197-MSE

Chain B from PDB  Type:PROTEIN  Length:221
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:251
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
            UDP_ECOLI     3 KSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 253
               SCOP domains d1lx7b_ B: Uridine phosphorylase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1lx7B00 B:3-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                       CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhh...eee...hhhhhhhhhhh.eeeeeeeee..eeeeeeee..eeeeee...hhhhhhhhhhhhhhhh...eeeeeeeee..........eeeeeeeeee.hhhhhh......ee.hhhhhhhhhhhhhhh...eeeeeeeee...--------------------.hhhhhhh...eee.hhhhhhhhhhh...eeeeeeeeee.----------hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1lx7 B   3 KSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALmDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTF--------------------SmEEWQAmGVmNYEmESATLLTmCASQGLRAGmVAGVIVN----------TmKQTESHAVKIVVEAARRLL 253
                                    12        22        32     |  42        52        62        72        82        92       102       112       122       132       142       152       162         -         -||     192|   |  202  |    212  |    222         -||     242       252
                                                              38-MSE                                                                                                                     162                  183|     |  |   |     205-MSE   215-MSE222        233|
                                                                                                                                                                                                               184-MSE |  |   |                                  234-MSE
                                                                                                                                                                                                                     190-MSE  |
                                                                                                                                                                                                                        193-MSE
                                                                                                                                                                                                                            197-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1LX7)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (UDP_ECOLI | P12758)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
    GO:0016763    transferase activity, transferring pentosyl groups    Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
    GO:0004850    uridine phosphorylase activity    Catalysis of the reaction: uridine + phosphate = uracil + alpha-D-ribose 1-phosphate.
biological process
    GO:0044206    UMP salvage    Any process which produces UMP, uridine monophosphate, from derivatives of it (e.g. cytidine, uridine, cytosine) without de novo synthesis.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
    GO:0009116    nucleoside metabolic process    The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
    GO:0009166    nucleotide catabolic process    The chemical reactions and pathways resulting in the breakdown of nucleotides, any nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic-nucleotides (nucleoside cyclic phosphates).
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1lx7)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1lx7)

Biological Unit
  Complete Structure

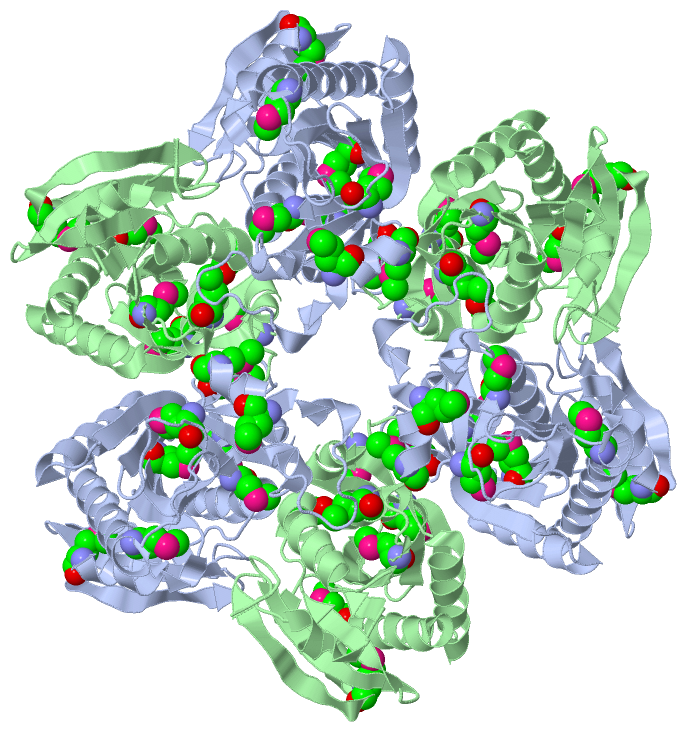

    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1lx7
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  UDP_ECOLI | P12758
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.4.2.3
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  UDP_ECOLI | P12758
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        UDP_ECOLI | P127581k3f 1rxc 1rxs 1rxu 1rxy 1t0u 1tgv 1tgy 1u1c 1u1d 1u1e 1u1f 1u1g 3kvv

(-) Related Entries Specified in the PDB File

1k3f 2.5A STRUCTURE OF E. COLI URIDINE PHOSPHORYLASE RELATED ID: NYSGXRC-T24 RELATED DB: TARGETDB
