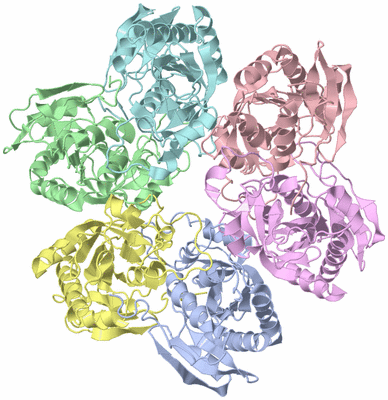

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  URIDINE PHOSPHORYLASE FROM E. COLI, REFINED IN THE MONOCLINIC CRYSTAL LATTICE

Authors :  E. Yu. Morgunova, A. M. Mikhailov, A. N. Popov, E. V. Blagova, E. A. Smirnova, B. K. Vainshtein, C. Mao, S. R. Armstrong, S. E. Ealick, A. A. Komissarov, E. V. Linkova, A. A. Burlakova, A. S. Mironov, V. G. Debabov
Date :  02 Oct 01  (Deposition) - 10 Oct 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Nucleoside Phosphorylase, Hexamer, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Yu. Morgunova, A. M. Mikhailov, A. N. Popov, E. V. Blagova, E. A. Smirnova, B. K. Vainshtein, C. Mao, S. R. Armstrong, S. E. Ealick, A. A. Komissarov, E. V. Linkova, A. A. Burlakova, A. S. Mironov, V. G. Debabov
Atomic Structure At 2. 5 A Resolution Of Uridine Phosphorylase From E. Coli As Refined In The Monoclinic Crystal Lattice.
Febs Lett. V. 367 183 1995
PubMed-ID: 7796917  |  Reference-DOI: 10.1016/0014-5793(95)00489-V
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - URIDINE PHOSPHORYLASE
    Chains: A, B, C, D, E, F
    EC Number: 2.4.2.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PUD7
    Expression System Strain: AM1906
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: UPASE, UDRPASE

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1K3F)

(-) Sites  (0, 0)

(no "Site" information available for 1K3F)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1K3F)

(-) Cis Peptide Bonds  (5, 5)

Asymmetric/Biological Unit
No.Residues
1Ile A:228 -Pro A:229
2Ile B:1228 -Pro B:1229
3Ile C:2228 -Pro C:2229
4Ile D:3228 -Pro D:3229
5Ile F:5228 -Pro F:5229

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1K3F)

(-) PROSITE Motifs  (1, 6)

Asymmetric/Biological Unit (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PNP_UDP_1PS01232 Purine and other phosphorylases family 1 signature.UDP_ECOLI66-81




 		  6A:66-81
B:1066-1081
C:2066-2081
D:3066-3081
E:4066-4081
F:5066-5081

(-) Exons   (0, 0)

(no "Exon" information available for 1K3F)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:253
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           UDP_ECOLI      1 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL  253
               SCOP domains d1k3fa_ A: Uridine phosphorylase                                                                                                                                                                                                                              SCOP domains
               CATH domains 1k3fA00 A:1-253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................ee......hhhhhhh..eeeeeeee....eeeeeee..eeeeee....hhhhhhhhhhhhhhhh...eeeeeeeee.........eeeeeee.....hhhhh.........hhhhhhhhhhhhhh....eeeeeeee.......................hhhhhhhhhheeeee.hhhhhhhh.........eeeeeeee.........hhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1k3f A    1 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL  253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250


Chain B from PDB  Type:PROTEIN  Length:253
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           UDP_ECOLI      1 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL  253
               SCOP domains d1k3fb_ B: Uridine phosphorylase                                                                                                                                                                                                                              SCOP domains
               CATH domains 1k3fB00 B:1001-1253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhh.....ee...hhhhhhhhhh......eeee....eee..ee..ee.ee....hhhhhhhhhhhhhhh.....eee...eee..........eeeeeeeee..hhhhh......ee.hhhhhhhhhhhhhhh....eeeeeeee......................hhhhhhhh....eee.hhhhhhhhhhh....eeeee.eeee..........hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1k3f B 1001 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 1253
                                  1010      1020      1030      1040      1050      1060      1070      1080      1090      1100      1110      1120      1130      1140      1150      1160      1170      1180      1190      1200      1210      1220      1230      1240      1250


Chain C from PDB  Type:PROTEIN  Length:253
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           UDP_ECOLI      1 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL  253
               SCOP domains d1k3fc_ C: Uridine phosphorylase                                                                                                                                                                                                                              SCOP domains
               CATH domains 1k3fC00 C:2001-2253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................ee......hhhhhhhh.eeeeeeee....eeeeeee..eeeee....hhhhhhhhhhhhhhhhh...eeee...ee.........eeeeeeeeee..hhhhh......ee.hhhhhhhhhhh.......eeeeeeeee......................hhhhhhhhh.eeeee.hhhhhhhhhhh....eeee....ee.......hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1k3f C 2001 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 2253
                                  2010      2020      2030      2040      2050      2060      2070      2080      2090      2100      2110      2120      2130      2140      2150      2160      2170      2180      2190      2200      2210      2220      2230      2240      2250


Chain D from PDB  Type:PROTEIN  Length:253
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           UDP_ECOLI      1 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL  253
               SCOP domains d1k3fd_ D: Uridine phosphorylase                                                                                                                                                                                                                              SCOP domains
               CATH domains 1k3fD00 D:3001-3253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhh...eeee...hhhhhhhh......eeeee....eeee.......eeee...hhhhhhhhhhhhhhhhh...eeeeeeeee.........eeeeeeee....hhhhh.........hhhhhhhhhhhhhhhh...eeeeeee.........................hhhhhhh....ee.hhhhhhhhhh.....eeeeeeeeee.........hhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1k3f D 3001 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 3253
                                  3010      3020      3030      3040      3050      3060      3070      3080      3090      3100      3110      3120      3130      3140      3150      3160      3170      3180      3190      3200      3210      3220      3230      3240      3250


Chain E from PDB  Type:PROTEIN  Length:253
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           UDP_ECOLI      1 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL  253
               SCOP domains d1k3fe_ E: Uridine phosphorylase                                                                                                                                                                                                                              SCOP domains
               CATH domains 1k3fE00 E:4001-4253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhh....eee..hhhhhhhhh...eeeee.........eeeee..eeeee....hhhhhhhhhhhhhhhhh...eeeeeeeee.........eeeeeeeeee..hhhhhh........hhhhhhhhhhhhhhh....eeeeeeee.................hhhhh.hhhhhhh..eeeee.hhhhhhhh.......eeeeeeeeee..........hhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1k3f E 4001 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 4253
                                  4010      4020      4030      4040      4050      4060      4070      4080      4090      4100      4110      4120      4130      4140      4150      4160      4170      4180      4190      4200      4210      4220      4230      4240      4250


Chain F from PDB  Type:PROTEIN  Length:253
 aligned with UDP_ECOLI | P12758 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           UDP_ECOLI      1 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL  253
               SCOP domains d1k3ff_ F: Uridine phosphorylase                                                                                                                                                                                                                              SCOP domains
               CATH domains 1k3fF00 F:5001-5253  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................ee...hhhhhhhhhh..eeeeeee......eeeeee..eeeee....hhhhhhhhhhhhhhhh....eeeeeeeee.........eeeeeeeee...hhhhh......ee.hhhhhhhhhhhhhhh...eeeeeeee..................hhhhhhhhhhhhh.....ee.hhhhhhhh.......eeeeeeeeee...........hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------PNP_UDP_1       ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1k3f F 5001 MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL 5253
                                  5010      5020      5030      5040      5050      5060      5070      5080      5090      5100      5110      5120      5130      5140      5150      5160      5170      5180      5190      5200      5210      5220      5230      5240      5250
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1K3F)

(-) Gene Ontology  (13, 13)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (UDP_ECOLI | P12758)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
    GO:0016763    transferase activity, transferring pentosyl groups    Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
    GO:0004850    uridine phosphorylase activity    Catalysis of the reaction: uridine + phosphate = uracil + alpha-D-ribose 1-phosphate.
biological process
    GO:0044206    UMP salvage    Any process which produces UMP, uridine monophosphate, from derivatives of it (e.g. cytidine, uridine, cytosine) without de novo synthesis.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
    GO:0009116    nucleoside metabolic process    The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
    GO:0009166    nucleotide catabolic process    The chemical reactions and pathways resulting in the breakdown of nucleotides, any nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic-nucleotides (nucleoside cyclic phosphates).
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1k3f)

  Sites
(no "Sites" information available for 1k3f)

  Cis Peptide Bonds
    Ile A:228 - Pro A:229   [ RasMol ]
    Ile B:1228 - Pro B:1229   [ RasMol ]
    Ile C:2228 - Pro C:2229   [ RasMol ]
    Ile D:3228 - Pro D:3229   [ RasMol ]
    Ile F:5228 - Pro F:5229   [ RasMol ]


(-) Still Images

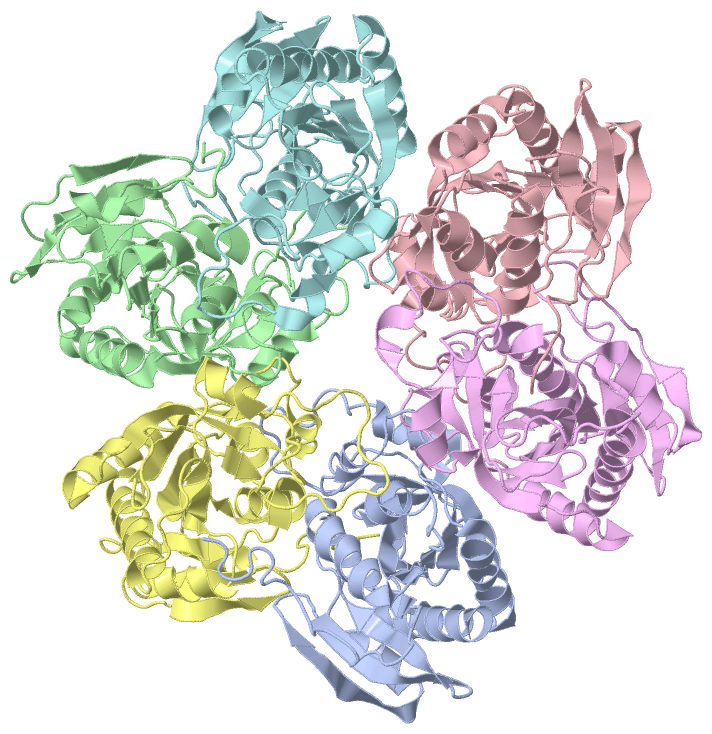

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1k3f
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  UDP_ECOLI | P12758
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.4.2.3
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  UDP_ECOLI | P12758
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        UDP_ECOLI | P12758: 1lx7 1rxc 1rxs 1rxu 1rxy 1t0u 1tgv 1tgy 1u1c 1u1d 1u1e 1u1f 1u1g 3kvv

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1K3F)
