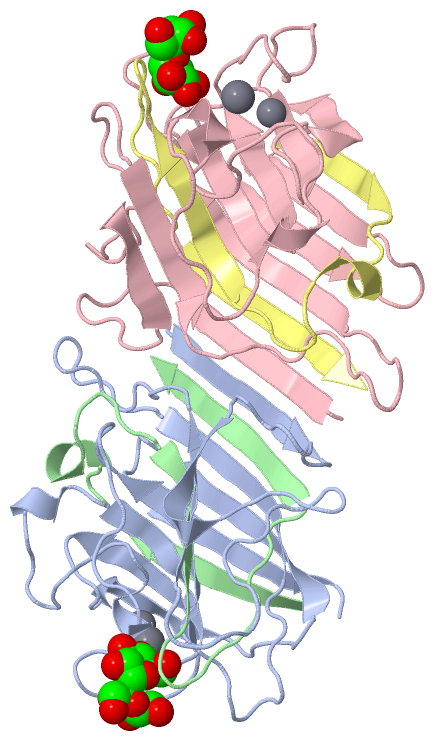

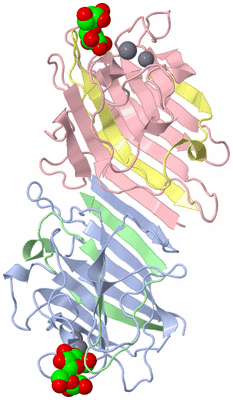

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

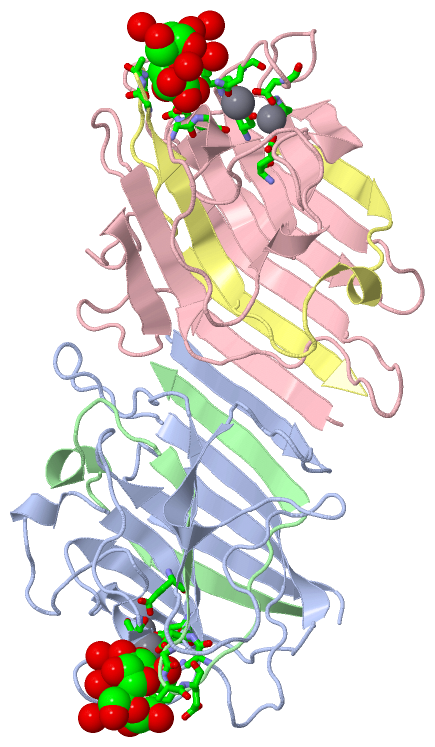

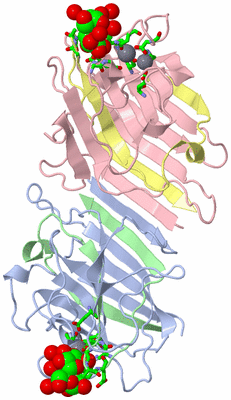

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  LENTIL LECTIN COMPLEXED WITH SUCROSE

Authors :  T. Hamelryck, R. Loris
Date :  23 Aug 95  (Deposition) - 07 Dec 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Protein-Sugar Interactions, Lectin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Casset, T. Hamelryck, R. Loris, J. R. Brisson, C. Tellier, M. H. Dao-Thi, L. Wyns, F. Poortmans, S. Perez, A. Imberty
Nmr, Molecular Modeling, And Crystallographic Studies Of Lentil Lectin-Sucrose Interaction.
J. Biol. Chem. V. 270 25619 1995
PubMed-ID: 7592736  |  Reference-DOI: 10.1074/JBC.270.43.25619
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LENTIL LECTIN
    Chains: A, C
    Organ: SEED
    Organism Common: LENTIL
    Organism Scientific: LENS CULINARIS
    Organism Taxid: 3864
    Synonym: LENS CULINARIS LECTIN

Molecule 2 - LENTIL LECTIN
    Chains: B, D
    Organ: SEED
    Organism Common: LENTIL
    Organism Scientific: LENS CULINARIS
    Organism Taxid: 3864
    Synonym: LENS CULINARIS LECTIN

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 8)

Asymmetric/Biological Unit (4, 8)
No.NameCountTypeFull Name
1CA2Ligand/IonCALCIUM ION
2FRU2Ligand/IonFRUCTOSE
3GLC2Ligand/IonALPHA-D-GLUCOSE
4MN2Ligand/IonMANGANESE (II) ION

(-) Sites  (14, 14)

Asymmetric Unit (14, 14)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREALA A:80 , ASP A:81 , GLY A:98 , GLY A:99 , ASN A:125 , FRU A:206 , HOH A:668 , HOH A:839 , GLY B:29 , ALA B:30 , GLU B:31BINDING SITE FOR RESIDUE GLC A 205
02AC2SOFTWAREPHE A:123 , GLC A:205 , HOH A:655 , HOH A:668 , HOH A:753 , ALA B:30 , GLU B:31BINDING SITE FOR RESIDUE FRU A 206
03AC3SOFTWAREALA C:80 , ASP C:81 , GLY C:98 , GLY C:99 , PHE C:123 , ASN C:125 , FRU C:208 , HOH C:780 , GLY D:29 , ALA D:30 , GLU D:31BINDING SITE FOR RESIDUE GLC C 207
04AC4SOFTWAREPHE C:123 , GLC C:207 , HOH C:647 , HOH C:773 , HOH C:780 , HOH C:797 , ALA D:30 , GLU D:31BINDING SITE FOR RESIDUE FRU C 208
05AC5SOFTWAREASP C:121 , PHE C:123 , ASN C:125 , ASP C:129 , HOH C:607 , HOH C:608BINDING SITE FOR RESIDUE CA C 201
06AC6SOFTWAREASP A:121 , PHE A:123 , ASN A:125 , ASP A:129 , HOH A:611 , HOH A:612BINDING SITE FOR RESIDUE CA A 203
07AC7SOFTWAREGLU C:119 , ASP C:121 , ASP C:129 , HIS C:136 , HOH C:609 , HOH C:610BINDING SITE FOR RESIDUE MN C 202
08AC8SOFTWAREGLU A:119 , ASP A:121 , ASP A:129 , HIS A:136 , HOH A:613 , HOH A:614BINDING SITE FOR RESIDUE MN A 204
09CA1UNKNOWNASP A:121 , PHE A:123 , ASN A:125 , ASP A:129NULL
10CA2UNKNOWNASP C:121 , PHE C:123 , ASN C:125 , ASP C:129NULL
11MN1UNKNOWNGLU A:119 , ASP A:121 , ASP A:129 , HIS A:136NULL
12MN2UNKNOWNGLU C:119 , ASP C:121 , ASP C:129 , HIS C:136NULL
13PO1UNKNOWNASP A:81 , GLY A:99 , ASN A:125NULL
14PO2UNKNOWNASP C:81 , GLY C:99 , ASN C:125NULL

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1LES)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Ala A:80 -Asp A:81
2Ala C:80 -Asp C:81

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1LES)

(-) PROSITE Motifs  (2, 4)

Asymmetric/Biological Unit (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1LECTIN_LEGUME_BETAPS00307 Legume lectins beta-chain signature.LEC_LENCU146-152
 		  2A:116-122
C:116-122
2LECTIN_LEGUME_ALPHAPS00308 Legume lectins alpha-chain signature.LEC_LENCU233-242
 		  2B:16-25
D:16-25

(-) Exons   (0, 0)

(no "Exon" information available for 1LES)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:181
 aligned with LEC_LENCU | P02870 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:181
                                    40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
            LEC_LENCU    31 TETTSFSITKFSPDQKNLIFQGDGYTTKGKLTLTKAVKSTVGRALYSTPIHIWDRDTGNVANFVTSFTFVIDAPSSYNVADEFTFFIAPVDTKPQTGGGYLGVFNSKEYDKTSQTVAVEFDTFYNAAWDPSNKERHIGIDVNSIKSVNTKSWNLQNGERANVVIAFNAATNVLTVTLTYPN 211
               SCOP domains d1les.1 A:,B: Legume lectin                                                                                                                                                           SCOP domains
               CATH domains 1lesA00 A:1-181  [code=2.60.120.200, no name defined]                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee.........eeeeee.................eeeeee...............eeeeeeee............eeeeee..........hhh..........hhh..eeeeee..............eeeeee....eeeeee......eeeeeeeee......eeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------LECTIN_----------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1les A   1 TETTSFSITKFSPDQQNLIFQGDGYTTKGKLTLTKAVKSTVGRALYSTPIHIWDRDTGNVANFVTSFTFVIDAPSSYNVADGFTFFIAPVDTKPQTGGGYLGVFNSKEYDKTSQTVAVEFDTFYNAAWDPSNKERHIGIDVNSIKSVNTKSWNLQNGERANVVIAFNAATNVLTVTLTYPN 181
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180


Chain B from PDB  Type:PROTEIN  Length:48
 aligned with LEC_LENCU | P02870 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:48
                                   227       237       247       257
            LEC_LENCU   218 VTSYTLNEVVPLKDVVPEWVRIGFSATTGAEFAAHEVHSWSFHSELGG 265
               SCOP domains d1les.1 A:,B: Legume lectin                      SCOP domains
               CATH domains ------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeee...hhhh......eeeeee...........eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------LECTIN_LEG----------------------- PROSITE
                 Transcript ------------------------------------------------ Transcript
                 1les B   1 VTSYTLNEVVPLKDVVPEWVRIGFSATTGAEFAAHEVHSWSFHSQLGH  48
                                    10        20        30        40


Chain C from PDB  Type:PROTEIN  Length:181
 aligned with LEC_LENCU | P02870 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:181
                                    40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
            LEC_LENCU    31 TETTSFSITKFSPDQKNLIFQGDGYTTKGKLTLTKAVKSTVGRALYSTPIHIWDRDTGNVANFVTSFTFVIDAPSSYNVADEFTFFIAPVDTKPQTGGGYLGVFNSKEYDKTSQTVAVEFDTFYNAAWDPSNKERHIGIDVNSIKSVNTKSWNLQNGERANVVIAFNAATNVLTVTLTYPN 211
               SCOP domains d1les.2 C:,D: Legume lectin                                                                                                                                                           SCOP domains
               CATH domains 1lesC00 C:1-181  [code=2.60.120.200, no name defined]                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee.........eeeeee.................eeeeee...............eeeeeeee............eeeeee..........hhh..........hhh..eeeeee..............eeeeee....eeeeee......eeeeeeeee......eeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------LECTIN_----------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1les C   1 TETTSFSITKFSPDQQNLIFQGDGYTTKGKLTLTKAVKSTVGRALYSTPIHIWDRDTGNVANFVTSFTFVIDAPSSYNVADGFTFFIAPVDTKPQTGGGYLGVFNSKEYDKTSQTVAVEFDTFYNAAWDPSNKERHIGIDVNSIKSVNTKSWNLQNGERANVVIAFNAATNVLTVTLTYPN 181
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180


Chain D from PDB  Type:PROTEIN  Length:48
 aligned with LEC_LENCU | P02870 from UniProtKB/Swiss-Prot  Length:275

    Alignment length:48
                                   227       237       247       257
            LEC_LENCU   218 VTSYTLNEVVPLKDVVPEWVRIGFSATTGAEFAAHEVHSWSFHSELGG 265
               SCOP domains d1les.2 C:,D: Legume lectin                      SCOP domains
               CATH domains ------------------------------------------------ CATH domains
           Pfam domains (1) Lectin_legB-1lesD01 D:1-43                 ----- Pfam domains (1)
           Pfam domains (2) Lectin_legB-1lesD02 D:1-43                 ----- Pfam domains (2)
           Pfam domains (3) Lectin_legB-1lesD03 D:1-43                 ----- Pfam domains (3)
           Pfam domains (4) Lectin_legB-1lesD04 D:1-43                 ----- Pfam domains (4)
         Sec.struct. author .eeeeeee...hhhh......eeeeee...........eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------LECTIN_LEG----------------------- PROSITE
                 Transcript ------------------------------------------------ Transcript
                 1les D   1 VTSYTLNEVVPLKDVVPEWVRIGFSATTGAEFAAHEVHSWSFHSQLGH  48
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Clan: Concanavalin (293)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (LEC_LENCU | P02870)
molecular function
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
    GO:0030145    manganese ion binding    Interacting selectively and non-covalently with manganese (Mn) ions.
    GO:0005537    mannose binding    Interacting selectively and non-covalently with mannose, a monosaccharide hexose, stereoisomeric with glucose, that occurs naturally only in polymerized forms called mannans.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0009756    carbohydrate mediated signaling    A series of molecular signals mediated by the detection of carbohydrate.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FRU  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GLC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    CA1  [ RasMol ]  +environment [ RasMol ]
    CA2  [ RasMol ]  +environment [ RasMol ]
    MN1  [ RasMol ]  +environment [ RasMol ]
    MN2  [ RasMol ]  +environment [ RasMol ]
    PO1  [ RasMol ]  +environment [ RasMol ]
    PO2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:80 - Asp A:81   [ RasMol ]
    Ala C:80 - Asp C:81   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1les
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  LEC_LENCU | P02870
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  LEC_LENCU | P02870
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        LEC_LENCU | P02870: 1lem 1len 2lal

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1LES)
