1KZQ - JenaLib

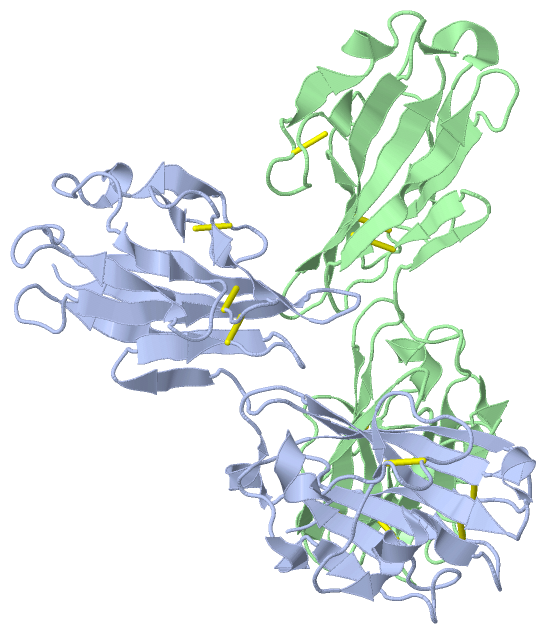

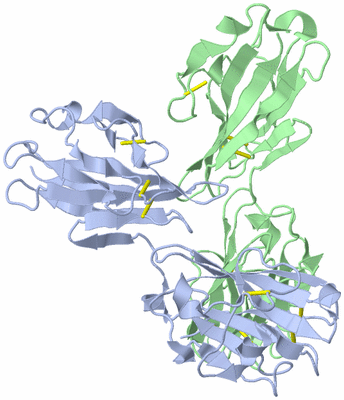

Asym./Biol. Unit (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF A PARASITE PROTEIN

Authors :   X. He, M. E. Grigg, J. C. Boothroyd, K. C. Garcia

Date :   07 Feb 02 (Deposition) - 31 Jul 02 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym./Biol. Unit : A,B

Keywords :   Sag1, Major Surface Antigen, Toxoplasma Gondii, Parasite Invasion, Crystal Structure, Mad, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   X. L. He, M. E. Grigg, J. C. Boothroyd, K. C. Garcia
Structure Of The Immunodominant Surface Antigen From The Toxoplasma Gondii Srs Superfamily.
Nat. Struct. Biol. V. 9 606 2002
PubMed-ID: 12091874
(for further references see the PDB file header)

Molecule 1 - MAJOR SURFACE ANTIGEN P30
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	TRICHOPLUSIA NI
	Expression System Cell Line	:	HIGH 5
	Expression System Common	:	CABBAGE LOOPER
	Expression System Taxid	:	7111
	Expression System Vector	:	PACG67A
	Expression System Vector Type	:	BACULOVIRUS
	Gene	:	SAG1
	Organism Scientific	:	TOXOPLASMA GONDII
	Organism Taxid	:	5811

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1KZQ)

(no "Site" information available for 1KZQ)

Asymmetric/Biological Unit

No.	Residues
1	A:12	-	A:122
2	A:34	-	A:113
3	A:54	-	A:62
4	A:142	-	A:247
5	A:167	-	A:237
6	A:182	-	A:190
7	B:12	-	B:122
8	B:34	-	B:113
9	B:54	-	B:62
10	B:142	-	B:247
11	B:167	-	B:237
12	B:182	-	B:190

Asymmetric/Biological Unit

No.	Residues
1	Glu A:41	-	Pro A:42
2	Ser A:48	-	Pro A:49
3	Gly A:151	-	Pro A:152
4	Gly A:159	-	Pro A:160
5	Val A:174	-	Pro A:175
6	Ser A:241	-	Pro A:242
7	Glu B:41	-	Pro B:42
8	Ser B:48	-	Pro B:49
9	Gly B:151	-	Pro B:152
10	Gly B:159	-	Pro B:160
11	Val B:174	-	Pro B:175
12	Ser B:241	-	Pro B:242

(no "SAP(SNP)/Variant" information available for 1KZQ)

(no "PROSITE Motif" information available for 1KZQ)

(no "Exon" information available for 1KZQ)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:253
 aligned with P30_TOXGO | P13664 from UniProtKB/Swiss-Prot  Length:336

    Alignment length:253
                                    60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
            P30_TOXGO    51 PLVANQVVTCPDKKSTAAVILTPTENHFTLKCPKTALTEPPTLAYSPNRQICPAGTTSSCTSKAVTLSSLIPEAEDSWWTGDSASLDTAGIKLTVPIEKFPVTTQTFVVGCIKGDDAQSCMVTVTVQARASSVVNNVARCSYGADSTLGPVKLSAEGPTTMTLVCGKDGVKVPQDNNQYCSGTTLTGCNEKSFKDILPKLTENPWQGNASSDKGATLTIKKEAFPAESKSVIIGCTGGSPEKHHCTVKLEFAG 303
               SCOP domains d1kzqa1 A:3-131 Major surface antigen p30, SAG1                                                                                  d1kzqa2 A:132-255 Major surface antigen p30, SAG1                                                                            SCOP domains
               CATH domains 1kzqA01 A:3-131  [code=2.60.40.1320, no name defined]                                                                            1kzqA02 A:132-255  [code=2.60.40.1320, no name defined]                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.....eeeeeee.....eeeee.....eeehhhhhh......ee............hhhhh....hhh.ee..........eeee.hhhhh....eeeeeeee..hhhh.eeeeeee.....eee..eee......eeeeeeee......eeeee....eeee.....eee.........eee.hhh........eeee.....eeeee..........eeeeeeeee.....eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1kzq A   3 PLVANQVVTCPDKKSTAAVILTPTENHFTLKCPKTALTEPPTLAYSPNRQICPAGTTSSCTSKAVTLSSLIPEAEDSWWTGDSASLDTAGIKLTVPIEKFPVTTQTFVVGCIKGDDAQSCMVTVTVQARASSVVNNVARCSYGADSTLGPVKLSAEGPTTMTLVCGKDGVKVPQDNNQYCSGTTLTGCNEKSFKDILPKLTENPWQGNASSDKGATLTIKKEAFPAESKSVIIGCTGGSPEKHHCTVKLEFAG 255
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Chain B from PDB  Type:PROTEIN  Length:253
 aligned with P30_TOXGO | P13664 from UniProtKB/Swiss-Prot  Length:336

    Alignment length:253
                                    60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
            P30_TOXGO    51 PLVANQVVTCPDKKSTAAVILTPTENHFTLKCPKTALTEPPTLAYSPNRQICPAGTTSSCTSKAVTLSSLIPEAEDSWWTGDSASLDTAGIKLTVPIEKFPVTTQTFVVGCIKGDDAQSCMVTVTVQARASSVVNNVARCSYGADSTLGPVKLSAEGPTTMTLVCGKDGVKVPQDNNQYCSGTTLTGCNEKSFKDILPKLTENPWQGNASSDKGATLTIKKEAFPAESKSVIIGCTGGSPEKHHCTVKLEFAG 303
               SCOP domains d1kzqb1 B:3-131 Major surface antigen p30, SAG1                                                                                  d1kzqb2 B:132-255 Major surface antigen p30, SAG1                                                                            SCOP domains
               CATH domains 1kzqB01 B:3-131  [code=2.60.40.1320, no name defined]                                                                            1kzqB02 B:132-255  [code=2.60.40.1320, no name defined]                                                                      CATH domains
           Pfam domains (1) -------------------------------------------------------------------------------------------------------------------------------------SAG-1kzqB01 B:136-253                                                                                                 -- Pfam domains (1)
           Pfam domains (2) -------------------------------------------------------------------------------------------------------------------------------------SAG-1kzqB02 B:136-253                                                                                                 -- Pfam domains (2)
           Pfam domains (3) -------------------------------------------------------------------------------------------------------------------------------------SAG-1kzqB03 B:136-253                                                                                                 -- Pfam domains (3)
           Pfam domains (4) -------------------------------------------------------------------------------------------------------------------------------------SAG-1kzqB04 B:136-253                                                                                                 -- Pfam domains (4)
         Sec.struct. author ....eeeee.....eeeeeee.....eeeee.....eeehhhhhh......ee............hhhhh....hhh.ee..........eeee..........eeeeeeee..hhhh.eeeeeee.....eee..eee......eeeeeeee......eeeee....eeee.....eee.........eee.hhh........eeee.....eeeee.hhhhh....eeeeeeeee.....eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1kzq B   3 PLVANQVVTCPDKKSTAAVILTPTENHFTLKCPKTALTEPPTLAYSPNRQICPAGTTSSCTSKAVTLSSLIPEAEDSWWTGDSASLDTAGIKLTVPIEKFPVTTQTFVVGCIKGDDAQSCMVTVTVQARASSVVNNVARCSYGADSTLGPVKLSAEGPTTMTLVCGKDGVKVPQDNNQYCSGTTLTGCNEKSFKDILPKLTENPWQGNASSDKGATLTIKKEAFPAESKSVIIGCTGGSPEKHHCTVKLEFAG 255
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Cupredoxin-like (545)

Superfamily: Major surface antigen p30, SAG1 (2)

Family: Major surface antigen p30, SAG1 (2)

Protein domain: Major surface antigen p30, SAG1 (1)

Toxoplasma gondii [TaxId: 5811] (1)

1a	d1kzqa1	A:3-131
1b	d1kzqa2	A:132-255
1c	d1kzqb1	B:3-131
1d	d1kzqb2	B:132-255

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Immunoglobulin-like (3897)

Homologous Superfamily: [code=2.60.40.1320, no name defined] (2)

Toxoplasma gondii. Organism_taxid: 5811. (1)

1a	1kzqA02	A:132-255
1b	1kzqB02	B:132-255
1c	1kzqA01	A:3-131
1d	1kzqB01	B:3-131

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: SAG] (5)

Family: SAG (5)

Toxoplasma gondii (5)

1a	SAG-1kzqB01	B:136-253
1b	SAG-1kzqB02	B:136-253
1c	SAG-1kzqB03	B:136-253
1d	SAG-1kzqB04	B:136-253

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (P30_TOXGO | P13664)

cellular component
	GO:0016020		membrane		A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0020003		symbiont-containing vacuole		Membrane-bounded vacuole within a host cell in which a symbiont organism resides. The vacuole membrane is derived from both the host and symbiont.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1kzq)

	Sites
(no "Sites" information available for 1kzq)

	Cis Peptide Bonds
		Glu A:41 - Pro A:42	[ RasMol ]
		Glu B:41 - Pro B:42	[ RasMol ]
		Gly A:151 - Pro A:152	[ RasMol ]
		Gly A:159 - Pro A:160	[ RasMol ]
		Gly B:151 - Pro B:152	[ RasMol ]
		Gly B:159 - Pro B:160	[ RasMol ]
		Ser A:241 - Pro A:242	[ RasMol ]
		Ser A:48 - Pro A:49	[ RasMol ]
		Ser B:241 - Pro B:242	[ RasMol ]
		Ser B:48 - Pro B:49	[ RasMol ]
		Val A:174 - Pro A:175	[ RasMol ]
		Val B:174 - Pro B:175	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1kzq
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	P30_TOXGO \| P13664
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	P30_TOXGO \| P13664
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	P30_TOXGO \| P13664	:	1ynt

(no "Related Entries Specified in the PDB File" available for 1KZQ)
