1JXN - JenaLib

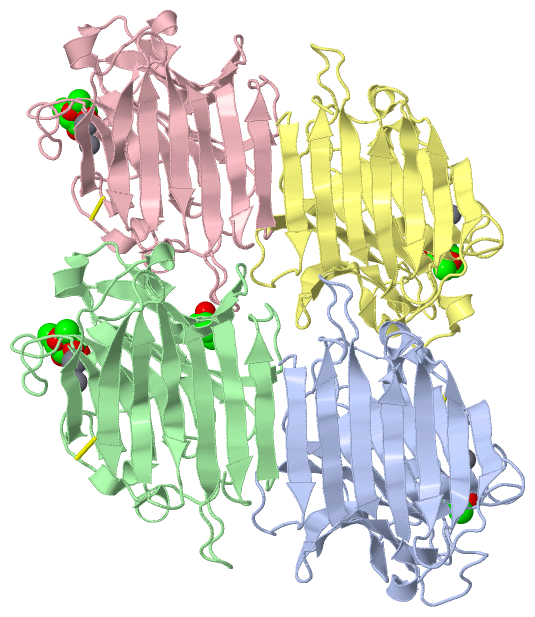

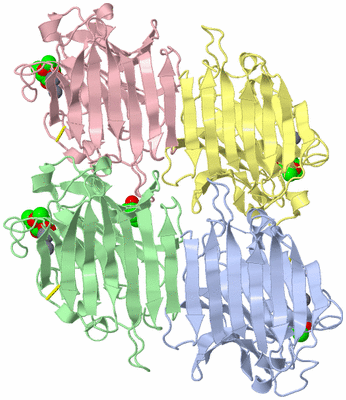

Asymmetric Unit (Jmol Viewer)

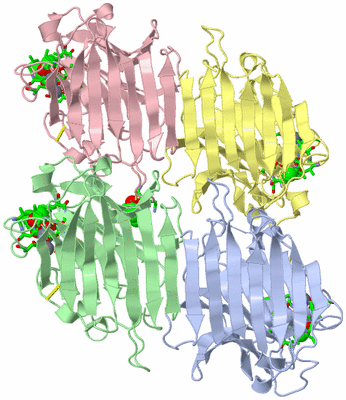

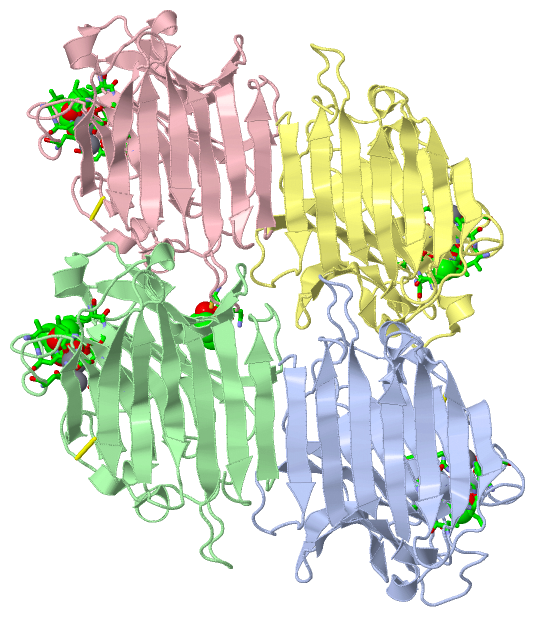

Asym. Unit - sites (Jmol Viewer)

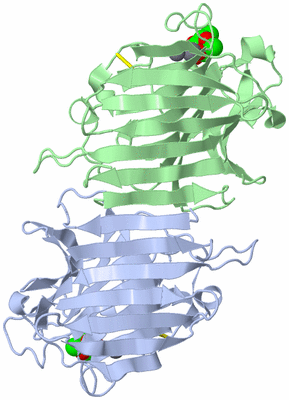

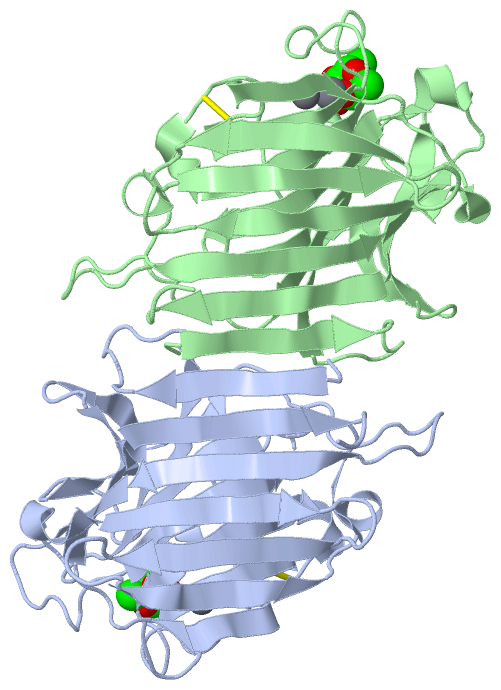

Biological Unit 1 (Jmol Viewer)

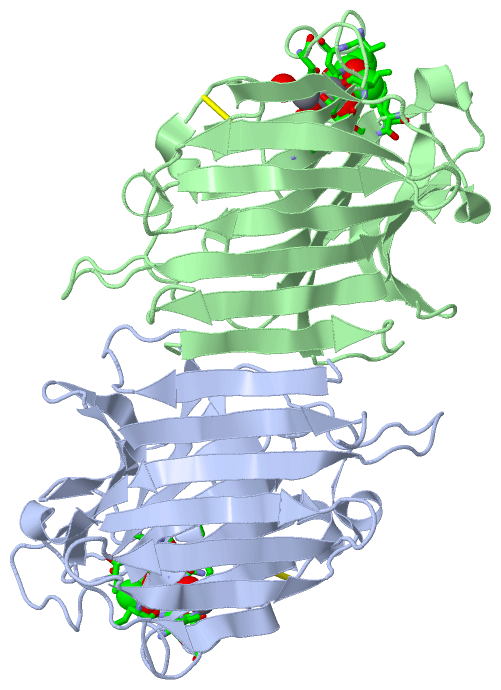

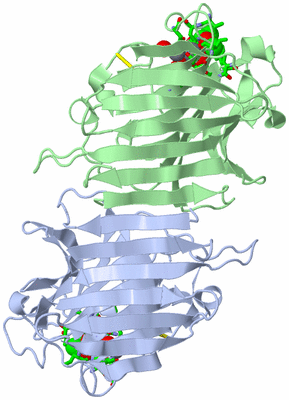

Biol. Unit 1 - sites (Jmol Viewer)

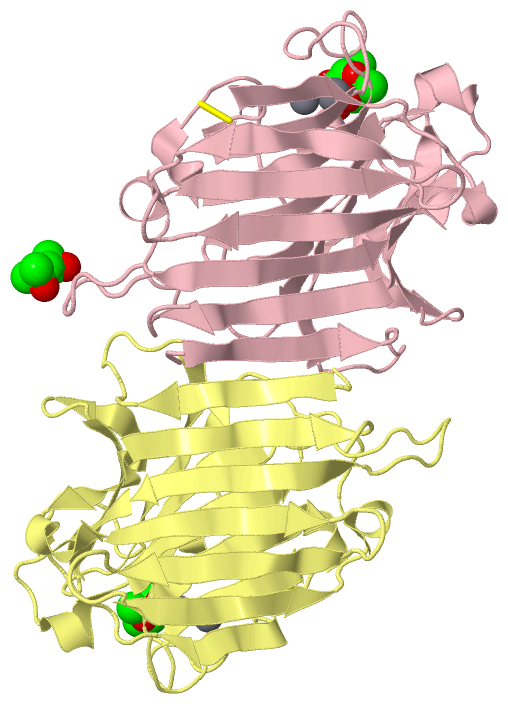

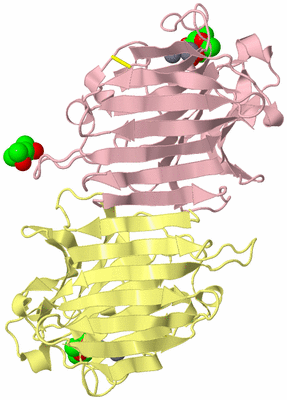

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE LECTIN I FROM ULEX EUROPAEUS IN COMPLEX WITH THE METHYL GLYCOSIDE OF ALPHA-L-FUCOSE

Authors :   G. F. Audette, D. J. H. Olson, A. R. S. Ross, J. W. Quail, L. T. J. Delbaere

Date :   07 Sep 01 (Deposition) - 06 Dec 02 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Legume Lectin, Fucose-Specific Lectin, Ue-I, Uea-I, Sugar Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   G. F. Audette, D. J. H. Olson, A. R. S. Ross, J. W. Quail, L. T. J. Delbaere
Examination Of The Structural Basis For O(H) Blood Group Specificity By Ulex Europaeus Lectin I
Can. J. Chem. V. 80 1010 2002
PubMed: search | Reference-DOI: 10.1139/V02-134
(for further references see the PDB file header)

Molecule 1 - ANTI-H(O) LECTIN I
	Chains	:	A, B, C, D
	Organ	:	SEEDS
	Organism Common	:	FURZE
	Organism Scientific	:	ULEX EUROPAEUS
	Organism Taxid	:	3902
	Synonym	:	UEA-I

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (4, 13)

No.	Name	Count	Type	Full Name
1	CA	4	Ligand/Ion	CALCIUM ION
2	MFU	4	Ligand/Ion	ALPHA-L-METHYL-FUCOSE
3	MN	4	Ligand/Ion	MANGANESE (II) ION
4	MRD	1	Ligand/Ion	(4R)-2-METHYLPENTANE-2,4-DIOL

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION
2	MFU	2	Ligand/Ion	ALPHA-L-METHYL-FUCOSE
3	MN	-1	Ligand/Ion	MANGANESE (II) ION
4	MRD	-1	Ligand/Ion	(4R)-2-METHYLPENTANE-2,4-DIOL

Biological Unit 2 (2, 3)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION
2	MFU	2	Ligand/Ion	ALPHA-L-METHYL-FUCOSE
3	MN	-1	Ligand/Ion	MANGANESE (II) ION
4	MRD	1	Ligand/Ion	(4R)-2-METHYLPENTANE-2,4-DIOL

Asymmetric Unit (13, 13)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLU A:44 , THR A:86 , ASP A:87 , ARG A:102 , ALA A:103 , GLY A:104 , GLY A:105 , ASN A:134	BINDING SITE FOR RESIDUE MFU A 501
02	AC2	SOFTWARE	GLU B:44 , THR B:86 , ASP B:87 , GLY B:104 , GLY B:105 , VAL B:133 , ASN B:134 , TYR B:219	BINDING SITE FOR RESIDUE MFU B 602
03	AC3	SOFTWARE	GLU C:44 , THR C:86 , ASP C:87 , ARG C:102 , GLY C:104 , GLY C:105 , TYR C:106 , VAL C:133 , ASN C:134 , TYR C:219	BINDING SITE FOR RESIDUE MFU C 703
04	AC4	SOFTWARE	GLU D:44 , THR D:86 , ASP D:87 , GLY D:105 , VAL D:133 , ASN D:134 , TYR D:219	BINDING SITE FOR RESIDUE MFU D 804
05	AC5	SOFTWARE	GLU A:125 , ASP A:127 , ASP A:137 , HIS A:142 , HOH A:515 , HOH A:516	BINDING SITE FOR RESIDUE MN A 245
06	AC6	SOFTWARE	GLU B:125 , ASP B:127 , ASP B:137 , HIS B:142 , HOH B:620 , HOH B:642	BINDING SITE FOR RESIDUE MN B 245
07	AC7	SOFTWARE	GLU C:125 , ASP C:127 , ASP C:137 , HIS C:142 , HOH C:918 , HOH C:919	BINDING SITE FOR RESIDUE MN C 245
08	AC8	SOFTWARE	GLU D:125 , ASP D:127 , ASP D:137 , HIS D:142 , HOH D:822 , HOH D:823	BINDING SITE FOR RESIDUE MN D 245
09	AC9	SOFTWARE	ASP A:127 , ILE A:129 , ASN A:134 , ASP A:137 , HOH A:517 , HOH A:518	BINDING SITE FOR RESIDUE CA A 246
10	BC1	SOFTWARE	ASP B:127 , ILE B:129 , ASN B:134 , ASP B:137 , HOH B:618 , HOH B:641	BINDING SITE FOR RESIDUE CA B 246
11	BC2	SOFTWARE	ASP C:127 , ILE C:129 , ASN C:134 , ASP C:137 , HOH C:916 , HOH C:917	BINDING SITE FOR RESIDUE CA C 246
12	BC3	SOFTWARE	ASP D:127 , ILE D:129 , ASN D:134 , ASP D:137 , HOH D:820 , HOH D:821	BINDING SITE FOR RESIDUE CA D 246
13	BC4	SOFTWARE	CYS C:60 , ASN C:61	BINDING SITE FOR RESIDUE MRD C 901

Asymmetric Unit

No.	Residues
1	A:115	-	A:149
2	B:115	-	B:149
3	C:115	-	C:149
4	D:115	-	D:149

Asymmetric Unit

No.	Residues
1	Thr A:86	-	Asp A:87
2	Ser A:131	-	Pro A:132
3	Thr B:86	-	Asp B:87
4	Ser B:131	-	Pro B:132
5	Thr C:86	-	Asp C:87
6	Ser C:131	-	Pro C:132
7	Thr D:86	-	Asp D:87
8	Ser D:131	-	Pro D:132

(no "SAP(SNP)/Variant" information available for 1JXN)

Asymmetric Unit (2, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LECTIN_LEGUME_BETA	PS00307	Legume lectins beta-chain signature.	LEC1_ULEEU	123-129	4	A:122-128 B:122-128 C:122-128 D:122-128
2	LECTIN_LEGUME_ALPHA	PS00308	Legume lectins alpha-chain signature.	LEC1_ULEEU	207-216	4	A:206-215 B:206-215 C:206-215 D:206-215

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LECTIN_LEGUME_BETA	PS00307	Legume lectins beta-chain signature.	LEC1_ULEEU	123-129	2	A:122-128 B:122-128 - -
2	LECTIN_LEGUME_ALPHA	PS00308	Legume lectins alpha-chain signature.	LEC1_ULEEU	207-216	2	A:206-215 B:206-215 - -

Biological Unit 2 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LECTIN_LEGUME_BETA	PS00307	Legume lectins beta-chain signature.	LEC1_ULEEU	123-129	2	- - C:122-128 D:122-128
2	LECTIN_LEGUME_ALPHA	PS00308	Legume lectins alpha-chain signature.	LEC1_ULEEU	207-216	2	- - C:206-215 D:206-215

(no "Exon" information available for 1JXN)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:240
 aligned with LEC1_ULEEU | P22972 from UniProtKB/Swiss-Prot  Length:243

    Alignment length:241
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
           LEC1_ULEEU     1 SDDLSFKFKNFSQNGKDLSFQGDASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGEVASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFEDTKDNDSSYQTVAVEFDTIGSPVNFDDPGFPHIGIDVNRVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGGTYIGRQATHEVLNWYFTSNLINT 241
               SCOP domains d1jxna_ A: Legume lectin                                                                                                                                                                                                                          SCOP domains
               CATH domains 1jxnA00 A:1-240  [code=2.60.120.200, no name defined]                                                                                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee........eeeeeeeeeee...eeeeeee.......eeeeeee..............eeeeeeeeeeee.........eeeeeeee........hhhhh.......-.hhhhheeeeeeee.............eeeeeee....eeeee.....hhhhheeeeeee.....eeeeeee.....eeeeeee..hhhhhh.....eeeeeee....eeeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------LECTIN_-----------------------------------------------------------------------------LECTIN_LEG------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jxn A   1 SDDLSFKFKNFSQNGKDLSFQGNASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGELASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFNDTK-CDSSYQTVAVEFDTIGSPVNFWDPGFPHIGIDVNCVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGSTYIGRQATHEVLNWYFTSTFINT 240
                                    10        20        30        40        50        60        70        80        90       100       110   | | 119       129       139       149       159       169       179       189       199       209       219       229       239
                                                                                                                                           114 |
                                                                                                                                             115

Chain B from PDB  Type:PROTEIN  Length:240
 aligned with LEC1_ULEEU | P22972 from UniProtKB/Swiss-Prot  Length:243

    Alignment length:241
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
           LEC1_ULEEU     1 SDDLSFKFKNFSQNGKDLSFQGDASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGEVASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFEDTKDNDSSYQTVAVEFDTIGSPVNFDDPGFPHIGIDVNRVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGGTYIGRQATHEVLNWYFTSNLINT 241
               SCOP domains d1jxnb_ B: Legume lectin                                                                                                                                                                                                                          SCOP domains
               CATH domains 1jxnB00 B:1-240  [code=2.60.120.200, no name defined]                                                                                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee........eeeeeeeeeee...eeeeeee.......eeeeeee..............eeeeeeeeeeee...hhhhh.eeeeeeee........hhhhh.......-.hhhhheeeeeeee.............eeeeeee....eeeee.....hhhhheeeeeee.....eeeeeee.....eeeeeee..hhhhh......eeeeeee....eeeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------LECTIN_-----------------------------------------------------------------------------LECTIN_LEG------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jxn B   1 SDDLSFKFKNFSQNGKDLSFQGNASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGELASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFNDTK-CDSSYQTVAVEFDTIGSPVNFWDPGFPHIGIDVNCVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGSTYIGRQATHEVLNWYFTSTFINT 240
                                    10        20        30        40        50        60        70        80        90       100       110   | | 119       129       139       149       159       169       179       189       199       209       219       229       239
                                                                                                                                           114 |
                                                                                                                                             115

Chain C from PDB  Type:PROTEIN  Length:240
 aligned with LEC1_ULEEU | P22972 from UniProtKB/Swiss-Prot  Length:243

    Alignment length:241
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
           LEC1_ULEEU     1 SDDLSFKFKNFSQNGKDLSFQGDASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGEVASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFEDTKDNDSSYQTVAVEFDTIGSPVNFDDPGFPHIGIDVNRVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGGTYIGRQATHEVLNWYFTSNLINT 241
               SCOP domains d1jxnc_ C: Legume lectin                                                                                                                                                                                                                          SCOP domains
               CATH domains 1jxnC00 C:1-240  [code=2.60.120.200, no name defined]                                                                                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee........eeeeeeeeeee...eeeeeee.......eeeeeee..............eeeeeeeeeeee...hhhhh.eeeeeeee........hhhhh.......-.hhhhheeeeeeee.............eeeeeee....eeeee.....hhhhheeeeeee.....eeeeeee.....eeeeeee..hhhhh......eeeeeee....eeeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------LECTIN_-----------------------------------------------------------------------------LECTIN_LEG------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jxn C   1 SDDLSFKFKNFSQNGKDLSFQGNASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGELASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFNDTK-CDSSYQTVAVEFDTIGSPVNFWDPGFPHIGIDVNCVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGSTYIGRQATHEVLNWYFTSTFINT 240
                                    10        20        30        40        50        60        70        80        90       100       110   | | 119       129       139       149       159       169       179       189       199       209       219       229       239
                                                                                                                                           114 |
                                                                                                                                             115

Chain D from PDB  Type:PROTEIN  Length:239
 aligned with LEC1_ULEEU | P22972 from UniProtKB/Swiss-Prot  Length:243

    Alignment length:240
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
           LEC1_ULEEU     1 SDDLSFKFKNFSQNGKDLSFQGDASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGEVASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFEDTKDNDSSYQTVAVEFDTIGSPVNFDDPGFPHIGIDVNRVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGGTYIGRQATHEVLNWYFTSNLIN 240
               SCOP domains d1jxnd_ D: Legume lectin                                                                                                                                                                                                                         SCOP domains
               CATH domains 1jxnD00 D:1-239  [code=2.60.120.200, no name defined]                                                                                                                                                                                            CATH domains
           Pfam domains (1) -Lectin_legB-1jxnD01 D:2-234                                                                                      -                                                                                                                        ----- Pfam domains (1)
           Pfam domains (2) -Lectin_legB-1jxnD02 D:2-234                                                                                      -                                                                                                                        ----- Pfam domains (2)
           Pfam domains (3) -Lectin_legB-1jxnD03 D:2-234                                                                                      -                                                                                                                        ----- Pfam domains (3)
           Pfam domains (4) -Lectin_legB-1jxnD04 D:2-234                                                                                      -                                                                                                                        ----- Pfam domains (4)
         Sec.struct. author ..eeeeee........eeeeeeeeeee...eeeeeee.......eeeeeee..............eeeeeeeeeeee...hhhhh.eeeeeeee........hhhhh.......-.hhhhheeeeeeee.............eeeeeee....eeeee.....hhhhheeeeeee.....eeeeeee.....eeeeeee..hhhhh......eeeeeee....eeeeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------LECTIN_-----------------------------------------------------------------------------LECTIN_LEG------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1jxn D   1 SDDLSFKFKNFSQNGKDLSFQGNASVIETGVLQLNKVGNNLPDETGGIARYIAPIHIWNCNTGELASFITSFSFFMETSANPKAATDGLTFFLAPPDSPLRRAGGYFGLFNDTK-CDSSYQTVAVEFDTIGSPVNFWDPGFPHIGIDVNCVKSINAERWNKRYGLNNVANVEIIYEASSKTLTASLTYPSDQTSISVTSIVDLKEILPEWVSVGFSGSTYIGRQATHEVLNWYFTSTFIN 239
                                    10        20        30        40        50        60        70        80        90       100       110   | | 119       129       139       149       159       169       179       189       199       209       219       229       239
                                                                                                                                           114 |
                                                                                                                                             115

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Concanavalin A-like lectins/glucanases (797)

Superfamily: Concanavalin A-like lectins/glucanases (797)

Family: Legume lectins (238)

Protein domain: Legume lectin (110)

Furze (Ulex europaeus), UEA-I [TaxId: 3902] (2)

1a	d1jxna_	A:
1b	d1jxnb_	B:
1c	d1jxnc_	C:
1d	d1jxnd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Jelly Rolls (1293)

Homologous Superfamily: [code=2.60.120.200, no name defined] (421)

Furze (Ulex europaeus) (7)

1a	1jxnD00	D:1-239
1b	1jxnA00	A:1-240
1c	1jxnB00	B:1-240
1d	1jxnC00	C:1-240

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Concanavalin (293)

Family: Lectin_legB (93)

Ulex europaeus (Furze) (4)

1a	Lectin_legB-1jxnD01	D:2-234
1b	Lectin_legB-1jxnD02	D:2-234
1c	Lectin_legB-1jxnD03	D:2-234
1d	Lectin_legB-1jxnD04	D:2-234

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (LEC1_ULEEU | P22972)

molecular function
	GO:0030246		carbohydrate binding		Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
	GO:0046872		metal ion binding		Interacting selectively and non-covalently with any metal ion.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MFU	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MRD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ser A:131 - Pro A:132	[ RasMol ]
		Ser B:131 - Pro B:132	[ RasMol ]
		Ser C:131 - Pro C:132	[ RasMol ]
		Ser D:131 - Pro D:132	[ RasMol ]
		Thr A:86 - Asp A:87	[ RasMol ]
		Thr B:86 - Asp B:87	[ RasMol ]
		Thr C:86 - Asp C:87	[ RasMol ]
		Thr D:86 - Asp D:87	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1jxn
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	LEC1_ULEEU \| P22972
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	LEC1_ULEEU \| P22972
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	LEC1_ULEEU \| P22972	:	1fx5

1fx5	CRYSTAL STRUCTURE ANALYSIS OF THE NATIVE LECTIN I FROM ULEX EUROPEAUS

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 13)

Sites (13, 13)

SS Bonds (4, 4)

Cis Peptide Bonds (8, 8)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 8)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (2, 2)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
