1JN6 - JenaLib

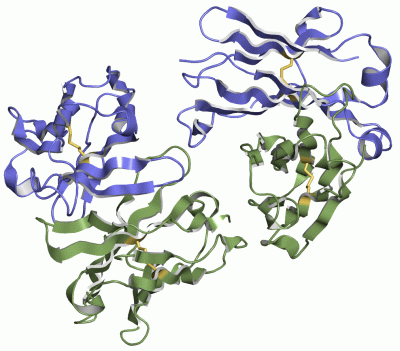

Asym./Biol. Unit - manually (Jmol Viewer)

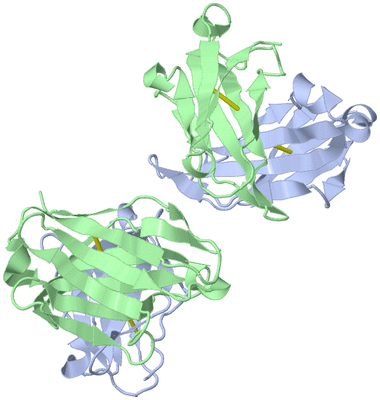

Asym./Biol. Unit (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF FAB-ESTRADIOL COMPLEXES

Authors :   C. Monnet, F. Bettsworth, E. A. Stura, M. -H. Le Du, R. Menez, L. Derrien Justin, B. Gilquin, G. Sibai, N. Battail-Poirot, M. Jolivet, A. Menez M. Arnaud, F. Ducancel, J. B. Charbonnier

Date :   23 Jul 01 (Deposition) - 06 Feb 02 (Release) - 28 Jun 17 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.70

Chains :   Asym./Biol. Unit : A,B

Keywords :   Igg Fold, Antibody-Hapten Complex, Estradiol, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. Monnet, F. Bettsworth, E. A. Stura, M. H. Du, R. Menez, L. Derrien, S. Zinn-Justin, B. Gilquin, G. Sibai, N. Battail-Poirot, M. Jolivet, A. Menez, M. Arnaud, F. Ducancel, J. B. Charbonnier
Highly Specific Anti-Estradiol Antibodies: Structural Characterisation And Binding Diversity.
J. Mol. Biol. V. 315 699 2002
PubMed-ID: 11812141 | Reference-DOI: 10.1006/JMBI.2001.5284

Molecule 1 - MONOCLONAL ANTI-ESTRADIOL 10G6D6 FAB LIGHT CHAIN
	Chains	:	A
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090
	Other Details	:	ASCETIC FLUID
	Synonym	:	FAB 10G6 LIGHT CHAIN

Molecule 2 - MONOCLONAL ANTI-ESTRADIOL 10G6D6 FAB HEAVY CHAIN
	Chains	:	B
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090
	Other Details	:	ASCETIC FLUID
	Synonym	:	FAB 10G6 HEAVY CHAIN

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1JN6)

(no "Site" information available for 1JN6)

Asymmetric/Biological Unit

No.	Residues
1	A:22	-	A:90
2	A:137	-	A:196
3	B:22	-	B:96
4	B:145	-	B:200

Asymmetric/Biological Unit

No.	Residues
1	Tyr A:143	-	Pro A:144
2	Phe B:151	-	Pro B:152
3	Glu B:153	-	Pro B:154
4	Trp B:193	-	Pro B:194

(no "SAP(SNP)/Variant" information available for 1JN6)

Asymmetric/Biological Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	IG_MHC	PS00290	Immunoglobulins and major histocompatibility complex proteins signature.	LAC1_MOUSE	84-90	1	A:194-200

(no "Exon" information available for 1JN6)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:206
 aligned with LAC1_MOUSE | P01843 from UniProtKB/Swiss-Prot  Length:105

    Alignment length:206
                                                                                     2
                                                                                    1|                                                  3
                                     -         -         -         -         -      || -         -         -         -         -        |4        14        24        34        44        54        64        74        84        94
           LAC1_MOUSE     - --------------------------------------------------------QP--------------------------------------------------KSSPSVTLFPPSSEELETNKATLVCTITDFYPGVVTVDWKVDGTPVTQGMETTQPSKQSNNKYMASSYLTLTARAWERHSSYSCQVTHEGHTVEKSLS 100
               SCOP domains d1jn6a1 A:1-108 Immunoglobulin light chain lambda variable domain, VL-lambda                                d1jn6a2 A:113-210 Immunoglobulin light chain lambda constant domain, CL-lambda                     SCOP domains
               CATH domains 1jn6A01 A:1-113 Immunoglobulins                                                                              1jn6A02 A:114-209 Immunoglobulins                                                               - CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------C1-set-1jn6A01 A:122-208                                                               -- Pfam domains
         Sec.struct. author ........eee.....eeeeee.......hhhhh.eeeeee...eeeeee.............eeeeee..eeeeeee..hhhhheeeeeeee....eee...eeee.....eeeee..hhhhhh..eeeeeeeeeee.....eeeeee..eee...eee...eee...eeeeeeeeeeehhhhhhh..eeeeeee..eeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------IG_MHC ---------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jn6 A   1 QAVVTQESALTTSPGETVTLTCRSSSGAITTSHYANWIQEKPDHLFTGLISGTNNRAPGVPARFSGSLIGDKAALTITGAQTEDEAIYICALWFSNQFIFGSGTKVTVKSSPSVTLFPPSSEELETNKATLVCTITDFYPGVVTVDWKVDGTPVTQGMETTQPSKQSNNKYMASSYLTLTARAWERHSSYSCQVTHEGHTVEKSLS 210
                                    10        20        30        40        50        60        70        80        90       100       114       124       134       144       154       164       174       184       194       204
                                                                                                                                     108|
                                                                                                                                      113

Chain B from PDB  Type:PROTEIN  Length:214
 aligned with Q6PF95_MOUSE | Q6PF95 from UniProtKB/TrEMBL  Length:464

    Alignment length:218
                                                                                                                            118  119
                                    29        39        49        59        69        79        89        99       109        |-   |   125       135       145       155       165       175       185       195       205       215       225
         Q6PF95_MOUSE    20 QVQLKQSGAELVRPGASVKLSCKASGYIFTSYWIHWVKQRSGQGLEWIARIYPGTGSTYYNEKFKGKATLTADKSSSTAFMQLSSLKSEDSAVYFCAYG----YDALYWGQGTPITVSSAKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPVVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEP 233
               SCOP domains d1jn6b1 B:1-117 Immunoglobulin heavy chain variable domain, VH                                                       ----d1jn6b2 B:121-217 Immunoglobulin heavy chain gamma constant domain 1, CH1-gamma                   SCOP domains
               CATH domains 1jn6B01 B:1-121 Immunoglobulins                                                                                           1jn6B02 B:122-216 Immunoglobulins                                                              - CATH domains
               Pfam domains -V-set-1jn6B02 B:2-117                                                                                               --------------C1-set-1jn6B01 B:131-212                                                          ----- Pfam domains
         Sec.struct. author ..eeee...ee......eeeeeeee..hhhhheeeeeee......eeeeeee....eeee.......eeeeee....eeeeee...hhhhheeeeeeeeee..eeeeee...eeee.----....eeeee..........eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee.hhh....eeeeee.hhhh.eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jn6 B   1 EVQLQQSGAELARPGASVKLSCRTSGYSFTTYWMQWVRQRPGQGLEWIAAIYPGDDDARYTQKFKGKATLTADRSSSIVYLQLNSLTSEDSAVYSCSRGRSLYYTMDYWGQGTSVTV----TTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVSWNTGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVP 217
                                    10        20        30        40        50        60        70        80        90       100       110      |  - |     129       139       149       159       169       179       189       199       209
                                                                                                                                              117  121

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Immunoglobulin-like (3897)

Homologous Superfamily: Immunoglobulins (2282)

House mouse (Mus musculus) (616)

1a	1jn6B01	B:1-121
1b	1jn6B02	B:122-216
1c	1jn6A01	A:1-113
1d	1jn6A02	A:114-209

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Ig (577)

Family: C1-set (338)

Mus musculus (Mouse) (118)

1a	C1-set-1jn6A01	A:122-208
1b	C1-set-1jn6B01	B:131-212

Family: V-set (144)

Mus musculus (Mouse) (63)

V-set-1jn6B02

B:2-117

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (LAC1_MOUSE | P01843)

molecular function
	GO:0003823	antigen binding	Interacting selectively and non-covalently with an antigen, any substance which is capable of inducing a specific immune response and of reacting with the products of that response, the specific antibody or specifically sensitized T-lymphocytes, or both. Binding may counteract the biological activity of the antigen.
cellular component
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Chain B (Q6PF95_MOUSE | Q6PF95)

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1jn6)

	Sites
(no "Sites" information available for 1jn6)

	Cis Peptide Bonds
		Glu B:153 - Pro B:154	[ RasMol ]
		Phe B:151 - Pro B:152	[ RasMol ]
		Trp B:193 - Pro B:194	[ RasMol ]
		Tyr A:143 - Pro A:144	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1jn6
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	LAC1_MOUSE \| P01843
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	Q6PF95_MOUSE \| Q6PF95
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	LAC1_MOUSE \| P01843
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	Q6PF95_MOUSE \| Q6PF95
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	LAC1_MOUSE \| P01843	:	1jnh
UniProtKB/TrEMBL
	Q6PF95_MOUSE \| Q6PF95	:	1ejo 1xgy 2a6k 2gsi
