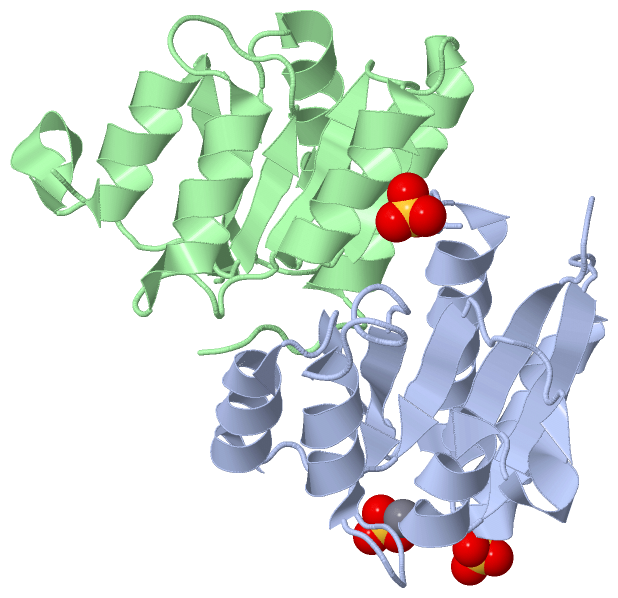

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

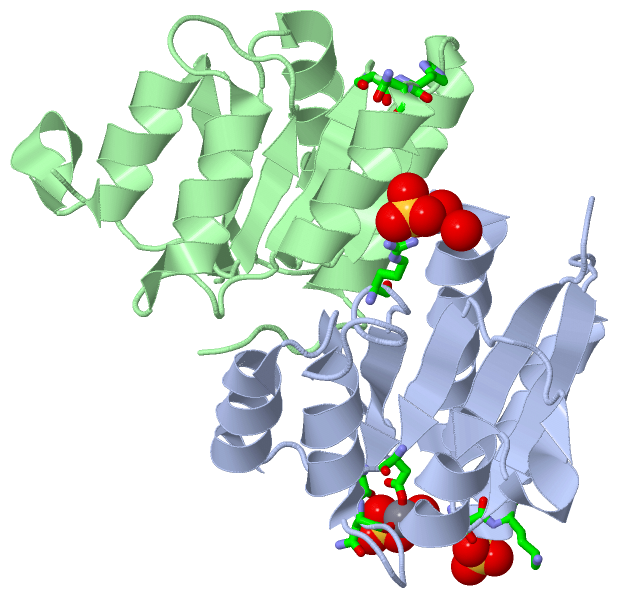

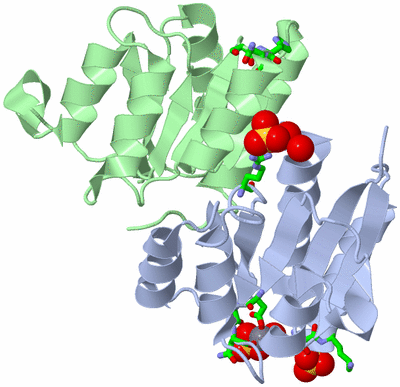

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE MN(2+)-BOUND FORM OF RESPONSE REGULATOR RCP1

Authors :  Y. J. Im, S. -H. Rho, C. -M. Park, S. -S. Yang, J. -G. Kang, J. Y. Lee, P. -S. S S. H. Eom
Date :  16 Jul 01  (Deposition) - 13 Mar 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Response Regulator, Two-Component System, Cyanobacterial Phytochrome, Rcp1, Cph1, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. J. Im, S. H. Rho, C. M. Park, S. S. Yang, J. G. Kang, J. Y. Lee, P. S. Song, S. H. Eom
Crystal Structure Of A Cyanobacterial Phytochrome Response Regulator.
Protein Sci. V. 11 614 2002
PubMed-ID: 11847283  |  Reference-DOI: 10.1110/PS.39102

(-) Compounds

Molecule 1 - RESPONSE REGULATOR RCP1
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PTYB2
    Expression System Strain: ER2566
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: SYNECHOCYSTIS SP.
    Organism Taxid: 1148
    Strain: PCC 6803

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric/Biological Unit (2, 4)
No.NameCountTypeFull Name
1MN1Ligand/IonMANGANESE (II) ION
2SO43Ligand/IonSULFATE ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:16 , ASP A:68 , ASN A:70 , THR A:99 , MN A:627 , HOH A:645 , HOH A:671 , SER B:100 , HIS B:101 , ASN B:102BINDING SITE FOR RESIDUE SO4 A 624
2AC2SOFTWAREARG A:91 , HOH A:634 , HOH A:675 , HOH B:162BINDING SITE FOR RESIDUE SO4 A 625
3AC3SOFTWARESER A:17 , LYS A:18 , ALA A:19 , HIS B:101BINDING SITE FOR RESIDUE SO4 A 626
4AC4SOFTWAREASP A:16 , ASP A:68 , ASN A:70 , SO4 A:624 , HOH A:671BINDING SITE FOR RESIDUE MN A 627

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JLK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JLK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JLK)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RESPONSE_REGULATORYPS50110 Response regulatory domain profile.RCP1_SYNY310-135
 		  2A:10-135
B:10-135

(-) Exons   (0, 0)

(no "Exon" information available for 1JLK)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:141
 aligned with RCP1_SYNY3 | Q55169 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:141
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145
           RCP1_SYNY3     6 NPPKVILLVEDSKADSRLVQEVLKTSTIDHELIILRDGLAAMAFLQQQGEYENSPRPNLILLDLNLPKKDGREVLAEIKQNPDLKRIPVVVLTTSHNEDDVIASYELHVNCYLTKSRNLKDLFKMVQGIESFWLETVTLPA 146
               SCOP domains d1jlka_ A: Response regulator for cyanobacterial phytochrome                                                                                  SCOP domains
               CATH domains 1jlkA00 A:6-146  [code=3.40.50.2300, no name defined]                                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee..hhhhhhhhhhhhhh....eeeeee.hhhhhhhhhh.hhhhh......eeee.......hhhhhhhhhh.........eeeee...hhhhhhhhhhh...eeee...hhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----RESPONSE_REGULATORY  PDB: A:10-135 UniProt: 10-135                                                                            ----------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jlk A   6 NPPKVILLVEDSKADSRLVQEVLKTSTIDHELIILRDGLAAMAFLQQQGEYENSPRPNLILLDLNLPKKDGREVLAEIKQNPDLKRIPVVVLTTSHNEDDVIASYELHVNCYLTKSRNLKDLFKMVQGIESFWLETVTLPA 146
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145


Chain B from PDB  Type:PROTEIN  Length:139
 aligned with RCP1_SYNY3 | Q55169 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:139
                                    17        27        37        47        57        67        77        87        97       107       117       127       137
           RCP1_SYNY3     8 PKVILLVEDSKADSRLVQEVLKTSTIDHELIILRDGLAAMAFLQQQGEYENSPRPNLILLDLNLPKKDGREVLAEIKQNPDLKRIPVVVLTTSHNEDDVIASYELHVNCYLTKSRNLKDLFKMVQGIESFWLETVTLPA 146
               SCOP domains d1jlkb_ B: Response regulator for cyanobacterial phytochrome                                                                                SCOP domains
               CATH domains 1jlkB00 B:8-146  [code=3.40.50.2300, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..hhhhhhhhhhhhh.....eeeeee.hhhhhhhhhh.hhhhh......eeee.......hhhhhhhhhhhh.......eeeee...hhhhhhhhhhh...eeee...hhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --RESPONSE_REGULATORY  PDB: B:10-135 UniProt: 10-135                                                                            ----------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jlk B   8 PKVILLVEDSKADSRLVQEVLKTSTIDHELIILRDGLAAMAFLQQQGEYENSPRPNLILLDLNLPKKDGREVLAEIKQNPDLKRIPVVVLTTSHNEDDVIASYELHVNCYLTKSRNLKDLFKMVQGIESFWLETVTLPA 146
                                    17        27        37        47        57        67        77        87        97       107       117       127       137
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1JLK)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (RCP1_SYNY3 | Q55169)
molecular function
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1jlk)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1jlk
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RCP1_SYNY3 | Q55169
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RCP1_SYNY3 | Q55169
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RCP1_SYNY3 | Q55169: 1i3c

(-) Related Entries Specified in the PDB File

1i3c 1I3C CONTAINS THE SAME PROTEIN WHICH DOES NOT CONTAIN METAL ION.
