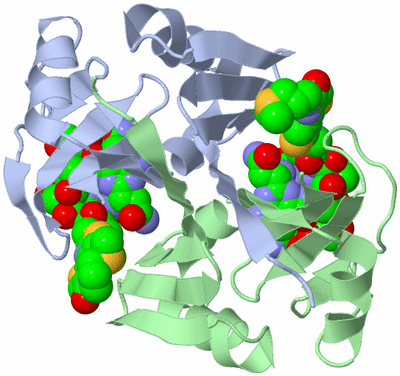

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

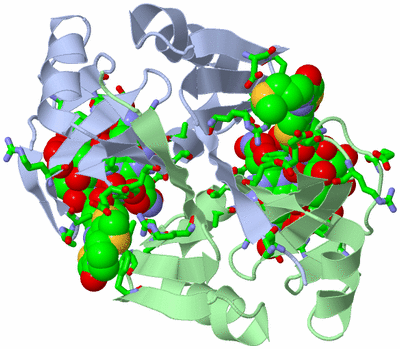

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BLEOMYCIN-BINDING PROTEIN FROM BLEOMYCIN-PRODUCING STREPTOMYCES VERTICILLUS COMPLEXED WITH METAL-FREE BLEOMYCIN

Authors :  M. Sugiyama, T. Kumagai, M. Hayashida, M. Maruyama, Y. Matoba
Date :  02 Jul 01  (Deposition) - 06 Feb 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Protein-Ligand Complex, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Sugiyama, T. Kumagai, M. Hayashida, M. Maruyama, Y. Matoba
The 1. 6-A Crystal Structure Of The Copper(Ii)-Bound Bleomycin Complexed With The Bleomycin-Binding Protein From Bleomycin-Producing Streptomyces Verticillus.
J. Biol. Chem. V. 277 2311 2002
PubMed-ID: 11706014  |  Reference-DOI: 10.1074/JBC.M103278200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BLEOMYCIN-BINDING PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PKKTRP
    Expression System Strain: HB101
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: BLMA
    Organism Scientific: STREPTOMYCES VERTICILLUS
    Organism Taxid: 29309

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1BLM2Ligand/IonBLEOMYCIN A2

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:3 , ASP A:32 , PHE A:33 , PHE A:38 , ARG A:47 , SER A:51 , ARG A:52 , ARG A:104 , ALA B:259 , ASP B:260 , ASN B:261 , THR B:262 , TRP B:265 , TYR B:286 , ALA B:302 , ARG B:309 , GLY B:313 , CYS B:315 , GLU B:322 , HOH B:520 , HOH B:522 , HOH B:533 , HOH B:555 , HOH B:569 , HOH B:571 , HOH B:575 , HOH B:580 , HOH B:592 , HOH B:595 , HOH B:609 , HOH B:628BINDING SITE FOR RESIDUE BLM B 401
2AC2SOFTWAREALA A:59 , ASP A:60 , ASN A:61 , THR A:62 , TRP A:65 , TYR A:86 , THR A:89 , PRO A:101 , ALA A:102 , ARG A:109 , GLY A:113 , CYS A:115 , HIS A:117 , GLU A:122 , HOH A:511 , HOH A:512 , HOH A:513 , HOH A:530 , HOH A:550 , HOH A:556 , HOH A:559 , HOH A:585 , HOH A:603 , HOH A:605 , HOH A:620 , HOH A:621 , PHE B:233 , PHE B:238 , ARG B:247 , SER B:251 , ARG B:252 , GLU B:299 , ARG B:304BINDING SITE FOR RESIDUE BLM A 402

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JIE)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JIE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JIE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1JIE)

(-) Exons   (0, 0)

(no "Exon" information available for 1JIE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:122
 aligned with Q53793_9ACTN | Q53793 from UniProtKB/TrEMBL  Length:122

    Alignment length:122
                                    10        20        30        40        50        60        70        80        90       100       110       120
         Q53793_9ACTN     1 MVKFLGAVPVLTAVDVPANVSFWVDTLGFEKDFGDRDFAGVRRGDIRLHISRTEHQIVADNTSAWIEVTDPDALHEEWARAVSTDYADTSGPAMTPVGESPAGREFAVRDPAGNCVHFTAGE 122
               SCOP domains d1jiea_ A: Bleomycin resistance protein, BRP                                                                               SCOP domains
               CATH domains 1jieA00 A:1-122 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeee.hhhhhhhhhhhh...eeeee...eeeeee..eeeeeee..hhhhhh..eeeeee.hhhhhhhhhhh............ee...eee..eeeeeee.....eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jie A   1 MVKFLGAVPVLTAVDVPANVSFWVDTLGFEKDFGDRDFAGVRRGDIRLHISRTEHQIVADNTSAWIEVTDPDALHEEWARAVSTDYADTSGPAMTPVGESPAGREFAVRDPAGNCVHFTAGE 122
                                    10        20        30        40        50        60        70        80        90       100       110       120


Chain B from PDB  Type:PROTEIN  Length:122
 aligned with Q53793_9ACTN | Q53793 from UniProtKB/TrEMBL  Length:122

    Alignment length:122
                                    10        20        30        40        50        60        70        80        90       100       110       120
         Q53793_9ACTN     1 MVKFLGAVPVLTAVDVPANVSFWVDTLGFEKDFGDRDFAGVRRGDIRLHISRTEHQIVADNTSAWIEVTDPDALHEEWARAVSTDYADTSGPAMTPVGESPAGREFAVRDPAGNCVHFTAGE 122
               SCOP domains d1jieb_ B: Bleomycin resistance protein, BRP                                                                               SCOP domains
               CATH domains 1jieB00 B:201-322 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                          CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeee.hhhhhhhhhhhh...eeeee...eeeeee..eeeeeee..hhhhhh..eeeeee.hhhhhhhhhh.............ee..........eeeee.....eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jie B 201 MVKFLGAVPVLTAVDVPANVSFWVDTLGFEKDFGDRDFAGVRRGDIRLHISRTEHQIVADNTSAWIEVTDPDALHEEWARAVSTDYADTSGPAMTPVGESPAGREFAVRDPAGNCVHFTAGE 322
                                   210       220       230       240       250       260       270       280       290       300       310       320
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1JIE)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q53793_9ACTN | Q53793)
molecular function
    GO:0008144    drug binding    Interacting selectively and non-covalently with a drug, any naturally occurring or synthetic substance, other than a nutrient, that, when administered or applied to an organism, affects the structure or functioning of the organism; in particular, any such substance used in the diagnosis, prevention, or treatment of disease.
biological process
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BLM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1jie)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

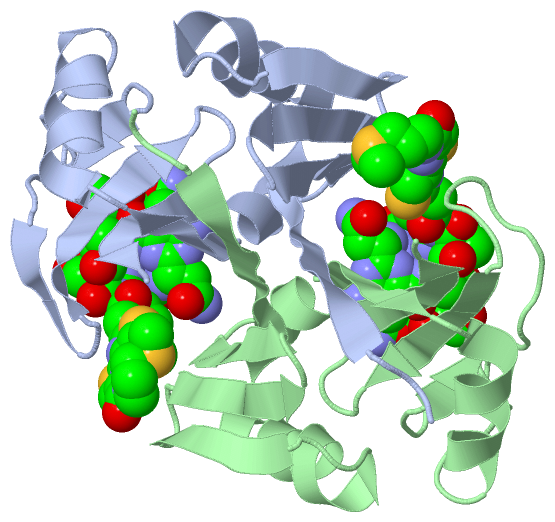

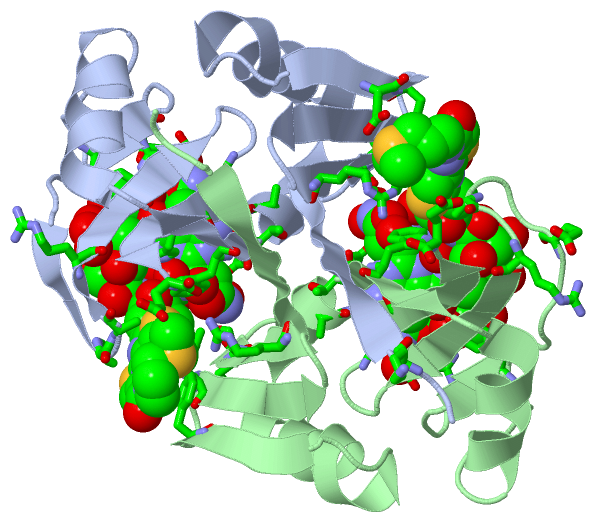

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
