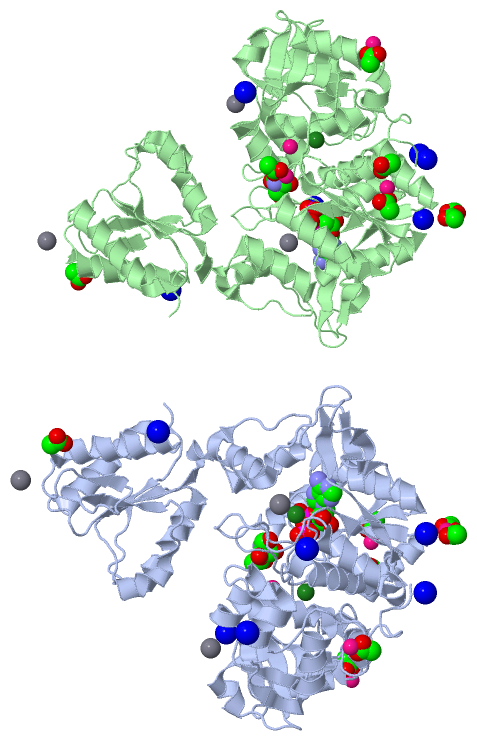

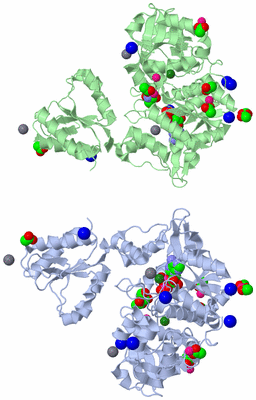

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

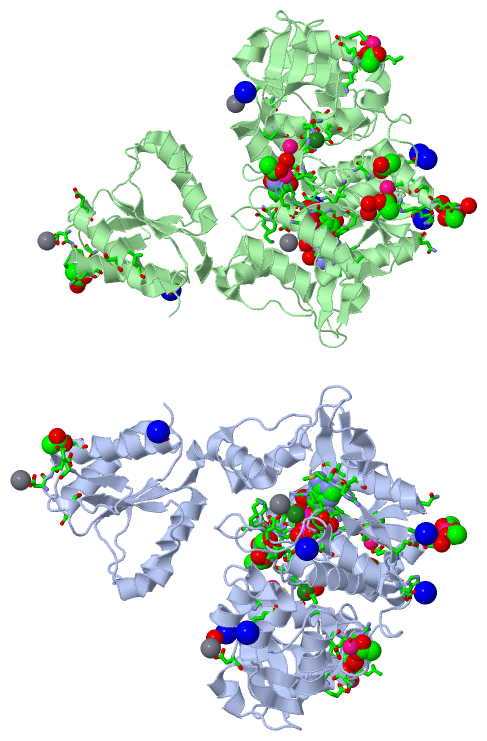

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

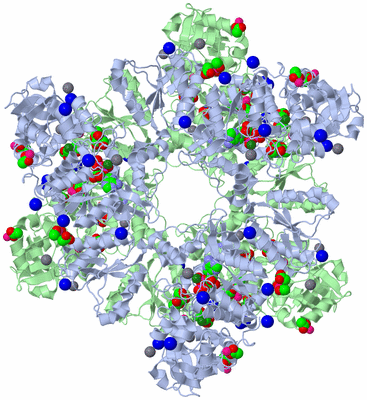

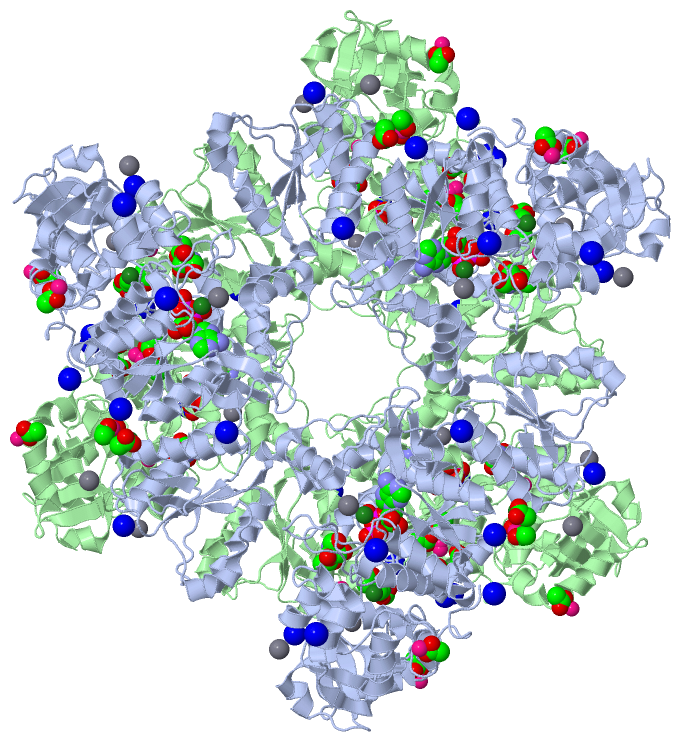

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

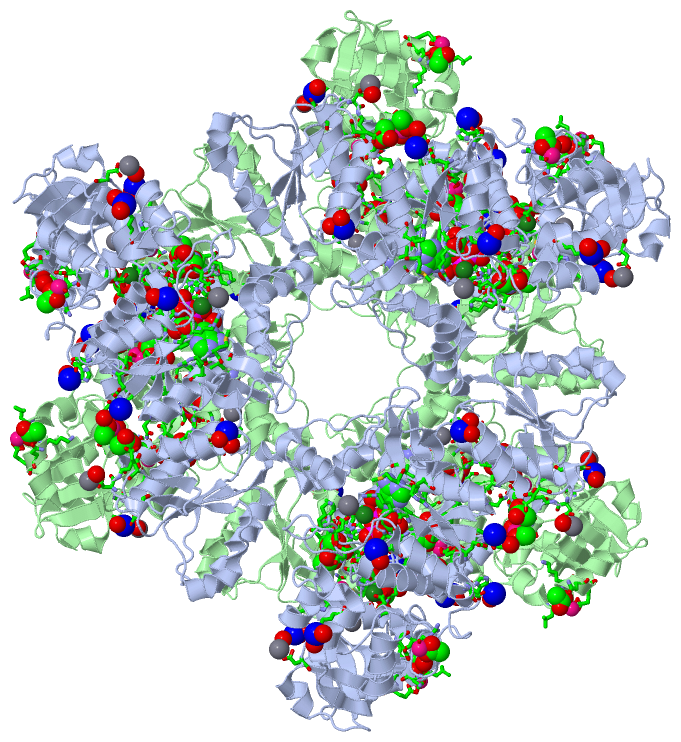

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF ATP SULFURYLASE IN COMPLEX WITH ADP

Authors :  T. C. Ullrich, R. Huber
Date :  17 Jun 01  (Deposition) - 14 Nov 01  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.95
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (3x)
Keywords :  Alpha-Beta Protein, Beta-Barrel, Rossmann-Fold, Inhibitor Complex, Adp, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. C. Ullrich, R. Huber
The Complex Structures Of Atp Sulfurylase With Thiosulfate, Adp And Chlorate Reveal New Insights In Inhibitory Effects And The Catalytic Cycle.
J. Mol. Biol. V. 313 1117 2001
PubMed-ID: 11700067  |  Reference-DOI: 10.1006/JMBI.2001.5098

(-) Compounds

Molecule 1 - SULFATE ADENYLYLTRANSFERASE
    Chains: A, B
    EC Number: 2.7.7.4
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932
    Other Details: NATIVE PURIFICATION OUT OF YEAST CELLS
    Strain: S288C-FY1679

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (7, 52)

Asymmetric Unit (7, 52)
No.NameCountTypeFull Name
1ACY15Ligand/IonACETIC ACID
2ADP2Ligand/IonADENOSINE-5'-DIPHOSPHATE
3CA6Ligand/IonCALCIUM ION
4CD11Ligand/IonCADMIUM ION
5MG4Ligand/IonMAGNESIUM ION
6NA12Ligand/IonSODIUM ION
7TRS2Ligand/Ion2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Biological Unit 1 (3, 57)
No.NameCountTypeFull Name
1ACY45Ligand/IonACETIC ACID
2ADP6Ligand/IonADENOSINE-5'-DIPHOSPHATE
3CA-1Ligand/IonCALCIUM ION
4CD-1Ligand/IonCADMIUM ION
5MG-1Ligand/IonMAGNESIUM ION
6NA-1Ligand/IonSODIUM ION
7TRS6Ligand/Ion2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

(-) Sites  (52, 52)

Asymmetric Unit (52, 52)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASP A:168 , HIS A:235 , HIS A:236 , ACY A:557BINDING SITE FOR RESIDUE CD A 512
02AC2SOFTWAREPRO A:39 , CYS A:43 , HOH A:1213BINDING SITE FOR RESIDUE CD A 513
03AC3SOFTWARELEU A:18 , GLU A:22 , ACY A:551 , HOH A:673 , HIS B:319BINDING SITE FOR RESIDUE CD A 514
04AC4SOFTWAREGLU A:182 , ACY A:555 , GLU B:182 , CD B:533 , ACY B:562BINDING SITE FOR RESIDUE CD A 515
05AC5SOFTWAREASP A:189 , HIS A:494 , ACY A:552 , ACY A:556BINDING SITE FOR RESIDUE CD A 516
06AC6SOFTWAREASP A:151 , HOH A:905BINDING SITE FOR RESIDUE CA A 517
07AC7SOFTWAREHOH A:947 , HOH A:1083 , GLU B:409BINDING SITE FOR RESIDUE NA A 518
08AC8SOFTWARELYS A:297 , ASP A:303BINDING SITE FOR RESIDUE CA A 519
09AC9SOFTWAREASP A:489 , HOH A:753BINDING SITE FOR RESIDUE CA A 520
10BC1SOFTWAREGLU A:46 , PRO A:164 , HIS A:166 , HOH A:1123BINDING SITE FOR RESIDUE MG A 521
11BC2SOFTWAREASP A:309 , HOH A:1174BINDING SITE FOR RESIDUE NA A 522
12BC3SOFTWAREASP A:322 , HOH A:1139BINDING SITE FOR RESIDUE NA A 523
13BC4SOFTWAREASP A:71 , ACY A:565 , HOH A:681 , HOH A:732 , THR B:70 , ASP B:71BINDING SITE FOR RESIDUE CD A 524
14BC5SOFTWAREGLU A:130 , HOH A:654 , HOH A:1022 , ASN B:124BINDING SITE FOR RESIDUE NA A 525
15BC6SOFTWAREGLU A:324BINDING SITE FOR RESIDUE NA A 526
16BC7SOFTWAREASP A:505 , HOH A:1036 , HOH A:1104BINDING SITE FOR RESIDUE NA A 527
17BC8SOFTWAREADP A:635BINDING SITE FOR RESIDUE MG A 539
18BC9SOFTWAREASP B:168 , HIS B:235 , HIS B:236 , ACY B:564BINDING SITE FOR RESIDUE CD B 530
19CC1SOFTWAREPRO B:39 , CYS B:43 , HOH B:1117 , HOH B:1142BINDING SITE FOR RESIDUE CD B 531
20CC2SOFTWAREHIS A:319 , LEU B:18 , GLU B:22 , ACY B:558BINDING SITE FOR RESIDUE CD B 532
21CC3SOFTWARELYS A:174 , GLU A:182 , CD A:515 , ACY A:555 , GLU B:182 , ACY B:562BINDING SITE FOR RESIDUE CD B 533
22CC4SOFTWAREASP B:189 , HIS B:494 , ACY B:559 , ACY B:563BINDING SITE FOR RESIDUE CD B 534
23CC5SOFTWAREASP B:151 , HOH B:908 , HOH B:1027BINDING SITE FOR RESIDUE CA B 535
24CC6SOFTWAREGLU A:409 , HOH B:853BINDING SITE FOR RESIDUE NA B 540
25CC7SOFTWARELYS B:297 , ASP B:303BINDING SITE FOR RESIDUE CA B 537
26CC8SOFTWAREASP B:489BINDING SITE FOR RESIDUE CA B 538
27CC9SOFTWAREGLU B:46 , PRO B:164 , GLN B:165 , HIS B:166BINDING SITE FOR RESIDUE MG B 547
28DC1SOFTWAREASP B:309 , HOH B:1031BINDING SITE FOR RESIDUE NA B 541
29DC2SOFTWAREGLU B:324 , HOH B:823BINDING SITE FOR RESIDUE NA B 542
30DC3SOFTWAREASP B:322 , HOH B:1002BINDING SITE FOR RESIDUE NA B 543
31DC4SOFTWAREASP B:322 , HOH B:939BINDING SITE FOR RESIDUE NA B 544
32DC5SOFTWAREASP B:505 , HOH B:1156BINDING SITE FOR RESIDUE NA B 545
33DC6SOFTWAREARG B:197 , ADP B:636BINDING SITE FOR RESIDUE MG B 546
34DC7SOFTWAREPHE A:194 , GLN A:195 , THR A:196 , ARG A:197 , ASN A:198 , HIS A:204 , LEU A:207 , GLY A:289 , ARG A:290 , HIS A:292 , ALA A:293 , ARG A:329 , MET A:330 , VAL A:331 , MG A:539 , HOH A:1212BINDING SITE FOR RESIDUE ADP A 635
35DC8SOFTWAREPHE B:194 , GLN B:195 , THR B:196 , ARG B:197 , ASN B:198 , HIS B:204 , LEU B:207 , GLY B:289 , ARG B:290 , HIS B:292 , ALA B:293 , ARG B:329 , MET B:330 , VAL B:331 , MG B:546 , HOH B:783 , HOH B:1053BINDING SITE FOR RESIDUE ADP B 636
36DC9SOFTWAREVAL A:225 , GLY A:226 , THR A:228 , ASP A:232 , ILE A:233 , ASP A:234 , HIS A:235 , ARG A:238 , HOH A:738BINDING SITE FOR RESIDUE TRS A 1415
37EC1SOFTWAREVAL B:225 , GLY B:226 , THR B:228 , ASP B:232 , ILE B:233 , HIS B:235 , ARG B:238BINDING SITE FOR RESIDUE TRS B 1416
38EC2SOFTWAREALA A:17 , LEU A:18 , LYS A:19 , LYS A:20 , ASN A:21 , GLU A:22 , CD A:514 , HIS B:319BINDING SITE FOR RESIDUE ACY A 551
39EC3SOFTWAREASP A:189 , SER A:493 , HIS A:494 , CD A:516 , ACY A:556BINDING SITE FOR RESIDUE ACY A 552
40EC4SOFTWAREASN A:216 , GLU A:486 , GLU A:490 , HIS A:494BINDING SITE FOR RESIDUE ACY A 553
41EC5SOFTWARELYS A:174 , GLN A:178 , GLU A:182 , GLU B:182 , SER B:185 , ACY B:561BINDING SITE FOR RESIDUE ACY A 554
42EC6SOFTWAREARG A:186 , CD A:515 , HOH A:1110 , LEU B:172 , LYS B:174 , PHE B:255 , CD B:533 , ACY B:562 , HOH B:897BINDING SITE FOR RESIDUE ACY A 555
43EC7SOFTWAREASP A:189 , HIS A:494 , CD A:516 , ACY A:552 , HOH A:756BINDING SITE FOR RESIDUE ACY A 556
44EC8SOFTWAREHIS A:236 , CD A:512 , SER B:417 , LEU B:420BINDING SITE FOR RESIDUE ACY A 557
45EC9SOFTWAREHIS A:319 , LEU B:18 , LYS B:20 , ASN B:21 , GLU B:22 , CD B:532BINDING SITE FOR RESIDUE ACY B 558
46FC1SOFTWAREGLN B:187 , ASP B:189 , PRO B:491 , SER B:493 , HIS B:494 , CD B:534 , ACY B:563BINDING SITE FOR RESIDUE ACY B 559
47FC2SOFTWAREASN B:216 , GLU B:486 , GLU B:490 , HIS B:494 , HOH B:978BINDING SITE FOR RESIDUE ACY B 560
48FC3SOFTWAREGLU A:182 , SER A:185 , ACY A:554 , LYS B:174 , GLU B:182BINDING SITE FOR RESIDUE ACY B 561
49FC4SOFTWAREGLY A:171 , LEU A:172 , LYS A:174 , GLU A:182 , PHE A:255 , CD A:515 , ACY A:555 , GLU B:182 , ARG B:186 , CD B:533 , HOH B:701BINDING SITE FOR RESIDUE ACY B 562
50FC5SOFTWAREASP B:189 , ARG B:190 , HIS B:494 , CD B:534 , ACY B:559 , HOH B:724 , HOH B:809BINDING SITE FOR RESIDUE ACY B 563
51FC6SOFTWARESER A:417 , ASP B:168 , HIS B:236 , CD B:530 , HOH B:936BINDING SITE FOR RESIDUE ACY B 564
52FC7SOFTWAREASP A:71 , ARG A:73 , CD A:524 , HOH A:732 , HOH A:881 , ASP B:71BINDING SITE FOR RESIDUE ACY A 565

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JED)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Ser A:54 -Pro A:55
2Ser B:54 -Pro B:55

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JED)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1JED)

(-) Exons   (1, 2)

Asymmetric Unit (1, 2)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YJR010W1YJR010W.1X:456231-4577661536MET3_YEAST1-5115112A:2-511
B:2-511		510
510

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:510
 aligned with MET3_YEAST | P08536 from UniProtKB/Swiss-Prot  Length:511

    Alignment length:510
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511
           MET3_YEAST     2 PAPHGGILQDLIARDALKKNELLSEAQSSDILVWNLTPRQLCDIELILNGGFSPLTGFLNENDYSSVVTDSRLADGTLWTIPITLDVDEAFANQIKPDTRIALFQDDEIPIAILTVQDVYKPNKTIEAEKVFRGDPEHPAISYLFNVAGDYYVGGSLEAIQLPQHYDYPGLRKTPAQLRLEFQSRQWDRVVAFQTRNPMHRAHRELTVRAAREANAKVLIHPVVGLTKPGDIDHHTRVRVYQEIIKRYPNGIAFLSLLPLAMRMSGDREAVWHAIIRKNYGASHFIVGRDHAGPGKNSKGVDFYGPYDAQELVESYKHELDIEVVPFRMVTYLPDEDRYAPIDQIDTTKTRTLNISGTELRRRLRVGGEIPEWFSYPEVVKILRESNPPRPKQGFSIVLGNSLTVSREQLSIALLSTFLQFGGGRYYKIFEHNNKTELLSLIQDFIGSGSGLIIPNQWEDDKDSVVGKQNVYLLDTSSSADIQLESADEPISHIVQKVVLFLEDNGFFVF 511
               SCOP domains d1jeda1 A:2-168 ATP sulfurylase N-terminal domain                                                                                                                      d1jeda2 A:169-389 ATP sulfurylase catalytic domain                                                                                                                                                                           d1jeda3 A:390-511 ATP sulfurylase C-terminal domain                                                                        SCOP domains
               CATH domains 1jedA02 A:2-189 Sulfate adenylyltransferase                                                                                                                                                 1jedA01 A:190-389 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                                 1jedA03 A:390-511 P-loop containing nucleotide triphosphate hydrolases                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhh..hhhhhhhhhh....eeee.hhhhhhhhhhhhh.......ee.hhhhhhhhhhhh..............eehhhhhh......eeeeee...eeeeeeeeeeee..hhhhhhhhhhh....hhhhhhhhhh...eeeeeeeee..............hhhhhhhhhhhh....eeeeee....hhhhhhhhhhhhhhhh.eeeeee..........hhhhhhhhhhhhhhhh....eee.........hhhhhhhhhhhhhhhh...eeee...................hhhhhhhhhhhhhhh.eeee...eeee....eeee.hhh..........hhhhhhhhhhhh........hhhhhhhhhhhh.hhhhh.eeeee......hhhhhhhhhhhhhhhhh....eee.....hhhhhhhhhhhhhh..eeee....hhhhhhhh....eeeee......ee......hhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
               Transcript 1 Exon 1.1  PDB: A:2-511 UniProt: 1-511 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                                                                                                                                             Transcript 1
                 1jed A   2 PAPHGGILQDLIARDALKKNELLSEAQSSDILVWNLTPRQLCDIELILNGGFSPLTGFLNENDYSSVVTDSRLADGTLWTIPITLDVDEAFANQIKPDTRIALFQDDEIPIAILTVQDVYKPNKTIEAEKVFRGDPEHPAISYLFNVAGDYYVGGSLEAIQLPQHYDYPGLRKTPAQLRLEFQSRQWDRVVAFQTRNPMHRAHRELTVRAAREANAKVLIHPVVGLTKPGDIDHHTRVRVYQEIIKRYPNGIAFLSLLPLAMRMSGDREAVWHAIIRKNYGASHFIVGRDHAGPGKNSKGVDFYGPYDAQELVESYKHELDIEVVPFRMVTYLPDEDRYAPIDQIDTTKTRTLNISGTELRRRLRVGGEIPEWFSYPEVVKILRESNPPRPKQGFSIVLGNSLTVSREQLSIALLSTFLQFGGGRYYKIFEHNNKTELLSLIQDFIGSGSGLIIPNQWEDDKDSVVGKQNVYLLDTSSSADIQLESADEPISHIVQKVVLFLEDNGFFVF 511
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511


Chain B from PDB  Type:PROTEIN  Length:510
 aligned with MET3_YEAST | P08536 from UniProtKB/Swiss-Prot  Length:511

    Alignment length:510
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511
           MET3_YEAST     2 PAPHGGILQDLIARDALKKNELLSEAQSSDILVWNLTPRQLCDIELILNGGFSPLTGFLNENDYSSVVTDSRLADGTLWTIPITLDVDEAFANQIKPDTRIALFQDDEIPIAILTVQDVYKPNKTIEAEKVFRGDPEHPAISYLFNVAGDYYVGGSLEAIQLPQHYDYPGLRKTPAQLRLEFQSRQWDRVVAFQTRNPMHRAHRELTVRAAREANAKVLIHPVVGLTKPGDIDHHTRVRVYQEIIKRYPNGIAFLSLLPLAMRMSGDREAVWHAIIRKNYGASHFIVGRDHAGPGKNSKGVDFYGPYDAQELVESYKHELDIEVVPFRMVTYLPDEDRYAPIDQIDTTKTRTLNISGTELRRRLRVGGEIPEWFSYPEVVKILRESNPPRPKQGFSIVLGNSLTVSREQLSIALLSTFLQFGGGRYYKIFEHNNKTELLSLIQDFIGSGSGLIIPNQWEDDKDSVVGKQNVYLLDTSSSADIQLESADEPISHIVQKVVLFLEDNGFFVF 511
               SCOP domains d1jedb1 B:2-168 ATP sulfurylase N-terminal domain                                                                                                                      d1jedb2 B:169-389 ATP sulfurylase catalytic domain                                                                                                                                                                           d1jedb3 B:390-511 ATP sulfurylase C-terminal domain                                                                        SCOP domains
               CATH domains 1jedB02 B:2-189 Sulfate adenylyltransferase                                                                                                                                                 1jedB01 B:190-389 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                                 1jedB03 B:390-511 P-loop containing nucleotide triphosphate hydrolases                                                     CATH domains
           Pfam domains (1) PUA_2-1jedB03 B:2-163                                                                                                                                             -----ATP-sulfurylase-1jedB01 B:169-388                                                                                                                                                                                           --------------------------------------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) PUA_2-1jedB04 B:2-163                                                                                                                                             -----ATP-sulfurylase-1jedB02 B:169-388                                                                                                                                                                                           --------------------------------------------------------------------------------------------------------------------------- Pfam domains (2)
         Sec.struct. author .........hhhhhh..hhhhhhhhhh....eeee.hhhhhhhhhhhhh.......ee.hhhhhhhhhhhh..............eehhhhhh......eeeeee...eeeeeeeeeeee..hhhhhhhhhhh....hhhhhhhhhh...eeeeeeeee..............hhhhhhhhhhhh....eeeeee....hhhhhhhhhhhhhhhh.eeeeee..........hhhhhhhhhhhhhhhh....eee.........hhhhhhhhhhhhhhhh...eeee...................hhhhhhhhhhhhhhh.eeee...eeee....eeee.hhh..........hhhhhhhhhhhh........hhhhhhhhhhhh.hhhhh.eeeee......hhhhhhhhhhhhhhhhh....eee.....hhhhhhhhhhhhhh..eeee....hhhhhhhh....eeeee......ee......hhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
               Transcript 1 Exon 1.1  PDB: B:2-511 UniProt: 1-511 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                                                                                                                                                             Transcript 1
                 1jed B   2 PAPHGGILQDLIARDALKKNELLSEAQSSDILVWNLTPRQLCDIELILNGGFSPLTGFLNENDYSSVVTDSRLADGTLWTIPITLDVDEAFANQIKPDTRIALFQDDEIPIAILTVQDVYKPNKTIEAEKVFRGDPEHPAISYLFNVAGDYYVGGSLEAIQLPQHYDYPGLRKTPAQLRLEFQSRQWDRVVAFQTRNPMHRAHRELTVRAAREANAKVLIHPVVGLTKPGDIDHHTRVRVYQEIIKRYPNGIAFLSLLPLAMRMSGDREAVWHAIIRKNYGASHFIVGRDHAGPGKNSKGVDFYGPYDAQELVESYKHELDIEVVPFRMVTYLPDEDRYAPIDQIDTTKTRTLNISGTELRRRLRVGGEIPEWFSYPEVVKILRESNPPRPKQGFSIVLGNSLTVSREQLSIALLSTFLQFGGGRYYKIFEHNNKTELLSLIQDFIGSGSGLIIPNQWEDDKDSVVGKQNVYLLDTSSSADIQLESADEPISHIVQKVVLFLEDNGFFVF 511
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 6)

Asymmetric Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (3, 6)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (2, 4)

Asymmetric Unit
(-)
Clan: HUP (230)
(-)
Clan: PUA (42)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (MET3_YEAST | P08536)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0004781    sulfate adenylyltransferase (ATP) activity    Catalysis of the reaction: ATP + sulfate = diphosphate + adenylylsulfate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0019344    cysteine biosynthetic process    The chemical reactions and pathways resulting in the formation of cysteine, 2-amino-3-mercaptopropanoic acid.
    GO:0070814    hydrogen sulfide biosynthetic process    The chemical reactions and pathways resulting in the formation of hydrogen sulfide, H2S.
    GO:0009086    methionine biosynthetic process    The chemical reactions and pathways resulting in the formation of methionine (2-amino-4-(methylthio)butanoic acid), a sulfur-containing, essential amino acid found in peptide linkage in proteins.
    GO:0000103    sulfate assimilation    The pathways by which inorganic sulfate is processed and incorporated into sulfated compounds.
    GO:0019379    sulfate assimilation, phosphoadenylyl sulfate reduction by phosphoadenylyl-sulfate reductase (thioredoxin)    The pathway by which inorganic sulfate is processed and incorporated into sulfated compounds, where the phosphoadenylyl sulfate reduction step is catalyzed by the enzyme phosphoadenylyl-sulfate reductase (thioredoxin) (EC:1.8.4.8).
    GO:0000096    sulfur amino acid metabolic process    The chemical reactions and pathways involving amino acids containing sulfur, comprising cysteine, homocysteine, methionine and selenocysteine.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACY  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ADP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TRS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]
    EC1  [ RasMol ]  +environment [ RasMol ]
    EC2  [ RasMol ]  +environment [ RasMol ]
    EC3  [ RasMol ]  +environment [ RasMol ]
    EC4  [ RasMol ]  +environment [ RasMol ]
    EC5  [ RasMol ]  +environment [ RasMol ]
    EC6  [ RasMol ]  +environment [ RasMol ]
    EC7  [ RasMol ]  +environment [ RasMol ]
    EC8  [ RasMol ]  +environment [ RasMol ]
    EC9  [ RasMol ]  +environment [ RasMol ]
    FC1  [ RasMol ]  +environment [ RasMol ]
    FC2  [ RasMol ]  +environment [ RasMol ]
    FC3  [ RasMol ]  +environment [ RasMol ]
    FC4  [ RasMol ]  +environment [ RasMol ]
    FC5  [ RasMol ]  +environment [ RasMol ]
    FC6  [ RasMol ]  +environment [ RasMol ]
    FC7  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser A:54 - Pro A:55   [ RasMol ]
    Ser B:54 - Pro B:55   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1jed
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MET3_YEAST | P08536
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.7.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MET3_YEAST | P08536
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MET3_YEAST | P08536: 1g8f 1g8g 1g8h 1j70 1jec 1jee 1r6x

(-) Related Entries Specified in the PDB File

1g8f NATIVE STRUCTURE OF ATPS
1g8g STRUCTURE OF ATPS IN COMPLEX WITH APS
1g8h STRUCTURE OF ATPS IN COMPLEX WITH APS AN PPI
1jec
1jee
