1J3L - JenaLib

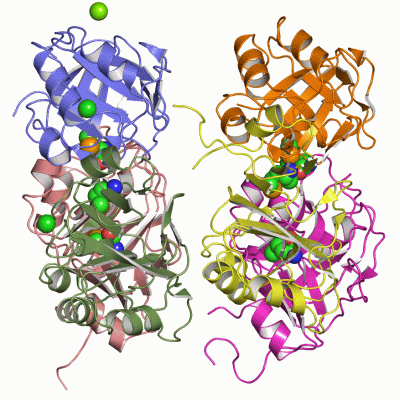

Asym.Unit - manually (Jmol Viewer)

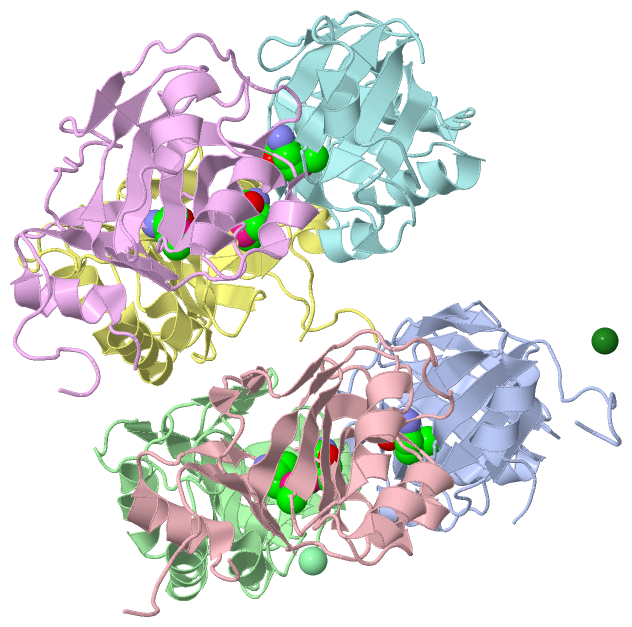

Asymmetric Unit (Jmol Viewer)

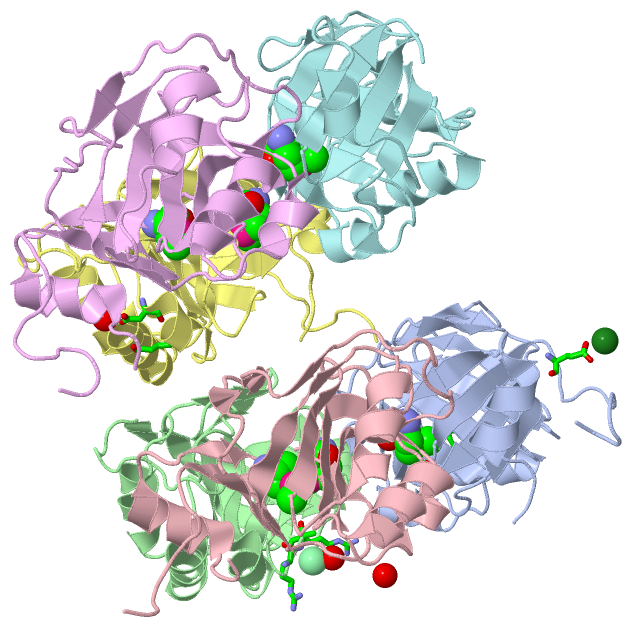

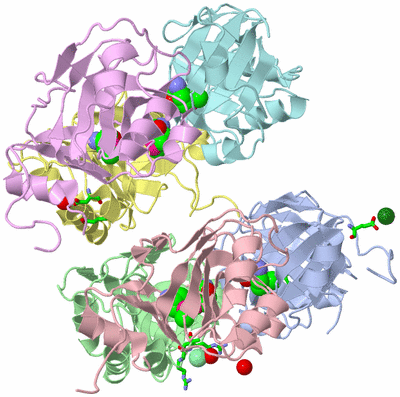

Asym. Unit - sites (Jmol Viewer)

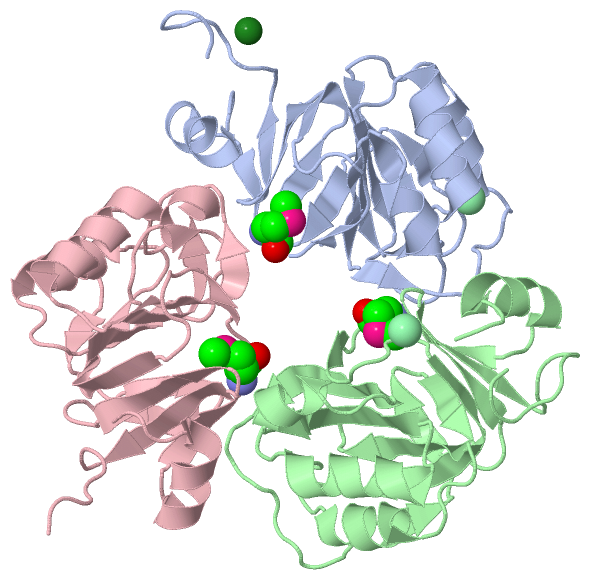

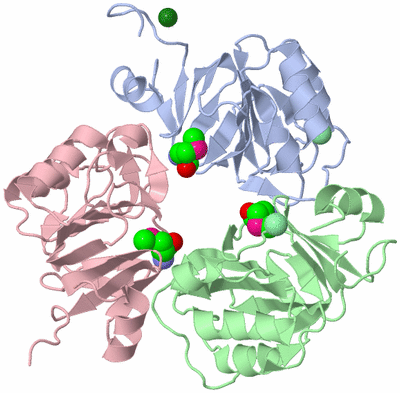

Biological Unit 1 (Jmol Viewer)

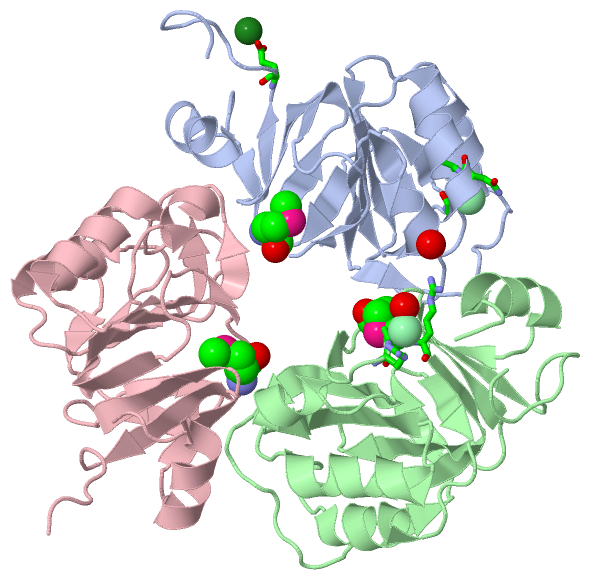

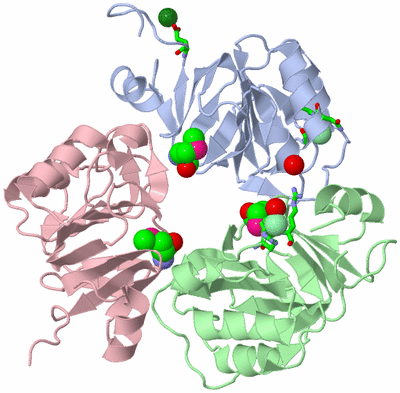

Biol. Unit 1 - sites (Jmol Viewer)

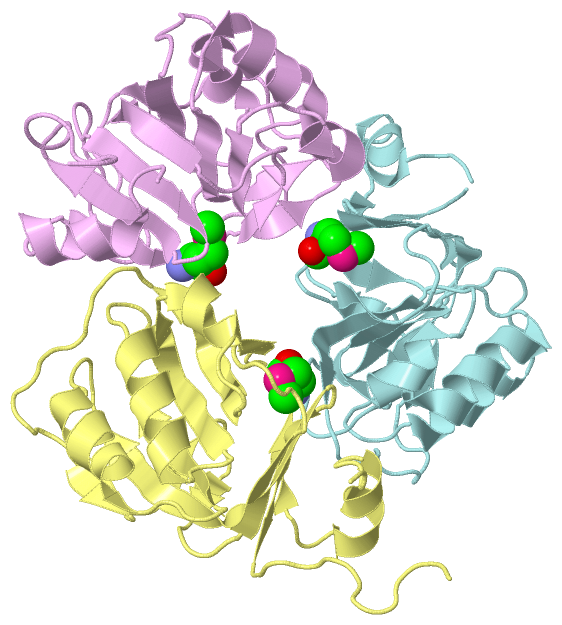

Biological Unit 2 (Jmol Viewer)

Title :   STRUCTURE OF THE RNA-PROCESSING INHIBITOR RRAA FROM THERMUS THERMOPHILIS

Authors :   P. H. Rehse, M. Miyano, T. H. Tahirov, Riken Structural Genomics/Proteomics Initiative (Rsgi)

Date :   04 Feb 03 (Deposition) - 17 Feb 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A,B,C  (1x)
Biol. Unit 2: D,E,F  (1x)

Keywords :   Vitamine K2, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   P. H. Rehse, C. Kuroishi, T. H. Tahirov
Structure Of The Rna-Processing Inhibitor Rraa From Thermus Thermophilis.
Acta Crystallogr. , Sect. D V. 60 1997 2004
PubMed-ID: 15502308 | Reference-DOI: 10.1107/S0907444904021146
(for further references see the PDB file header)

Molecule 1 - DEMETHYLMENAQUINONE METHYLTRANSFERASE
	Chains	:	A, B, C, D, E, F
	EC Number	:	2.1.1.-
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET11A
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Mutation	:	YES
	Organism Scientific	:	THERMUS THERMOPHILUS
	Organism Taxid	:	274
	Strain	:	HD8

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (1x)	:	A	B	C
Biological Unit 2 (1x)	:				D	E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 9)

No.	Name	Count	Type	Full Name
1	CL	2	Ligand/Ion	CHLORIDE ION
2	MG	1	Ligand/Ion	MAGNESIUM ION
3	MSE	6	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (1, 3)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 2 (1, 3)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Asymmetric Unit (3, 3)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU A:155 , ASP D:97 , GLU D:100 , HOH D:191	BINDING SITE FOR RESIDUE MG A 1001
2	AC2	SOFTWARE	GLY A:74 , ASN A:76 , LEU A:77	BINDING SITE FOR RESIDUE CL A 1002
3	AC3	SOFTWARE	HOH A:1011 , ARG B:28 , ALA B:29 , ARG B:30 , HOH B:1049	BINDING SITE FOR RESIDUE CL B 1003

(no "SS Bond" information available for 1J3L)

(no "Cis Peptide Bond" information available for 1J3L)

(no "SAP(SNP)/Variant" information available for 1J3L)

(no "PROSITE Motif" information available for 1J3L)

(no "Exon" information available for 1J3L)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:164
 aligned with RRAAH_THET8 | Q5SIP7 from UniProtKB/Swiss-Prot  Length:164

    Alignment length:164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
          RRAAH_THET8     1 MEARTTDLSDLYPEGEALPMVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARLAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
               SCOP domains d1j3la_ A: Demethylmenaquinone methyltransferase                                                                                                                     SCOP domains
               CATH domains 1j3lA00 A:1-164  [code=3.50.30.40, no name defined]                                                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhh...eee....ee......eeeeeeeee....hhhhhhhhh.....eeeeee..........hhhhhhhhhhh...eeeee.ee.hhhhhh....eeee.ee...........ee...eee..eee....eeeee..eeeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j3l A   1 MEARTTDLSDLYPEGEALPmVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARRAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
                                              20-MSE

Chain B from PDB  Type:PROTEIN  Length:164
 aligned with RRAAH_THET8 | Q5SIP7 from UniProtKB/Swiss-Prot  Length:164

    Alignment length:164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
          RRAAH_THET8     1 MEARTTDLSDLYPEGEALPMVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARLAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
               SCOP domains d1j3lb_ B: Demethylmenaquinone methyltransferase                                                                                                                     SCOP domains
               CATH domains 1j3lB00 B:1-164  [code=3.50.30.40, no name defined]                                                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhh...eee....ee......eeeeeeeee....hhhhhhhhh.....eeeeee..........hhhhhhhhhhh...eeeeeeee.hhhhhh....eeeeeee...........ee...eee..eee....eeeee..eeeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j3l B   1 MEARTTDLSDLYPEGEALPmVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARRAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
                                              20-MSE

Chain C from PDB  Type:PROTEIN  Length:161
 aligned with RRAAH_THET8 | Q5SIP7 from UniProtKB/Swiss-Prot  Length:164

    Alignment length:161
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
          RRAAH_THET8     1 MEARTTDLSDLYPEGEALPMVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARLAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVR 161
               SCOP domains d1j3lc_ C: Demethylmenaquinone methyltransferase                                                                                                                  SCOP domains
               CATH domains 1j3lC00 C:1-161  [code=3.50.30.40, no name defined]                                                                                                               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhh...eee....ee......eeeeeeeee....hhhhhhhhhh.....eeeee..........hhhhhhhhhhh...eeeeeeee.hhhhhh....eeeeeee...........ee...eee..eee....eeeee..eeeee........ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j3l C   1 MEARTTDLSDLYPEGEALPmVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARRAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVR 161
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
                                              20-MSE

Chain D from PDB  Type:PROTEIN  Length:164
 aligned with RRAAH_THET8 | Q5SIP7 from UniProtKB/Swiss-Prot  Length:164

    Alignment length:164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
          RRAAH_THET8     1 MEARTTDLSDLYPEGEALPMVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARLAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
               SCOP domains d1j3ld_ D: Demethylmenaquinone methyltransferase                                                                                                                     SCOP domains
               CATH domains 1j3lD00 D:1-164  [code=3.50.30.40, no name defined]                                                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhh...eee....ee......eeeeeeeee....hhhhhhhhhh....eeeeee..........hhhhhhhhhhh...eeeeeeee.hhhhhh....eeeeeee...........ee...ee....ee....eeeee..eeeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j3l D   1 MEARTTDLSDLYPEGEALPmVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARRAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
                                              20-MSE

Chain E from PDB  Type:PROTEIN  Length:164
 aligned with RRAAH_THET8 | Q5SIP7 from UniProtKB/Swiss-Prot  Length:164

    Alignment length:164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
          RRAAH_THET8     1 MEARTTDLSDLYPEGEALPMVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARLAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
               SCOP domains d1j3le_ E: Demethylmenaquinone methyltransferase                                                                                                                     SCOP domains
               CATH domains 1j3lE00 E:1-164  [code=3.50.30.40, no name defined]                                                                                                                  CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhh...eeee...ee......eeeee..ee....hhhhhhhh......eeeeee..........hhhhhhhhhhh...eeeeeeee.hhhhhh....eeeeeee...........ee...............eeeee..eeeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j3l E   1 MEARTTDLSDLYPEGEALPmVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARRAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPPSGVRSGG 164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
                                              20-MSE

Chain F from PDB  Type:PROTEIN  Length:157
 aligned with RRAAH_THET8 | Q5SIP7 from UniProtKB/Swiss-Prot  Length:164

    Alignment length:157
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
          RRAAH_THET8     1 MEARTTDLSDLYPEGEALPMVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARLAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPP 157
               SCOP domains d1j3lf_ F: Demethylmenaquinone methyltransferase                                                                                                              SCOP domains
               CATH domains 1j3lF00 F:1-157  [code=3.50.30.40, no name defined]                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh.....eeee...ee......eeeee.eee....hhhhhhhhh.......eeee..........hhhhhhhhhhh....eeeeeee.hhhhhh.....eeeeee...........ee...ee....ee...eeeeee..eeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j3l F   1 MEARTTDLSDLYPEGEALPmVFKSFGGRARFAGRVRTLRVFEDNALVRKVLEEEGAGQVLFVDGGGSLRTALLGGNLARRAWEKGWAGVVVHGAVRDTEELREVPIGLLALAATPKKSAKEGKGEVDVPLKVLGVEVLPGSFLLADEDGLLLLPEPP 157
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
                                              20-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: The swivelling beta/beta/alpha domain (136)

Superfamily: RraA-like (6)

Family: RraA-like (5)

Protein domain: Demethylmenaquinone methyltransferase (1)

Thermus thermophilus [TaxId: 274] (1)

1a	d1j3la_	A:
1b	d1j3lb_	B:
1c	d1j3lc_	C:
1d	d1j3ld_	D:
1e	d1j3le_	E:
1f	d1j3lf_	F:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(bba) Sandwich (528)

Topology: Glucose Oxidase; domain 1 (52)

Homologous Superfamily: [code=3.50.30.40, no name defined] (6)

Thermus thermophilus. Organism_taxid: 274. Strain: hd8. (1)

1a	1j3lC00	C:1-161
1b	1j3lF00	F:1-157
1c	1j3lA00	A:1-164
1d	1j3lB00	B:1-164
1e	1j3lD00	D:1-164
1f	1j3lE00	E:1-164

(no "Pfam Domain" information available for 1J3L)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (RRAAH_THET8 | Q5SIP7)

molecular function
	GO:0047443	4-hydroxy-4-methyl-2-oxoglutarate aldolase activity	Catalysis of the reaction: 4-hydroxy-4-methyl-2-oxoglutarate = 2 pyruvate.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0008948	oxaloacetate decarboxylase activity	Catalysis of the reaction: oxaloacetate = pyruvate + CO2.
	GO:0008428	ribonuclease inhibitor activity	Stops, prevents or reduces the activity of a ribonuclease, any enzyme that catalyzes the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
	GO:0043086	negative regulation of catalytic activity	Any process that stops or reduces the activity of an enzyme.
	GO:0051252	regulation of RNA metabolic process	Any process that modulates the frequency, rate or extent of the chemical reactions and pathways involving RNA.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1j3l)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1j3l
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RRAAH_THET8 \| Q5SIP7
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.1.1.-
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RRAAH_THET8 \| Q5SIP7
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1J3L)

(no "Related Entries Specified in the PDB File" available for 1J3L)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 9)

Sites (3, 3)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (1, 6)

Pfam Domains (0, 0)

Gene Ontology (7, 7)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
