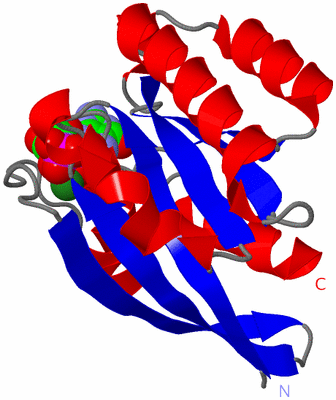

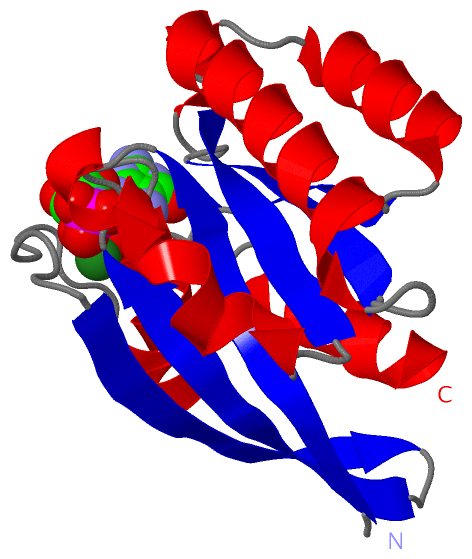

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

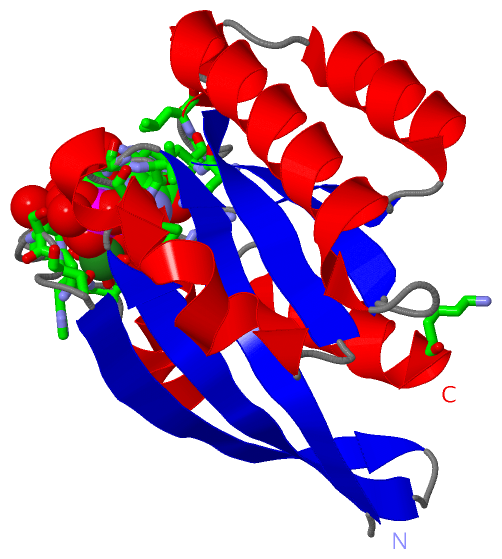

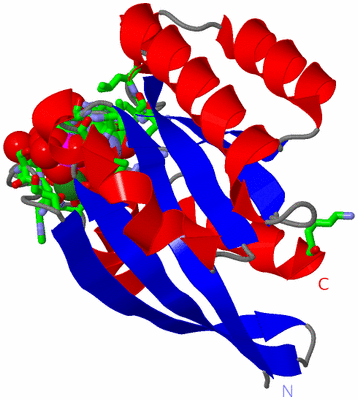

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  1.8A CRYSTAL STRUCTURE OF THE MONOMERIC GTPASE RAB5C (MOUSE)

Authors :  E. Merithew, S. Hatherly, J. J. Dumas, D. C. Lawe, R. Heller-Harrison, D. G. Lambright
Date :  04 Jan 01  (Deposition) - 07 Feb 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  G-Protein, Gtp Hydrolysis, Endocytosis, Rab Protein, Membrane Trafficking, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Merithew, S. Hatherly, J. J. Dumas, D. C. Lawe, R. Heller-Harrison, D. G. Lambright
Structural Plasticity Of An Invariant Hydrophobic Triad In The Switch Regions Of Rab Gtpases Is A Determinant Of Effector Recognition.
J. Biol. Chem. V. 276 13982 2001
PubMed-ID: 11278565
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RAB5C
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: GTPASE DOMAIN
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1GNP1Ligand/IonPHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
2MG1Ligand/IonMAGNESIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:35 , THR A:53 , GNP A:200 , HOH A:359 , HOH A:360BINDING SITE FOR RESIDUE MG A 300
2AC2SOFTWARESER A:30 , ALA A:31 , VAL A:32 , GLY A:33 , LYS A:34 , SER A:35 , SER A:36 , PHE A:46 , HIS A:47 , GLU A:48 , GLN A:50 , SER A:52 , THR A:53 , GLY A:79 , ASN A:134 , LYS A:135 , ASP A:137 , LEU A:138 , SER A:164 , ALA A:165 , LYS A:166 , LYS A:181 , MG A:300 , HOH A:309 , HOH A:318 , HOH A:359 , HOH A:378 , HOH A:391 , HOH A:439BINDING SITE FOR RESIDUE GNP A 200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HUQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HUQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HUQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HUQ)

(-) Exons   (0, 0)

(no "Exon" information available for 1HUQ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:164
 aligned with RAB5C_MOUSE | P35278 from UniProtKB/Swiss-Prot  Length:216

    Alignment length:164
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178
          RAB5C_MOUSE    19 ICQFKLVLLGESAVGKSSLVLRFVKGQFHEYQESTIGAAFLTQTVCLDDTTVKFEIWDTAGQERYHSLAPMYYRGAQAAIVVYDITNTDTFARAKNWVKELQRQASPNIVIALAGNKADLASKRAVEFQEAQAYADDNSLLFMETSAKTAMNVNEIFMAIAKKL 182
               SCOP domains d1huqa_ A: Rab5c                                                                                                                                                     SCOP domains
               CATH domains 1huqA00 A:19-182 P-loop containing nucleotide triphosphate hydrolases                                                                                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee....hhhhhhhhhhhh...........eeeeeeeeee..eeeeeeeeee..hhhhhhhhhhhhh...eeeeeee..hhhhhhhhhhhhhhhhhhh....eeeeeee...hhhhh..hhhhhhhhhhhh..eeee.......hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1huq A  19 ICQFKLVLLGESAVGKSSLVLRFVKGQFHEYQESTIGAAFLTQTVCLDDTTVKFEIWDTAGQERYHSLAPMYYRGAQAAIVVYDITNTDTFARAKNWVKELQRQASPNIVIALAGNKADLASKRAVEFQEAQAYADDNSLLFMETSAKTAMNVNEIFMAIAKKL 182
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HUQ)

(-) Gene Ontology  (22, 22)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RAB5C_MOUSE | P35278)
molecular function
    GO:0019003    GDP binding    Interacting selectively and non-covalently with GDP, guanosine 5'-diphosphate.
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0003924    GTPase activity    Catalysis of the reaction: GTP + H2O = GDP + phosphate.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0007032    endosome organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of endosomes.
    GO:0048227    plasma membrane to endosome transport    Transport of a vesicle from the plasma membrane to the endosome.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0030100    regulation of endocytosis    Any process that modulates the frequency, rate or extent of endocytosis.
    GO:0007264    small GTPase mediated signal transduction    Any series of molecular signals in which a small monomeric GTPase relays one or more of the signals.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005769    early endosome    A membrane-bounded organelle that receives incoming material from primary endocytic vesicles that have been generated by clathrin-dependent and clathrin-independent endocytosis; vesicles fuse with the early endosome to deliver cargo for sorting into recycling or degradation pathways.
    GO:0031901    early endosome membrane    The lipid bilayer surrounding an early endosome.
    GO:0030139    endocytic vesicle    A membrane-bounded intracellular vesicle formed by invagination of the plasma membrane around an extracellular substance. Endocytic vesicles fuse with early endosomes to deliver the cargo for further sorting.
    GO:0005768    endosome    A vacuole to which materials ingested by endocytosis are delivered.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0043231    intracellular membrane-bounded organelle    Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
    GO:0005811    lipid droplet    An intracellular non-membrane-bounded organelle comprising a matrix of coalesced lipids surrounded by a phospholipid monolayer. May include associated proteins.
    GO:0005765    lysosomal membrane    The lipid bilayer surrounding the lysosome and separating its contents from the cell cytoplasm.
    GO:0042470    melanosome    A tissue-specific, membrane-bounded cytoplasmic organelle within which melanin pigments are synthesized and stored. Melanosomes are synthesized in melanocyte cells.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GNP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1huq)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1huq
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RAB5C_MOUSE | P35278
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RAB5C_MOUSE | P35278
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RAB5C_MOUSE | P35278: 1z07 1z0d

(-) Related Entries Specified in the PDB File

1d5c 1D5C IS PLASMODIUM FALCIPARUM RAB6 COMPLEXED WITH GDP.
1ek0 1EK0 IS GPPNHP-BOUND YPT51.
1g16 1G16 IS SEC4-GDP.
1zbd 1ZBD IS THE SMALL G PROTEIN RAB3A COMPLEXED WITH THE EFFECTOR DOMAIN OF RABPHILIN-3A.
3rab 3RAB IS GPPNHP-BOUND RAB3A.
5p21 5P21 IS C-H-RAS P21 PROTEIN IN COMPLEX WITH GUANOSINE-5'- (BETA,GAMMA-IMIDO) TRIPHOSPHATE (GPPNP).
