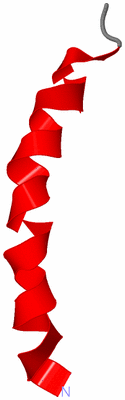

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF T3-I2, A 32 RESIDUE PEPTIDE FROM THE ALPHA-2A ADRENERGIC RECEPTOR

Authors :  D. A. Chung, E. R. P. Zuiderweg, R. R. Neubig
Date :  01 Dec 00  (Deposition) - 10 Apr 02  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Helix-Linker-Helix, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. A. Chung, E. R. Zuiderweg, C. B. Fowler, O. S. Soyer, H. I. Mosberg, R. R. Neubig
Nmr Structure Of The Second Intracellular Loop Of The Alpha 2A Adrenergic Receptor: Evidence For A Novel Cytoplasmic Helix.
Biochemistry V. 41 3596 2002
PubMed-ID: 11888275  |  Reference-DOI: 10.1021/BI015811+
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ALPHA-2A ADRENERGIC RECEPTOR
    Chains: A
    Engineered: YES
    Fragment: SECOND INTRACELLULAR LOOP T3-I2 (RESIDUES 118- 149)
    Other Details: THE PEPTIDE WAS CHEMICALLY SYNTHESIZED. THE SEQUENCE OF THE PEPTIDE OCCURS NATURALLY IN HOMO SAPIENS (HUMAN).
    Synonym: ALPHA-2A ADRENOCEPTOR
    Synthetic: YES

 Structural Features

(-) Chains, Units


NMR Structure :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1HLL)

(-) Sites  (0, 0)

(no "Site" information available for 1HLL)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HLL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HLL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HLL)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1G_PROTEIN_RECEP_F1_1PS00237 G-protein coupled receptors family 1 signature.ADA2A_HUMAN119-135  1A:2-18

(-) Exons   (0, 0)

(no "Exon" information available for 1HLL)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:32
 aligned with ADA2A_HUMAN | P08913 from UniProtKB/Swiss-Prot  Length:450

    Alignment length:32
                                   127       137       147
          ADA2A_HUMAN   118 TSSIVHLCAISLDRYWSITQAIEYNLKRTPRR 149
               SCOP domains d1hlla_ A:                       SCOP domains
               CATH domains -------------------------------- CATH domains
               Pfam domains -------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) -------------------------------- SAPs(SNPs)
                    PROSITE -G_PROTEIN_RECEP_F-------------- PROSITE
                 Transcript -------------------------------- Transcript
                 1hll A   1 TSSIVHLCAISLDRYWSITQAIEYNLKRTPRR  32
                                    10        20        30
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Peptides (792)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1HLL)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HLL)

(-) Gene Ontology  (66, 66)

NMR Structure(hide GO term definitions)
Chain A   (ADA2A_HUMAN | P08913)
molecular function
    GO:0004930    G-protein coupled receptor activity    Combining with an extracellular signal and transmitting the signal across the membrane by activating an associated G-protein; promotes the exchange of GDP for GTP on the alpha subunit of a heterotrimeric G-protein complex.
    GO:0004935    adrenergic receptor activity    Combining with epinephrine or norepinephrine and transmitting the signal across the membrane by activating the alpha-subunit of an associated heterotrimeric G-protein complex.
    GO:0031692    alpha-1B adrenergic receptor binding    Interacting selectively and non-covalently with an alpha-1B adrenergic receptor.
    GO:0031696    alpha-2C adrenergic receptor binding    Interacting selectively and non-covalently with an alpha-2C adrenergic receptor.
    GO:0004938    alpha2-adrenergic receptor activity    Combining with epinephrine or norepinephrine to initiate a change in cell activity via activation of a G protein, with pharmacological characteristics of alpha2-adrenergic receptors; the activity involves transmitting the signal to the Gi alpha subunit of a heterotrimeric G protein.
    GO:0051379    epinephrine binding    Interacting selectively and non-covalently with epinephrine, a hormone produced by the medulla of the adrenal glands that increases heart activity, improves the power and prolongs the action of muscles, and increases the rate and depth of breathing. It is synthesized by the methylation of norepinephrine.
    GO:0032795    heterotrimeric G-protein binding    Interacting selectively and non-covalently with a heterotrimeric G-protein.
    GO:0051380    norepinephrine binding    Interacting selectively and non-covalently with norepinephrine, (3,4-dihydroxyphenyl-2-aminoethanol), a hormone secreted by the adrenal medulla and a neurotransmitter in the sympathetic peripheral nervous system and in some tracts of the CNS. It is also the biosynthetic precursor of epinephrine.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0019901    protein kinase binding    Interacting selectively and non-covalently with a protein kinase, any enzyme that catalyzes the transfer of a phosphate group, usually from ATP, to a protein substrate.
    GO:0004871    signal transducer activity    Conveys a signal across a cell to trigger a change in cell function or state. A signal is a physical entity or change in state that is used to transfer information in order to trigger a response.
    GO:0031996    thioesterase binding    Interacting selectively and non-covalently with any thioesterase enzyme.
biological process
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0007186    G-protein coupled receptor signaling pathway    A series of molecular signals that proceeds with an activated receptor promoting the exchange of GDP for GTP on the alpha-subunit of an associated heterotrimeric G-protein complex. The GTP-bound activated alpha-G-protein then dissociates from the beta- and gamma-subunits to further transmit the signal within the cell. The pathway begins with receptor-ligand interaction, or for basal GPCR signaling the pathway begins with the receptor activating its G protein in the absence of an agonist, and ends with regulation of a downstream cellular process, e.g. transcription. The pathway can start from the plasma membrane, Golgi or nuclear membrane (PMID:24568158 and PMID:16902576).
    GO:0007265    Ras protein signal transduction    A series of molecular signals within the cell that are mediated by a member of the Ras superfamily of proteins switching to a GTP-bound active state.
    GO:0007266    Rho protein signal transduction    A series of molecular signals within the cell that are mediated by a member of the Rho family of proteins switching to a GTP-bound active state.
    GO:0030036    actin cytoskeleton organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments and their associated proteins.
    GO:0071883    activation of MAPK activity by adrenergic receptor signaling pathway    The series of molecular signals generated as a consequence of an adrenergic receptor binding to its physiological ligand, followed by the activation of a MAP kinase.
    GO:0032148    activation of protein kinase B activity    Any process that initiates the activity of the inactive enzyme protein kinase B.
    GO:0032147    activation of protein kinase activity    Any process that initiates the activity of an inactive protein kinase.
    GO:0002526    acute inflammatory response    Inflammation which comprises a rapid, short-lived, relatively uniform response to acute injury or antigenic challenge and is characterized by accumulations of fluid, plasma proteins, and granulocytic leukocytes. An acute inflammatory response occurs within a matter of minutes or hours, and either resolves within a few days or becomes a chronic inflammatory response.
    GO:0071880    adenylate cyclase-activating adrenergic receptor signaling pathway    The series of molecular signals generated as a consequence of an adrenergic receptor binding to its physiological ligand, where the pathway proceeds with activation of adenylyl cyclase and a subsequent increase in the concentration of cyclic AMP (cAMP).
    GO:0071881    adenylate cyclase-inhibiting adrenergic receptor signaling pathway    The series of molecular signals generated as a consequence of an adrenergic receptor binding to its physiological ligand, where the pathway proceeds with inhibition of adenylyl cyclase and a subsequent decrease in the concentration of cyclic AMP (cAMP).
    GO:0032870    cellular response to hormone stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a hormone stimulus.
    GO:0035625    epidermal growth factor-activated receptor transactivation by G-protein coupled receptor signaling pathway    The process in which an epidermal growth factor-activated receptor is activated via signaling events from a G-protein coupled receptor. This is an example of cross-talk between the EGF and GPCR signaling pathways.
    GO:0007565    female pregnancy    The set of physiological processes that allow an embryo or foetus to develop within the body of a female animal. It covers the time from fertilization of a female ovum by a male spermatozoon until birth.
    GO:0042593    glucose homeostasis    Any process involved in the maintenance of an internal steady state of glucose within an organism or cell.
    GO:0050892    intestinal absorption    Any process in which nutrients are taken up from the contents of the intestine.
    GO:0006928    movement of cell or subcellular component    The directed, self-propelled movement of a cell or subcellular component without the involvement of an external agent such as a transporter or a pore.
    GO:0007194    negative regulation of adenylate cyclase activity    Any process that stops, prevents, or reduces the frequency, rate or extent of adenylate cyclase activity.
    GO:0071878    negative regulation of adrenergic receptor signaling pathway    Any process that stops, prevents, or reduces the frequency, rate or extent of adrenergic receptor protein signaling pathway activity. An adrenergic receptor signaling pathway is the series of molecular signals generated as a consequence of an adrenergic receptor binding to one of its physiological ligands.
    GO:0030818    negative regulation of cAMP biosynthetic process    Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of the nucleotide cAMP (cyclic AMP, adenosine 3',5'-cyclophosphate).
    GO:1901020    negative regulation of calcium ion transmembrane transporter activity    Any process that stops, prevents or reduces the frequency, rate or extent of calcium ion transmembrane transporter activity.
    GO:0051926    negative regulation of calcium ion transport    Any process that stops, prevents, or reduces the frequency, rate or extent of the directed movement of calcium ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0045955    negative regulation of calcium ion-dependent exocytosis    Any process that stops, prevents, or reduces the frequency, rate or extent of calcium ion-dependent exocytosis.
    GO:0032811    negative regulation of epinephrine secretion    Any process that stops, prevents, or reduces the frequency, rate or extent of the regulated release of epinephrine.
    GO:0046676    negative regulation of insulin secretion    Any process that stops, prevents, or reduces the frequency, rate or extent of the regulated release of insulin.
    GO:0061179    negative regulation of insulin secretion involved in cellular response to glucose stimulus    Any process that decreases the frequency, rate or extent of the regulated release of insulin that contributes to the response of a cell to glucose.
    GO:0050995    negative regulation of lipid catabolic process    Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the breakdown of lipids.
    GO:0010700    negative regulation of norepinephrine secretion    Any process that decreases the frequency, rate or extent of the regulated release of norepinephrine.
    GO:0070473    negative regulation of uterine smooth muscle contraction    Any process that decreases the frequency, rate or extent of uterine smooth muscle contraction.
    GO:0071882    phospholipase C-activating adrenergic receptor signaling pathway    The series of molecular signals generated as a consequence of an adrenergic receptor binding to its physiological ligand, where the pathway proceeds with activation of phospholipase C (PLC) and a subsequent release of inositol trisphosphate (IP3) and diacylglycerol (DAG).
    GO:0030168    platelet activation    A series of progressive, overlapping events triggered by exposure of the platelets to subendothelial tissue. These events include shape change, adhesiveness, aggregation, and release reactions. When carried through to completion, these events lead to the formation of a stable hemostatic plug.
    GO:0043406    positive regulation of MAP kinase activity    Any process that activates or increases the frequency, rate or extent of MAP kinase activity.
    GO:0030335    positive regulation of cell migration    Any process that activates or increases the frequency, rate or extent of cell migration.
    GO:0008284    positive regulation of cell proliferation    Any process that activates or increases the rate or extent of cell proliferation.
    GO:0001819    positive regulation of cytokine production    Any process that activates or increases the frequency, rate or extent of production of a cytokine.
    GO:0045741    positive regulation of epidermal growth factor-activated receptor activity    Any process that activates or increases the frequency, rate or extent of EGF-activated receptor activity.
    GO:0051044    positive regulation of membrane protein ectodomain proteolysis    Any process that activates or increases the frequency, rate or extent of membrane protein ectodomain peptidolysis.
    GO:0043268    positive regulation of potassium ion transport    Any process that activates or increases the frequency, rate or extent of the directed movement of potassium ions (K+) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0090303    positive regulation of wound healing    Any process that increases the rate, frequency, or extent of the series of events that restore integrity to a damaged tissue, following an injury.
    GO:0050796    regulation of insulin secretion    Any process that modulates the frequency, rate or extent of the regulated release of insulin.
    GO:0006940    regulation of smooth muscle contraction    Any process that modulates the frequency, rate or extent of smooth muscle contraction.
    GO:0019229    regulation of vasoconstriction    Any process that modulates the frequency, rate or extent of reductions in the diameter of blood vessels.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0050955    thermoception    The series of events required for an organism to receive a temperature stimulus, convert it to a molecular signal, and recognize and characterize the signal. Thermoception in larger animals is mainly done in the skin; mammals have at least two types of sensor, for detecting heat (temperatures above body temperature) and cold (temperatures below body temperature).
cellular component
    GO:0016323    basolateral plasma membrane    The region of the plasma membrane that includes the basal end and sides of the cell. Often used in reference to animal polarized epithelial membranes, where the basal membrane is the part attached to the extracellular matrix, or in plant cells, where the basal membrane is defined with respect to the zygotic axis.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0043235    receptor complex    Any protein complex that undergoes combination with a hormone, neurotransmitter, drug or intracellular messenger to initiate a change in cell function.
    GO:0045202    synapse    The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1hll)

  Sites
(no "Sites" information available for 1hll)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1hll)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

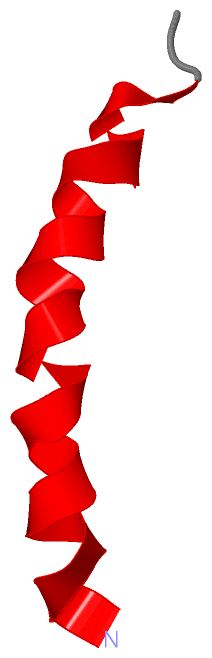

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hll
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ADA2A_HUMAN | P08913
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ADA2A_HUMAN | P08913
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ADA2A_HUMAN | P08913: 1ho9 1hod 1hof

(-) Related Entries Specified in the PDB File

1ho9 TOP 20 DYANA CONFORMERS OF D130I MUTANT T3-I2 PEPTIDE
1hod MEAN STRUCTURE OF D130I MUTANT T3-I2 PEPTIDE
1hof TOP 20 DYANA CONFORMERS OF WILD-TYPE T3-I2 PEPTIDE
