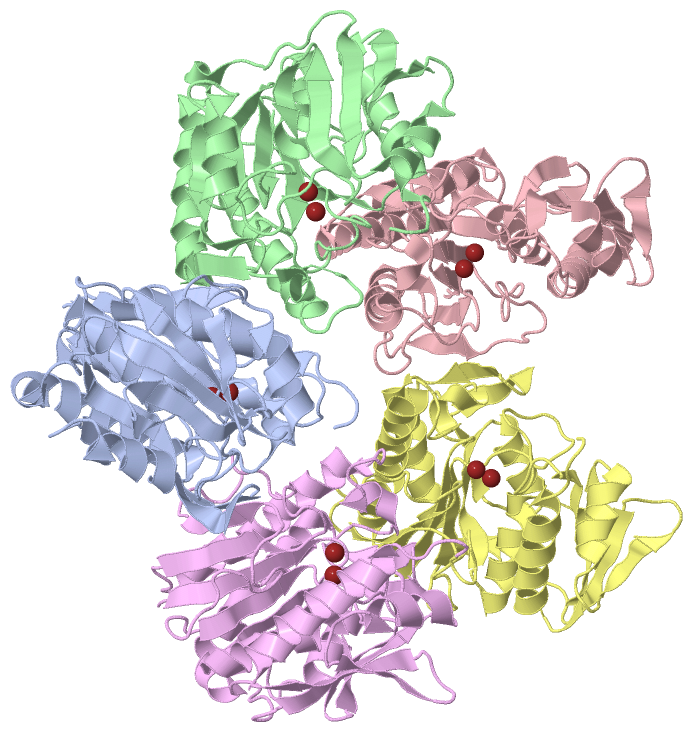

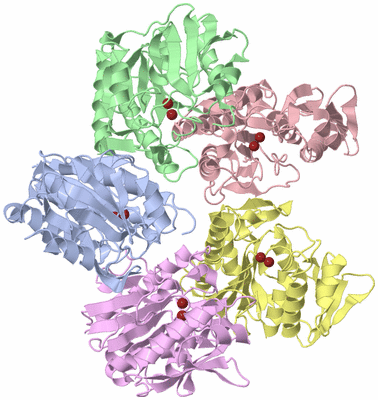

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

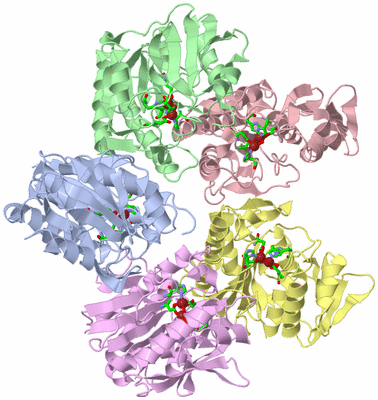

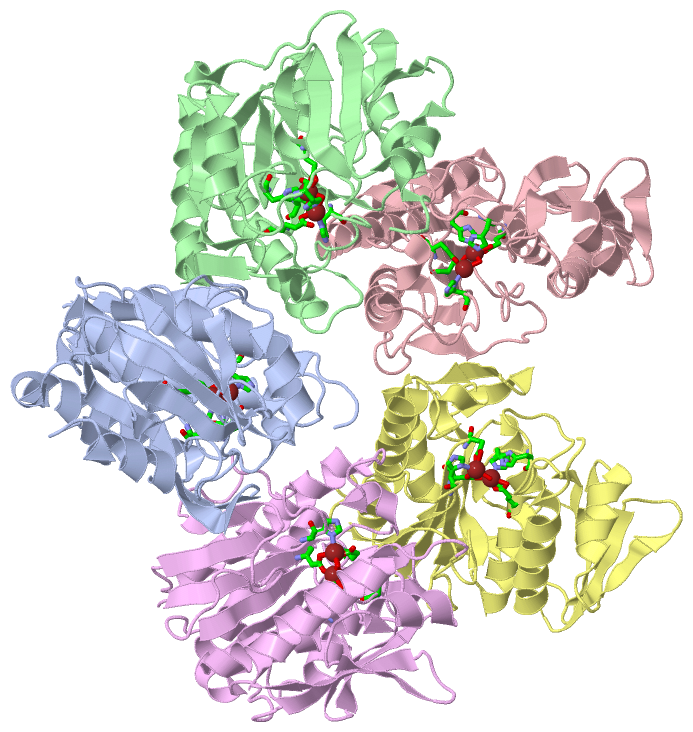

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

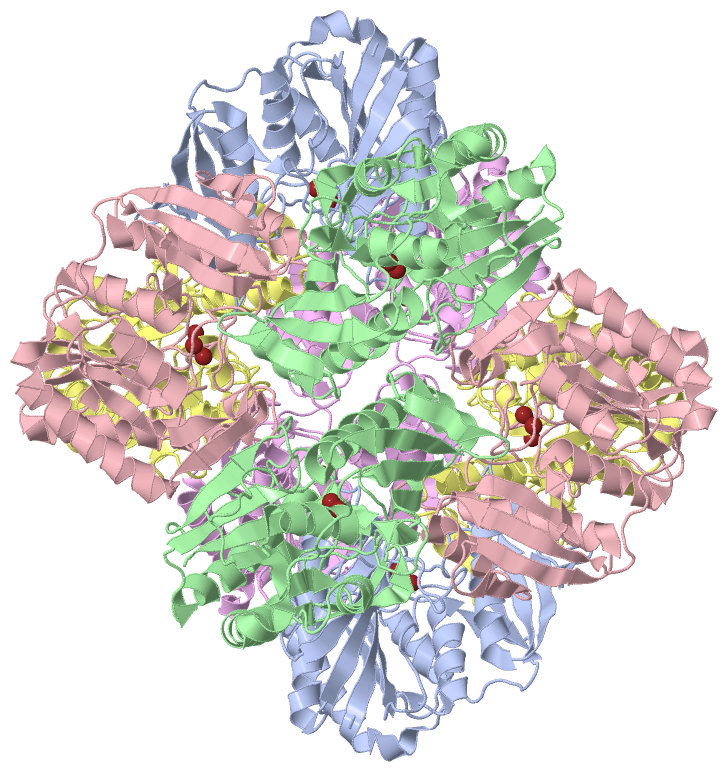

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

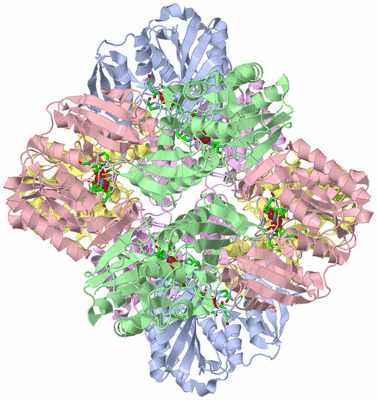

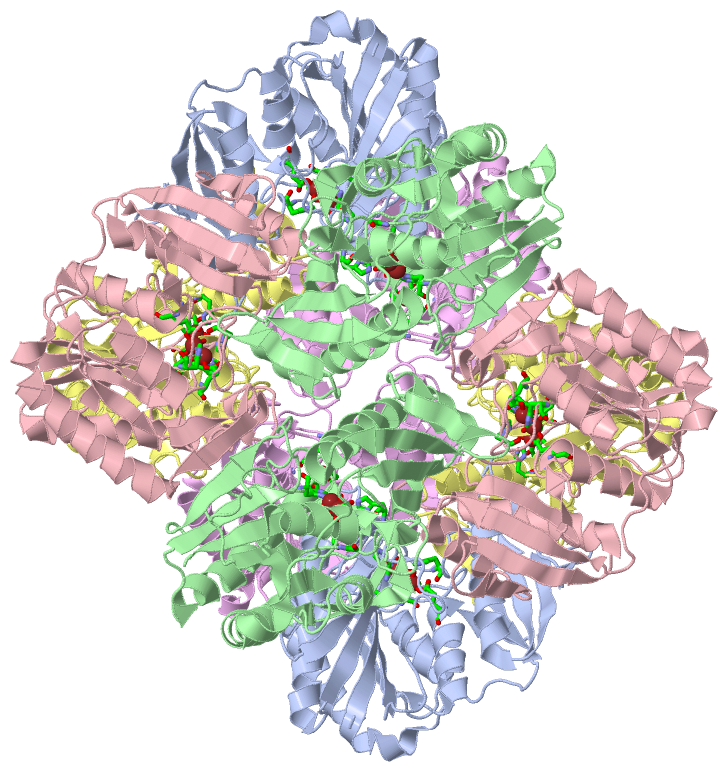

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  ZN-DEPENDENT D-AMINOPEPTIDASE DPPA FROM BACILLUS SUBTILIS, A SELF-COMPARTMENTALIZING PROTEASE.

Authors :  H. Remaut, C. Bompard-Gilles, C. Goffin, J. M. Frere, J. Van Beeumen
Date :  04 Jan 01  (Deposition) - 09 Aug 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B,C,D,E
Biol. Unit 1:  A,B,C,D,E  (2x)
Keywords :  Hydrolase (Protease), Protease, D-Aminopeptidase, Decamer, Self-Compartmentalizing (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Remaut, C. Bompard-Gilles, C. Goffin, J. M. Frere, J. Van Beeumen
Structure Of The Bacillus Subtilis D-Aminopeptidase Dppa Reveals A Novel Self-Compartmentalizing Protease
Nat. Struct. Biol. V. 8 674 2001
PubMed-ID: 11473256  |  Reference-DOI: 10.1038/90380

(-) Compounds

Molecule 1 - DIPEPTIDE TRANSPORT PROTEIN DPPA
    Cellular Location: CYTOPLASM
    Chains: A, B, C, D, E
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Cellular Location: CYTOPLASM
    Expression System Strain: B834(DE3)
    Expression System Taxid: 562
    Expression System Vector: PET22B
    Expression System Vector Type: PLASMID
    Gene: DCIAA
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Other Details: RECOMBINANT EXPRESSION IN E. COLI
    Plasmid: CHROMOSOME
    Strain: 168
    Synonym: DCIAA

 Structural Features

(-) Chains, Units

  12345
Asymmetric Unit : ABCDE
Biological Unit 1 (2x): ABCDE

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 10)

Asymmetric Unit (1, 10)
No.NameCountTypeFull Name
1ZN10Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (10, 10)

Asymmetric Unit (10, 10)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASP A:8 , HIS A:104 , HIS A:115 , GLU A:133 , ZN A:301 , HOH A:2059BINDING SITE FOR RESIDUE ZN A 300
02AC2SOFTWAREASP A:8 , GLU A:10 , HIS A:60 , ZN A:300 , HOH A:2059BINDING SITE FOR RESIDUE ZN A 301
03AC3SOFTWAREASP B:8 , HIS B:104 , HIS B:115 , GLU B:133 , ZN B:301 , HOH B:2025BINDING SITE FOR RESIDUE ZN B 300
04AC4SOFTWAREASP B:8 , GLU B:10 , HIS B:60 , ZN B:300 , HOH B:2025BINDING SITE FOR RESIDUE ZN B 301
05AC5SOFTWAREASP C:8 , HIS C:104 , HIS C:115 , GLU C:133 , ZN C:301 , HOH C:2037BINDING SITE FOR RESIDUE ZN C 300
06AC6SOFTWAREASP C:8 , GLU C:10 , HIS C:60 , ZN C:300 , HOH C:2037BINDING SITE FOR RESIDUE ZN C 301
07AC7SOFTWAREASP D:8 , HIS D:104 , HIS D:115 , GLU D:133 , ZN D:301 , HOH D:2053BINDING SITE FOR RESIDUE ZN D 300
08AC8SOFTWAREASP D:8 , GLU D:10 , HIS D:60 , ZN D:300 , HOH D:2053BINDING SITE FOR RESIDUE ZN D 301
09AC9SOFTWAREASP E:8 , HIS E:104 , HIS E:115 , GLU E:133 , ZN E:301 , HOH E:2073BINDING SITE FOR RESIDUE ZN E 300
10BC1SOFTWAREASP E:8 , GLU E:10 , HIS E:60 , ZN E:300 , HOH E:2073BINDING SITE FOR RESIDUE ZN E 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HI9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HI9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HI9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HI9)

(-) Exons   (0, 0)

(no "Exon" information available for 1HI9)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:274
 aligned with DPPA_BACSU | P26902 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
           DPPA_BACSU     1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKAGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
               SCOP domains d1hi9a_ A: Zn-dependent D-aminopeptidase DppA                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee........hhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeeeee................eeeee.................eeeee...................eeeeee..eeehhhhhhhhhhhhh..eeeeeee.hhhhhhhhh.....eeee.eeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........eeeeeee.hhhhhhhhh....eeee....eeeeee.hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hi9 A   1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKRGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270


Chain B from PDB  Type:PROTEIN  Length:274
 aligned with DPPA_BACSU | P26902 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
           DPPA_BACSU     1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKAGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
               SCOP domains d1hi9b_ B: Zn-dependent D-aminopeptidase DppA                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee........hhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeeeee................eeeee.................eeeee...................eeeeee..eeehhhhhhhhhhhhh..eeeeeee.hhhhhhhhh.....eeee.eeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........eeeeeee.hhhhhhhhh....eeee....eeeeee.hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hi9 B   1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKRGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270


Chain C from PDB  Type:PROTEIN  Length:274
 aligned with DPPA_BACSU | P26902 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
           DPPA_BACSU     1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKAGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
               SCOP domains d1hi9c_ C: Zn-dependent D-aminopeptidase DppA                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee........hhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeeeee................eeeee.................eeeee...................eeeeee..eeehhhhhhhhhhhhh..eeeeeee.hhhhhhhhh.....eeee.eeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........eeeeeee.hhhhhhhhh....eeee....eeeeee.hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hi9 C   1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKRGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270


Chain D from PDB  Type:PROTEIN  Length:274
 aligned with DPPA_BACSU | P26902 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
           DPPA_BACSU     1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKAGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
               SCOP domains d1hi9d_ D: Zn-dependent D-aminopeptidase DppA                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee........hhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeeeee................eeeee.................eeeee...................eeeeee..eeehhhhhhhhhhhhh..eeeeeee.hhhhhhhhh.....eeee.eeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........eeeeeee.hhhhhhhhh....eeee....eeeeee.hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hi9 D   1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKRGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270


Chain E from PDB  Type:PROTEIN  Length:274
 aligned with DPPA_BACSU | P26902 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
           DPPA_BACSU     1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKAGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
               SCOP domains d1hi9e_ E: Zn-dependent D-aminopeptidase DppA                                                                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee........hhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeeeee................eeeee.................eeeee...................eeeeee..eeehhhhhhhhhhhhh..eeeeeee.hhhhhhhhh.....eeee.eeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........eeeeeee.hhhhhhhhh....eeee....eeeeee.hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hi9 E   1 MKLYMSVDMEGISGLPDDTFVDSGKRNYERGRLIMTEEANYCIAEAFNSGCTEVLVNDSHSKMNNLMVEKLHPEADLISGDVKPFSMVEGLDDTFRGALFLGYHARASTPGVMSHSMIFGVRHFYINDRPVGELGLNAYVAGYYDVPVLMVAGDDRAAKEAEELIPNVTTAAVKQTISRSAVKCLSPAKRGRLLTEKTAFALQNKDKVKPLTPPDRPVLSIEFANYGQAEWANLMPGTEIKTGTTTVQFQAKDMLEAYQAMLVMTELAMRTSFC 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 5)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1HI9)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HI9)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E   (DPPA_BACSU | P26902)
molecular function
    GO:0004177    aminopeptidase activity    Catalysis of the hydrolysis of N-terminal amino acid residues from in a polypeptide chain.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0008237    metallopeptidase activity    Catalysis of the hydrolysis of peptide bonds by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.
