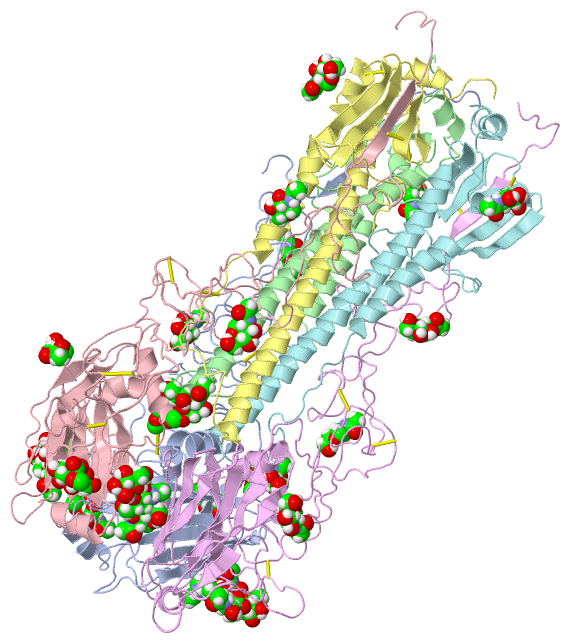

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

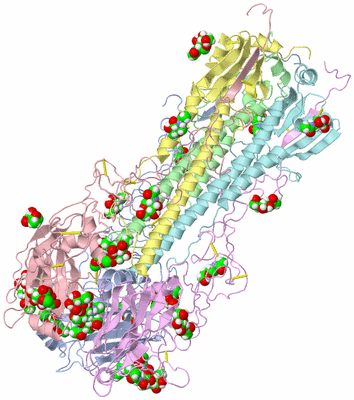

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

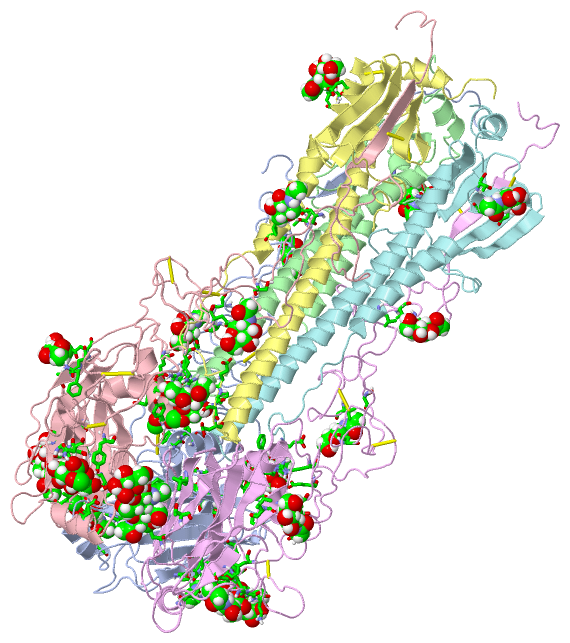

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  BINDING OF INFLUENZA VIRUS HEMAGGLUTININ TO ANALOGS OF ITS CELL-SURFACE RECEPTOR, SIALIC ACID: ANALYSIS BY PROTON NUCLEAR MAGNETIC RESONANCE SPECTROSCOPY AND X-RAY CRYSTALLOGRAPHY

Authors :  N. K. Sauter, J. E. Hanson, G. D. Glick, J. H. Brown, R. L. Crowther, S. -J. J. J. Skehel, D. C. Wiley
Date :  01 Nov 91  (Deposition) - 31 Jan 94  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Influenza Virus Hemagglutinin, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. K. Sauter, J. E. Hanson, G. D. Glick, J. H. Brown, R. L. Crowther, S. J. Park, J. J. Skehel, D. C. Wiley
Binding Of Influenza Virus Hemagglutinin To Analogs Of Its Cell-Surface Receptor, Sialic Acid: Analysis By Proton Nuclear Magnetic Resonance Spectroscopy And X-Ray Crystallography.
Biochemistry V. 31 9609 1992
PubMed-ID: 1327122  |  Reference-DOI: 10.1021/BI00155A013
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HEMAGGLUTININ, CHAIN HA1
    Chains: A, C, E
    Engineered: YES
    Organism Scientific: INFLUENZA A VIRUS
    Organism Taxid: 132504
    Strain: (A/X-31(H3N2))

Molecule 2 - HEMAGGLUTININ, CHAIN HA1
    Chains: B, D, F
    Engineered: YES
    Organism Scientific: INFLUENZA A VIRUS
    Organism Taxid: 132504
    Strain: (A/X-31(H3N2))

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 27)

Asymmetric/Biological Unit (3, 27)
No.NameCountTypeFull Name
1BMA3Ligand/IonBETA-D-MANNOSE
2MNA6Ligand/Ion2-O-METHYL-5-N-ACETYL-ALPHA-D- NEURAMINIC ACID
3NAG18Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (27, 27)

Asymmetric Unit (27, 27)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASN A:38 , THR A:318 , LEU B:52BINDING SITE FOR RESIDUE NAG A 329
02AC2SOFTWAREGLN A:80 , ASN A:81 , PHE A:120 , ILE A:121BINDING SITE FOR RESIDUE NAG A 334
03AC3SOFTWAREASN A:165 , THR A:167 , NAG A:340 , SER E:219BINDING SITE FOR RESIDUE NAG A 339
04AC4SOFTWAREVAL A:242 , NAG A:339 , BMA A:341 , PRO E:221 , TRP E:222BINDING SITE FOR RESIDUE NAG A 340
05AC5SOFTWARENAG A:340 , TRP E:222BINDING SITE FOR RESIDUE BMA A 341
06AC6SOFTWARESER A:45 , ASN A:285 , VAL A:297BINDING SITE FOR RESIDUE NAG A 348
07AC7SOFTWAREGLU B:150 , ASN B:154 , THR B:156BINDING SITE FOR RESIDUE NAG B 401
08AC8SOFTWAREASN C:38 , THR C:318 , LEU D:52BINDING SITE FOR RESIDUE NAG C 329
09AC9SOFTWAREGLN C:80 , ASN C:81 , PHE C:120 , ILE C:121BINDING SITE FOR RESIDUE NAG C 334
10BC1SOFTWARESER A:219 , ASN C:165 , THR C:167 , NAG C:340BINDING SITE FOR RESIDUE NAG C 339
11BC2SOFTWAREPRO A:221 , TRP A:222 , VAL C:242 , NAG C:339 , BMA C:341BINDING SITE FOR RESIDUE NAG C 340
12BC3SOFTWARETRP A:222 , NAG C:340BINDING SITE FOR RESIDUE BMA C 341
13BC4SOFTWARESER C:45 , ASN C:285 , VAL C:297BINDING SITE FOR RESIDUE NAG C 348
14BC5SOFTWAREGLU D:150 , ASN D:154 , THR D:156BINDING SITE FOR RESIDUE NAG D 401
15BC6SOFTWAREASN E:38 , THR E:318 , LEU F:52BINDING SITE FOR RESIDUE NAG E 329
16BC7SOFTWAREGLN E:80 , ASN E:81 , PHE E:120 , ILE E:121BINDING SITE FOR RESIDUE NAG E 334
17BC8SOFTWARESER C:219 , ASN E:165 , THR E:167 , NAG E:340BINDING SITE FOR RESIDUE NAG E 339
18BC9SOFTWAREPRO C:221 , TRP C:222 , VAL E:242 , NAG E:339 , BMA E:341BINDING SITE FOR RESIDUE NAG E 340
19CC1SOFTWARENAG E:340BINDING SITE FOR RESIDUE BMA E 341
20CC2SOFTWARESER E:45 , ASN E:285 , VAL E:297BINDING SITE FOR RESIDUE NAG E 348
21CC3SOFTWAREGLU F:150 , ASN F:154 , THR F:156BINDING SITE FOR RESIDUE NAG F 401
22CC4SOFTWARETYR A:98 , GLY A:135 , SER A:136 , ASN A:137 , TRP A:153 , HIS A:183 , GLU A:190 , LEU A:194 , SER A:228BINDING SITE FOR RESIDUE MNA A 349
23CC5SOFTWAREGLU A:89 , TYR A:105 , ALA A:106 , ARG A:109 , ARG A:269 , GLU B:69 , PHE B:70 , SER B:71 , GLU B:72 , HOH B:411BINDING SITE FOR RESIDUE MNA A 350
24CC6SOFTWARETYR C:98 , GLY C:135 , SER C:136 , ASN C:137 , TRP C:153 , HIS C:183 , GLU C:190 , LEU C:194 , SER C:228BINDING SITE FOR RESIDUE MNA C 349
25CC7SOFTWAREGLU C:89 , TYR C:105 , ALA C:106 , ARG C:109 , ARG C:269 , GLU D:69 , PHE D:70 , SER D:71 , GLU D:72 , HOH D:412BINDING SITE FOR RESIDUE MNA C 350
26CC8SOFTWARETYR E:98 , GLY E:135 , SER E:136 , ASN E:137 , TRP E:153 , HIS E:183 , GLU E:190 , LEU E:194 , SER E:228BINDING SITE FOR RESIDUE MNA E 349
27CC9SOFTWAREGLU E:89 , TYR E:105 , ALA E:106 , ARG E:109 , ARG E:269 , GLU F:69 , PHE F:70 , SER F:71 , GLU F:72 , HOH F:413BINDING SITE FOR RESIDUE MNA E 350

(-) SS Bonds  (18, 18)

Asymmetric/Biological Unit
No.Residues
1A:14 -B:137
2A:52 -A:277
3A:64 -A:76
4A:97 -A:139
5A:281 -A:305
6B:144 -B:148
7C:14 -D:137
8C:52 -C:277
9C:64 -C:76
10C:97 -C:139
11C:281 -C:305
12D:144 -D:148
13E:14 -F:137
14E:52 -E:277
15E:64 -E:76
16E:97 -E:139
17E:281 -E:305
18F:144 -F:148

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Asn A:54 -Pro A:55
2Asn C:54 -Pro C:55
3Asn E:54 -Pro E:55

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HGH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HGH)

(-) Exons   (0, 0)

(no "Exon" information available for 1HGH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:328
 aligned with HEMA_I000X | P03438 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:328
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336
           HEMA_I000X    17 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQKETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSIACKRGPDSGFFSRLNWLTKSESTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 344
               SCOP domains d1hgha_ A: Hemagglutinin                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------1hghA01 A:57-272  [code=3.90.209.20, no name defined]                                                                                                                                                                   -------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeee................................................hhhhhh.................................hhhhhhhhhhh...eee..............................eee.........eeeeeee.....eeeeeeeee...hhhhhhh......eeeee....eeee...............eeeeeeeee...eeeeeee...eeeeeeeee..................................................................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh A   1 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 328
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320


Chain A from PDB  Type:PROTEIN  Length:328
 aligned with HEMA_I68A0 | P03437 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:328
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336
           HEMA_I68A0    17 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 344
               SCOP domains d1hgha_ A: Hemagglutinin                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------1hghA01 A:57-272  [code=3.90.209.20, no name defined]                                                                                                                                                                   -------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeee................................................hhhhhh.................................hhhhhhhhhhh...eee..............................eee.........eeeeeee.....eeeeeeeee...hhhhhhh......eeeee....eeee...............eeeeeeeee...eeeeeee...eeeeeeeee..................................................................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh A   1 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 328
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320


Chain B from PDB  Type:PROTEIN  Length:175
 aligned with HEMA_I000X | P03438 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:175
                                   355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515
           HEMA_I000X   346 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEDMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 520
               SCOP domains d1hghb_ B: Influenza hemagglutinin (stalk)                                                                                                                                      SCOP domains
               CATH domains 1hghB00 B:1-175  [code=3.90.20.10, no name defined]                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................eeeeeee..eeeeeeehhhhhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..eeeee.....hhhhhhhh.........hhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh B   1 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain B from PDB  Type:PROTEIN  Length:175
 aligned with HEMA_I68A0 | P03437 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:175
                                   355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515
           HEMA_I68A0   346 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 520
               SCOP domains d1hghb_ B: Influenza hemagglutinin (stalk)                                                                                                                                      SCOP domains
               CATH domains 1hghB00 B:1-175  [code=3.90.20.10, no name defined]                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................eeeeeee..eeeeeeehhhhhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..eeeee.....hhhhhhhh.........hhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh B   1 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain C from PDB  Type:PROTEIN  Length:328
 aligned with HEMA_I000X | P03438 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:328
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336
           HEMA_I000X    17 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQKETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSIACKRGPDSGFFSRLNWLTKSESTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 344
               SCOP domains d1hghc_ C: Hemagglutinin                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------1hghC01 C:57-272  [code=3.90.209.20, no name defined]                                                                                                                                                                   -------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeee................................................hhhhhh.................................hhhhhhhhhhh...eee..............................eee.........eeeeeee.....eeeeeeeee...hhhhhhh......eeeee....eeee...............eeeeeeeee...eeeeeee...eeeeeeeee..................................................................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh C   1 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 328
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320


Chain C from PDB  Type:PROTEIN  Length:328
 aligned with HEMA_I68A0 | P03437 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:328
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336
           HEMA_I68A0    17 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 344
               SCOP domains d1hghc_ C: Hemagglutinin                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------1hghC01 C:57-272  [code=3.90.209.20, no name defined]                                                                                                                                                                   -------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeee................................................hhhhhh.................................hhhhhhhhhhh...eee..............................eee.........eeeeeee.....eeeeeeeee...hhhhhhh......eeeee....eeee...............eeeeeeeee...eeeeeee...eeeeeeeee..................................................................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh C   1 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 328
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320


Chain D from PDB  Type:PROTEIN  Length:175
 aligned with HEMA_I000X | P03438 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:175
                                   355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515
           HEMA_I000X   346 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEDMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 520
               SCOP domains d1hghd_ D: Influenza hemagglutinin (stalk)                                                                                                                                      SCOP domains
               CATH domains 1hghD00 D:1-175  [code=3.90.20.10, no name defined]                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................eeeeeee..eeeeeeehhhhhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..eeeee.....hhhhhhhh.........hhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh D   1 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain D from PDB  Type:PROTEIN  Length:175
 aligned with HEMA_I68A0 | P03437 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:175
                                   355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515
           HEMA_I68A0   346 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 520
               SCOP domains d1hghd_ D: Influenza hemagglutinin (stalk)                                                                                                                                      SCOP domains
               CATH domains 1hghD00 D:1-175  [code=3.90.20.10, no name defined]                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................eeeeeee..eeeeeeehhhhhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..eeeee.....hhhhhhhh.........hhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh D   1 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain E from PDB  Type:PROTEIN  Length:328
 aligned with HEMA_I000X | P03438 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:328
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336
           HEMA_I000X    17 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQKETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSIACKRGPDSGFFSRLNWLTKSESTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 344
               SCOP domains d1hghe_ E: Hemagglutinin                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------1hghE01 E:57-272  [code=3.90.209.20, no name defined]                                                                                                                                                                   -------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeee................................................hhhhhh.................................hhhhhhhhhhh...eee..............................eee.........eeeeeee.....eeeeeeeee...hhhhhhh......eeeee....eeee...............eeeeeeeee...eeeeeee...eeeeeeeee..................................................................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh E   1 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 328
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320


Chain E from PDB  Type:PROTEIN  Length:328
 aligned with HEMA_I68A0 | P03437 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:328
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336
           HEMA_I68A0    17 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 344
               SCOP domains d1hghe_ E: Hemagglutinin                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------1hghE01 E:57-272  [code=3.90.209.20, no name defined]                                                                                                                                                                   -------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeee................................................hhhhhh.................................hhhhhhhhhhh...eee..............................eee.........eeeeeee.....eeeeeeeee...hhhhhhh......eeeee....eeee...............eeeeeeeee...eeeeeee...eeeeeeeee..................................................................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh E   1 QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGGSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT 328
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320


Chain F from PDB  Type:PROTEIN  Length:175
 aligned with HEMA_I000X | P03438 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:175
                                   355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515
           HEMA_I000X   346 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEDMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 520
               SCOP domains d1hghf_ F: Influenza hemagglutinin (stalk)                                                                                                                                      SCOP domains
               CATH domains 1hghF00 F:1-175  [code=3.90.20.10, no name defined]                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................eeeeeee..eeeeeeehhhhhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..eeeee.....hhhhhhhh.........hhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh F   1 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain F from PDB  Type:PROTEIN  Length:175
 aligned with HEMA_I68A0 | P03437 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:175
                                   355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515
           HEMA_I68A0   346 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 520
               SCOP domains d1hghf_ F: Influenza hemagglutinin (stalk)                                                                                                                                      SCOP domains
               CATH domains 1hghF00 F:1-175  [code=3.90.20.10, no name defined]                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....................eeeeeee..eeeeeeehhhhhhhhhhhhhhhhhh....................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee..eeeee.....hhhhhhhh.........hhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hgh F   1 GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 6)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Coiled coil proteins (689)

(-) CATH Domains  (2, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HGH)

(-) Gene Ontology  (17, 34)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (HEMA_I68A0 | P03437)
molecular function
    GO:0046789    host cell surface receptor binding    Interacting selectively and non-covalently with a receptor on the host cell surface.
biological process
    GO:0075512    clathrin-dependent endocytosis of virus by host cell    Any clathrin-mediated endocytosis that is involved in the uptake of a virus into a host cell. Begins by invagination of a specific region of the host cell plasma membrane around the bound virus to form a clathrin-coated pit, which then pinches off to form a clathrin-coated endocytic vesicle containing the virus.
    GO:0075509    endocytosis involved in viral entry into host cell    Any endocytosis that is involved in the uptake of a virus into a host cell.
    GO:0039654    fusion of virus membrane with host endosome membrane    Fusion of a virus membrane with a host endosome membrane. Occurs after internalization of the virus through the endosomal pathway, and results in release of the virus contents into the cell.
    GO:0019064    fusion of virus membrane with host plasma membrane    Fusion of a viral membrane with the host cell membrane during viral entry. Results in release of the virion contents into the cytoplasm.
    GO:0039663    membrane fusion involved in viral entry into host cell    Merging of the virion membrane and a host membrane (host plasma membrane or host organelle membrane) that is involved in the uptake of a virus into a host cell.
    GO:0019065    receptor-mediated endocytosis of virus by host cell    Any receptor-mediated endocytosis that is involved in the uptake of a virus into a host cell; successive instances of virus endocytosis result in the accumulation of virus particles within the cell.
    GO:0046718    viral entry into host cell    The process that occurs after viral attachment by which a virus, or viral nucleic acid, breaches the plasma membrane or cell envelope and enters the host cell. The process ends when the viral nucleic acid is released into the host cell cytoplasm.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
    GO:0019062    virion attachment to host cell    The process by which a virion protein binds to molecules on the host cellular surface or host cell surface projection.
cellular component
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0020002    host cell plasma membrane    The plasma membrane surrounding a host cell.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019031    viral envelope    The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.
    GO:0055036    virion membrane    The lipid bilayer surrounding a virion.

Chain A,B,C,D,E,F   (HEMA_I000X | P03438)
molecular function
    GO:0046789    host cell surface receptor binding    Interacting selectively and non-covalently with a receptor on the host cell surface.
biological process
    GO:0075512    clathrin-dependent endocytosis of virus by host cell    Any clathrin-mediated endocytosis that is involved in the uptake of a virus into a host cell. Begins by invagination of a specific region of the host cell plasma membrane around the bound virus to form a clathrin-coated pit, which then pinches off to form a clathrin-coated endocytic vesicle containing the virus.
    GO:0075509    endocytosis involved in viral entry into host cell    Any endocytosis that is involved in the uptake of a virus into a host cell.
    GO:0039654    fusion of virus membrane with host endosome membrane    Fusion of a virus membrane with a host endosome membrane. Occurs after internalization of the virus through the endosomal pathway, and results in release of the virus contents into the cell.
    GO:0019064    fusion of virus membrane with host plasma membrane    Fusion of a viral membrane with the host cell membrane during viral entry. Results in release of the virion contents into the cytoplasm.
    GO:0039663    membrane fusion involved in viral entry into host cell    Merging of the virion membrane and a host membrane (host plasma membrane or host organelle membrane) that is involved in the uptake of a virus into a host cell.
    GO:0019065    receptor-mediated endocytosis of virus by host cell    Any receptor-mediated endocytosis that is involved in the uptake of a virus into a host cell; successive instances of virus endocytosis result in the accumulation of virus particles within the cell.
    GO:0046718    viral entry into host cell    The process that occurs after viral attachment by which a virus, or viral nucleic acid, breaches the plasma membrane or cell envelope and enters the host cell. The process ends when the viral nucleic acid is released into the host cell cytoplasm.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
    GO:0019062    virion attachment to host cell    The process by which a virion protein binds to molecules on the host cellular surface or host cell surface projection.
cellular component
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0020002    host cell plasma membrane    The plasma membrane surrounding a host cell.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019031    viral envelope    The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.
    GO:0055036    virion membrane    The lipid bilayer surrounding a virion.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BMA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MNA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NAG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn A:54 - Pro A:55   [ RasMol ]
    Asn C:54 - Pro C:55   [ RasMol ]
    Asn E:54 - Pro E:55   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hgh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HEMA_I000X | P03438
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  HEMA_I68A0 | P03437
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HEMA_I000X | P03438
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  HEMA_I68A0 | P03437
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HEMA_I000X | P03438: 1frg 1hgd 1hge 1hgf 1hgi 1hgj 1ken 1qfu
        HEMA_I68A0 | P03437: 1eo8 1fyt 1ha0 1hgd 1hge 1hgf 1hgg 1hgi 1hgj 1htm 1j8h 1ken 1kg0 1pyw 1qfu 1qu1 2hmg 2vir 2vis 2vit 2viu 2ypg 3eym 3hmg 3s4s 3s5l 3vun 3ztj 4c56 4hmg 5hmg

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1HGH)
